User Manual for Onkyo TX-RZ3100 11.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Onkyo TX-RZ3100 11.2-Channel Network A V
- Product category: Receivers Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Receivers
 |
User manual for the Onkyo TX-RZ3100 11.2-Channel Network A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|

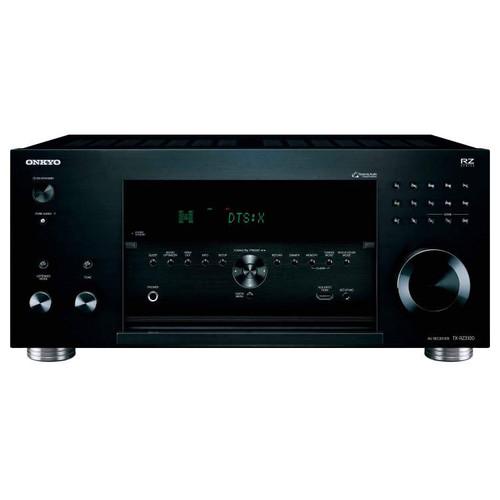

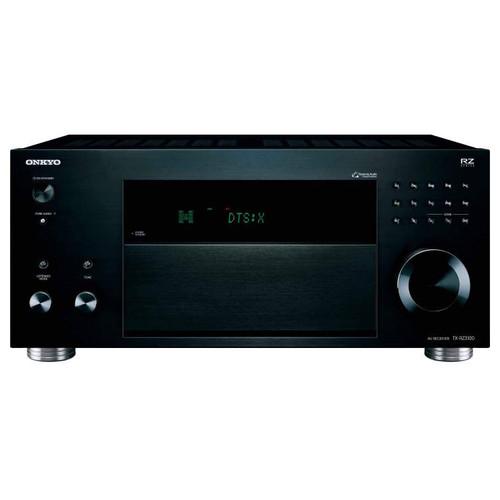

Product description Enjoy immersive multi-channel sound with the Onkyo TX-RZ3100 11.2-Channel Network A/V Receiver. It delivers up to 140W of power per channel at 8 Ohms, and features Dolby Atmos and DTS:X compatibility for object-based audio support. Built-in Bluetooth and AirPlay support allows the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets.
Onboard Wi-Fi and Ethernet connectivity allows the TX-RZ3100 to access a variety of Internet-based music sources, like Spotify Connect, Tidal, Internet radio, and more. With eight HDMI inputs and two HDMI outputs, this receiver can act as a video switcher for your HD source components. It will pass through 3D and 4K signals and upscale 1080p signals via HDMI to near-4K quality for enhanced viewing when paired with a 4K display. The receiver also has a USB port for accessing media stored on USB flash drives. AccuEQ sound optimization will calibrate the receiver to your speakers and room setup for a tailored listening experience. Note: Access to certain Internet-based content may require a subscription to a service. Not all services are available in all areas. - Multi-Zone Audio and Video
- Pre-outs for Zones 2 and 3, as well as Powered Zone 2 and 3 capability, open up distributed audio options throughout the home backed by dedicated Zone 2 and Zone 3 DACs. Select HDMI terminals support 4K/60 Hz video, 4:4:4 color space, HDCP 2.2 copy protection, and High Dynamic Range (HDR) with BT.2020 support for UHD streaming and broadcasting. A 4K and HDCP 2.2/HDR-compatible Zone 2 HDMI output allows you to enjoy A/V sources connected to the receiver in another room.
- THX-Certified for Theater-Like Sound
- THX certification is designed to guarantee the same high volume and low distortion levels you experience in a commercial theater in your listening room. THX Select2 Plus is typically recommended for screen-to-seat viewing distances of 10 to 12 feet. To achieve THX certification, amplifiers must undergo independent bench testing to satisfy THX requirements.
- High Instantaneous Current
- The TX-RZ3100's amps deliver high instantaneous current to grip and control speakers, moving them through their entire range. It's designed to provide a significant boost to the dynamism, detail, and accuracy of music and movie soundtracks for an enhanced listening experience.
- With High-Current Digital Amplification, Power Meets Control
- The TX-RZ3100 combines high-current architecture with digital amplification and filtering technology. Noise-reduction hardware, including a high-output transformer, is designed to deliver fast dynamics, thrilling power, and precise detail resolution.
- Vector Linear Shaping Circuitry
- The TX-RZ3100 features Vector Linear Shaping Circuitry, or VLSC, across all channels. VLSC is designed to virtually remove digital pulse noise for a smooth analog signal. Data is converted between sampling points, and these points are joined with analog vectors in real-time to produce a smooth output wave form. The result is a virtually noiseless, smooth analog signal based on the digital source. It can bring out even the subtlest nuances in audio sources.
- Sound from Above
- Packing 11.2 channels, the TX-RZ3100 enables the 7.2.4-channel Dolby Atmos and DTS:X experience in one self-contained component.
- FireConnect Multi-Room Audio Upgradable
- A firmware update enables almost any audio source connected to the receiver – from vinyl to streaming audio – to be sent wirelessly via FireConnect, powered by Blackfire, to an optional compatible speaker placed anywhere in your home. It's designed to be stable, fast, and easy to control with a mobile device.
- AccuEQ Calibration and Optimization
- AccuReflex, part of the AccuEQ room calibration suite, is designed to phase-match height and floor-standing speakers for a seamless reproduction of object-based sound. AccuEQ optimizes the entire system to suit your space without affecting front-speaker characteristics for pure stereo listening.
- Enhanced Performance and Ease of Installation
- The Onkyo TX-RZ3100 is designed to deliver enhanced audio performance in the configurations you want.

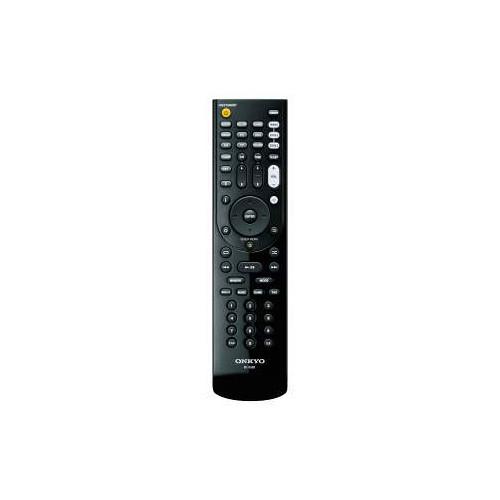

UPC: 889951000235 In the Box Onkyo TX-RZ3100 11.2-Channel Network A/V Receiver Remote Control 2 x AA Batteries Indoor FM Antenna AM Loop Antenna Speaker Setup Microphone Power Cord Limited 3-Year Warranty More from Manufacturer vfwqzcrzxcbueayqsrsywcaw Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo TX-RZ3100 11.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo TX-RZ3100 Specs | | | Output Power | 140 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2-channel driven, FTC
200 W per channel @ 6 Ohms, 1 kHz, 0.9% THD, 1-channel driven, FTC | | Dynamic Power | 320 W @ 3 Ohms, front
270 W @ 4 Ohms, front
160 W @ 8 Ohms, front | | Output Impedance | 4 to 16 Ohms | | Channels | 11.2 | | Tuner | AM / FM | | Frequency Response | 5 Hz to 100 kHz (+1, -3 dB) (direct/pure audio) | | Signal to Noise Ratio | 108 dB (line, IHF-A)
90 dB (phono, IHF-A) | | Surround Modes | DTS: DTS HD Master Audio

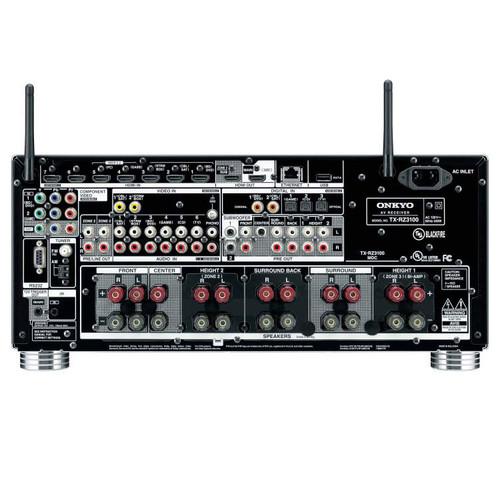

Dolby: Dolby TrueHD, Dolby Digital Plus | | Object-Based Audio Support | Dolby Atmos, DTS:X | | | | Upscaling | Yes, from 1080p to near-4K | | Pass-Through | 4K | | Deep Color / x.v. Color Support | Yes/Yes | | | | FM Frequency Range | 87.5 to 107.9 MHz | | AM Frequency Range | 530 to 1710 kHz | | AM/FM Presets | 40 | | | | Bluetooth | Yes | | Wi-Fi | Yes, IEEE 802.11 a/b/g/n, 2.4/5 GHz | | AirPlay | Yes | | Inputs | 8 x HDMI (1 front)
3 x Optical TOSLINK
2 x Digital coaxial
2 x Component video
2 x Composite video
7 x Stereo RCA audio (1 phono)
1 x USB (rear) | | Outputs | 2 x HDMI (1 ARC-compatible, 1 Zone 2)
1 x Component video
1 x Zone 2 stereo pre-out
1 x Zone 3 stereo pre-out
1 x 11.2-channel pre-out
1 x 1/4" (6.35 mm) headphone (front) | | Other Ports | 1 x Setup microphone input (front)
1 x FM tuner antenna
1 x AM tuner antenna
1 x Ethernet
1 x AC power cord
1 x IR remote in
1 x RS-232C
1 x Trigger out (12 VDC, 150 mA max) | | Speaker Connectors | 11 x Binding post pairs | | HDMI CEC | Yes | | Audio Return Channel (ARC) | Yes, on main HDMI output | | HDCP Compliance | HDCP 2.2 on inputs 1 to 5 | | 3D Support | Yes | | Input Sensitivity and Impedance | 200 mV / 82 kOhms (line)
3.5 mV / 47 kOhms (phono MM) | | Output Level and Impedance | Component Y, Composite Video: 1.0 Vp-p/75 Ohms
Component PB/CB, PR/CR: 0.7 Vp-p/75 Ohms | | Component Video Frequency Response | 5 Hz to 100 MHz, +0 dB, -3 dB | | RCA Output Level and Impedance | Pre-Out: 1.0 V/330 Ohms
Subwoofer Pre-Out: 1.0 V/330 Ohms
Zone Out: 200 mV/1.2 kOhms
Zone Pre-Out: 2.0 V/1.2 kOhms | | Phono Overload | 70 mV (MM, 1 kHz, 0.5%) | | Tone Control | Bass: ±10 dB, 100 Hz
Treble: ±10 dB, 10 kHz | | | | On-Screen Display | Yes | | Power Requirements | 120 VAC, 50/60 Hz | | Power Consumption | Operational: 340 W
Standby: 0.15 W | | Dimensions (W x H x D) | 17.125 x 7.94 x 17.81" (565 x 325 x 547 mm) | | Weight | 43 lb (19.5 kg) | | | | Package Weight | 48.5 lb | | Box Dimensions (LxWxH) | 21.6 x 21.5 x 13.0" |
