User Manual for Onkyo TX-RZ730 9.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Onkyo TX-RZ730 9.2-Channel Network A V
- Product category: Receivers Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Receivers
|
User manual for the Onkyo TX-RZ730 9.2-Channel Network A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|

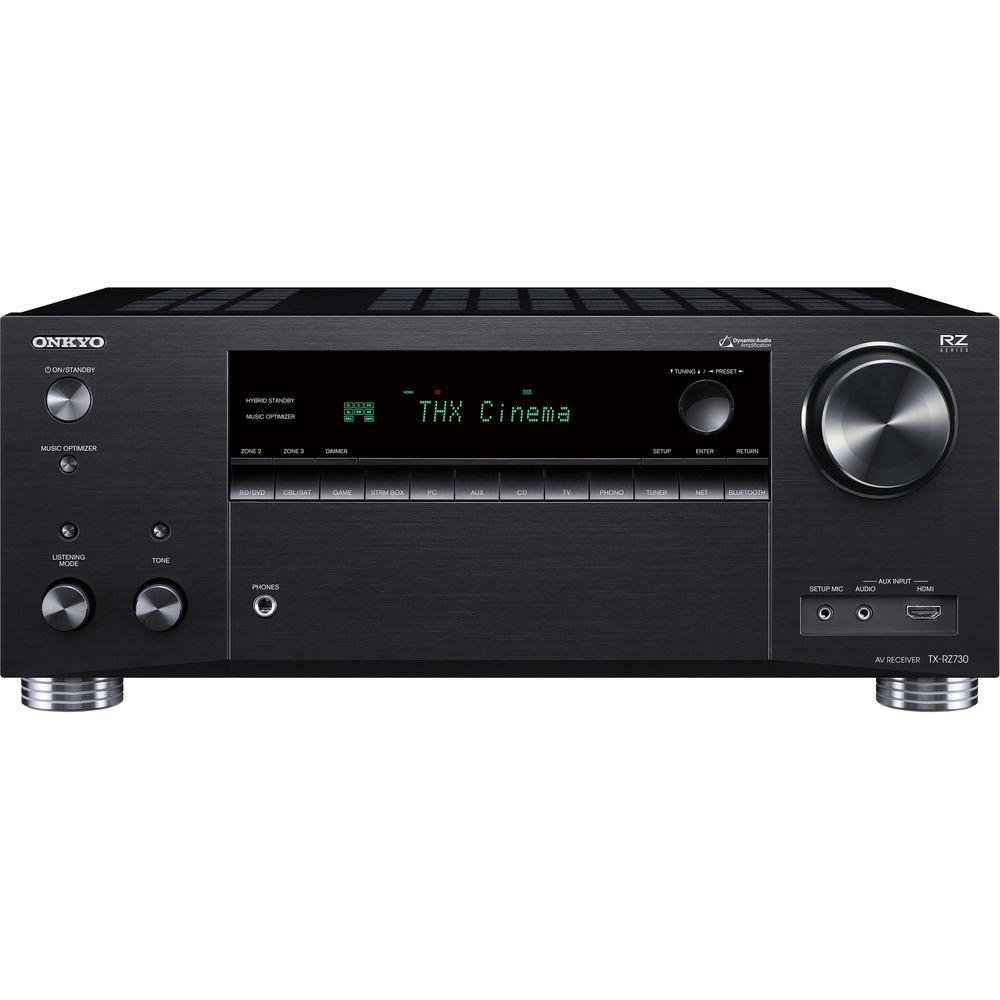

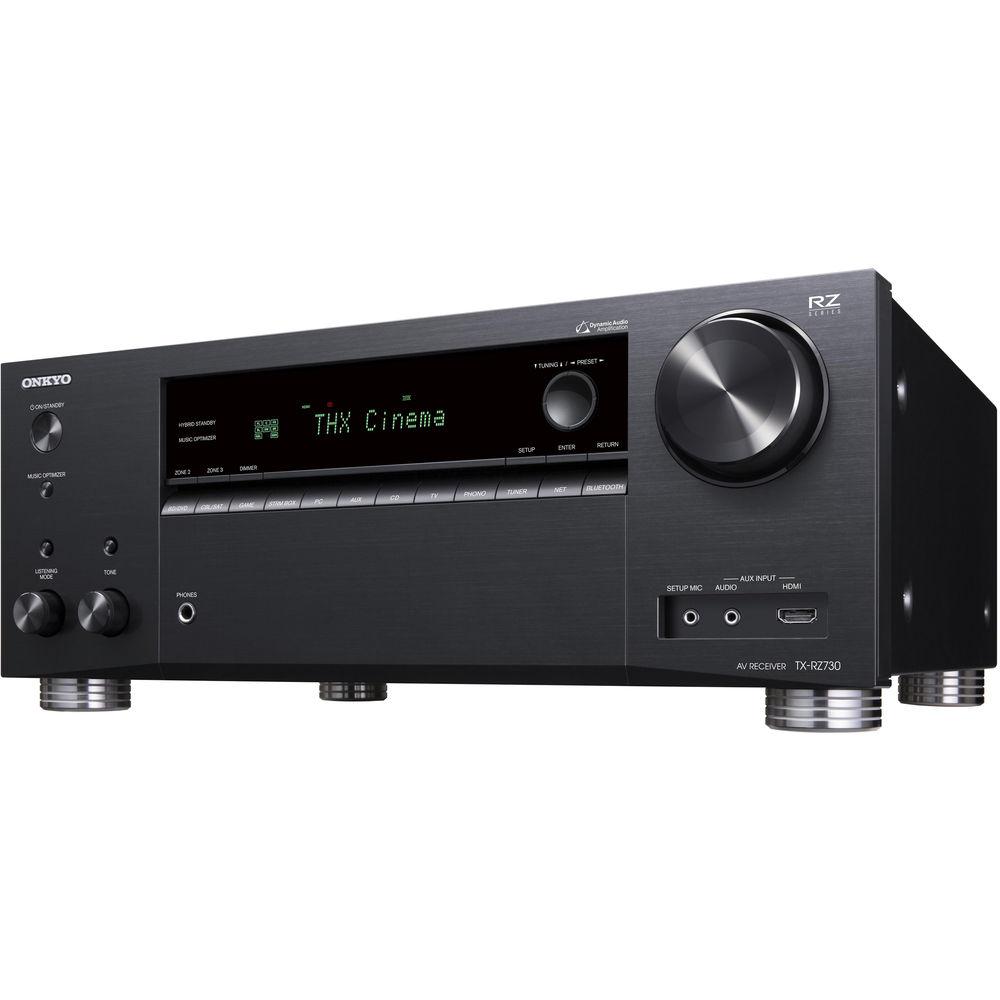

Product description Enjoy UHD, HDR, and 3D support via HDMI with the Onkyo TX-RZ730 9.2-Channel Network A/V Receiver. It produces up to 100W of power per channel at 8 Ohms for room-filling sound. AccuEQ Advance sound calibration allows you to tailor the sound to your room's specific acoustics.
Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices, while built-in Wi-Fi connectivity provides access to your Spotify, TIDAL, and other online services. Chromecast built-in enables the receiver to be controlled with your voice with your Google Assistant-enabled device. The TX-RZ730 is equipped with seven HDMI inputs and two HDMI outputs. One of the HDMI outputs supports ARC for the reproduction of TV-based audio, such as your TV's built-in apps. Note: Access to certain Internet-based content may require a subscription to a service. Not all services are available in all areas. - THX Certified Select Theater-Reference Audio
- THX Certified Select virtually guarantees theater-reference sound in your home. To gain certification, amplifiers must pass bench tests covering every aspect of performance. THX Certified Select components are designed to suit rooms where the screen-to-seat distance is about 10' and volume 2000 cubic feet.
- Engineered for Quality
- The TX-RZ730 uses a custom high-current transformer and block capacitors, among other premium parts, to deliver a 5 Hz to 100 kHz frequency response range for enhanced bass, treble, and dynamics. The TX-RZ730 supports a variety of home theater and multi-room layouts to suit you, while details such as a 12 V trigger, RS-232 port, IP control, and IR input help simplify home integration.
- Dynamic Audio Amplification (DAA)
- Dynamic Audio Amplification places less emphasis on lab measurements and more on how the sound feels in real life. High-current architecture and fine-tuning help deliver natural transient response, the key to lifelike sound. This reserve of power is designed to arrive instantly when action happens on the screen, which helps to create a more exciting movie experience. Control is maintained with the transformer and capacitors, non-phase-shift amp circuitry, and discrete output transistors. Rated to drive up to nine four-ohm speakers simultaneously, and with VLSC (Vector Linear Shaping Circuitry) digital noise filtering for source-faithful clarity, DAA helps provide sound with both power and sensitivity.
- Dolby Atmos and DTS:X at up to 7.2.4 Channels
- With 7.2.2-channel or 5.2.4-channel Dolby Atmos and DTS:X compatibility, individual sounds aren't tied to a specific channel and seem to move above and around you with enhanced realism. Connect an outboard power amp via the 11.2-channel pre-outs for virtually seamless front-to-back, side-to-side, and floor-to-ceiling coverage with four in-ceiling speakers and seven floor-standers.
- Dolby & DTS Solutions for 3D Sound
- DTS Neural:X technology and Dolby Surround are designed to find spatial cues in legacy soundtracks and upmix them for playback through speaker systems with height channels. Since these decoding options are cross-compatible with other sound formats from Dolby and DTS, you can enjoy spatially realistic sound from your existing DVD and Blu-ray library, or via a movie streaming service.
- Chromecast built-in Works with the Google Assistant
- Stream music from your compatible smartphone, laptop, or computer to the receiver. Control playback with Chromecast-enabled apps from your iOS or Android phone or tablet, Mac or Windows computer, or Chromebook. If you have a device with the Google Assistant built-in, you can control music on the TX-RZ730 by voice.
- Ready for DTS Play-Fi Multi-Room Audio Technology
- DTS Play-Fi technology allows you to enjoy music from your online services, media server, and mobile device to any number of compatible products using the Onkyo Music Control app. DTS Play-Fi technology can synchronize music in every room, and family members can use their own device to listen in a room or group of rooms. Multi-room functionality requires additional equipment.
- FlareConnect Wireless Multi-Room Audio
- FlareConnect shares audio from network and external audio input sources between compatible components. Enjoy simple multi-room playback of records, CDs, network music services, and more with supported components and speaker systems. Music selection, speaker grouping, and playback management across the home are built into the Onkyo Controller app.
- Powered Sound in Three Zones
- With a 5.2-channel layout in Zone 1, the remaining four channels can drive speakers in Zone 2 and Zone 3. Along with analog distribution, dedicated DACs enable digital sources (except HDMI and S/PDIF audio in Zone 3) to be synced across rooms simultaneously, or a unique source to be played in every zone at once. Zone 2 and Zone 3 line-level outputs are well suited for sharing sources to an existing hi-fi system.
- AccuEQ Advance Sound Calibration
- AccuEQ sets speaker distance, SP level, and crossover. In addition, AccuEQ Advance employs multipoint measurement to remove standing waves from your listening space, which compromise audio quality and bass response. The technology also detects and compensates for background noise, such as the hum from an HVAC, to help ensure accurate equalization.
- Wi-Fi and Bluetooth Wireless Connectivity
- Built-in dual-band 5 / 2.4 GHz Wi-Fi helps provide network stability for streaming, the Onkyo Controller app, and multi-room audio. Bluetooth wireless technology is also on-board for simplified mobile or laptop connection.
- AirPlay, Streaming Services, and Internet Radio Built-In
- Music lovers have easy access to their iTunes library. Find and stream music from your iPad, iPhone, Mac, and Windows computer over the Apple AirPlay wireless audio platform. Additionally, Amazon Music, Spotify, TIDAL, Deezer, Pandora, and TuneIn are all built into the system GUI, making selection easy using the Onkyo Controller or the Onkyo Music Control app.
- HDR UHD, BT.2020, 4K/60 Hz, and HDCP 2.2 Support
- The receiver's HDMI inputs, Main Out, and Sub/Zone 2 out pass HDR10, HLG, and Dolby Vision formats through to compatible displays. These terminals support the BT.2020 4K video standard, 4K/60 Hz playback, and HDCP 2.2.
- Processing Features
-
- AKM AK4458 384 kHz/32-bit multichannel DAC
- PLL (Phase Locked Loop) jitter-cleaning technology for S/PDIF audio
- 32-bit digital signal processing (DSP)
- Listening modes for gaming: Rock, Sports, Action, and RPG
- Theater-Dimensional virtual surround-sound function
- Direct Mode for audio reproduction close to original source quality
- Independent tone controls (bass/treble) for all channels

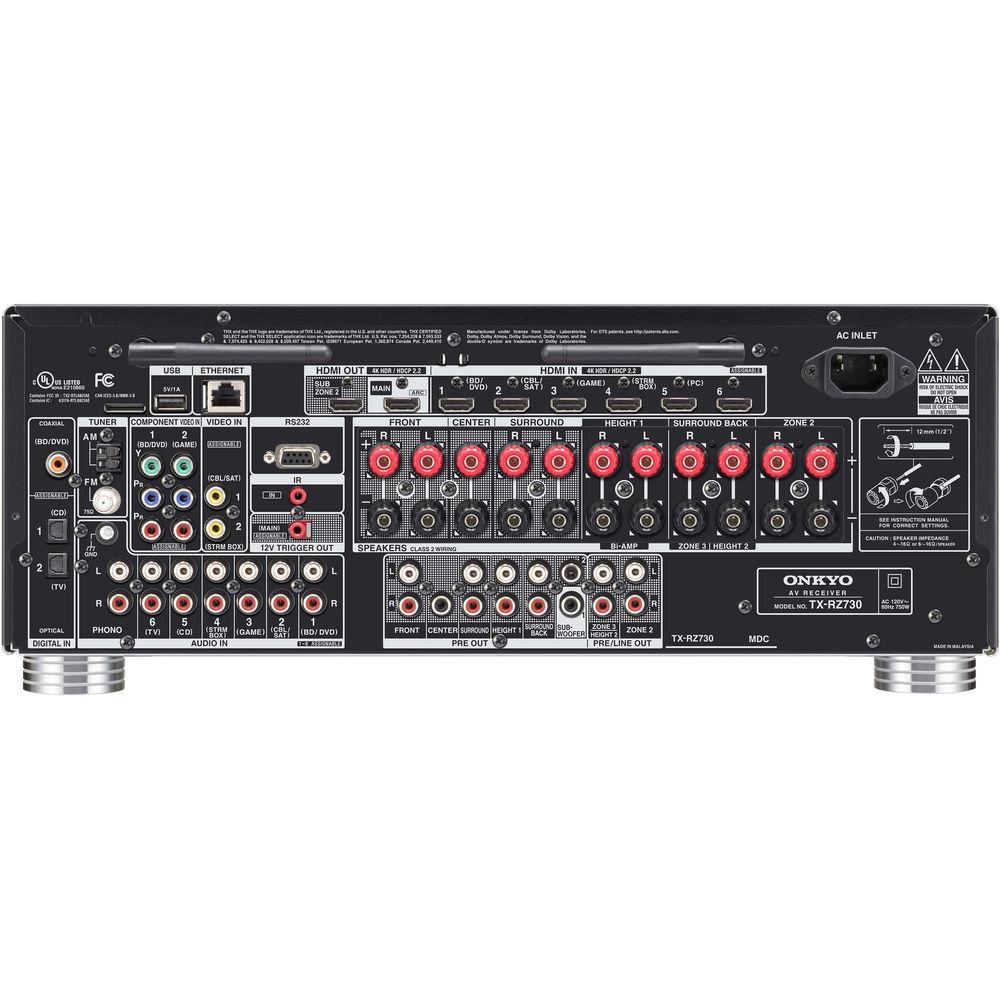

- Connection Features
-
- Powered USB terminal (5 V, 1 A) for audio playback
- MM phono input and equalizer for turntable connection
- Banana-plug-compatible speaker posts
- Detachable power cable
- Advanced Features
-
- Hi-Res Audio playback including DSD 5.6 MHz / 2.8 MHz, 192 kHz / 24-bit FLAC, WAV (RIFF), AIFF, ALAC, and Dolby TrueHD
- Advanced Music Optimizer helps enhance compressed digital audio quality, including for Bluetooth
- Supports front L/R bi-amping
- 480i to 480p de-interlacing via HDMI for legacy video formats
- Additional Features
-
- Crossover adjustment for each channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
- A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz)
- Graphical User Interface with overlaid On-Screen Display via HDMI
- Quick Setup Guide via GUI
- Economical HDMI pass-through and Network Standby functions
- 3-mode display dimmer (Normal/Dim/Dimmer)
- Optional rack-mounting kit available
UPC: 889951001317 In the Box Onkyo TX-RZ730 9.2-Channel Network A/V Receiver Remote Control 2 x AAA Batteries Indoor FM Antenna AM Loop Antenna Speaker Setup Microphone Power Cord Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo TX-RZ730 9.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo RZ Series Specs | Channels | 9.2 | Power Output per Channel | 100 W per channel (8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 channels driven, FTC) 225 W per channel (6 Ohms, 1 kHz, 10% THD, 1 channel driven) | Dynamic Power per Channel | 130 W (8 Ohms, front) 220 W (4 Ohms, front) 250 W (3 Ohms, front) | THD & Noise | 0.08% (20 Hz to 20 kHz, half power) | Frequency Response | 5 Hz to 100 kHz / +1 dB, -3 dB (Direct Mode) | Tone Control | Bass: ±10 dB, 20 Hz Treble: ±10 dB, 20 kHz | Signal-to-Noise Ratio | 106 dB (line, IHF-A) 80 dB (phono, IHF-A) | Speaker Impedance | 4 to 16 Ohms | | Dolby | Dolby Atmos, Dolby TrueHD | DTS | DTS:X, DTS-HD Master Audio | | Input Sensitivity/Output Level and Impedance | Component Y: 1.0 Vp-p/75 Ohms Component B/R: 0.7 Vp-p/75 Ohms Composite: 1.0 Vp-p/75 Ohms | | Tuning Frequency Range | FM: 87.5 to 107.9 MHz AM: 530 to 1710 kHz | FM/AM Preset Memory | 40 stations | | Wi-Fi | Dual-band 2.4 / 5 GHz | Bluetooth | Version: 4.1 + LE Profile: A2DP v1.2, AVRCP v1.3 | AirPlay | Yes | Inputs | 7 x HDMI (1 front) 2 x component video 2 x composite video 2 x optical TOSLINK 1 x digital coaxial 6 x stereo RCA 1 x stereo RCA phono (MM) with ground screw 1 x 1/8" / 3.5 mm audio (front) 1 x USB | Outputs | 2 x HDMI 2 x subwoofer pre-out 1 x 9-channel RCA pre-out 1 x stereo RCA Zone 2 line/pre-out 1 x stereo RCA Zone 3 / Height 2 line/pre-out 1 x 1/4" / 6.35 mm headphone (front) | Other Interfaces | 1 x Ethernet 1 x setup mic in (front) 1 x 1/8" / 3.5 mm IR in 1 x RS-232 in 1 x 1/8" / 3.5 mm 12 V trigger out 1 x AM antenna 1 x FM antenna | Speaker Connectors | 11 x binding post pairs | Input Sensitivity and Impedance | 200 mV/47 kOhms (Line) 3.5 mV/47 kOhms (Phono) | RCA Output Level and Impedance | Zone Line Out, Rated: 1 V/2.3 kOhms Subwoofer Pre Out, Rated: 1 V/470 Ohms Zone Pre-/Line-Out, Rated: 1 V/200 mV/2.3 kOhms | | Power Requirements | 120 VAC, 60 Hz | Power Consumption | Typical: 750 W On, No Sound: 70 W Standby: 0.15 W | Dimensions (W x H x D) | 17.1 x 6.9 x 14.9" / 435 x 177 x 379.5 mm | Weight | 23.8 lb / 10.8 kg | | Package Weight | 28.5 lb | Box Dimensions (LxWxH) | 21.75 x 18.5 x 10.75" |
