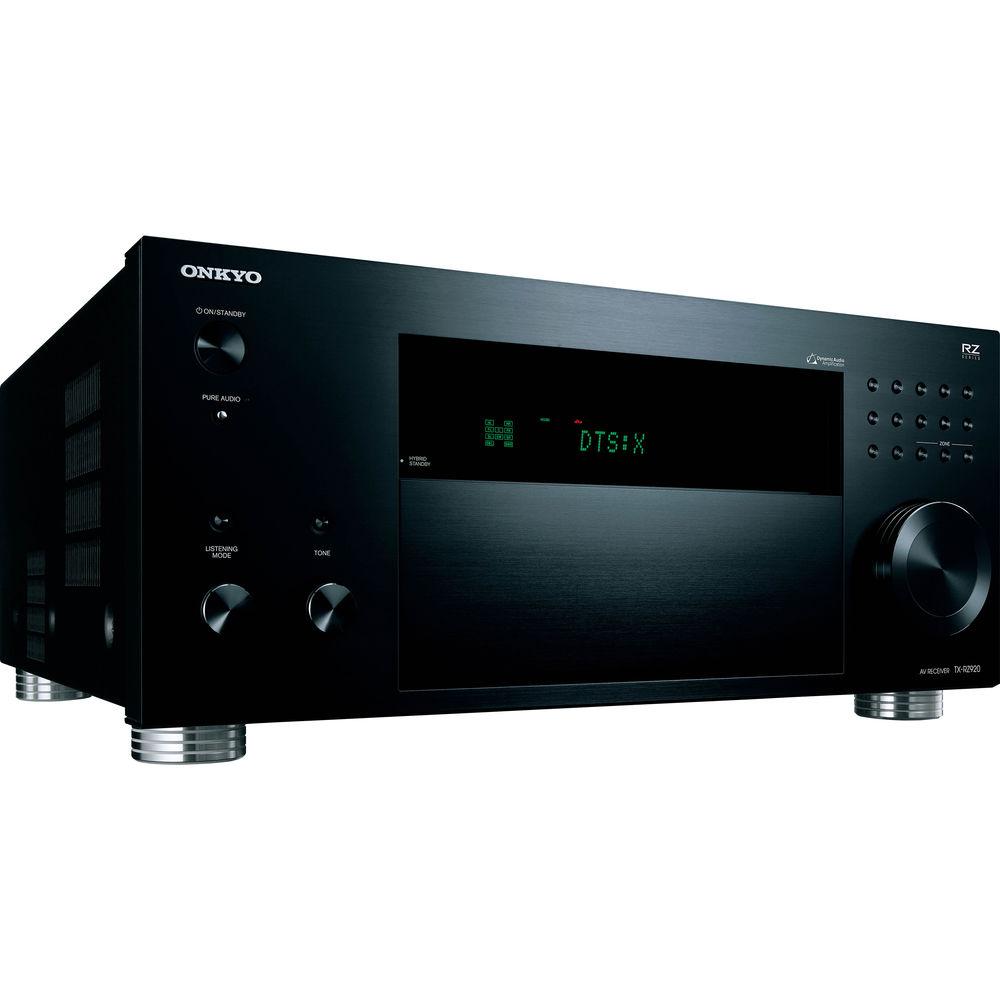

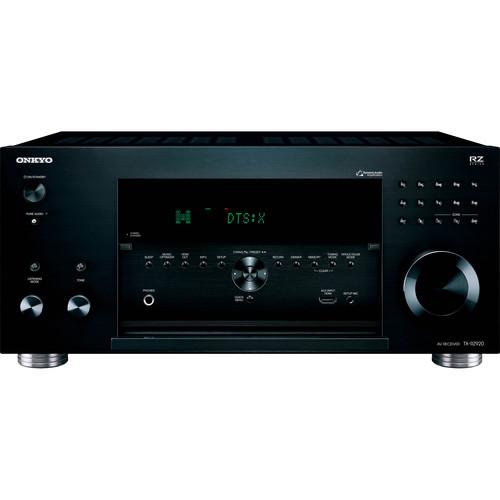

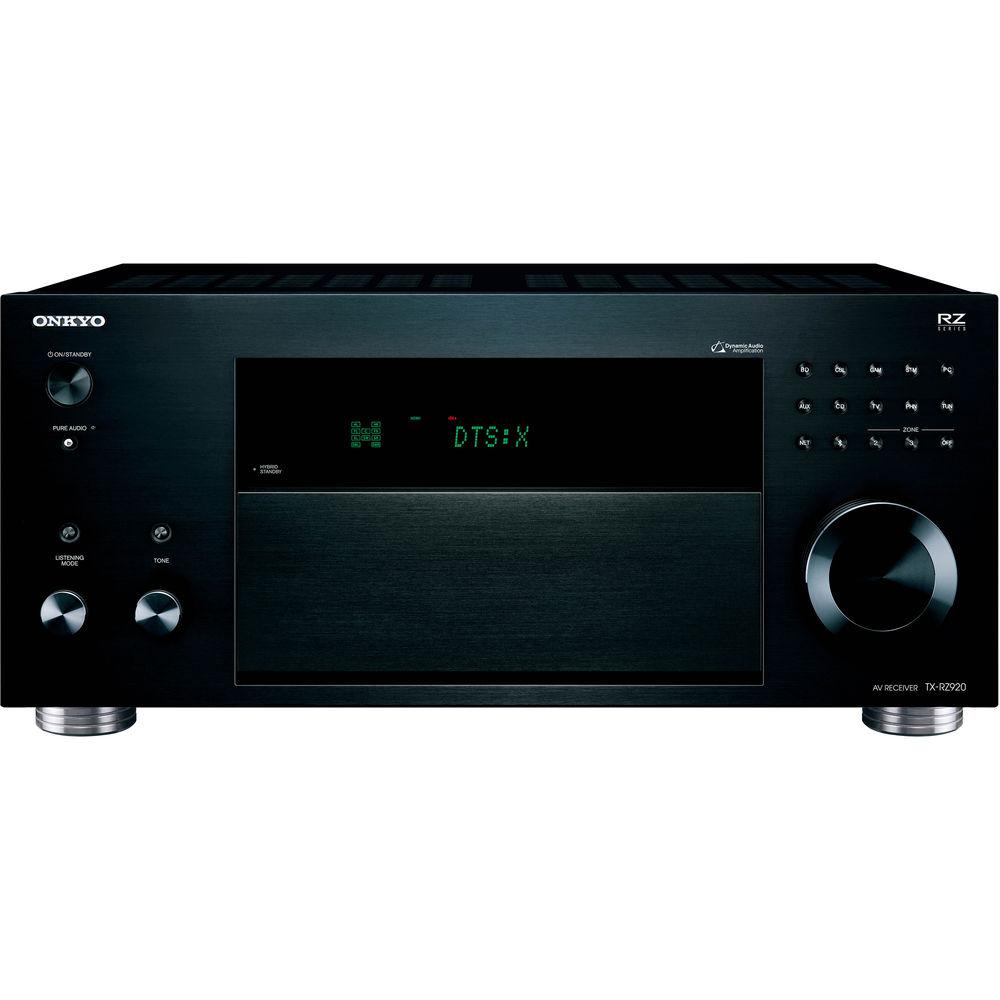

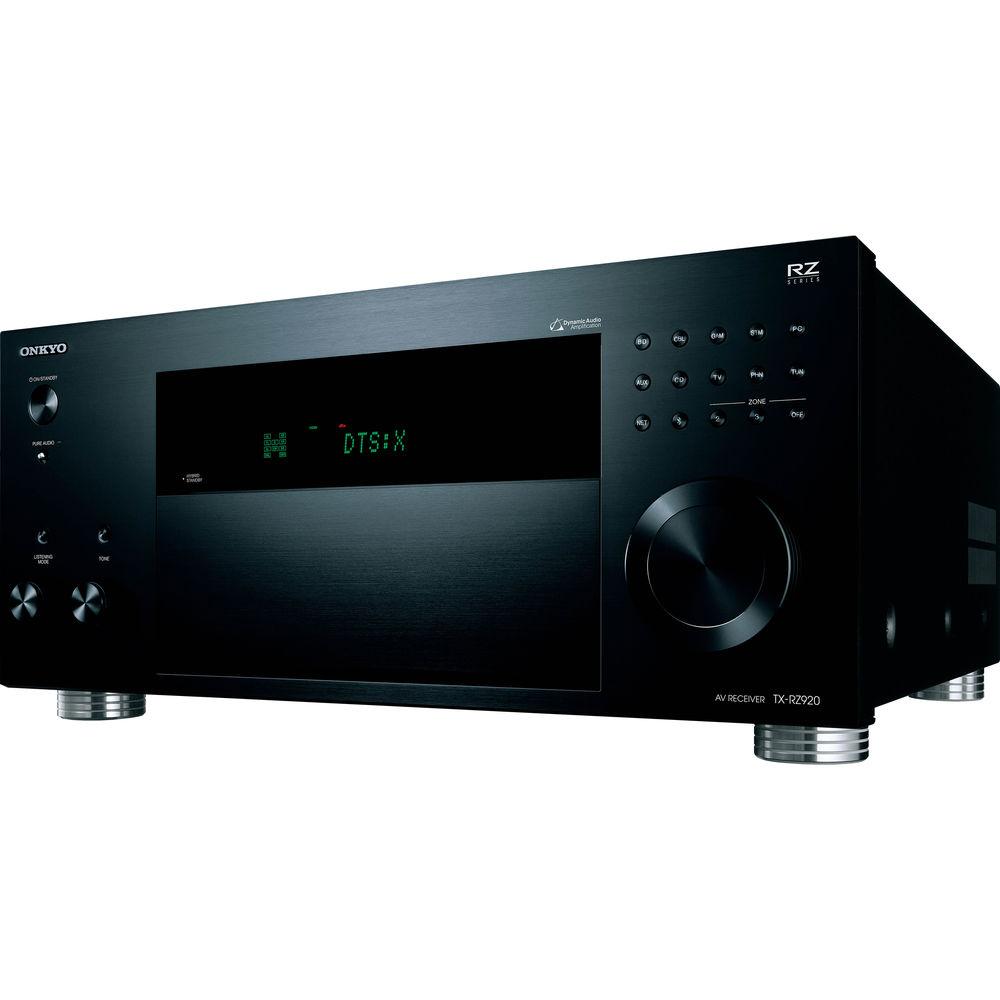

User Manual for Onkyo TX-RZ920 9.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Onkyo TX-RZ920 9.2-Channel Network A V
- Product category: Receivers Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Receivers
 |
User manual for the Onkyo TX-RZ920 9.2-Channel Network A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|
Product description Achieve 4K Ultra HD pass-through plus HDR10, HLG, and Dolby Vision support via HDMI with the Onkyo TX-RZ920 9.2-Channel Network A/V Receiver. It produces up to 135W of power per discrete channel at 8 Ohms for room-filling sound. AccuEQ sound optimization will allow you to tailor the sound to your room's specific acoustics.
Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices while built-in Wi-Fi connectivity provides access to apps such as Spotify, TIDAL, and others. You can also attach a USB drive to the USB port on the back panel to play your stored multimedia files. The TX-RZ920 is equipped with eight HDMI inputs and two HDMI outputs. One of the HDMI outputs supports ARC for the reproduction of TV-based audio, such as your TV's built-in apps. Note: Access to certain Internet-based content may require a subscription to a service. Not all services are available in all areas. - Customized High-Current Capacitors and Large Transformer
- To supply the current needed to respond to dynamic changes in the signal, Onkyo employs a customized transformer and large capacitors to help prevent strained or unbalanced audio.
- THX Certified Select Reference Sound
- THX Certified Select is designed to guarantee the same high-volume sound you experience at a commercial theater, but in your home. THX Certified Select components are suited to rooms where the screen-to-seat viewing distance is approximately 10' and the room volume is approximately 2000 ft³.
- Dolby Atmos and DTS:X Object-Based Surround Sound
- The TX-RZ920 can reproduce 5.2.4-channel Dolby Atmos or DTS:X formats, with AccuReflex correcting the phase of direct and indirect sounds for cohesive audio imaging with Dolby Atmos-enabled speakers.
- Upmixing Solutions for Legacy Soundtracks
- DTS Neural:X identifies spatial effects in multichannel soundtracks and upmixes for 3D playback through object-audio-ready speaker systems. Dolby Surround also upmixes legacy sound formats so you can experience multidimensional playback of legacy sound formats in a Dolby Atmos environment.
- Music Made Easy with Chromecast built-in
- Stream any music from your smartphone, laptop, or computer to the TX-RZ920 with ease. Control playback with Chromecast-enabled apps you know from your iPhone, iPad, Android phone or tablet, Mac or Windows laptop, or Chromebook.
- Wi-Fi, AirPlay, and Bluetooth
- Dual-band 2.4/5 GHz Wi-Fi helps ensure stable connectivity so you can enjoy smooth streaming over AirPlay and the local network. Bluetooth wireless technology also provides streaming from your choice of music application.
- Internet Radio and Streaming Services
- Spotify, TIDAL, Deezer, Pandora, and TuneIn are onboard to help make selecting from a range of music and radio programs using the Onkyo Controller app simple.
- HDR10, HLG, Dolby Vision, BT.2020, 4K/60 Hz, and HDCP 2.2 Support
- Five of the seven rear HDMI terminals support pass-through of HDR10, HLG (Hybrid Log-Gamma), Dolby Vision, BT.2020 4K color, 4K/60 Hz video, and HDCP 2.2 for premium video content. HDMI I/O also supports 3D, Deep Color, x.v.Color, LipSync, DVD-Audio, SACD, multichannel PCM, and analog-to-HDMI upconversion. Further, a front HDMI terminal is convenient for video camera connection, while the Zone 2 output distributes home theater video to a display in a second room.
- Enhanced Connectivity for Custom Setups
- With 11.2-channel pre-outs, 12V triggers, IR input, and an optional rack-mount kit, the TX-RZ920 is designed to easily integrate other components (such as outboard amps) to create a full wired multi-room setup thanks to powered Zone 2/3 and Zone 2/3 pre-/line outputs governed by a Whole Home Audio Mode.
- Stream Anything with DTS Play-Fi, Available via a Future Firmware Update
- DTS Play-Fi is a wireless protocol designed to work with any audio app on mobile devices and computers. Flick whatever's playing to the receiver, even different sources to different components at the same time.
- FireConnect Wireless Multi-Room Audio, Available via Future Firmware Update
- Any audio source can be connected to the receiver to be sent wirelessly via FireConnect, powered by Blackfire, to an optional compatible speaker placed anywhere in your home. Music selection, speaker grouping, and playback management across the home are built into the Onkyo Controller app for iOS and Android.
- Amplifier Features
-
- Separate transformer for standby mode
- Separated digital and analog circuitry to help reduce interference
- Extruded metal heat sink with polycarbonate cooling fan
- Enhanced gain volume circuitry
- VLSC (Vector Linear Shaping Circuitry) noise-free signal processing for all channels
- PLL (Phase Locked Loop) jitter-cleaning circuitry for S/PDIF audio
- Processing Features
-
- 384 kHz/32-bit D/A conversion with AK4490 (front L/R); 768 kHz/32-bit D/A conversion with AK4458 (other channels)
- Discrete 192 kHz/24-bit AK4388 stereo DACs for Zone 2 and Zone 3
- Multiple 32-bit digital signal processing engines
- 4 DSP modes for gaming: Rock, Sports, Action, and RPG
- Theater-dimensional virtual surround function
- Enhanced reproduction of audio-only sources in Pure Audio Mode
- Discrete Mode for audio reproduction close to original source quality
- Connection Features
-
- Mass storage USB memory playback capability
- Phono (MM) input for turntables
- Dual subwoofer pre-outs
- Banana-plug-compatible speaker posts
- Two 12V trigger outputs (100 mA, 25 mA) with IR input; supports IP and RS-232 control
- Additional Features
-
- Independent crossover adjustment for all channels (40/50/60/70/80/90/100/120/150/180/200 Hz)
- Graphical overlaid on-screen display (OSD) via HDMI with quick setup function
- Hybrid standby function with HDMI pass-through
- RIHD (Remote Interactive over HDMI) for system control
- Zone 2 HDMI output distributes 4K/60 Hz video to a second display
- Network/USB audio playback supporting Hi-Res Audio 192 kHz/24-bit FLAC, WAV, AIFF, and ALAC; Dolby TrueHD; DSD 2.8/5.6/11.2 MHz (11.2 MHz for native playback only); and AAC (up to 96 kHz/24-bit), MP3, and WMA
- Independent volume/tone controls for Zone 2 and Zone 3 audio
- AccuEQ calibration with AccuReflex for seamless object-based, multichannel, and stereo sound
UPC: 889951001089 In the Box Onkyo TX-RZ920 9.2-Channel Network A/V Receiver Remote Control 2 x AAA Batteries Speaker Setup Microphone Indoor FM Antenna AM Loop Antenna Power Cord Limited 3-Year Warranty More from Manufacturer rsuutbszrxbszzrdutuuwwffvuxtebxaee Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo TX-RZ920 9.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo RZ Series Specs | | | Channels | 9.2 | | Power Output per Channel | 135 W per channel (8 Ohms, 1 kHz, 0.08% THD, 2-channels driven, FTC)
175 W per channel (6 Ohms, 1 kHz, 0.9% THD, 1-channel driven, FTC) | | Dynamic Power per Channel | 150 W (8 Ohms, front)
260 W (4 Ohms, front)
320 W (3 Ohms, front) | | THD & Noise | 0.04% (1 kHz, 100 W) | | Input Sensitivity and Impedance | 200 mV/82 kOhms (Line)
3.5 mV/47 kOhms (Phono MM) | | RCA Output Level and Impedance | Pre-Out, Rated: 1 V/330 Ohms
Subwoofer Pre Out, Rated: 1 V/330 Ohms
Zone Line Out, Rated: 200 mV/1.2 kOhms
Zone Pre-Out, Rated: 2 V/1.2 kOhms | | Phono Overload | 70 mV (MM, 1 kHz, 0.5%) | | Tone Control | Bass: ±10 dB, 100 Hz
Treble: ±10 dB, 10 kHz | | Signal-to-Noise Ratio | 107 dB (line, IHF-A)
90 dB (phono MM, IHF-A) | | Speaker Impedance | 4 to 16 Ohms | | | | Dolby | Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround | | DTS | DTS:X, DTS-HD Master Audio, DTS Neural:X | | | | Input Sensitivity/Output Level and Impedance | Component Y: 1.0 Vp-p/75 Ohms
Component PB/CB, PR/CR: 0.7 Vp-p/75 Ohms
Composite: 1.0 Vp-p/75 Ohms | | | | Tuning Frequency Range | FM: 87.5 to 107.9 MHz

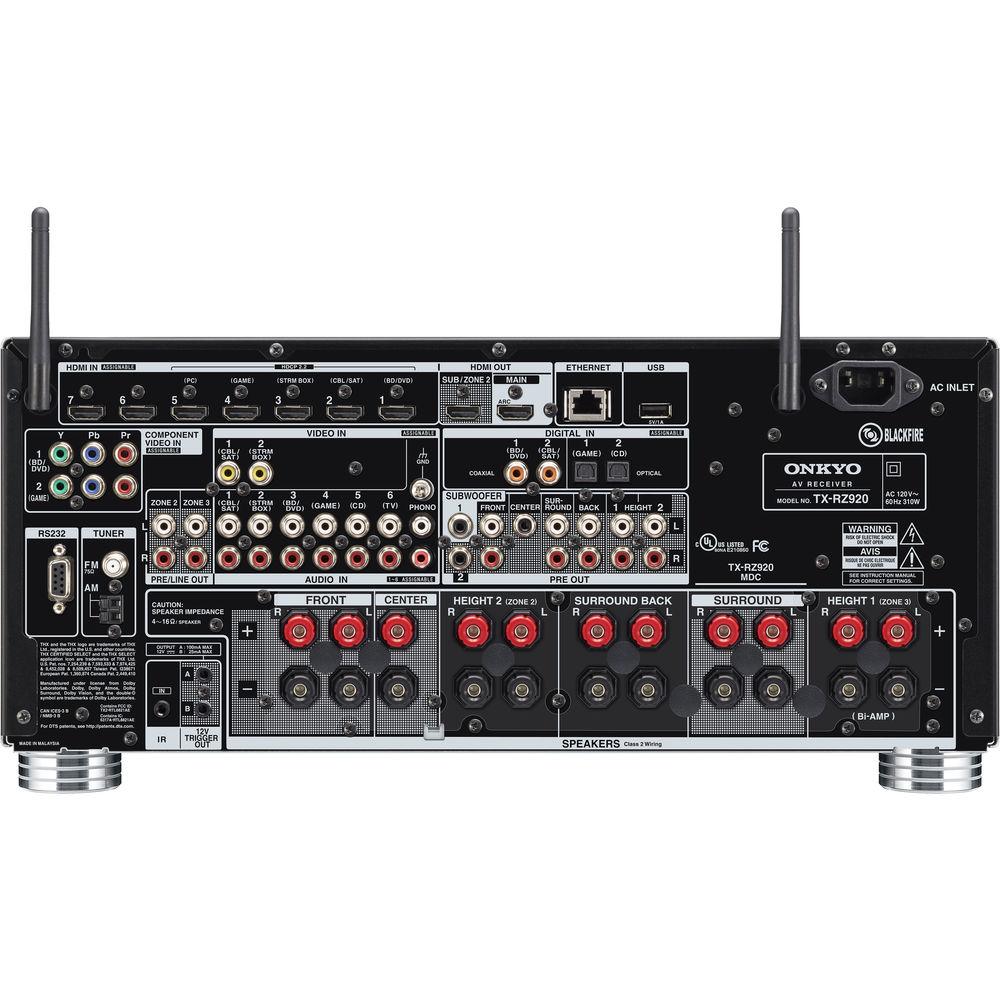

AM: 530 to 1710 kHz | | FM/AM Preset Memory | 40 stations | | | | Wi-Fi | Yes, dual-band (2.4 and 5 GHz) | | Bluetooth | Yes | | Apple AirPlay Certified | Yes | | Inputs | 7 x HDMI (1 front)
2 x component video
2 x composite video
2 x digital coaxial
2 x optical TOSLINK
6 x stereo RCA
1 x stereo RCA phono
1 x USB | | Outputs | 2 x HDMI
1 x 11-channel pre-out
1 x stereo RCA zone 2 line out
1 x stereo RCA zone 3 line out
2 x subwoofer pre-out
1 x 1/4" (6.35 mm) headphone (front) | | Other Interfaces | 1 x Ethernet
1 x 1/8" (3.5 mm) setup mic in (front)
1 x 1/8" (3.5 mm) IR in
1 x RS-232 in
2 x 1/8" (3.5 mm) 12 V trigger out
1 x AM antenna
1 x FM antenna
1 x phono ground screw | | Speaker Connectors | 11 x binding post pairs | | Zone 2 Audio Output | Powered and pre-out | | Zone 3 Audio Output | Powered and pre-out | | Bi-Amp Capability | Yes, via Height 1/Zone 3 speaker outputs | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Typical: 310 W
On, No Sound: 80 W
Standby: 0.1 W | | Dimensions (W x H x D) | 17.13 x 7.9 x 17.84" (435 x 201 x 453 mm) | | Weight | 35.9 lb (19 kg) | | | | Package Weight | 41.09 lb | | Box Dimensions (LxWxH) | 22.0 x 22.0 x 12.0" |
