User Manual for Onkyo TX-SR373 5.2-Channel A V Receiver Click to enlarge the picture
Contents of the user manual for the Onkyo TX-SR373 5.2-Channel A V Receiver
- Product category: Receivers Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Receivers
 |
User manual for the Onkyo TX-SR373 5.2-Channel A V Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|

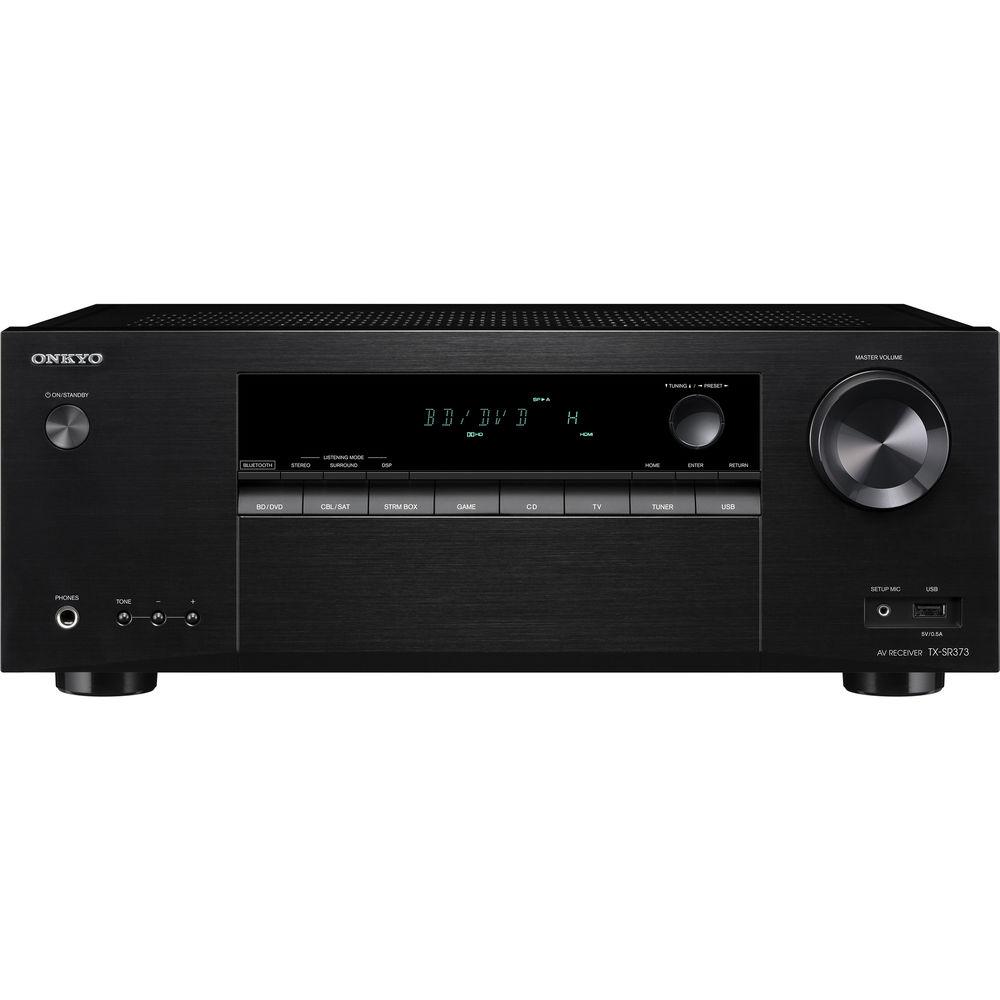

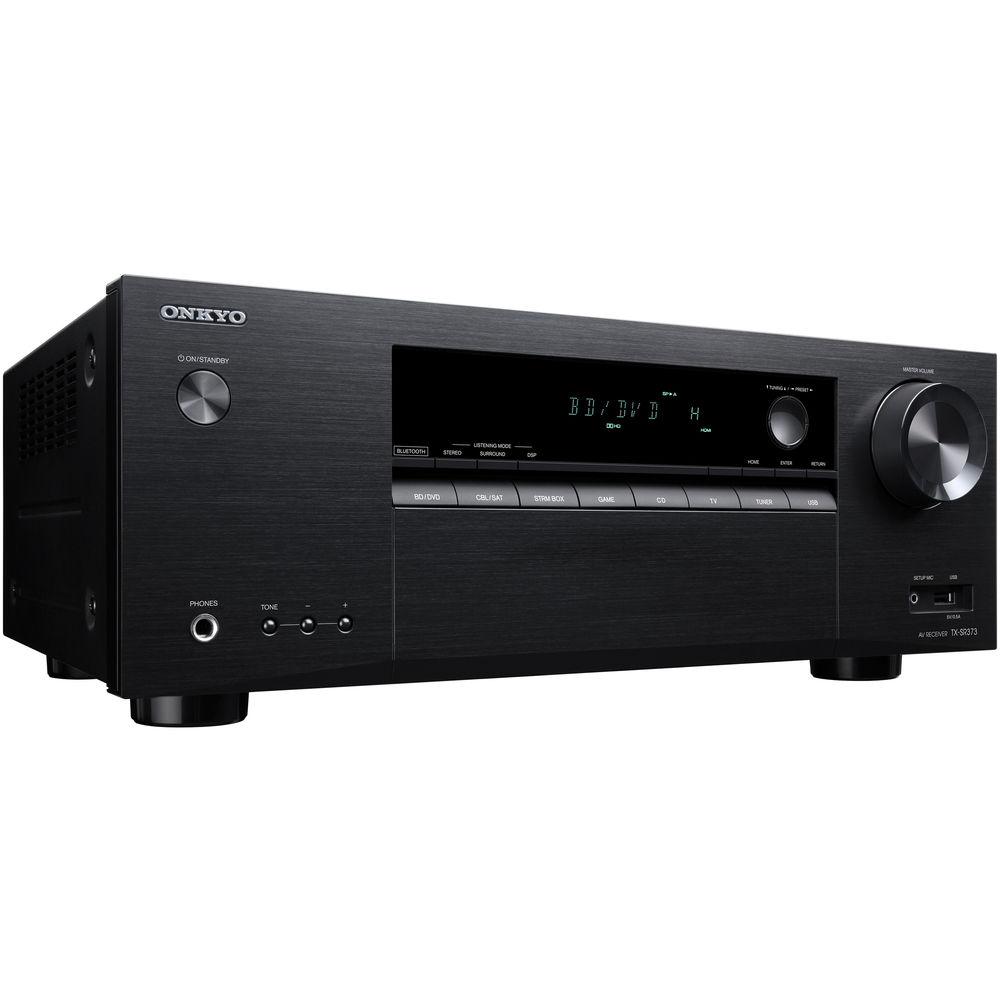

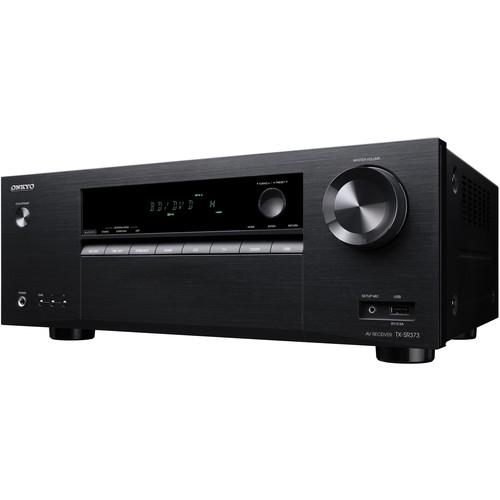

Product description Achieve 4K Ultra HD pass-through with HDR and 3D support via HDMI with the Onkyo TX-SR373 5.2-Channel A/V Receiver. It produces up to 80W of power per discrete channel at 8 Ohms for room-filling sound. AccuEQ sound optimization will allow you to tailor the sound to your room's specific acoustics. Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices. You can also attach a USB drive to the USB port on the front panel to play your stored audio files.
The TX-SR373 is equipped with four HDMI inputs and one HDMI output. The HDMI output supports ARC for the reproduction of display-based audio, such as your TV's built-in streaming apps. It's rear-panel easy connection guide will help you connect your receiver quickly and easily. - Movie Soundtracks at Studio Resolution
- The TX-SR373 can decode Dolby TrueHD and DTS-HD Master Audio – two lossless multi-channel Blu-ray formats that are designed to deliver movie sound as the director intended.
- HDMI Connectivity
- The receiver's HDMI terminals support 4K/60 Hz, HDR, 3D, BT.2020, CEC, DVD-Audio, SACD, multichannel PCM, and HDCP 2.2. The HDMI output supports Audio Return Channel (ARC) for the reproduction of display-based audio.
- Discrete Analog Amplifiers
- The receiver's discrete analog amps are designed to deliver high instantaneous current to the speakers for dynamic audio reproduction.
- Enjoy Music via the USB Input
- Connect a compatible USB memory device filled with MP3, WMA, or AAC audio files to enjoy your music with simple connectivity. D/A conversion and a selection of DSP listening programs help further enhance sound to suit different kinds of music.
- Bluetooth Audio Streaming with aptX
- Bluetooth with aptX is designed to deliver virtually lossless low-latency playback, while the Advanced Music Optimizer mode helps enrich any compressed audio for an enhanced musical experience.
- Dual Subwoofer Output
- The second subwoofer output can be run simultaneously with the first, allowing for more bass for your favorite movies, shows, and music.

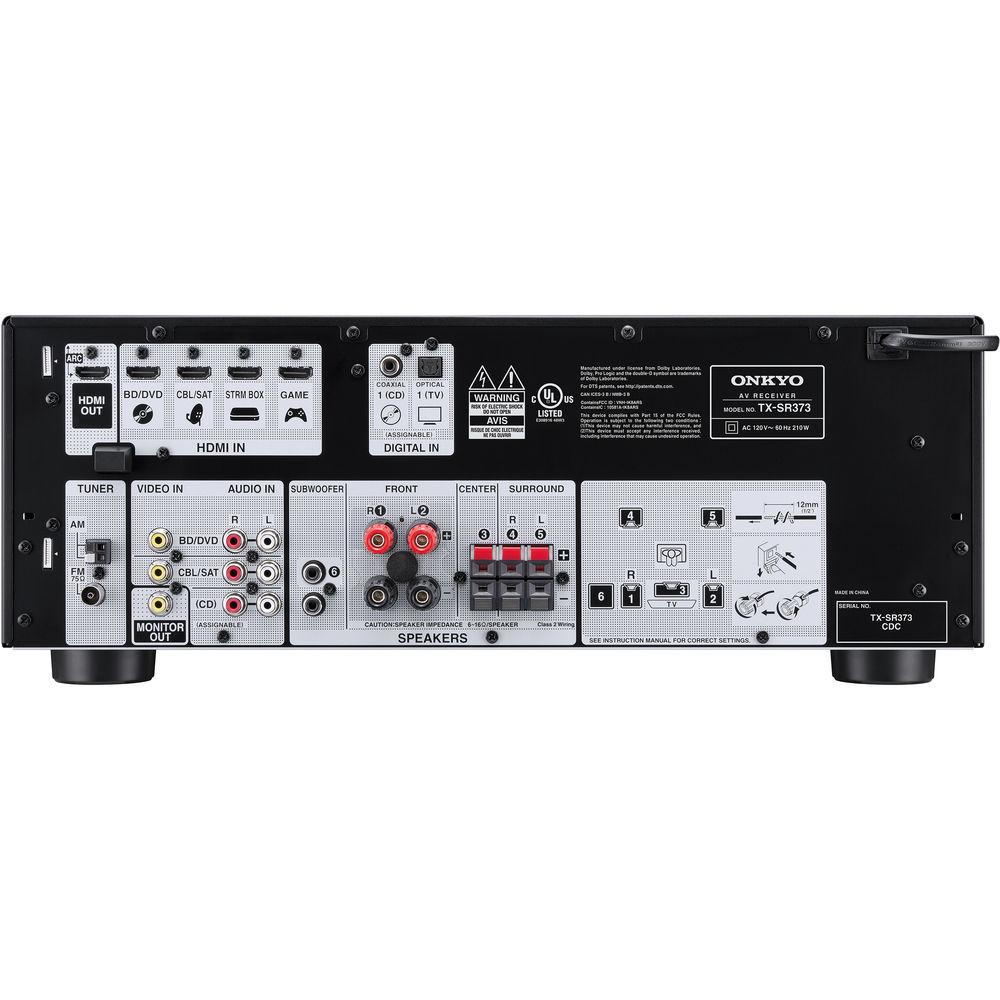

- Easy Connection Guide on Back Panel
- Connections to speakers and external devices are illustrated and labeled on the back panel.
- AccuEQ Room Acoustic Calibration
- AccuEQ measures speaker distances and corrects output levels, crossover frequencies, and frequency response from one listening position to help ensure clear and balanced surround sound.

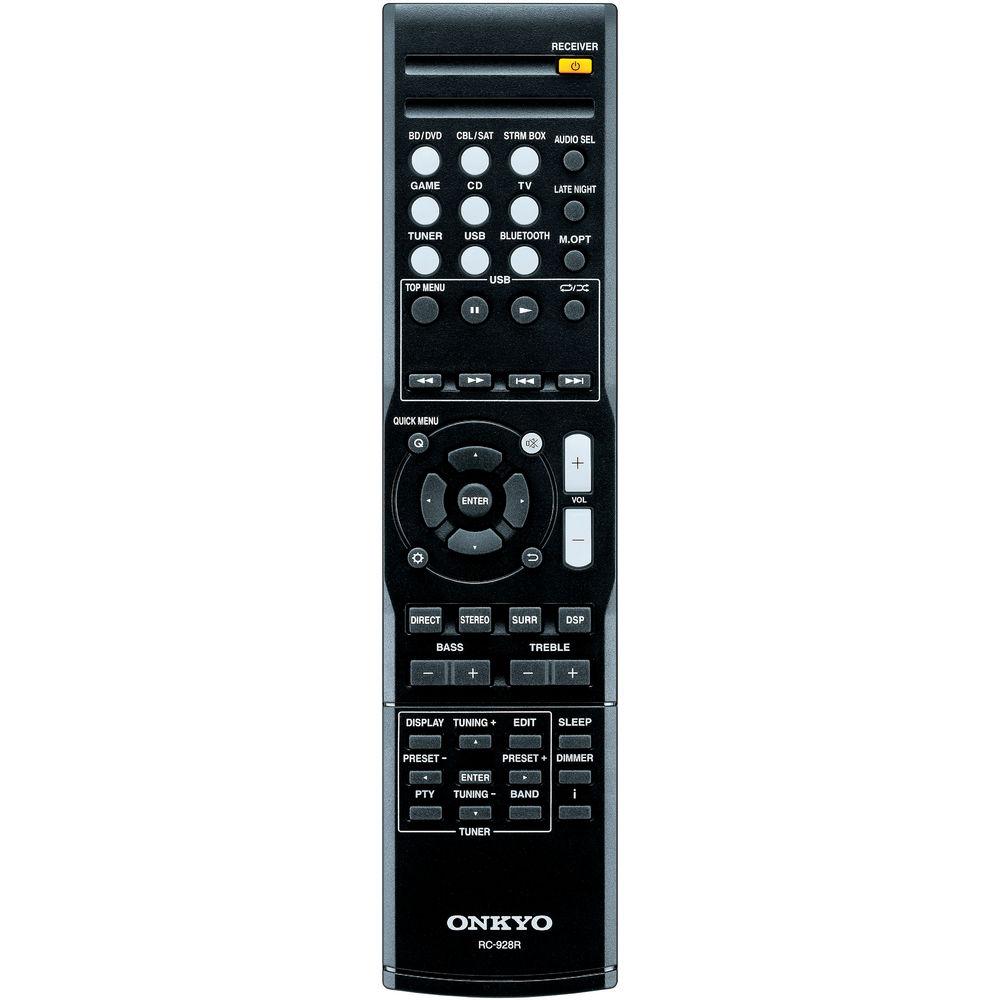

UPC: 889951000976 In the Box Onkyo TX-SR373 5.2-Channel A/V Receiver Remote Control 2 x AAA Batteries Speaker Set-Up Microphone FM Wire Antenna AM Loop Antenna Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo TX-SR373 5.2-Channel A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo TX-SR373 Specs | Channels | 5.2 | | Power Output | 80 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2-channels driven, FTC
155 W per channel @ 6 Ohms, 1 kHz, 10% THD, 1-channel driven, FTC | | THD & Noise | 0.06% @ 20 Hz to 20 kHz, 8 Ohms, 1-channel driven, 50 W | | Input Sensitivity and Impedance | 200 mV / 47 kOhms (line) | | Frequency Response | 5 Hz to 100 kHz / 0 dB, -3 dB (direct mode) | | Tone Control | Bass: ±10 dB, 100 Hz
Treble: ±10 dB, 10 kHz | | Signal-to-Noise Ratio | 98 dB (line, IHF-A) | | Speaker Impedance | 6 to 16 Ohms | | | | Input Sensitivity/Output Level and Impedance | Composite Video: 1.0 Vp-p ±5% / 75 Ohms | | 3D Support | Yes | | Deep Color / x.v. Color Support | Yes | | HDMI CEC | Yes | | | | Dolby | Dolby TrueHD | | DTS | DTS-HD Master Audio | | DAC | 192 kHz / 24-bit | | Calibration | AccuEQ | | | | Tuning Frequency Range | FM: 87.5 to 108 MHz
AM: 530 to 1710 kHz | | FM/AM Preset Memory | 30 stations | | | | Bluetooth | Yes, with aptX | | Audio Return Channel (ARC) | Yes | | Inputs | 4 x HDMI
2 x composite video
1 x USB (front)
1 x digital coaxial
1 x optical TOSLINK
3 x stereo RCA | | Outputs | 1 x HDMI
1 x composite video
2 x subwoofer pre-out
1 x 1/4" (6.4 mm) headphone (front) | | Other Interfaces | 1 x AM antenna
1 x FM antenna | | Speaker Connectors | 2 x binding post pairs (front L/R)
3 x spring-clip pairs (center, surround L/R) | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 210 W
Standby: 0.35 W | | Dimensions (W x H x D) | 17.125 x 6.625 x 12.875" (435 x 168 x 326.5 mm) | | Weight | 17.6 lb (8 kg) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 20.0 x 17.0 x 9.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Onkyo TX-SR373 5.2-Channel A V Receiver
| Subject: Mutting | | Date: 18.02.2022 08:54:44 | Name: Laura Newton | I am having issues with our reciever switching itself to mute when we change devices. The only way to get it to stop doing that is to shut it down. Upon start up it will perform appropriately for awhile and then back to mute again. Anyone know how to rectify this?
| | Post reply |
