User Manual for Onkyo TX-SR383 7.2-Channel A V Receiver Click to enlarge the picture
Contents of the user manual for the Onkyo TX-SR383 7.2-Channel A V Receiver
- Product category: Receivers Onkyo
- Brand: Onkyo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Onkyo Receivers
 |
User manual for the Onkyo TX-SR383 7.2-Channel A V Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Onkyo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Onkyo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Onkyo product will considerably shorten its lifespan!
|

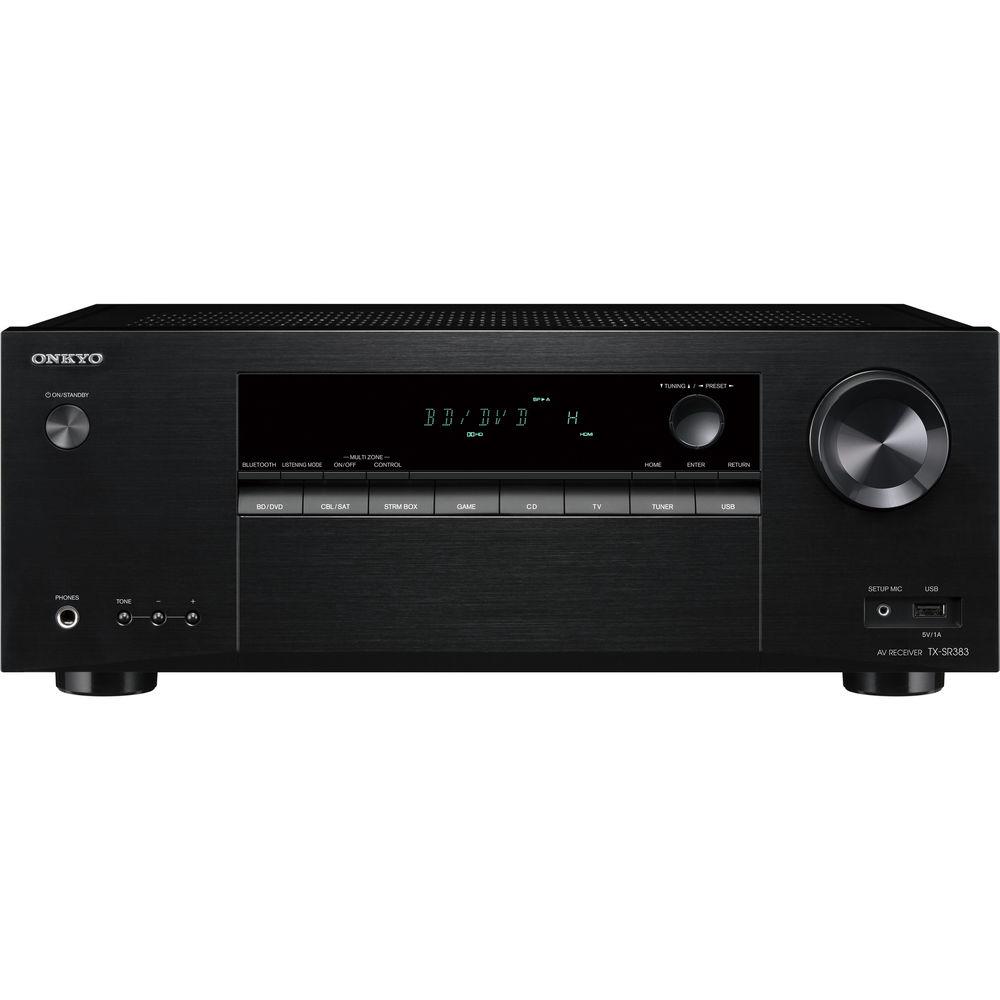

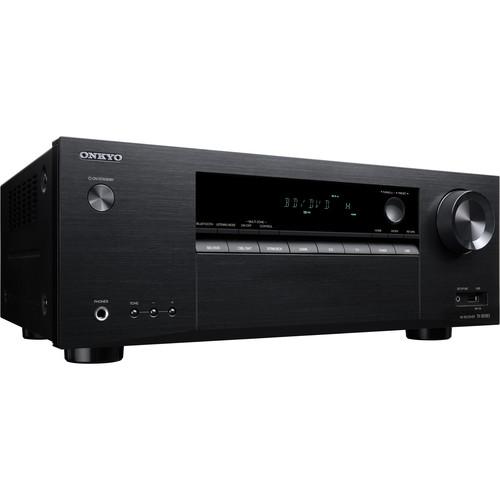

Product description Achieve 4K Ultra HD pass-through with HDR support via HDMI with the Onkyo TX-SR383 7.2-Channel A/V Receiver. It produces up to 80W of power per channel at 8 Ohms for room-filling sound. AccuEQ sound calibration tailors the sound to your room's specific acoustics. Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices. You can also attach a USB drive to the USB port on the front panel to play your stored audio files.
The TX-SR383 is equipped with four HDMI inputs and one HDMI output. The HDMI output supports ARC for the reproduction of display-based audio, such as your TV's built-in streaming apps. Its rear-panel easy connection guide will help you connect your receiver quickly and easily. - Multi-Room Audio with Powered Zone 2 Outputs
- Connect a pair of speakers in a separate room to the dedicated Zone 2 speaker outputs to enjoy select audio sources, including analog, AM/FM tuner, and Bluetooth audio. Play a source in either zone, synchronize audio playback in both rooms, or play a different audio source in both zones at the same time, all while retaining a 5.2-channel home theater system in your main room.
- 7.2-Channel Surround Sound
- Enjoy high-resolution movie and game soundtracks through your surround speaker system. The TX-SR383 decodes Dolby True HD and DTS-HD Master Audio formats common to Blu-ray discs and select video streaming services. Enhance immersion with front height or surround back speakers for playback of native or upmixed 7.1-channel movie soundtracks.
- HDR & 4K Support via HDMI
- The receiver's HDMI terminals support 4K/60 Hz, HDR10, HLG, BT.2020, and HDCP 2.2. The HDMI output supports Audio Return Channel (ARC) for the reproduction of display-based audio, such as integrated apps.
- Discrete Amplifiers
- The receiver's discrete analog amps are designed to deliver high instantaneous current to the speakers for dynamic audio reproduction.
- Bluetooth Audio Streaming with aptX
- Bluetooth wireless technology sends whatever is playing on your compatible mobile device, laptop, or computer to your home theater. Devices supporting the aptX codec enable CD-like lossless playback.
- AccuEQ Room Acoustic Calibration
- AccuEQ sets speaker parameters, such as distance, output, and crossover, and equalizes them to present your audio free from distortion caused by the acoustics of your room. Just plug in the setup mic after connecting and placing your speakers, follow the on-screen prompts, and enjoy calibrated theater sound.
- Advanced Music Optimizer
- Lossy files, such as MP3s, are convenient, but data lost in the compression process results in comparatively low fidelity. Advanced Music Optimizer technology helps restore lost information for enhanced sound quality with these file types. Touch a key on the remote to enable the Advanced Music Optimizer on a variety of input sources, including Bluetooth and USB.
- Connect and Power Your Media Streaming Device
- A rear-panel USB power output supplies power to select HDMI media streaming devices, allowing you to upgrade your home theater with on-demand network entertainment without additional power cords.
- Audio Playback via USB
- Connect a compatible USB memory device with MP3, WMA, or AAC audio files to the front USB port and use the remote and your display to find and play your albums.

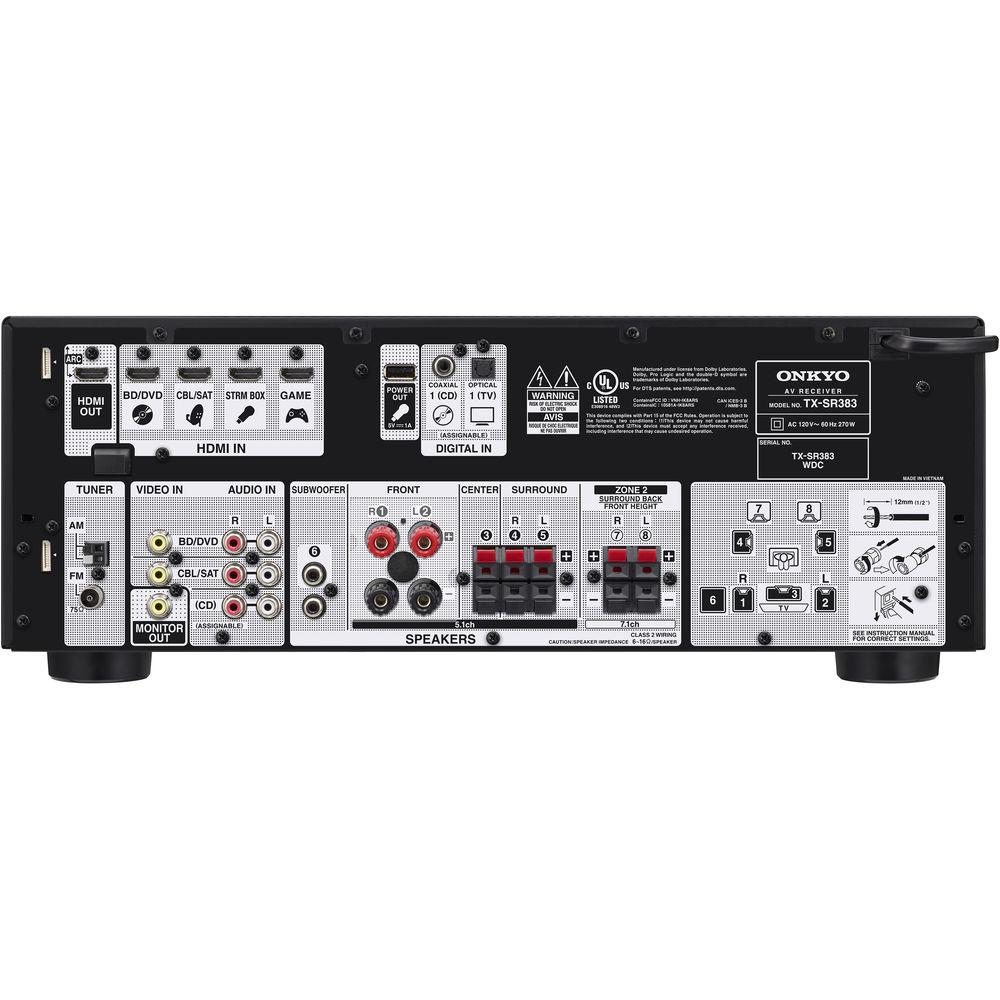

- Rear-Panel Setup Guide Helps Simplify Connection
- Connections to speakers and external devices are illustrated and labeled on the back panel. Images help you read the diagram upside-down if you're leaning over the top of the receiver.
- HDMI Support
-
- 4K / 60 Hz
- 4K pass-through
- HDR
- HDCP 2.2
- ARC
- CEC
- BT.2020
- Deep Color
- x.v.Color
- LipSync
- DVD-Audio
- SACD
- Multichannel PCM
- Standby pass-through
- 3D
- Additional Features
-
- H.C.P.S. (High Current Power Supply)
- Discrete output stage circuitry
- Direct Mode
- Dual subwoofer pre-outs
- A/V sync control (up to 500 ms in 5 ms steps at 48 kHz)
- 3-mode display dimmer (normal/dim/dimmer)
- Sleep timer

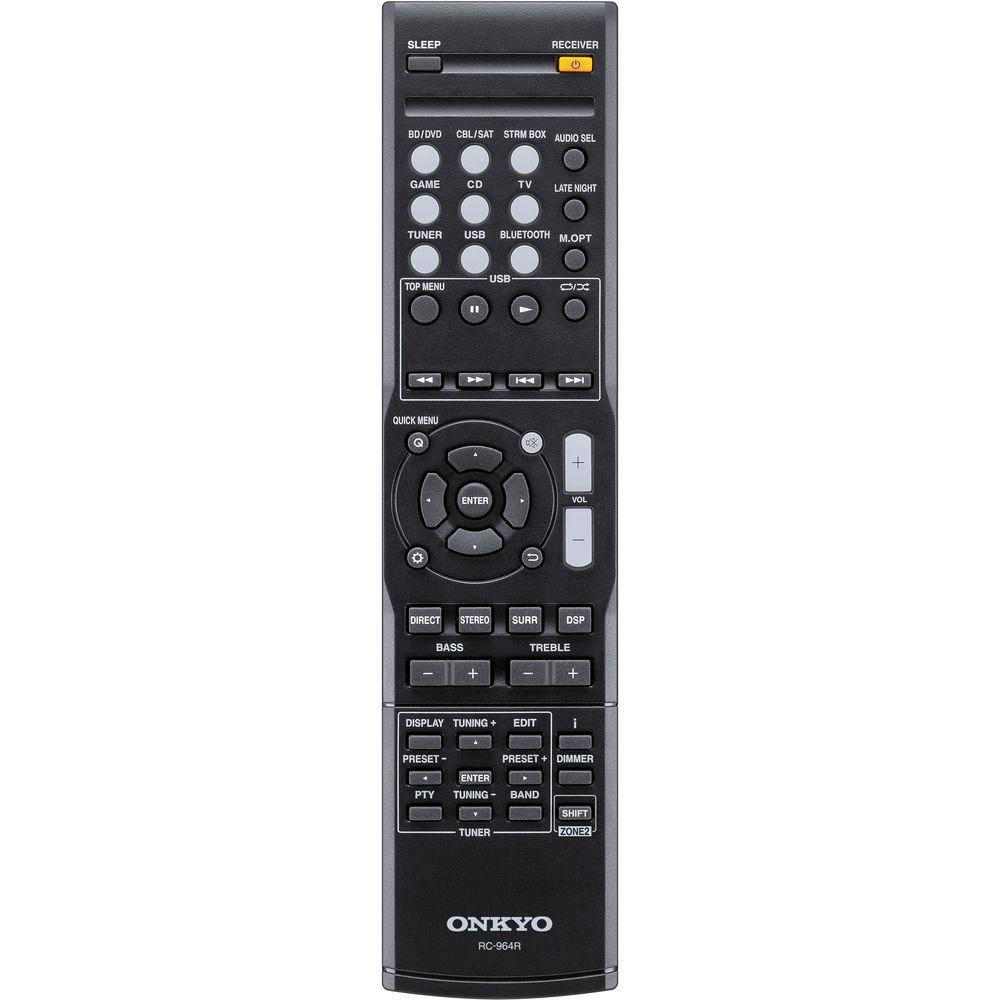

UPC: 889951001355 In the Box Onkyo TX-SR383 7.2-Channel A/V Receiver Remote Control 2 x AAA Batteries Sound Calibration Microphone Indoor FM Antenna AM Loop Antenna Limited 2-Year Warranty User Manual PDF 3.4mbdqceqqcxetryeuxadbzewrsuzyyteccb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Onkyo TX-SR383 7.2-Channel A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOnkyo TX-SR383 Specs | Channels | 7.2 | | Power Output | 80 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 channels driven, FTC
155 W per channel @ 6 Ohms, 1 kHz, 10% THD, 1 channel driven, FTC | | THD & Noise | 0.06% @ 20 Hz to 20 kHz, 8 Ohms, 1 channel driven, 50 W | | Input Sensitivity and Impedance | 200 mV / 47 kOhms (line) | | Frequency Response | 5 Hz to 100 kHz / 0 dB, -3 dB (direct mode) | | Tone Control | Bass: ±10 dB, 100 Hz
Treble: ±10 dB, 10 kHz | | Signal-to-Noise Ratio | 106 dB (line, IHF-A) | | Speaker Impedance | 6 to 16 Ohms | | | | Dolby | Dolby TrueHD, Pro Logic IIz | | DTS | DTS-HD Master Audio | | DAC | 192 kHz / 24-bit | | Calibration | AccuEQ | | | | Tuning Frequency Range | FM: 87.5 to 108 MHz
AM: 530 to 1700 kHz | | FM/AM Preset Memory | 30 stations | | | | Bluetooth | Version: 3.0
Profile: A2DP
Codecs: AAC/SBC/aptX | | Inputs | 4 x HDMI
2 x composite video
1 x digital coaxial
1 x optical TOSLINK
3 x stereo RCA | | Outputs | 1 x HDMI
1 x composite video
2 x subwoofer pre-out
1 x 1/4" / 6.35 mm headphone (front) | | Other Interfaces | 1 x AM antenna
1 x FM antenna
1 x 1/8" / 3.5 mm setup mic (front)
1 x USB in (front)
1 x USB power out | | Speaker Connectors | 2 x binding post pairs
5 x spring-clip pairs | | Input Sensitivity/Output Level and Impedance | Composite Video: 1.0 Vp-p ±5% / 75 Ohms | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 270 W
Standby: 0.2 W | | Dimensions (W x H x D) | 17.1 x 6.6 x 12.9" / 435 x 168 x 326.5 mm | | Weight | 18.1 lb / 9.7 kg | | | | Package Weight | 21.15 lb | | Box Dimensions (LxWxH) | 20.5 x 17.0 x 9.5" |
