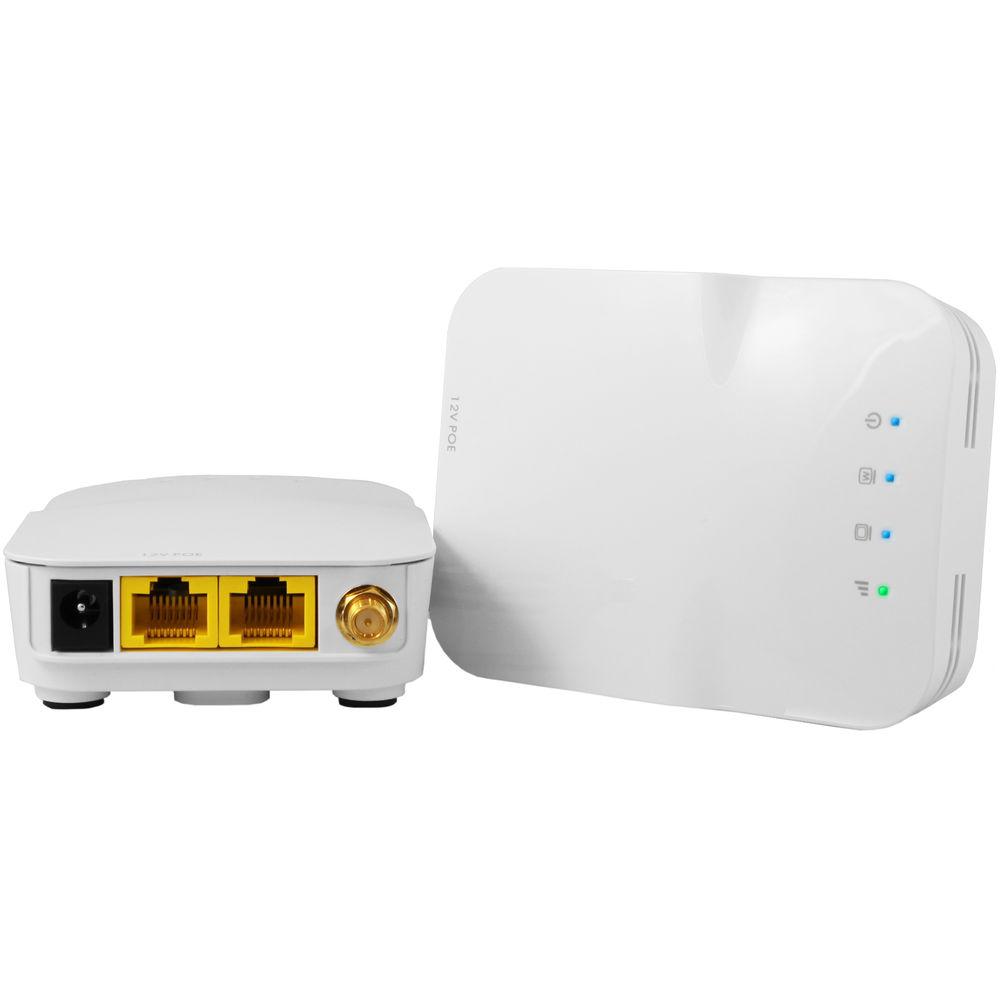

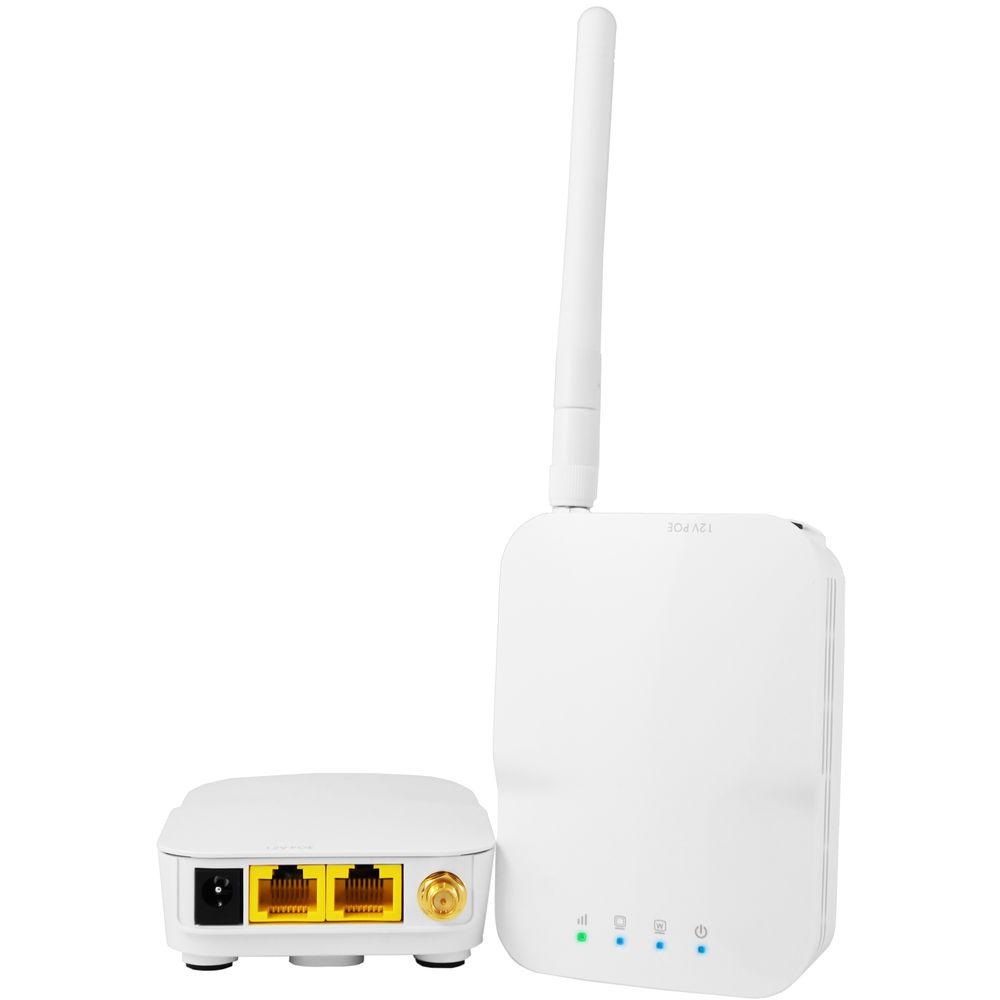

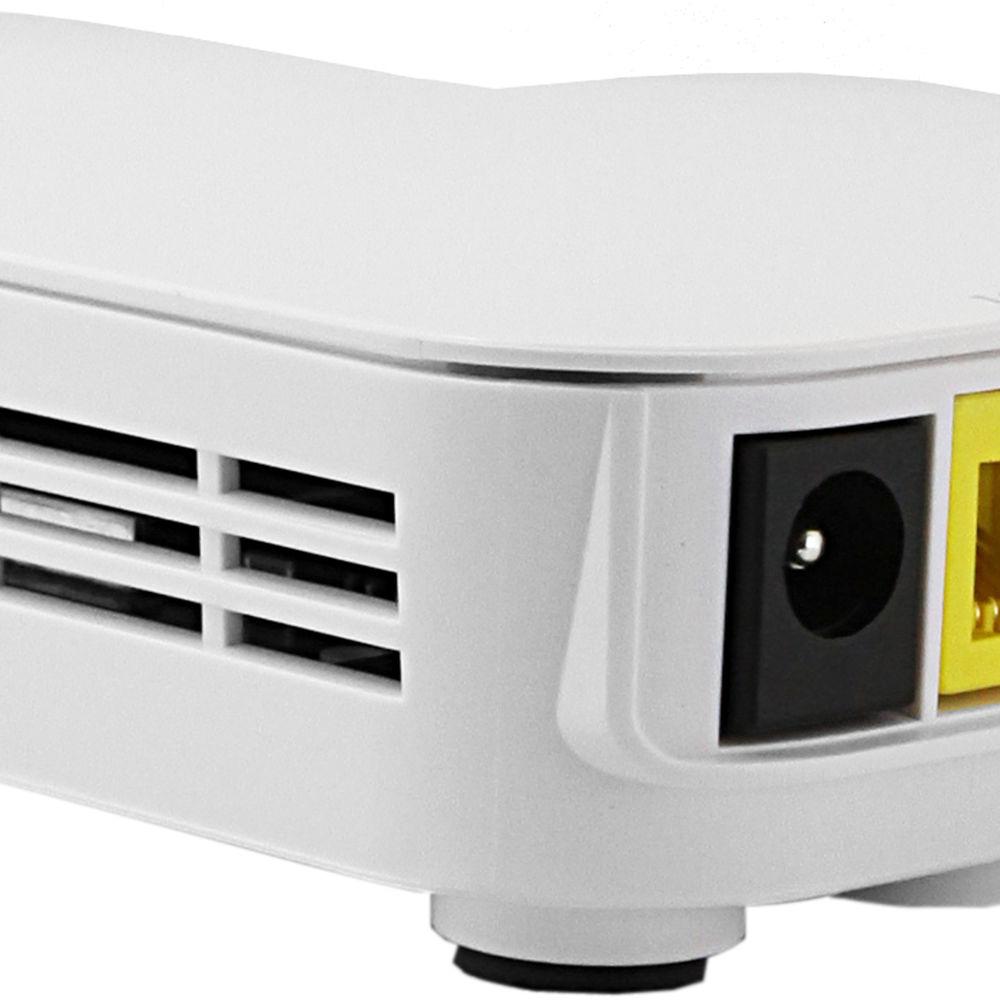

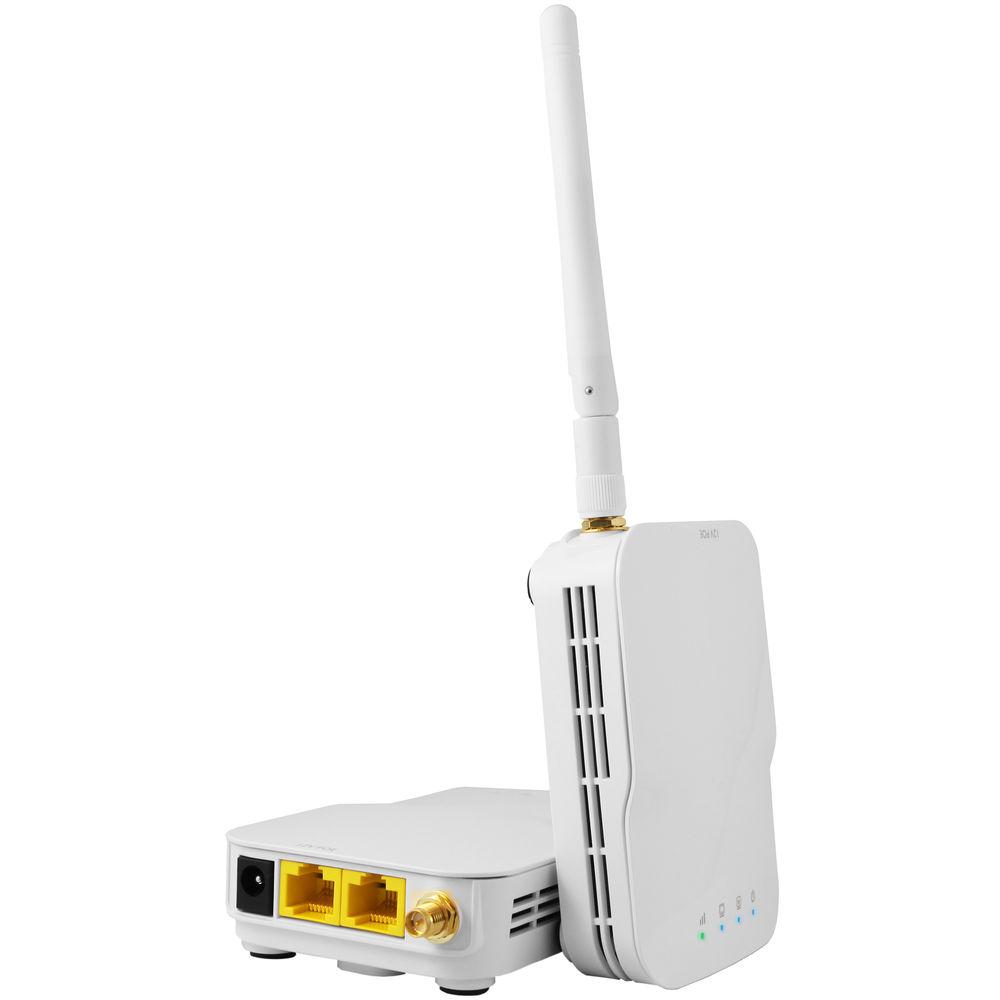

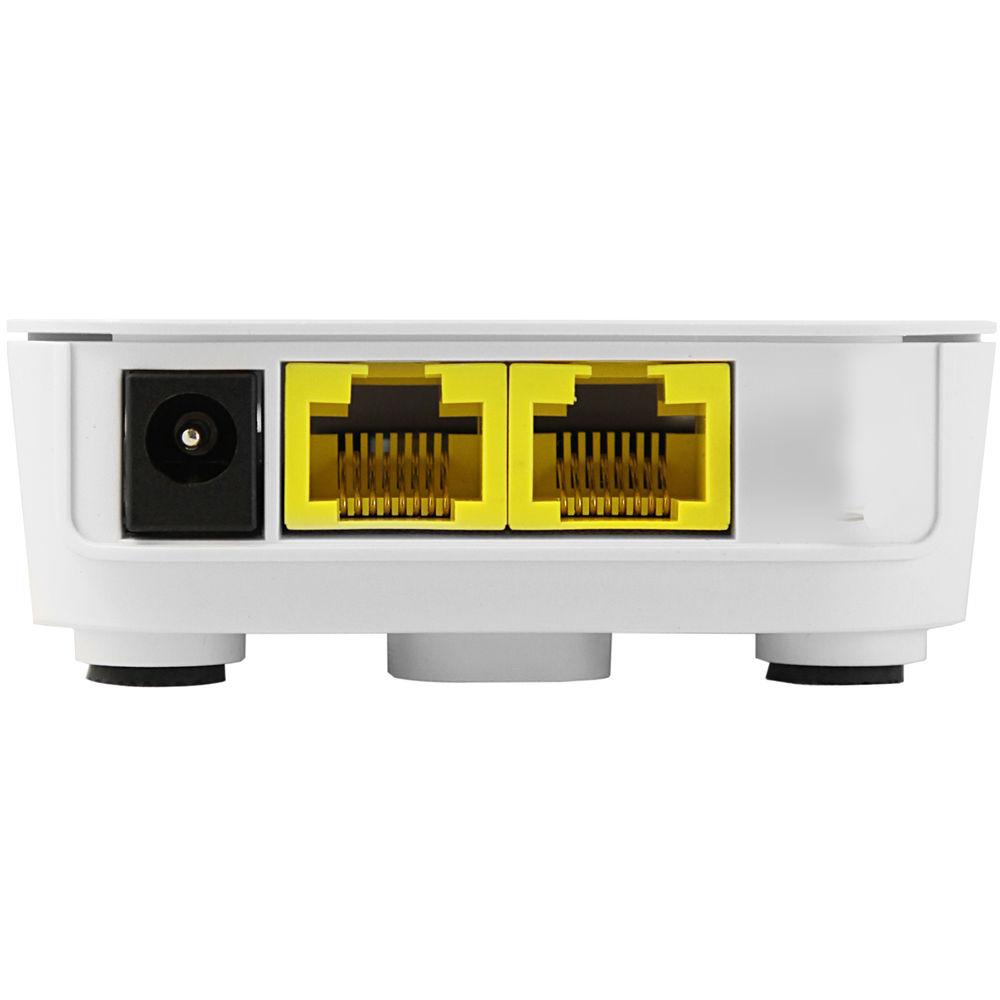

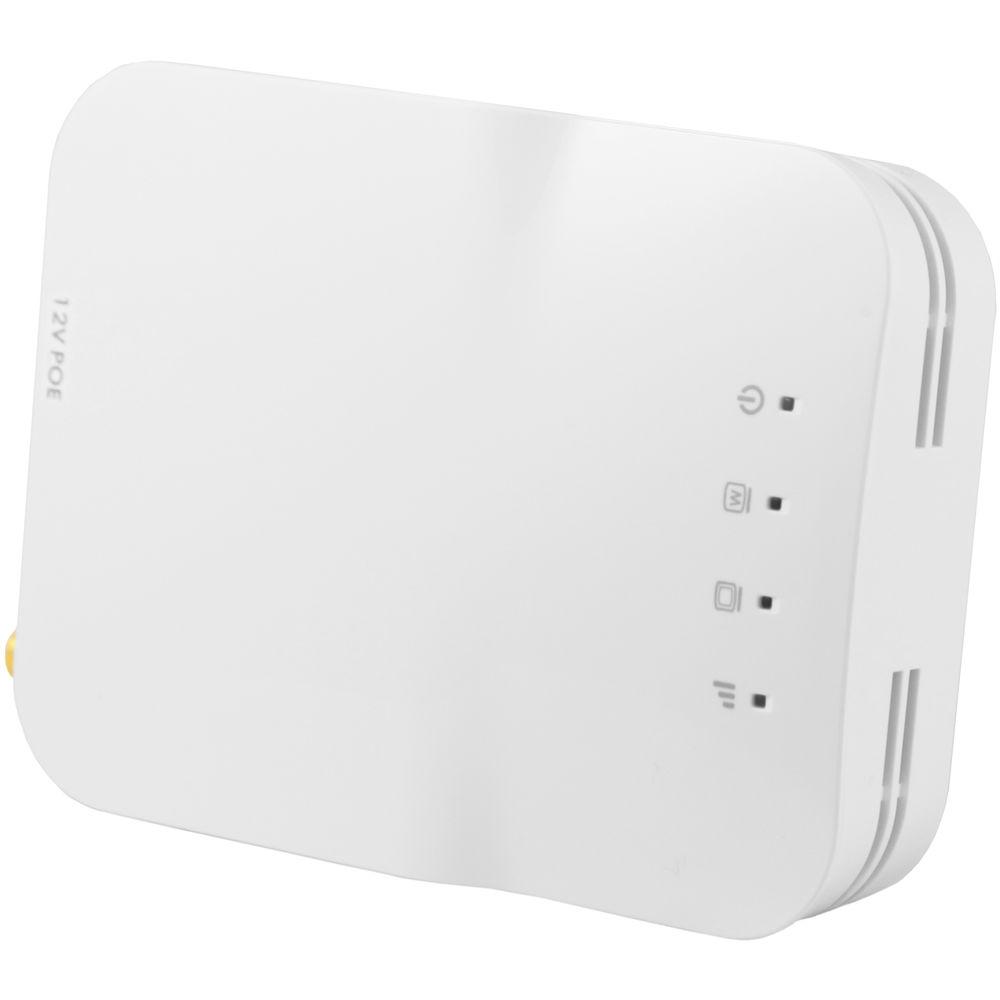

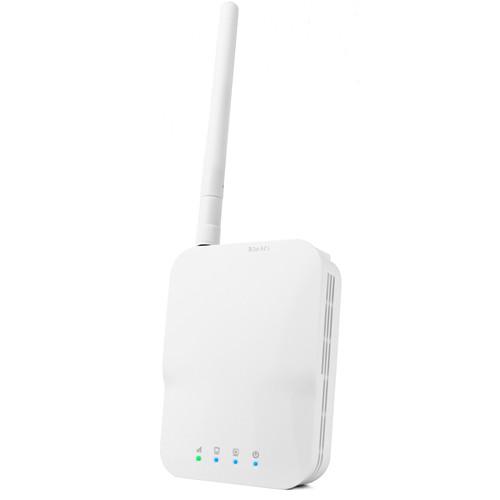

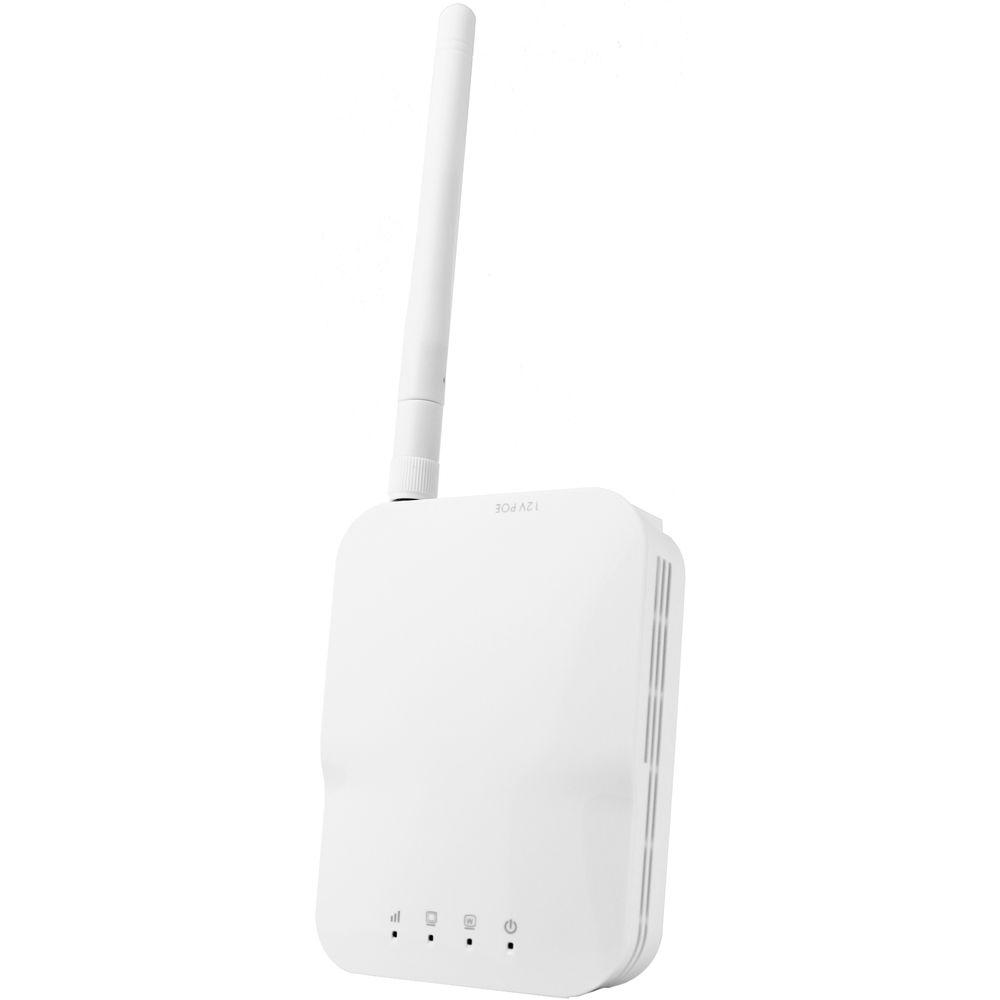

Product description Open-Mesh Network Gear: a Brand Overview Read More The cloud managed OM2P-NA OM Series Cloud Managed Wireless-N Access Point from Open-Mesh is a modular access point designed for easy installation and configuration. Operating on the 2.4 GHz frequency and supporting the 802.11b/g/n network standard, users benefit from data transfer rates of up to 80 Mbps. A variety of enclosure options including support for both outdoor and wall plug installations allow this mesh network AP to be installed virtually anywhere a network connection is needed. The access point comes equipped with two Fast Ethernet ports and features passive PoE to help eliminate the need for a separate power source. On the outside of the AP you will find a single antenna capable of emitting a signal to a distance of up to 150' when used indoors and up to 600' when installed outside.
Once installed, the OM2P-NA Access Point can be managed remotely thanks to the cloud-based network controller, CloudTrax. Whether in front of a computer or on the go, CloudTrax can be access via a web browser or the free app available for both iOS and Android. Configure up to two SSIDs, one private and one public, making it easy to provide users access to specific networks as well as the ability restrict access to portions of the network. Automated alerts provide up to the minute status updates to network administrators while WPA/WPA2 encryption keys help ensure the network remains safe and secure. - Cloud Managed
- What used to require a dedicated server can now be done through a browser and the free, cloud-based network controller, CloudTrax. CloudTrax is packed with powerful features to meet the demands of IT professionals, yet is easy enough to be deployed by someone with little network experience.
- Mesh Enabled
- Every Open-Mesh access point is mesh enabled. That means you can install units as traditional access points that are hardwired to the Internet, and add additional units that only require power wherever you need to extend coverage. The access points automatically self-form and self-heal to provide seamless coverage with automatic roaming.
- White Labeled
- Open-Mesh is ideal for systems integrators, resellers and IT consultants because there are no logos on the boxes or access points. Even the cloud controller, CloudTrax, contains no links or references back to OpenMesh. With no competing messages, your brand is the star of the show.
- Versatile Enclosure Options
- Open-Mesh makes it easy to get wireless coverage exactly where you need it. With a series of easy-to-use enclosures, you can put your access points on a wall, a ceiling, a pole, a roof, an Ethernet jack, and countless other places. OpenMesh enclosures are designed specifically for tiny, powerful OM Series access points to blend in seamlessly in any office, hotel, warehouse or apartment block. You see the wireless network-not the access point.
- Reliable
- The cloud controller lives in AWS data centers, running on EC2 and RDS technologies in multiple availability zones to maximize up time, even in the event of a failure at a single data center. Even if your devices lose connection with the cloud controller, your networks aren't affected. That's because no network traffic actually passes through the cloud controller.
- Mobile Apps
- CloudTrax is the only cloud based network controller with free iOS and Android apps, so you can build, manage and monitor your networks while on the go. Create new networks in seconds, add new APs by simply scanning them, and swap old APs with new in moments. You have full access to the management and monitoring functions available at cloudtrax.com.
- Multiple SSIDs
- CloudTrax can broadcast multiple unique networks, some "public" and some "private." Public networks can be customized with powerful captive portal features, while private networks work seamlessly as an extension of your LAN. Each network can be uniquely named, left visible or hidden, and left open or password-protected with WPA/WPA2 encryption.
- Automated Alerts
- If any access point goes down and doesn't come back up within an hour, CloudTrax will automatically email you (and anyone else you designate). Outage alerts are easy to turn on and off, always keeping you in-the-know when it comes to the health of your wireless network.
- Additional Features
- • Zero config plug and play
• Self-forming, self-healing mesh • Seamless roaming • Hardware watchdog CPU • Free cloud management • Free iOS/Android apps • Captive portal with bandwidth throttling, splash pages, and user controls In the Box Open-Mesh OM2P-NA OM Series Cloud Managed Wireless-N Access Point Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Open-Mesh OM2P-NA OM Series Cloud Managed Wireless-N Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpen-Mesh OM2P-NA Specs | Wireless Frequency Bands | 2.4 GHz | Number of Antennas | 1 | WLAN Mode | 802.11n | Transmit Power | 23 dBm | Antenna Placement | External | | Ports | 2 x 10/100 Mb/s Ethernet (RJ45) | | Supported Clients | 50 | Max SSIDs Supported | 2 | Throughput | 150 Mb/s | | RAM | 64 MB | Processor | 400 MHz QCA9331 MIPS 24K | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 3.8 x 2.8 x 1" / 9.5 x 7 x 2.5 cm | | Package Weight | 0.25 lb | Box Dimensions (LxWxH) | 4.5 x 3.5 x 1.6" |
