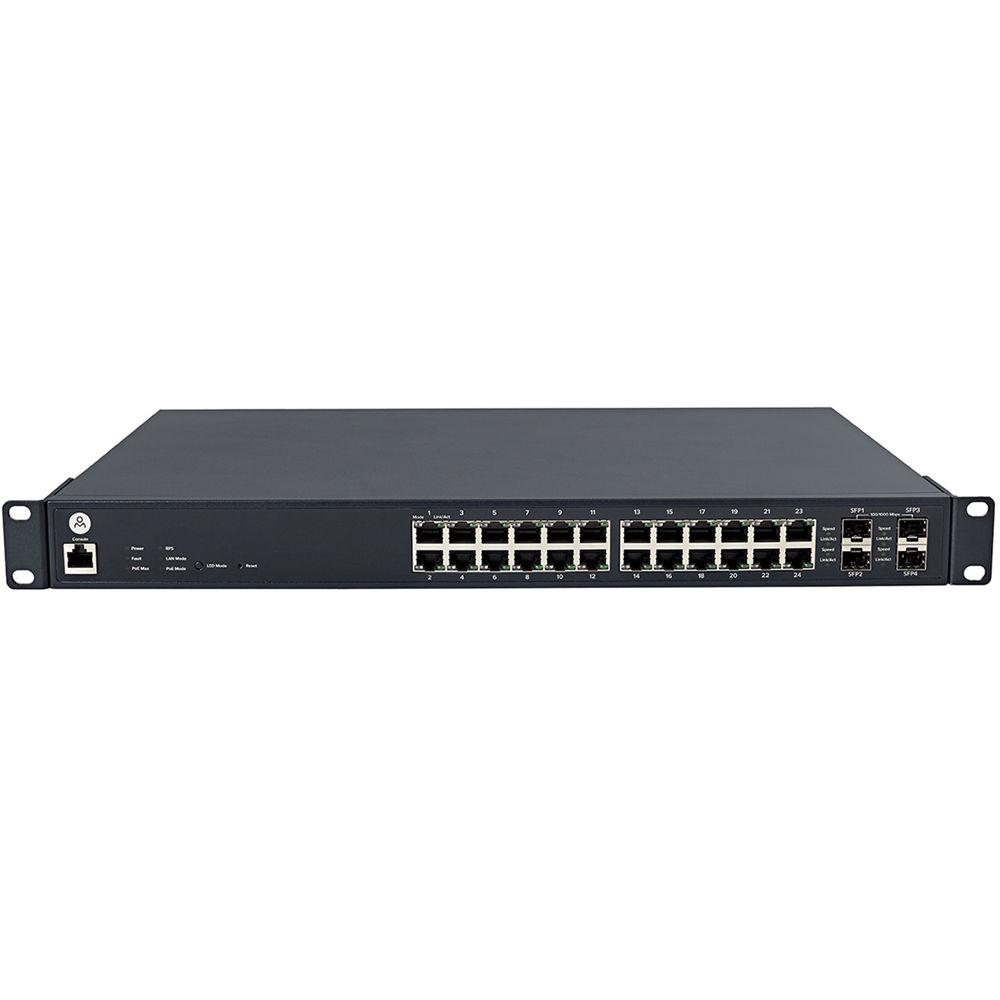

User Manual for Open-Mesh S24 24-Port Gigabit PoE Cloud Managed Switch Click to enlarge the picture
Contents of the user manual for the Open-Mesh S24 24-Port Gigabit PoE Cloud
- Product category: Network Switches, Bridges & Hubs Open-Mesh
- Brand: Open-Mesh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Open-Mesh Network Switches, Bridges & Hubs
 |
User manual for the Open-Mesh S24 24-Port Gigabit PoE Cloud contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Open-Mesh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Open-Mesh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Open-Mesh product will considerably shorten its lifespan!
|
Product description Designed for use in a variety of scenarios including multi-site deployments in hospitality, retail, food and beverage, and small- to medium-sized businesses, the S24 24-Port Gigabit PoE+ Cloud Managed Switch from Open Mesh can handle a large workload and is simple to set up and configure. This Open Mesh switch comes white-labeled, or non-branded, and with plug-and-play setup and seamless support for Open Mesh access points, it is easy to get your network up and running in no time. Network administrators can take advantage of PoE+ support, making it simple to power devices such as IP cameras, VoIP equipment, and more directly from the switch. Once configured, the Open Mesh switch can be managed from a single central location through the cloud using the included CloudTrax software. Administrators also benefit from a variety of Layer 2 features including 802.3ad link aggregation, port mirroring, port trunking, IGMP snooping, IGMP fast leave, MLD snooping, VLAN group, and much more. - Cloud Managed
- What used to live in dedicated on-site servers or require remote logins can now be managed centrally through the cloud. Whether you are deploying a single switch or thousands across multiple sites, CloudTrax is powerful enough to meet the demands of IT professionals while easy enough for someone with little network experience.
- White Labeled
- Open Mesh is ideal for systems integrators, resellers and IT consultants because it's easy to add your own logos to the switches and access points. Even the cloud controller, CloudTrax, can be completely branded as your own cloud solution, making your brand the star of the show. Note that fees apply for custom branding.
Other Features - Zero-touch configuration, plug-and play networking
- Full-featured layer 2 manageability
- Free cloud-based network controller for complete control and monitoring with no licensing or monthly fees
- Automatic, seamless interoperability with Open Mesh access points
- PoE+ on all ports, providing flexibility to power all kinds of IP devices
In the Box Open-Mesh S24 24-Port Gigabit PoE+ Cloud Managed Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Open-Mesh S24 24-Port Gigabit PoE Cloud Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpen-Mesh S24 Specs | Mounting Options | Desktop, wall mount, rack mount (included) | | Switching Capacity | 56 Gbps | | Power Supply | Internal power supply | | Power Cable | US/EU/UK/AU | | Forwarding Mode | Store-and-forward | | SDRAM | 256 MB | | Flash Memory | 32 MB | | Ports | 24 | | LED Indicators | Power, Fault, PoE Max, LAN Mode, PoE Mode, Speed, Link/Act | | L2 Features | IEEE802.3ad Link Aggregation
Port Mirroring
Port Trunking
IGMP Snooping v1/v2/v3
IGMP Fast Leave
MLD Snooping
VLAN Group
Voice VLAN
IEEE802.1X Port-based Access Control
IEEE802.1X Guest VLAN, Port Security
Storm Control
Port Isolation
Attack Prevention
Access Control List (ACL) | | Spanning Tree Protocol | 802.1D Spanning Tree (STP)
802.1w Rapid Spanning Tree (RSTP)
802.1s Multiple Spanning Tree (MSTP) | | Queues | CoS based on 802.1p priority
CoS based on physical port
CoS based on TOS
CoS based on DSCP | | PoE | PoE Management
Power on/off per port
Power class configuration
Power feeding with priority
User define power limit | | Management / Monitoring | SSH Server
Telnet Server
TFTP Client
BootP/DHCP Client
SNMP v1/v2c/v3 support
Command Line Interface (CLI)
SNTP
RMONv1
SYSLOG
Cable Diagnostic | | MIB Support | RFC1213, RFC1493, RFC1757, RFC2674 | | Temperature & Humidity | Operating Temperature: 32 to 132°F / 0 to 50°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Humidity: 5 to 95% non-condensing | | Dimensions | 17.3 x 12.2 x 1.7" / 43.9 x 31.0 x 1.3 cm | | Weight | 12.66 lb / 5.74 kg | | | | Package Weight | 10.65 lb | | Box Dimensions (LxWxH) | 21.2 x 14.0 x 4.1" |
