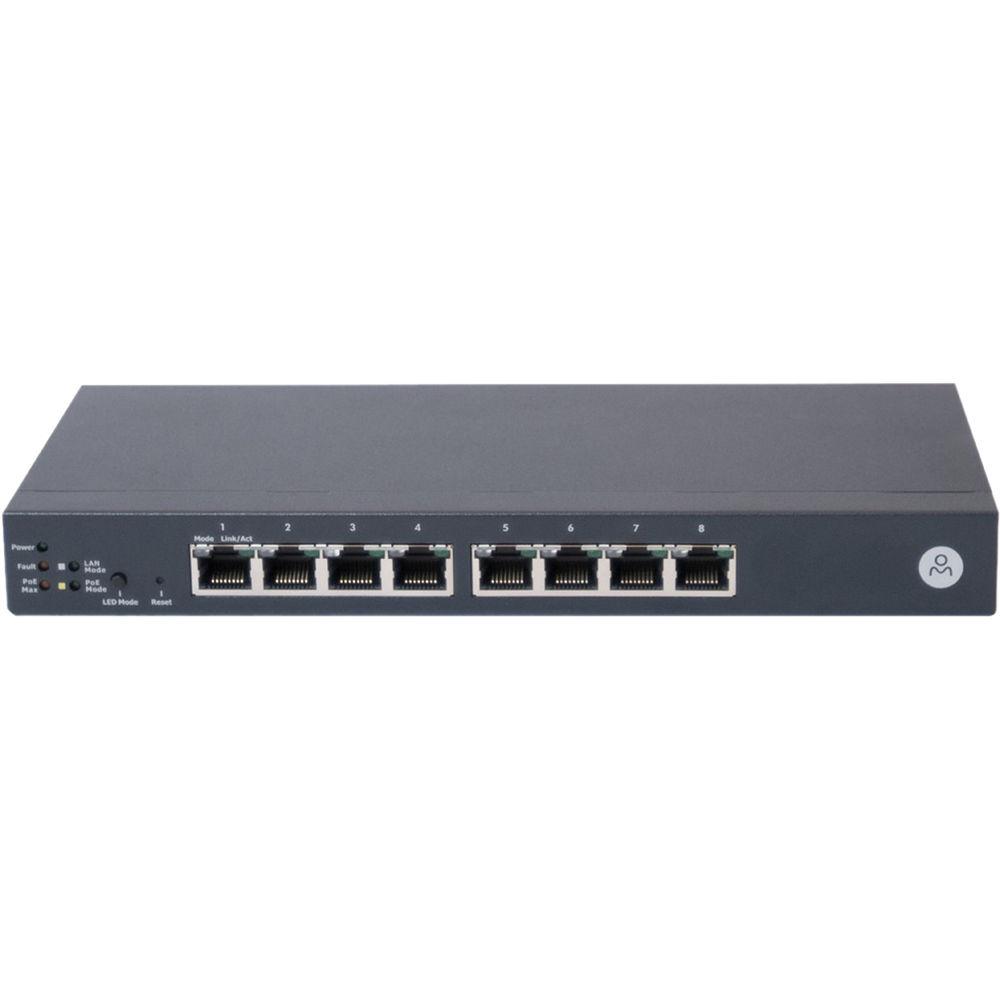

User Manual for Open-Mesh S8-L 8-Port Gigabit PoE Cloud Managed Switch

Click to enlarge the picture
Open-Mesh S8-L 8-Port Gigabit PoE Cloud Managed Switch Contents of the user manual for the Open-Mesh S8-L 8-Port Gigabit PoE Cloud
  • Product category: Network Switches, Bridges & Hubs Open-Mesh
  • Brand: Open-Mesh
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Open-Mesh Network Switches, Bridges & Hubs

Open-Mesh S8-L 8-Port Gigabit PoE Cloud Managed Switch Open-Mesh S8-L 8-Port Gigabit PoE Cloud Managed Switch Open-Mesh S8-L 8-Port Gigabit PoE Cloud Managed Switch Open-Mesh S8-L 8-Port Gigabit PoE Cloud Managed Switch
User manual for the Open-Mesh S8-L 8-Port Gigabit PoE Cloud contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Open-Mesh product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Open-Mesh user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Open-Mesh product will considerably shorten its lifespan!



Product description

Designed for use in a variety of scenarios including multi-site deployments in hospitality, retail, food and beverage, and small to medium sized businesses, the S8-L 8-Port Gigabit PoE+ Cloud Managed Switch from Open Mesh can handle a large workload and is simple to set up and configure.

This Open Mesh switch comes white labeled making it discrete and with plug-and-play setup and seamless support for Open Mesh access points it is easy to get your network up and running in no time. Network administrators can take advantage of PoE+ support making it simple to power devices like IP cameras, VoIP equipment, and more directly from the switch.

Once configured, the Open Mesh switch can be managed at a single central location through the cloud using the included CloudTrax software. Administrators also benefit from a variety of Layer 2 features including 802.3ad link aggregation, port mirroring, port trunking, IGMP snooping, IGMP fast leave, MLD snooping, VLAN group, and much more.
    Cloud Managed
  • What used to live in dedicated on-site servers or require remote logins can now be managed centrally through the cloud. Whether you are deploying a single switch or thousands across multiple sites, CloudTrax is powerful enough to meet the demands of IT professionals while easy enough for someone with little network experience.
    Seamless Integration
  • Integrate seamlessly with Open Mesh access points. When switches and access points are in the same network, we'll automatically detect Open Mesh access points and enable seamless roaming VLANs. With greater visibility into your network, debugging is easy.
    Zero-Touch Deployment
  • Make remote deployments easy and scaling up worry free. You can configure a switch from anywhere without ever touching it. Once the switch has power and Internet, it'll connect to CloudTrax to get its configuration and start reporting data. Easily deploy a single switch or thousands across multiple sites.
    White Labeled
  • Open Mesh is ideal for systems integrators, resellers and IT consultants because we make it easy to add your logos to our switches and access points. Even our cloud controller, CloudTrax, can be completely branded as your own cloud solution.
    Fees apply for custom branding

Other Features

  • Zero-touch configuration, plug-and play networking
  • Full-featured layer 2 manageability
  • Free cloud-based network controller for complete control and monitoring with no licensing or monthly fees
  • Automatic, seamless interoperability with Open Mesh access points
  • PoE+ on all ports, providing flexibility to power all kinds of IP devices
UPC: 842145100326 In the Box Open-Mesh S8-L 8-Port Gigabit PoE+ Cloud Managed Switch
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Open-Mesh S8-L 8-Port Gigabit PoE Cloud Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Open-Mesh OMS8-L Specs

    Mounting Options Desktop, wall
    Switching Capacity 20 Gbps
    Power Supply External
    Power Cable US/EU/UK/AU
    Forwarding Mode Store-and-forward
    SDRAM 256 MB
    Flash Memory 32 MB
    PoE PoE Standard
    Supports IEEE 802.3at/af
    PoE Capable Ports
    Port 1-8 output up to 30 W
    PoE Budget
    55 W
    Ports 10/100/1000 Mbps Ports
    8
    LED Indicators Power, Fault, PoE Max, LAN Mode, PoE Mode, Link/Act
    L2 Features IEEE802.3ad Link Aggregation
    Port Mirroring
    Port Trunking
    IGMP Snooping v1/v2/v3
    IGMP Fast Leave
    MLD Snooping
    VLAN Group
    Voice VLAN
    IEEE802.1X Port-based Access Control
    IEEE802.1X Guest VLAN, Port Security
    Storm Control
    Port Isolation
    Attack Prevention
    Access Control List (ACL)
    Spanning Tree Protocol 802.1D Spanning Tree (STP)
    802.1w Rapid Spanning Tree (RSTP)
    802.1s Multiple Spanning Tree (MSTP)
    Queues CoS based on 802.1p priority
    CoS based on physical port
    CoS based on TOS
    CoS based on DSCP
    PoE PoE Management
    Power on/off per port
    Power class configuration
    Power feeding with priority
    User define power limit
    Management / Monitoring SSH Server
    Telnet Server
    TFTP Client
    BootP/DHCP Client
    SNMP v1/v2c/v3 support
    Command Line Interface (CLI)
    SNTP
    RMONv1
    SYSLOG
    Cable Diagnostic
    MIB Support RFC1213, RFC1493, RFC1757, RFC2674
    Temperature & Humidity Operating Temperature: 32 to 104°F / 0 to 40°C
    Storage Temperature: -4 to 158°F / -20 to 70°C
    Humidity: 5 to 95% non-condensing
    Dimensions 9.4 x 4.1 x 1.1" / 23.9 x 10.4 x 2.8 cm
    Weight 1.37 lb / 0.62 kg
    Package Weight 2.55 lb
    Box Dimensions (LxWxH) 10.7 x 6.7 x 3.4"
