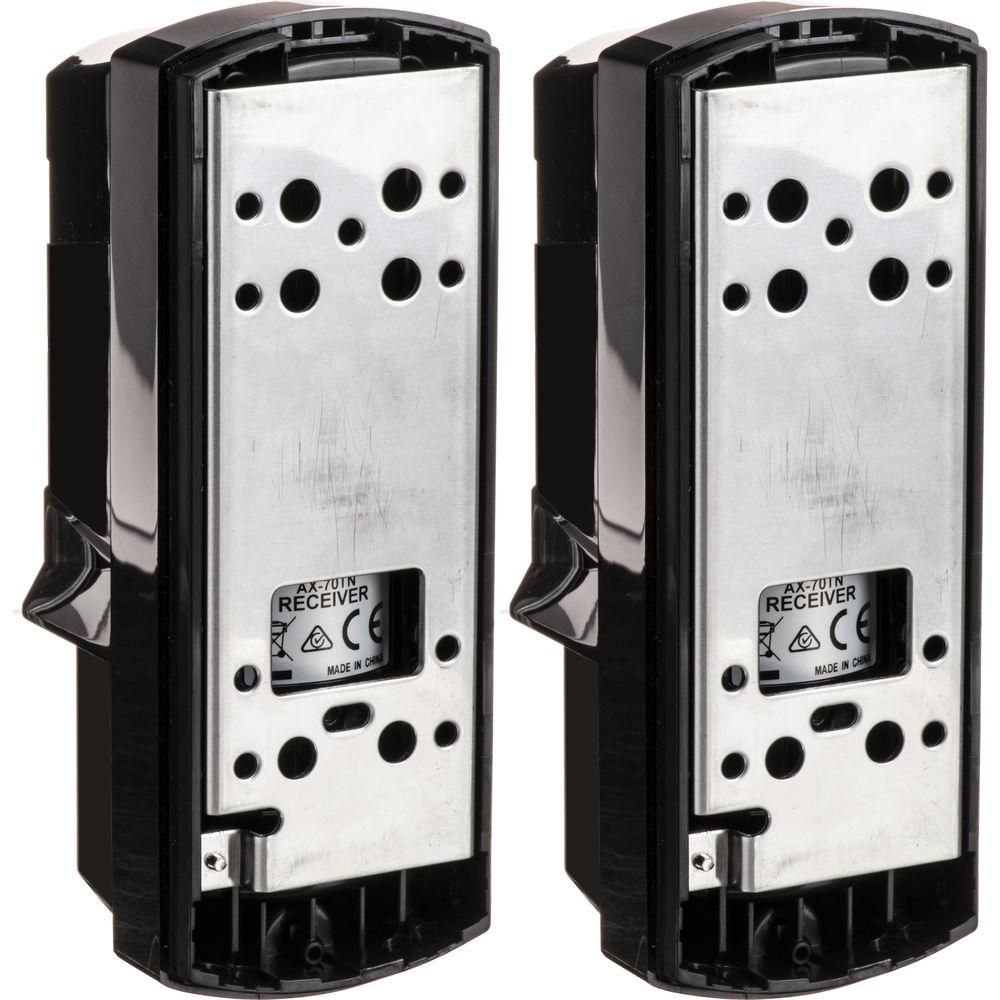

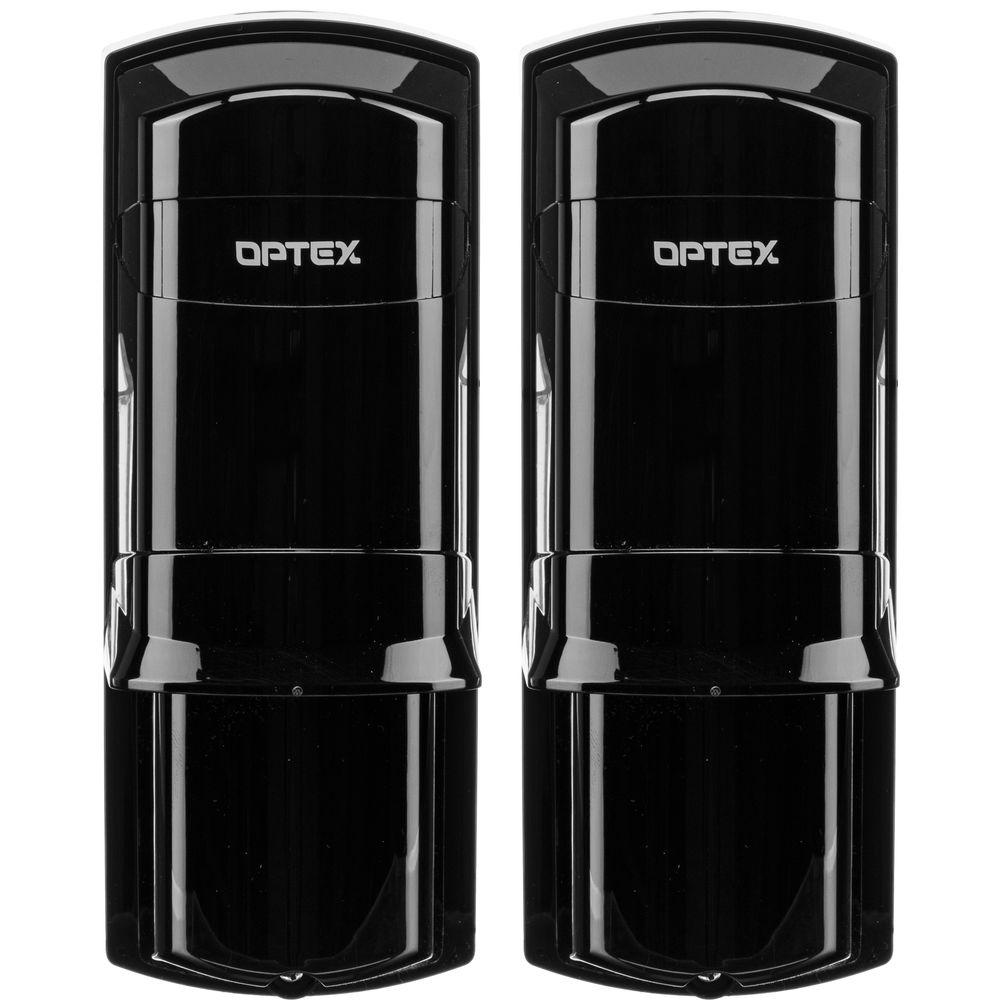

Optex AX-70TN Wired Short-Range Photoelectric Detector

Search your instruction manual in PDF to download

User Manual for Optex AX-70TN Wired Short-Range Photoelectric Detector

Click to enlarge the picture
Optex AX-70TN Wired Short-Range Photoelectric Detector Contents of the user manual for the Optex AX-70TN Wired Short-Range Photoelectric Detector
  • Product category: Photoelectric Beams Optex
  • Brand: Optex
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Optex Photoelectric Beams

Optex AX-70TN Wired Short-Range Photoelectric Detector Optex AX-70TN Wired Short-Range Photoelectric Detector
User manual for the Optex AX-70TN Wired Short-Range Photoelectric Detector contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Optex product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!



Product description

The AX-70TN Indoor / Outdoor Wired Short-Range Photoelectric Detector from Optex is compact in design with an IP65-compliant, highly durable structure. Rubber packing is used for all conceivable points where water, dust, or bugs may penetrate, such as wiring holes, wire ports, and the outer chassis. Preventing these factors helps deliver performance with higher reliability in severe outdoor environmental conditions. In addition, the length between the upper and lower optics and the width of the optics are ideally engineered to produce an intelligent detection pattern, which reduces false alarms by detecting only human intruders.
    IP65 Structure with High Sealing Rubber Packing
  • Rubber packing is used for all conceivable points where water or dust may penetrate, such as wiring holes, wire ports, and the outer chassis. Prevention from dust, bugs, and water delivers performance with higher reliability against false alarms and breakdowns.
    Lightning & Surge Protection
  • An improved electro-magnetic interference surge absorber and high surge resistive relay have been installed to protect from lightning surges and maintain stable operation.
    Anti-Frost Hood Cover
  • A hood is installed to prevent frost formation on the lower beams. It also makes the maintenance easy because the surface of cover is flat.
    Easy Angle Adjustment
  • It allows the installer to finely adjust the beam with ease.
    High Grade Spherical Lens
  • The high grade spherical lens creates sharply defined and precise infrared beams compared to ordinary Fresnel lenses.
    99% Beam Blocking Stability
  • Enables stable operation with as much as 99% loss of beam energy caused by heavy rain, dust storms, fog, or snow.
    A.G.C. (Automatic Gain Control) Circuit
  • A.G.C. circuit continually monitors for gradual changes in the signal's strength caused by changing weather conditions. It adjusts the sensitivity accordingly to maintain a proper signal level for the current environmental conditions.
    Adjustable Beam Interruption Period
  • The beam interruption time can be adjusted to fit any application. For example, when protecting a wall or fence, a longer interruption time will catch intruders.
    Other Features
  • High-performance waterproof structure
    Horizontal dial alignment for user friendliness
    Adjustable beam interruption period
    Tamper function
UPC: 788924084015 In the Box Optex AX-70TN Wired Short-Range Photoelectric Detector (70 ft)
  • Transmitter
  • Receiver
  • 4 x Pole Bracket
  • 8 x Mounting Plate Lock Screw
  • 8 x Pole Lock Screw
  • 4 x Wall Mounting Screw
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Optex AX-70TN Wired Short-Range Photoelectric Detector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Optex AX-70TN Specs

    Detection Range 70' (20 m) max when used outdoors
    (Range doubles when used indoors)
    Technology Active infrared
    Installation Commercial, Residential
    Zones Perimeter, interior,
    Maximum Distance Arrival: 700' (200 m)
    Detection Method Infrared beam interruption detection
    Method Interruption: Selectable between 50, 100, 250, 500 ms (4 steps)
    Power Supply 10.5 to 28 VDC
    Current Consumption Transmitter & Receiver: 38 mA (maximum)
    T: 17 mA, R: 21 mA
    Alarm Output N.C 28 VDC, 0.2 A maximum
    Alarm Period: 2 sec ± 1 nominal
    Switch Tamper: (N.C) Open when cover is removed. 28 VDC, 0.2 A maximum
    Power Transmitter: Power On = On (Green), Power Off = Off
    Alarm Indicator (Receiver): Alarm On = Red, Light receiving = Off
    Alignment Angle: ±90° horizontal, ±5° vertical
    Installation Location: Indoor / outdoor, wall / pole mounting
    Protection Internal: IP65
    Humidity Environmental: 95% maximum
    Operating Temperature -31 to 140°F (-35 to 60°C)
    Weight Transmitter & Receiver: 23 oz (652 g)
    Package Weight 2.1 lb
    Box Dimensions (LxWxH) 8.5 x 6.8 x 3.1"
