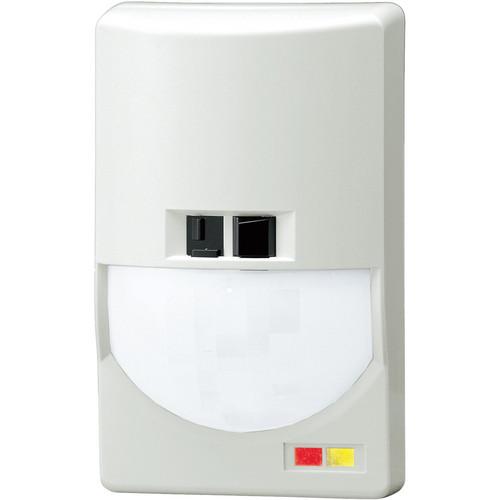

User Manual for Optex CX-502AM Wired Indoor Passive Infrared Detector with Anti-Masking Technology Click to enlarge the picture
Contents of the user manual for the Optex CX-502AM Wired Indoor Passive Infrared
- Product category: Motion Detectors Optex
- Brand: Optex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optex Motion Detectors
|
User manual for the Optex CX-502AM Wired Indoor Passive Infrared contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!
|
Product description The Optex CX-502AM Wired Indoor Passive Infrared Detector with Anti-Masking Technology offers disturbance-free performance with multi anti-masking technology that prevents any kind of detecting disturbances by applying and developing various forms of anti-masking optical technology. Twin-windows detect with high sensitivity the variations of optical expansions and optical direction differences caused from 2 photoelectric detection beams. - Multi Anti-Masking Technology.
- Patented quad zone logic prevents false alarms caused from spot temperature changes.
- Double conductive shielding of pyroelectric element for accurate detection. The double filtering and conductive metal shielding of the Pyro block out visible light and RFI, thereby allowing only infrared energy to reach the pyroelectric elements.
- Advanced temperature compensation for increased detection capabilities under high temperature conditions where the background temperature is similar to that of a human body.
- Maintains a high level of false alarm protection while providing accurate detection by automatically adjusting its sensitivity according to the environmental temperature.
- Low current draw, anti-magnet and silent relays, thanks to the photoelectric MOS relay.
- Sealed optics prevent drafts and smal insects from getting onto the pyroelectric element and eliminates the chance of false alarm.
- 3 selectable sensitivity settings (high, medium, & low).
- Selectable pulse count (standard or special).
- Streamlined, offset spherical lens.
- Durable & additional PCB protection cover.
- RFI protection with no alarm from a field strength of 30V/m within the range of 144 to 1,200 MHz.
- Easy wiring knockout and easy-to-view LED help you to easily install the unit.
- Low current consumption of 5mA.
- Anti-magnet feature employs the photoelectric MOS relay that are unaffected by magnetized materials.
- With invisible spray detection there are no worries about whether the sensor is covered with infrared beam impairing invisible sprays and the unit also recognizes black sprays.
- Detection of pasting disturbances and recognizes masking objects (e.g. invisible seals and stickers) pasted onto the PIR lens.
- Detection of disturbances in front of the unit and can detect black paper, which tends to absorb infrared rays, when put in front of the detector from 11.8" (30.0cm) away.
- An onboard circuit self-checks the operation of the detector at regular 5 hourly intervals to ensure that the unit is working properly.
- Initial alarm memory function indicates by a flickering LED which detector is activated first and is useful when several detectors are connected in one alarm loop.
- LED remote control terminal.
In the Box Optex CX-502AM Wired Indoor Passive Infrared Detector with Anti-Masking Technology Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex CX-502AM Wired Indoor Passive Infrared Detector with Anti-Masking Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex CX-502AM Specs | Technology | Passive Infrared | | Installation | Commercial, Industrial | | Zones | Interior
Detection Zones: 82 | | Coverage | Wide Angle 85°: 50 x 50' (15 x 15 m) | | Sensitivity | 3°F (1.6°C) at 2'/second (0.6 m/second) | | Speed | Detectable Speed: 1 to 5'/second (0.3 to 1.5 m/second) | | Power Input | 9 to 18 VDC | | Current Draw | 7 mA (normal) / 19 mA (maximum) | | Memory | Alarm Memory / Initial Alarm Memory: Selectable positive and negative control | | Alarm Period | 2 (+/- 0.5) seconds | | Alarm Output | N.C. 28 VDC. 0.2 A maximum | | Switch | Tamper Switch: N.C. opens when the cover is removed | | Warm-Up Time | Approximately 1 minute LED blinks | | LED Indicator | Red and yellow LED is blinking during warm-up period
Red LED: Alarm, alarm memory, and initial alarm memory indicator
Yellow LED: Anti-masking and self-checking indicator | | Terminal | DL: Selectable positive or negative control | | RF Interference | No alarm 30 V/m | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Humidity | 95% maximum | | Mounting Height | 6.0 to 10.0' (1.8 to 3.0 m) | | Dimensions | 2.76 x 4.53 x 2.06" (70.00 x 115.00 x 52.30 mm) | | Weight | 4.8 oz (135.0 g) |
