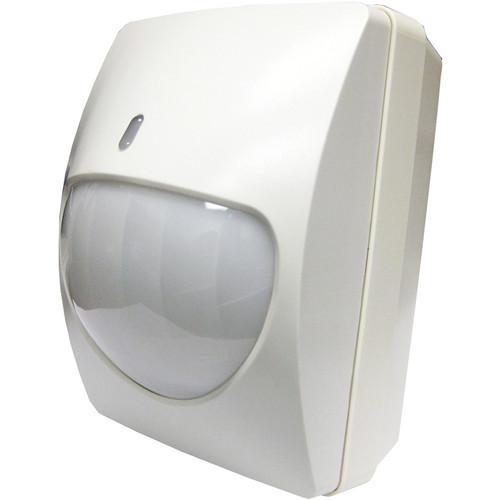

User Manual for Optex CX-702RS Wireless Indoor Passive Infrared Detector with Dual Lens Click to enlarge the picture
Contents of the user manual for the Optex CX-702RS Wireless Indoor Passive Infrared
- Product category: Motion Detectors Optex
- Brand: Optex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optex Motion Detectors
|
User manual for the Optex CX-702RS Wireless Indoor Passive Infrared contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!
|
Product description The battery-operated Optex CX-702RS Wireless Indoor Passive Infrared Detector with Dual Lens is designed to give stable long-range detection performance in a variety of internal commercial and industrial applications. The CX-702RS comes with a back box and works with most manufacturer's wireless transmitters. Because it is battery-powered, wiring is not required and allows for an easy install. With patented Multi-Focus technology, sensitivity is maintained through the entire coverage area, even in high temperature areas or in applications with low temperature contrast. Combined with double conductive shielding and temperature compensation, a high level of false alarm protection is guaranteed. In addition, the detector features the ability to choose between a 70 x 70' pattern and a 150 x 8' with a simple flip of the lens. - Multi-Focus Optics
- The highly accurate and reliable detection pattern will maintain its sensitivity throughout the entire detection area, even in high temperature or low contrast environments. Multi-focus optics create a high vertical zone density that captures the entire body mass and enables detection of even the smallest temperature contrast against the temperature of the background. In addition, the vertical detection density has been improved to take into account dead zones created by furniture or partitions.
- Double Conductive Shielding
- The double shielding lets infrared energy pass through, but blocks out light sources since it features a special conductive filter that covers the element window.
- Sealed Optics - Complete Shielding
- The pyro electric element is completely sealed with the dual-structured internal molding of the housing cover, thus preventing false alarms caused by drafts and small insects from getting inside.
- Spherical Lens Design
- Conventional flat lenses inevitably create sensitivity distortion problems when they are bent to fit a curved housing. Optex's spherically designed lens will obtain sharp detection because no bending is required. The Optex lens is designed to collect IR energy from the detection area, and focus it directly onto the pyro.
- Dual Purpose Lens
- By simply rotating the spherical lens, you can select between wide angle and long-range patterns. The detector will instantly provide reliable and precisely accurate detection for each pattern.
- Temperature Compensation Circuit
- The temperature compensation circuit will bring stable detection capability under high temperature conditions, where the background temperature is similar to that of the human body. It maintains a high level of false alarm protection while providing accurate detection by automatically adjusting its sensitivity according to the environmental temperature.
- False Alarm Protection
- With the RFI Protection feature, the built-in noise reduction chip blocks out RFI noise with field strength of 30V/m.
- Disturbance-Free Tamper Switch
- Completely sealed housing structure eliminates disturbances to tamper switch.
- Additional Features
- The additional features include 70' (21m) wide-angle and 150' (45m) long-range detection; suitable for commercial and industrial applications; double easy-knockouts for easy installation, which is compatible with 2 types of cables: a thick, 0.3" (8mm) diameter cable and a thin, 0.2" (5mm) diameter cable; offers sufficient space for wiring; 3-step angle adjustment; easy-to-view LED; and selectable pulse count of 2 or 4.
UPC: 788924081755 In the Box Optex CX-702RS Wireless Indoor Passive Infrared Detector with Dual Lens Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex CX-702RS Wireless Indoor Passive Infrared Detector with Dual Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex CX702RS Specs | Technology | Passive Infrared | | Installation | Commercial, Industrial | | Zones | Interior
Detection Zones: 68 zones in wide angle and 22 zones in long range | | Coverage | Wide Angle 85°: 70 x 70' (21 x 21 m)
Long Range: 150.0 x 8.0' (45.0 x 2.4 m) | | Sensitivity | 34.9°F (1.6°C) at 2.0'/second (0.6 m/second) (7.9' (2.4 m) mounting height)
3°F (-16.1°C) at 2.0'/second (0.6 m/second) (8' (2.4 m) mounting height) | | Speed | Detectable Speed: 1 to 5'/second (0.3 to 1.5 m/second) | | Power Input | 3 to 9 VDC alkaline or lithium battery | | Current Draw | 5 A (in standby), 10 mA (in walktest, LED on) | | Alarm Period | Succeeding signals are not output even though detection occurs within 2 minutes after the first alarm. | | Alarm Output | Form C 10 VDC 0.01 A maximum | | Switch | Tamper Switch: Form C 28 VDC 0.1 A maximum | | Counter | Pulse Count: Approximately 20 seconds (2 or 4) | | Warm-Up Time | Approximately 90 seconds | | LED Indicator | Alarm condition | | RF Interference | No alarm 20 V/m | | Operating Temperature | -14 to 122°F (-10 to 50°C) | | Humidity | 95% maximum | | Mounting Height | 5 to 12' (1.5 to 3.6 m) | | Dimensions | 3.94 x 5.51 x 2.72" (100.00 x 140.00 x 69.00 mm) | | Weight | 7 oz (200 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.8 x 4.1 x 2.9" |
