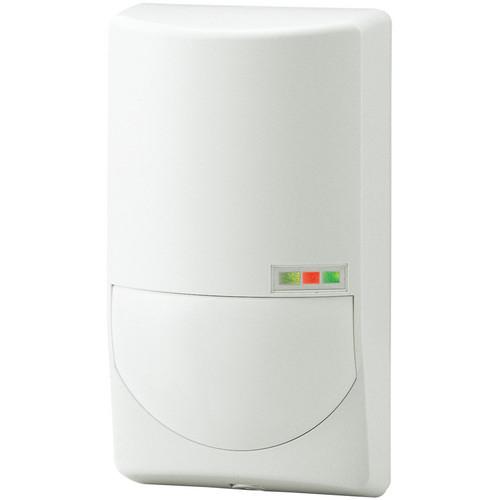

User Manual for Optex DX-60PLUS Wired Indoor Integrated Passive Infrared & Microwave Detector Click to enlarge the picture
Contents of the user manual for the Optex DX-60PLUS Wired Indoor Integrated Passive
- Product category: Motion Detectors Optex
- Brand: Optex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optex Motion Detectors
|
User manual for the Optex DX-60PLUS Wired Indoor Integrated Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!
|
Product description Integrating PIR and microwave technology into attractive, easy-to-install units, the DX-60PLUS Wired Indoor Integrated Passive Infrared & Microwave Detector from Optex provides stable and reliable detection in hostile environments, where simple PIR detectors struggle to function. The PIR element incorporates Quad Zone Logic to detect the smallest temperature contrast against the background temperature, thereby enabling it to discriminate between humans and other sources of infrared. Additionally, the microwave detector incorporates Microwave Area Shaping technology to prevent unwanted detection of movement outside the coverage area. It also includes an Anti PIR Tamper function. - Microwave Area Shaping Technology
- This detector reduces penetration of walls and unwanted detection of movement outside the coverage area. In addition, the detection area has uniform sensitivity that minimizes false activations caused by spot movement in the detection area, i.e. small animals.
- Passive Infrared Technology
- The detector creates evenly distributed sensitivity throughout the detection area. Accurate focus creates even sensitivity and high resistance to spot temperature changes. In addition, the spherical lens contributes to a superior aesthetic appearance, which end users will appreciate.
- Detection Area Size Configuration
- The microwave area can be easily shaped to fit the desired area and has even sensitivity. In addition, Quad Zone Logic in the PIR provides high tolerance to spot temperature changes and movements caused by small animals, heating vents, moving curtains, and vibrations caused by big machinery.
- Fail-Safe Technology - Automatic Trouble Monitoring
- Passive infrared does not detect through walls and is never affected by movement beyond these boundaries.
- Anti-PIR Tamper Function
- When PIR detection fails, a trouble output will generate via the alarm output (selectable option) and LED display.
- Microwave Watchdog Circuit (Self Checking Function)
- When microwave operation fails, the detector automatically switches to single PIR operation in Enhanced Reliability mode, thereby avoiding missed alarms.
- No False Alarms by Spot Temperature Changes
- The detector is not affected by spot temperature changes or sunlight caused by the movement of sunlight through a detection area.
- Trouble-Free Installation
- Microwave Area Shaping allows for simple, 2-step adjustment. By making minor adjustments to the Long or Short Range Selector and the Low, Medium, High Sensitivity Volume, the microwave can be shaped to match the room size. This technology reduces installation hassles and also reduces false alarms caused by penetration of wall by the microwave detector.
- No False Alarms Due to Penetration Through Walls
- Passive Infrared does not detect through walls and is not affected by movement beyond these boundaries.
- Additional Features
- The detector features enhanced sealed optics, separate relay output for automatic trouble monitoring, alarm memory, selectable positive or negative input, and LED remote on/off control input from control panel.
UPC: 788924081540 In the Box Optex DX-60PLUS Wired Indoor Integrated Passive Infrared & Microwave Detector Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex DX-60PLUS Wired Indoor Integrated Passive Infrared & Microwave Detector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex DX-60PLUS Specs | Technology | Passive Infrared & microwave | | Installation | Commercial, industrial | | Zones | 82 zones (PIR) (interior) | | Coverage | Wide 85°: 60 X 60' (18 x 18 m) | | Sensitivity | 3.6°F (2.0°C) at (2'/second (0.6 m/second)), 60' (18 m) | | Speed | Detectable Speed: 1 to 5'/second (0.3 to 1.5 m/second) | | Alarm | Period: Approximately 30 seconds
Output: N.C. 28 VDC, 0.2 A maximum
Memory: selectable positive and negative control
Trouble Output: N.C. 28 VDC, 0.2 A | | Switch | Tamper: N.C., open when cover is removed | | Warm-Up Period | Approximately 30 seconds | | LED | D.L Terminal: LED remote control terminal
Flicker during warm-up
Red: Alarm, alarm memory and trouble indicator
Yellow: MW and trouble indicator
Green: P.I.R and trouble indicator | | Power Supply | 9 to 18 VDC | | Current Consumption | 17 mA (normal), 40 mA (maximum) at 12 VDC | | RF Interference | No alarm 30 V/m | | Operating Temprature | 14 to 122°F (-10 to 50°C) | | Frequency | 95% maximum | | Weather-Proof Rating | Microwave: 9.900/10.525 GHz
10.687 GHz (UK version) | | Mounting Height | 6.0 x 8.0' (1.8 x 2.4 m) | | Dimensions | 2.76 x 4.92 x 1.91" (70.00 x 125.00 x 48.60 mm) | | Weight | 5.3 oz (150.0 g) |
