User Manual for Optex HX-80N Series High Mount Outdoor Curtain Wireless Ready PIR Detector with Anti-Masking Click to enlarge the picture
Contents of the user manual for the Optex HX-80N Series High Mount Outdoor
- Product category: Motion Detectors Optex
- Brand: Optex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optex Motion Detectors
|
User manual for the Optex HX-80N Series High Mount Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!
|

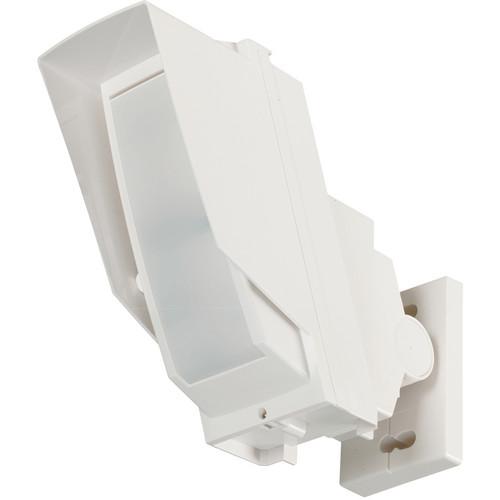

Product description The HX-80N Series High Mount Outdoor Curtain Wireless Ready PIR Detector with Anti-Masking from Optex provides the stability and reliability necessary for an outdoor PIR sensor. This battery-powered model accepts most manufacturers' wireless transmitters, and allows installers to save valuable installation time and labor costs because no trenching, installing conduit, or pulling of wire is required.The most important element in reliable outdoor detector is accuracy to distinguish a human being from a small animal. The pyro element on board enables this passive infrared detector to project a detection pattern, thus allowing for more accurate detection of human beings and less false alarms.In addition, the detector's dual PIRs and 20 detection zones utilize the AND detection pattern technology; upper and lower detection areas have to be activated in order to generate an alarm condition. This technology helps to prevent false alarms caused by a pet or small animal. The detection length can be limited to avoid unwanted detection, and its short-range zones can be masked if needed. By limiting the detection range, false alarms due to unwanted movement (cars, persons, or animals outside the protected area) can be eliminated. Note: Batteries and wireless transmitters are not included. - Catch Performance
- The most important element in reliable outdoor detector is accuracy in distinguishing a human being from a small animal. The pyro element on board enables the detector to project a suitable detection pattern, thus allowing for more accurate detection of human beings and less false alarms.
- Adjustability
- The detector coverage can easily be adjusted by means of built-in flaps and plates. To adjust the long range of detection, you can set the upper and lower flaps. To adjust the short range of detection, you can set the masking plates.
- Slope Friendliness
- Not all outdoor ground is flat like most indoor environments. Steep slopes can cause negative effects on the catch performance feature. The included, adjustable bracket enables the detector to maintain the optimal catch performance.
- Saving Installation Time & Labor Cost with No Wiring or Trenching
- The detector is a battery operated model that works with most manufacturers wireless technology.
UPC: 788924087061 In the Box Optex HX-80N Series High Mount Outdoor Curtain Wireless Ready PIR Detector with Anti-Masking Bracket 4 x Screw (4 x 20 mm) 2 x Hook and Loop Fastener Tape Alarm Cable 2 x Battery Lead Dummy Battery Kit Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex HX-80N Series High Mount Outdoor Curtain Wireless Ready PIR Detector with Anti-Masking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex HX-80NRAM Specs | Detection Method | Passive infrared | | Wireless Technology | Works with most manufacturers' wireless transmitters | | Coverage | PIR: 80' x 6' 7" (24 x 2 m) narrow / 20 zones | | Distance Limitation | 22.0, 33.0, 42.0, 59.0' (6.5, 10.0 13.0, 18.0 m) | | Speed | Detectable: 1 ft/s to 4.9 ft/s (0.3 to 1.5 m/s) | | Sensitivity | 3.6°F (-15.7°C) at 0.6 m/s | | Power Input | 3 to 7.2 VDC Lithium battery (sold separately) | | Current Draw | 30 μA (standby) / 4 mA (maximum) at 3 VDC | | Alarm Period | 2.0 ± 1 sec | | Warm-Up Period | Approximately 90 sec (LED blinks) | | Alarm Output | Form C Solid State Switch, 10 VDC, 0.01 A maximum | | Tamper Output | Form C. 28 VDC, 0.1 A maximum changes when cover is removed | | Trouble Output | N.C./N.O. selectable Solid State Switch, 10 VDC, 0.01 A maximum | | LED Indicator | Disable: During normal operation
Enable: During WALK TEST or LED SW on
Red: Warm-up, alarm, trouble, low battery | | RF Interference | No alarm 10 V/m | | Type | Outdoor | | Installation | Commercial, industrial, residential | | Operating Temperature | -4 to +140°F (-20 to +60°C) | | Humidity | 95% maximum | | Weatherproof | IP55 | | Mounting | Wall | | Mounting Height | 8'2" to 9'10" (2.5 to 3.0 m) | | Adjusting Angle | Vertical: ± 20° Horizontal: ± 95° | | Wiring | Battery powered | | Weight | 27.5 oz (780.0 g) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.1 x 8.3 x 4.7" |
