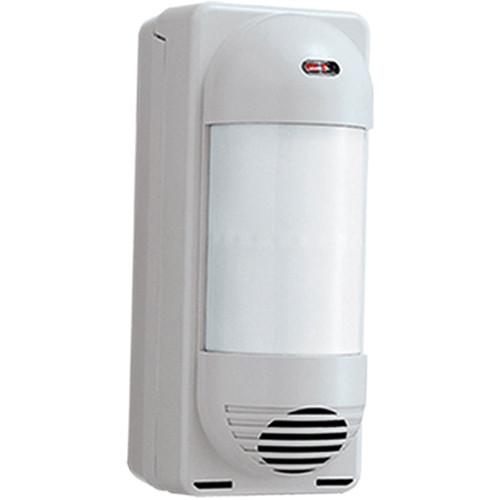

User Manual for Optex iSeries Wireless VX-402Ri Short-Range Outdoor Dual PIR Detector Click to enlarge the picture
Contents of the user manual for the Optex iSeries Wireless VX-402Ri Short-Range Outdoor
- Product category: Motion Detectors Optex
- Brand: Optex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optex Motion Detectors
|
User manual for the Optex iSeries Wireless VX-402Ri Short-Range Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!
|
Product description The iSeries Wireless VX-402Ri Short-Range Outdoor Dual PIR Detector from Optex provides the necessary stability and reliability. This 40 x 40' wireless-ready detector comes with an Inovonics EN1941 transmitter and battery (pre-installed) and allows installers to save valuable installation time and labor costs as no trenching, installing conduit, or pulling wire is required. False alarms from animals as well as environmental nuisances are greatly reduced with its design and dual PIR detectors. The dual PIR's create 2 detection areas (upper and lower) that must be simultaneously compromised in order to go into alarm. In addition, the detection length can be limited to avoid unwanted detection. By limiting the detection range, false alarms due to unwanted movement such as cars, people, or animals outside the protected area can be eliminated. - Includes Inovonics EchoStream EN1941 and battery (pre-installed).
- Dual PIRs for stable outdoor detection.
- Adjustable detection zone.
- Form C alarm and tamper output.
- Limited detection range function.
- Sensitivity selection switch.
- Temperature compensation.
- Selectable N.C. or N.O. alarm output.
- Photocell for day and night operation.
UPC: 788924087849 In the Box Optex iSeries Wireless VX-402Ri Short-Range Outdoor Dual PIR Detector Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex iSeries Wireless VX-402Ri Short-Range Outdoor Dual PIR Detector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex VX402RI Specs | Technology | Passive Infrared | | Installation | Commercial, Industrial, Residential | | Zones | Approach
Detection Zones: 14 | | Mounting Height | 2.6 to 4.0' (0.8 to 1.2 m) | | Sensitivity | 35.0̊F (1.6̊C) at 2 ft/s | | Speed | Detectable Speed: 0.3 to 1.5 m/s (1.0 to 5.0 ft/s) | | Power Supply | 3 to 9 VDC Alkaline or Lithium Battery | | Current Consumption | Maximum 3 mA (Walktest, LED on)
10 µA (Standby) | | Alarm Period | Approximately 2.5 sec | | Alarm Output | Form C-Solid State Switch:10 VDC 0.01 A | | Switch | Tamper Switch: Form C activates when cover is removed | | Count Period | Approximately 20 sec. 2 or 4/ Test (1 pulse) | | Warm-Up Period | Approximately 2 minutes | | LED Indicator | Disable during normal operation
Enable during walk test | | Weatherproof | IP54 | | RF Interference | No Alarm 30 V/m | | Mounting | Wall, Pole | | Operating Humidity | 95% maximum | | Dimensions (H x W x D) | 7.80 x 3.15 x 4.25" (198.11 x 80.00 x 107.94 mm) | | Weight | 16.9 oz (480.0 g) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 8.5 x 5.2 x 4.7" |
