User Manual for Optex iVision Door Unit Click to enlarge the picture
Contents of the user manual for the Optex iVision Door Unit
- Product category: Door Stations Optex
- Brand: Optex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optex Door Stations
 |
User manual for the Optex iVision Door Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!
|

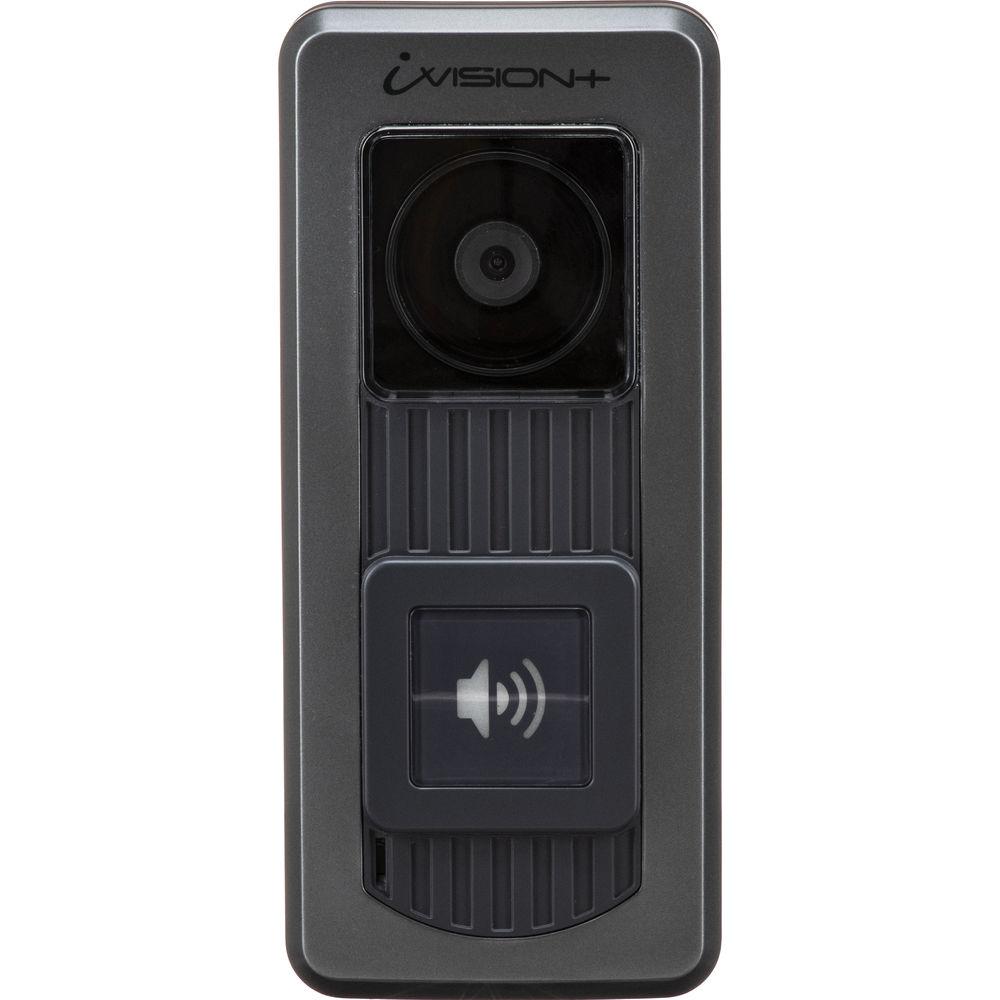

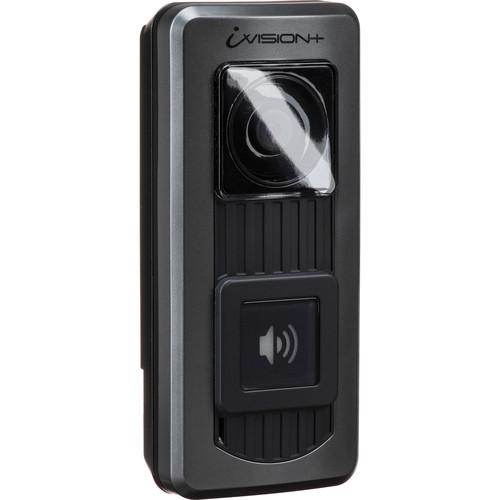

Product description The iVision+ Door Unit from Optex is a video and audio intercom unit for one residential or commercial entrance door. Featuring a doorbell, camera, microphone, and speaker, it mounts next to your entrance door and allows you to see who's there on a separately sold iVision+ Handheld Unit from the convenience of inside your home or office. Up to two of these door units and up to four handheld units can be combined together into one system. The handheld unit has a display screen as well as microphone and speaker so you can see who's at the door, communicate with the person, or choose to ignore them. When you're unavailable and don't answer, the iVision+ takes up to three photos of your visitors and sends them to the handheld unit for storage.

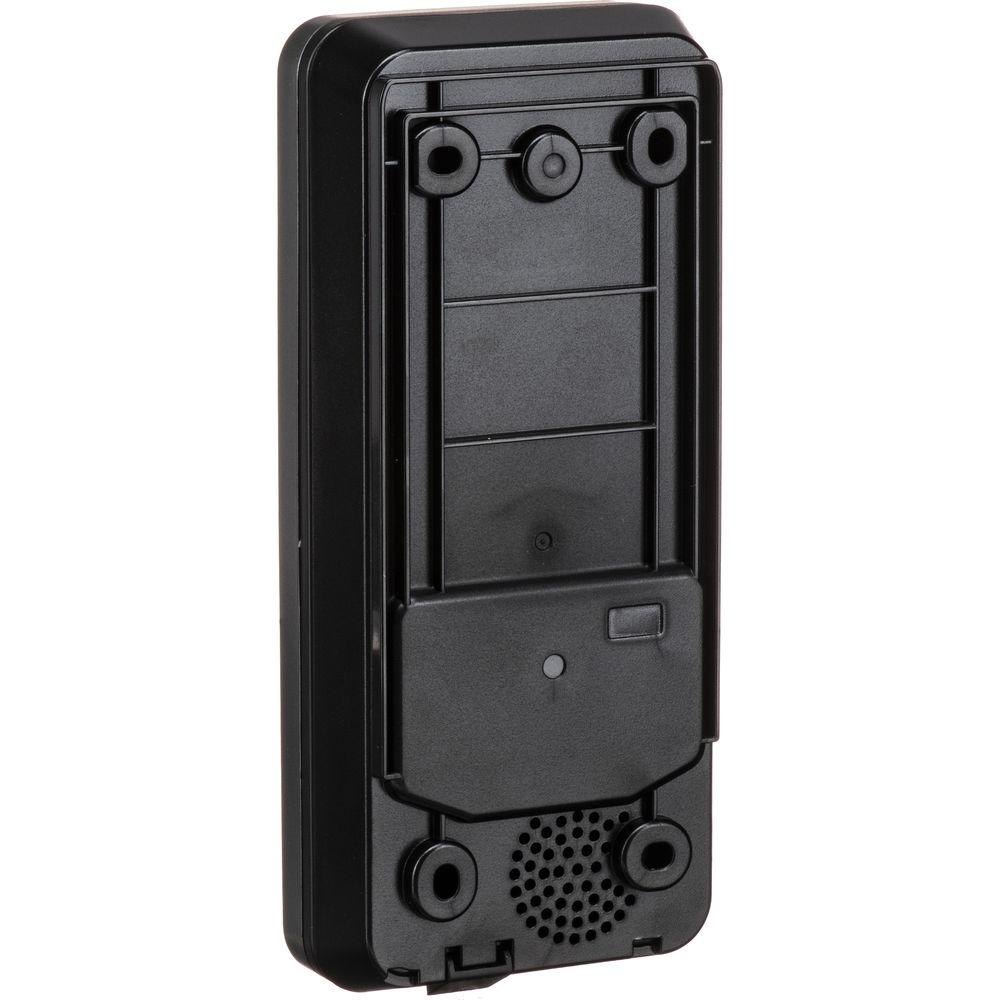

IR LEDs around the camera allow the camera to clearly capture who's at the door at nighttime, as long as there's at least a little light outside. This door unit is battery operated by three AA batteries, not included, and supports a 330 ft line of sight transmission range. It can also be hardwired to work off AC/DC power instead of batteries. It mounts near your door using its own back plate and screws, and it's splash proof against rain and similar outdoor conditions.
For even further convenience, the iVision+ system can also be integrated with the iVision+ Gateway Unit or Wireless 2000 Unit to enable remote door release capability, provided appropriate hardwiring. - Key Features
-
- Video and audio intercom unit for one residential/commercial entrance door
- Features a doorbell, camera, microphone, and speaker
- Combines with iVision+ Handheld Unit, sold separately, to let you see who's at the door, communicate with them, or ignore them
- Takes photos of your visitors when you're unavailable to answer
- Night-vision IR LEDs
- Battery operated by three AA batteries
- Can be hardwired for AC/DC power
- 330 ft line of sight transmission range
- Splash proof against rain and similar outdoor conditions
- Can be integrated with the iVision+ Gateway or Wireless 2000 to enable door release capability
UPC: 788924088730 In the Box Optex iVision+ Door Unit Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex iVision Door Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex IVP-DU Specs | Transmission Distance | 330' / 100 m Line of Sight | | Radiowave Frequency | 2.4 GHz | | Power | 3 x AA Batteries, Not Included (12 Month Life Expectancy Based on Three Activations per Day)
Or 10-24 VAC/VDC Power If Hardwired | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 158°F / -30 to 70°C | | Operating Humidity | <90% RH (No Condensation) | | Dimensions | 2.8 x 6.4 x 1.7" / 7 x 16 x 4 cm | | | | Package Weight | 0.84 lb | | Box Dimensions (LxWxH) | 8.35 x 5.3 x 2.95" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
