User Manual for Optex iVision Wireless Intercom System Click to enlarge the picture
Contents of the user manual for the Optex iVision Wireless Intercom System
- Product category: Intercoms Kits Optex
- Brand: Optex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optex Intercoms Kits
 |
User manual for the Optex iVision Wireless Intercom System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!
|

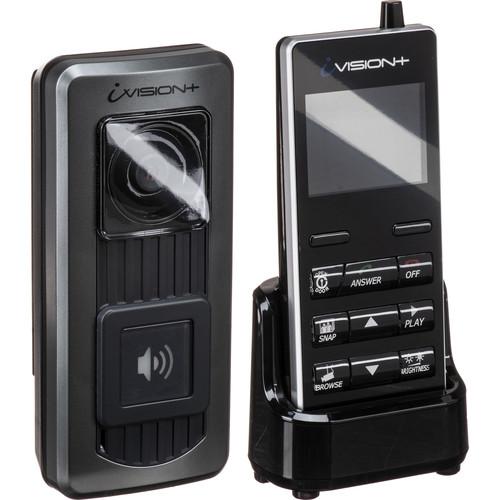

Product description The iVision+ Wireless Intercom System from Optex allows you to see who's at the door, communicate with the person or identify them, from the convenience of inside your home or office. Moreover, it supports optional door-release capability that lets you open the door without getting up. The system includes a Door Unit and Handheld Unit that form a one-way video / two-way audio communication system. Up to four Handheld Units and up to two Door Units can be incorporated into one system, suitable for both residential and commercial locations.
The Door Unit, which neatly installs at your entrance door, features a doorbell, camera, microphone, and speaker for your visitors to ring and communicate with you. IR LEDs around the camera lens allow the camera to clearly see visitors at nighttime, as long as there's at least a little light outside. The Handheld Unit is a monitoring device, featuring a 2.4" display that shows you who's at the door. It also has a microphone and speaker so you can speak with your visitor. When you're not available to answer, the Door Unit takes up to three photos of your visitor and transmits them to the Handheld Unit where they're saved to built-in memory. These photos can later be offloaded to your computer via a USB output on the Handheld Unit.

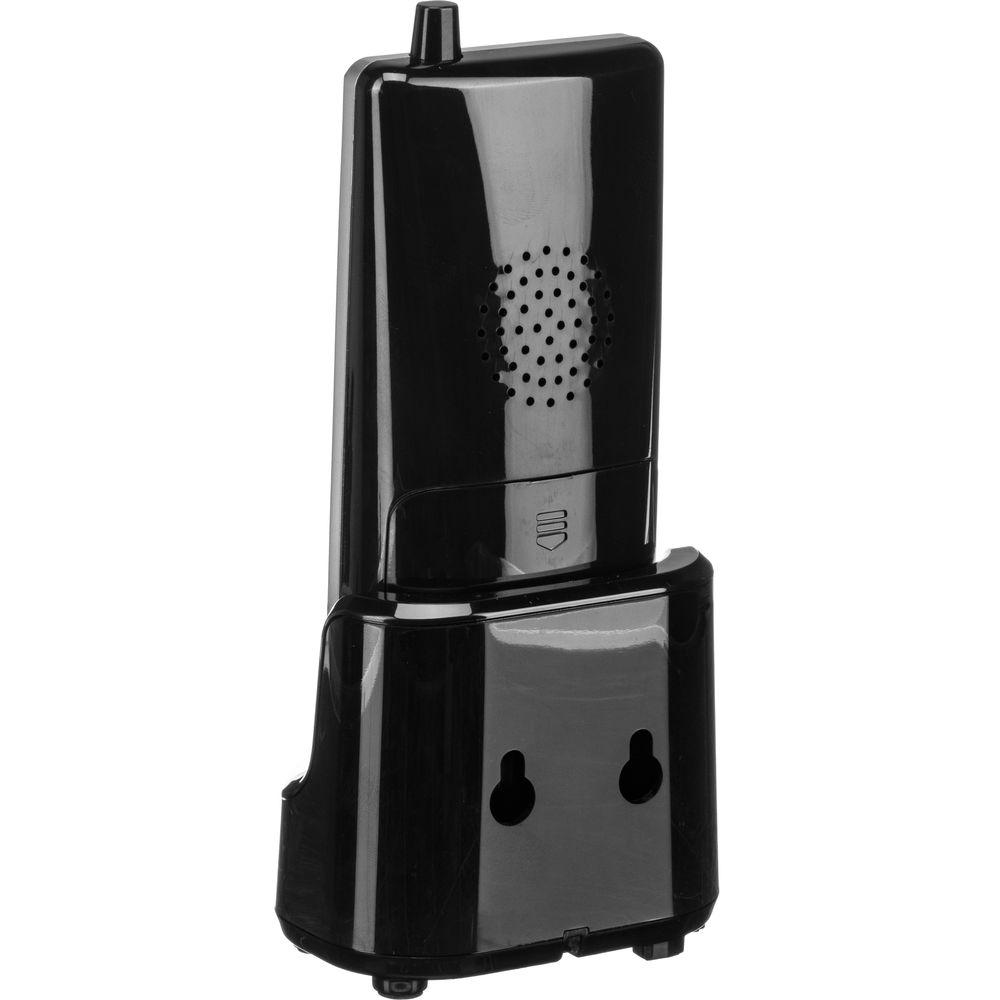

The system supports a 330 ft line-of-sight transmission range between the units. The Door Unit is battery-operated by three AA batteries and can also be wired to work off of AC/DC power, and it's splash proof against rain and similar outdoor conditions. It mounts near your door using its own back plate and screws. The Handheld Unit runs on an included rechargeable battery and comes with a wall-mountable charging cradle where it can be kept at all times, like a cordless phone in its base.
Remote door-release capability can be integrated by installing the optional iVision+ Gateway Unit or Wireless 2000 Unit and wiring your doors. - Key Features
-
- One-way video / two-way audio communication system for the home or office
- Includes doorbell and camera unit, and handheld monitoring unit, both with a mic/speaker
- Let you see who's at the door and communicate with them from anywhere inside the premises
- Night-vision capability
- Takes photos of your visitors when you're unavailable to answer
- Supports optional iVision+ Gateway or Wireless 2000 for remote door-release capability
UPC: 788924088747 In the Box Optex iVision+ Wireless Intercom System iVision+ Handheld Unit iVision+ Door Unit Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex iVision Wireless Intercom System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex IVP-DH Specs | | | Transmission Distance | 330 ft (100 m) line-of-sight | | Radiowave Frequency | 2.4 GHz | | | | Power | 3x AA batteries, not included (12 month life expectancy, based on three activations per day)
Or 10-24 V AC/DC power if optionally wired to AC current | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Operating Humidity | < 90% RH (no condensation) | | Dimensions | 2.8 x 6.4 x 1.7" (7 x 16 x 4 cm) | | | | Screen Size | 2.4" (6 cm) | | USB Output | microUSB port for PC connection | | Power | 5.5 V AC/DC power adapter included for powering the charging cradle | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | < 90% RH (no condensation) | | Dimensions | 2.4 x 5.7 x 1.2" (6 x 14.5 x 3 cm) | | | | Package Weight | 2.215 lb | | Box Dimensions (LxWxH) | 13.35 x 8.7 x 3.25" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
