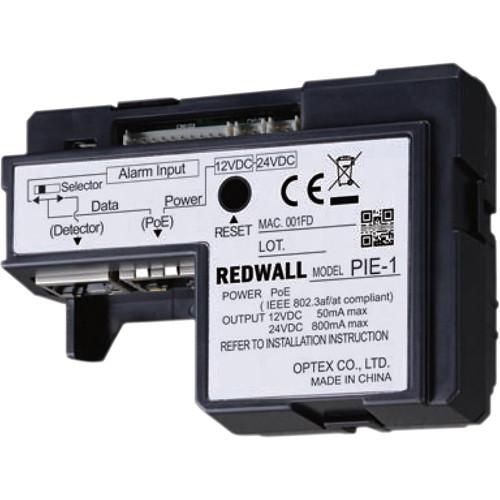

Product description The PIE-1 POE IP Outdoor Encoder from Optex is an encoder that converts analog relay outputs to original ASCII code (Redwall Event Code) for Redwall SIP, Redscan, and Redbeam detectors. You can connect to all leading VMS platforms to control IP cameras. PIE-1 is compatible with Power over Ethernet (PoE) IEEE802.3 af/at, thereby making it possible to supply power using a PoE hub or switch. Only one LAN cable is needed to connect PIE-1 to a PoE hub or switch, thereby reducing installation time and cost. - Change analog relay output signals (N.C.) to original ASCII code
- Supply power to detectors using a PoE hub or switch
- Integrated with leading VMS platforms
UPC: 788924088839 In the Box Optex PIE-1 POE IP Outdoor Encoder 2 x Power Output Cable 3 x Alarm Input Cable Mounting Plate for a Double Gang Box Gasket Sheet for Gang Box 6 x Mounting Screw Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex PIE-1 POE IP Outdoor Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex PIE-1 Specs Signal Input | 5-input for dry contacts (N.C. only) | Alarm Output | Redwall Event Code (UDP / TCP) | Switch | Ethernet converter / LAN through | Settings | Function: Use web browser | Protocols Supported | IPv4, ARP, UDP, TCP, ICMP, HTTP | LED Indicators | Normal: Green light is ON when the power is supplied by PoE When Communicating: Yellow light blinks during communication | Power Supply | PoE (IEEE802.3af/at compliant) | Power Output | 24 VDC 800 mA maximum, 12 VDC 50 mA maximum | Installation | Outdoor (Inside of the waterproof case) | Operating Temperature | -40 to 140˚F (-40 to 60˚C) | Operating Humidity | 95% RH. maximum | Dimensions | 3.66 x 3.73 x 1.30" (92.96 x 94.74 x 33.02 mm) | Weight | Main Unit: 3.2 oz (90.7 g) |
