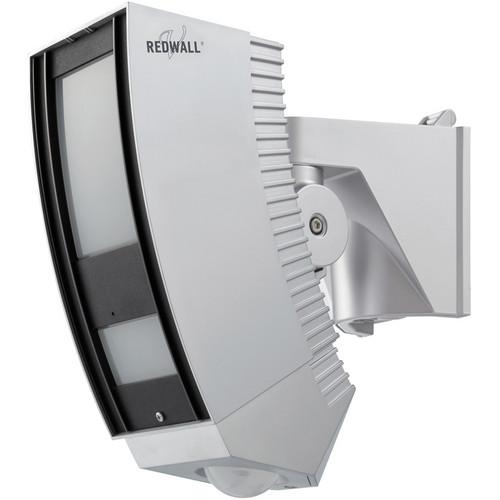

User Manual for Optex Redwall-V Series SIP-5030 Outdoor Synthesized PIR detector with Anti-Masking Anti-Rotation Creep Zone Click to enlarge the picture
Contents of the user manual for the Optex Redwall-V Series SIP-5030 Outdoor Synthesized
- Product category: Motion Detectors Optex
- Brand: Optex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optex Motion Detectors
|
User manual for the Optex Redwall-V Series SIP-5030 Outdoor Synthesized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!
|
Product description The Optex Redwall-V Series SIP-5030 Outdoor Synthesized PIR Detector with Anti-Masking/Anti-Rotation/Creep Zone offers wide angle-detection for triggering CCTV systems in large areas outside. It has an intelligent detection system that uses data from the ambient environment, such as temperature and illuminance conditions to automatically adjust the sensitivity.
In addition, the SIP-5030 system has a separate PIR detector at the bottom of the unit to cover the creep zone area. This second creep zone PIR has an independent output that is separate from the main output and can be used to protect the area around the detector, while the main output can trigger the CCTV system.
The detection angle in the main area of the SIP-5030 Detector can be adjusted to easily match a camera's field of view and the unit is also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit. The system offers detection with a long range of up to 300’ and a total of 3 outputs, 2 separate outputs for far and near areas and another for creep zone detection. Multiple outputs are useful for activating video transmission systems and controlling PTZ cameras. - Intelligent detection system with PIR motion sensor used in remote monitored CCTV applications
- Areas of coverage designed to match common fixed camera and lens combinations
- Sensor has a mounting height of between 7.6 and 13'
- System utilizes thermo and luminance sensors that monitor ambient temperature and light levels to reduce false alarms while maintaining optimum sensitivity
- 3-axis accelerometer incorporated to alert of unauthorized reorientation of the device
- Anti-masking feature alerts during unauthorized covering of the sensor windows
- Blanking plates to mask areas of unwanted coverage
- System sensor has a high-grade mirrored optical array with double dual / one quad pyro sensors for the near and far zones, and a separate double dual sensor for creep zone
- Sensor comes equipped with tamper-resistant head adjustments to prevent unauthorized adjustment of the head position
- Patented Double Conductive Shielding blocks RFI and spurious light sources, and minimizes false alarms
- Independent sensitivity for creep/ near and far detection zones with high, medium, and low sensitivity settings
- Independent N.C. and N.O. outputs for main areas
- Adjustable alarm interval time
- IP65 rated polycarbonate housing
UPC: 788924085661 In the Box Optex Redwall-V Series SIP-5030 Outdoor Synthesized PIR detector with Anti-Masking/Anti-Rotation/Creep Zone Dual Gang Box Adapter Plate Paper Mounting Template Allen key Area Masking Seal Tweezers Area Template Mounting Screws SIP-AM2012BR Adapter (Nickel Plated Brass M20 to 1/2"NPT) Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex Redwall-V Series SIP-5030 Outdoor Synthesized PIR detector with Anti-Masking Anti-Rotation Creep Zone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex SIP5030 Specs | Detection Method | Passive infrared | | Detection Range | Main Area: 100
Creep Zone: 36 | | Power Requirements | 11 to 16 VDC
22 to 26 VDC | | Current Draw | 40 mA at 12 VDC, 75 mA at 24 VAC
415 mA (with optional heating unit) | | Sensitivity Selection | Far Sensor: SH / H / M / L
Near Sensor: SH / H / M / L
Creep Sensor: SH / H / M / L | | Range | Range Selector:
Far: On / Off | | Alarm Output | Far Area: NO, NC, 28 VDC, 0.2 A maximum
Near Area: N.O.28V DC, 0.2 A maximum | | Alarm | Interval Period: Off / 15, 30, 60 sec | | Trouble Output | NC 28 VDC, 0.2 A maximum | | Tamper Output | NC 28 VDC, 0.1 A maximum | | Alarm Period | Approximately 2 sec | | Wiring | PoE, wired | | Installation | Commercial, Government, Industrial | | Zones | Building, Approach, Perimeter | | Rating | Main unit: IP65
Chassis : IP55 | | Operating Temperature | -13 to 40°F (-25.0 to 4.4°C)
-40 to +140°F (-40 to 60°C) with optional heater unit | | Mounting Height | 7.6 to 13.0' (2.3 to 3.9 m) | | Detection Area | 100.0 x 65.0' (30.4 x 19.8 m)
Creep Zone:
At 7.6' (2.3 m) Installation Height: 10.0 x 16.0' (3.0 x 4.8 m)
At 13.0' (3.9 m) Installation Height: 20.0 x 30.0' (6.0 x 9.1 m)
Horizontal detection angle adjustable through 270° | | Dimensions (W x H x D) | 4.0 x 10.7 x 11.4" (101.6 x 271.7 x 289.5 mm) | | Weight | 56.0 oz (1,587.5 g) | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 15.2 x 12.9 x 5.2" |
