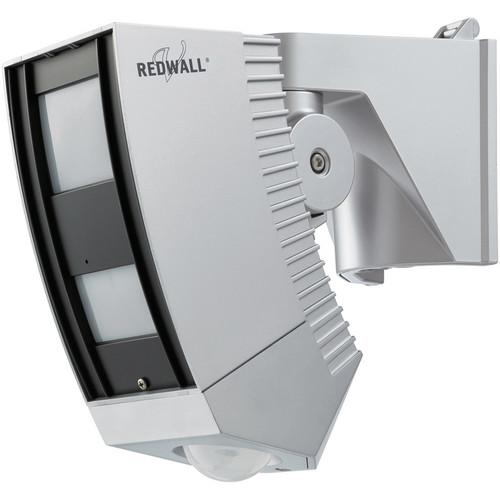

Product description The Optex SIP-3020/5 Superior Intelligent Outdoor PIR Detector with Anti-Masking / Anti-Rotation / Adjustable Creep Zone is designed for mid-range outdoor detection applications to trigger video transmission systems and PTZ camera control. The detector has an intelligent detection system that uses data from ambient environment, such as temperature and illuminance conditions to automatically adjust the sensitivity. It is also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit. The SIP-3020/5 has an additional PIR detector on the bottom to cover the area just below the unit. This PIR detector on the bottom has an independent output separate from the main detector, while the detection angle in the main area of the SIP-3020/5 system can be adjusted to easily match a camera's field of view. - Intelligent detection system with PIR motion sensor used in remote monitored CCTV applications
- Areas of coverage designed to match common fixed camera and lens combinations
- Sensor has a mounting height of between 7.6 and 13.0'
- Sensor has a high-grade, mirrored optical array with a separate creep-zone sensor (double dual pyro-elements), and 3 dual pyro sensors with patented double conductive shielding to block RFI and spurious light sources, thereby minimizing false alarms
- Sensor includes high, medium, and low sensitivity settings for near-field, far-field, and creep zone monitoring zones
- With automatic sensitivity management, the system utilizes thermo and luminance sensors that monitor ambient temperature and light levels to reduce false alarms while maintaining optimum sensitivity
- Advanced detection algorithm
- Anti-vandalism functions including anti-masking and anti-rotation function with 3-axis accelerometer to alert of unauthorized reorientation of the device
- Anti-masking feature alerts during unauthorized covering of the sensor windows
- Blanking plates to mask areas of unwanted coverage
- Sensor comes equipped with tamper-resistant head adjustments to prevent unauthorized adjustment of the head position
- Independent N.C. and N.O. outputs
- Adjustable alarm interval time
- IP65 rated polycarbonate housing
UPC: 788924085630 In the Box Optex SIP3020/5 Superior Intelligent Outdoor PIR Detector with Anti-Masking / Anti-Rotation / Adjustable Creep Zone Dual Gang Box Adapter Plate Paper Mounting Template Allen key Area Masking Seal Tweezers Area Template Mounting Screws SIP-AM2012BR Adapter (Nickel Plated Brass M20 to 1/2"NPT) Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex SIP3020 5 Superior Intelligent Outdoor PIR Detector with Anti-Masking Anti-Rotation Adjustable Creep Zone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex SIP3020/5 Specs | Detection Method | Passive infrared | | Power Requirements | 11 to 16 VDC
22 to 26 VDC | | Current Draw | 40 mA at 12 VDC, 75 mA at 24 VAC
415 mA (with optional heating unit SIP-HU) | | Sensitivity Selection | Far Sensor: SH / H / M / L
Near Sensor: SH / H / M / L
Creep Sensor: SH / H / M / L | | Range | Range Selector:
Far: On / Off | | Alarm Output | NO, NC, 28 VDC, 0.2 A maximum | | Alarm | Interval Period: Off / 15, 30, 60 sec | | Trouble Output | NC 28 VDC, 0.2 A maximum | | Tamper Output | NC 28 VDC, 0.1 A maximum | | Alarm Period | Approximately 2 sec | | Warm-Up Period | Approximately 60 sec | | Wiring | PoE, wired | | Installation | Commercial, Government, Industrial | | Zones | Building, Approach, Perimeter | | Rating | IP65 | | Operating Temperature | -13 to 40°F (-25.0 to 4.4°C)
-40 to +140°F (-40 to 60°C) with optional heater unit | | Mounting Height | 7.6 to 13.0' (2.3 to 3.9 m) | | Detection Area | 100.0 x 65.0' (30.4 x 19.8 m)
Creep Zone: At 7.6' (2.3 m) Installation Height: 10.0 x 16.0' (3.0 x 4.8 m)
At 13.0' (3.9 m) Installation Height: 20.0 x 30.0' (6.0 x 9.1 m)
Horizontal detection angle adjustable through 270° | | Dimensions (W x H x D) | 4.0 x 9.8 x 10.5" (101.6 x 248.9 x 266.7 mm) | | Weight | 48.0 oz (1,360.7 g) | | | | Package Weight | 4.265 lb | | Box Dimensions (LxWxH) | 14.0 x 13.6 x 5.05" |
