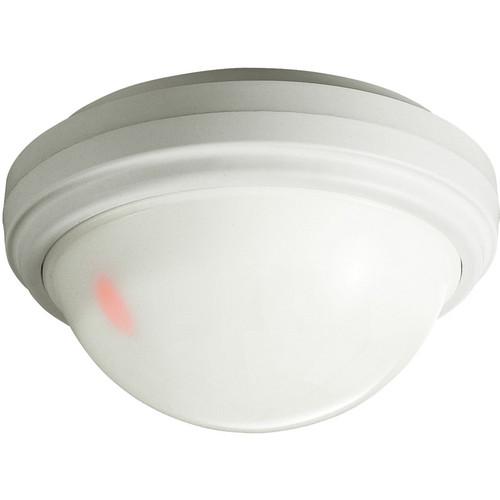

User Manual for Optex SX-360Z 360° Ceiling Mount Indoor Passive Infrared Detector with Zoom Function Click to enlarge the picture
Contents of the user manual for the Optex SX-360Z 360° Ceiling Mount Indoor
- Product category: Motion Detectors Optex
- Brand: Optex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optex Motion Detectors
|
User manual for the Optex SX-360Z 360° Ceiling Mount Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!
|
Product description The Optex SX-360Z 360° Ceiling Mount Indoor Passive Infrared Detector with Zoom Function and highly dense, triple-element detection pattern provides 360° of detection performance at any ceiling height up to 16' high. By simply twisting the unit's domed lens, the detection pattern can be easily adjusted at any installation height, thereby making it a flexible ceiling detector. The 276 dense zones provide a 60' diameter detection area at any installation height from 8 to 16' with no dead spots. This, combined with its compact design, makes the detector suitable for a variety of large or small, residential or commercial applications. - Flexible Pattern Adjustment / Zoom Function
- The pattern angle can be variably adjusted. The special lens can be adjusted up or down by rotating the housing cover of the zoom mechanism. The angle adjustment can provide a 360º, 60' diameter detection area at any ceiling height up to 16' with high detection performance.
- Highly Dense
- The circular detection area with 276 dense zones eliminates dead spots over its broad 60' diameter detection area.
- Multi-Focus Lens
- Features an in-line quad element (triple dual) and creates zones with high vertical density for maximum detection sensitivity.
- False Alarm Protection
- It offers RFI protection (no alarm against field strength levels exceeding 30V/m for the range of 100 MHz to 1.2 GHz. With temperature protection, this detector offers no alarms in high, low, and changing temperatures from -4 to 122°F (-20 to 50°C). In addition, it also features a noise reduction circuit, selectable pulse count (1, 2 to 4), and selectable sensitivity levels (high, medium, or low).
- Additional Features
- UL-listed, LED on/off switch, warm-up indicator, multilevel pattern, RFI immunity 30V/m, LED remote control terminal.
UPC: 788924080635 In the Box Optex SX-360Z 360° Ceiling Mount Indoor Passive Infrared Detector with Zoom Function Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex SX-360Z 360° Ceiling Mount Indoor Passive Infrared Detector with Zoom Function in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex SX-360Z Specs | Technology | Passive infrared | | Installation | Commercial, industrial, residential | | Zones | Interior
Detection Zones: 276 | | Coverage | Ø 60' (Ø 18 m), 360° zoom | | Mounting | Ceiling Height: 8.0 to 16.0' (2.4 to 5.0 m) | | Sensitivity | 3.0°F (-16°C) at 2.0 ft/sec (0.6 m/sec) | | Sensitivity Adjustment | Low:ɸ 30 to 40' (ɸ 9 to 12 m)<br>Medium:ɸ 40 to 50' (ɸ 12 to 15 m)<br>High:ɸ 50 to 60' (ɸ 15 to 18 m) | | Speed | Detectable: 1 to 6 ft/sec ( 0.3 to 1.8 m/sec) | | Indicators | LED: Blinks during warm-up period
alarm condition | | Alarm | Period: 2.0 ±0.5 sec
Output: N.C, 28 VDC, 02.A maximum | | Switch | Tamper: N.C, opens when cover removed | | Count Period | Pulse: 2.0 ±5 sec, 1,2 or 4 | | Warm-Up Period | Approximately 20 sec (LED blinks) | | Wiring | Wire Size:AWG22 (0.33 mm2)At 12 V: 1,070' (320 m)At 14 V: 2,140' (650 m)AWG20 (0.52 mm2)At 12 V: 1,700' (510 m)At 14 V: 3,400' (1,020 m)
AWG18 (0.83 mm2)At 12 V: 2,700' (820 m)At 14 V: 5,300' (1,600 m) | | Power Input | 6 to 18 VDC | | Current Draw | 13 mA (normal), 18mA (maximum) | | RF Interference | No alarm 30 V/m | | Humidity | 95% maximum | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Diameter | 5.04" (128.00 mm) | | Depth | 2.46 to 2.88" (67.00 to 73.00 mm) | | Weight | 8 oz (224 g) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 3.0" |
