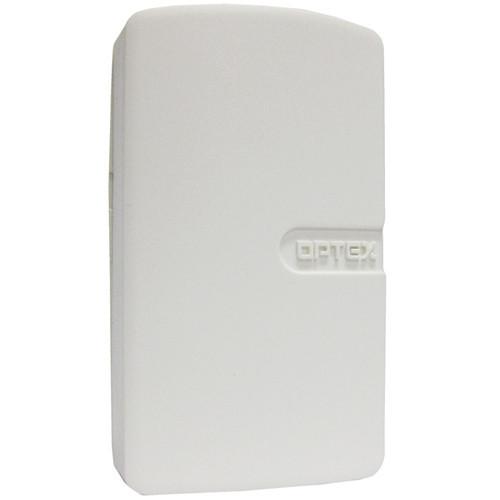

User Manual for Optex TC-10U Door Contact Wireless Transmitter Click to enlarge the picture
Contents of the user manual for the Optex TC-10U Door Contact Wireless Transmitter
- Product category: Alarm Accessories Optex
- Brand: Optex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optex Alarm Accessories
|
User manual for the Optex TC-10U Door Contact Wireless Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!
|
Product description The TC-10U Door Contact/Wireless Transmitter from Optex is a battery-powered transmitter that is compatible with the RC-10U/RC-20U Chime Boxes and RG-10U Single Relay Receiver. When used as a wireless transmitter and installed in the backbox of any battery-operated detector, extended detection range and wireless notification to your RC-20U chime box is achieved. It allows you to instantly monitor larger areas with minimal false alarms for an enhanced sense of protection. When used as a door contact, the TC-10U Transmitter will send a signal to the RC-20U receiver chime box. This gives the user a notification when the door is opened, and is suitable for high traffic areas around entrances where an above door sensor is not practical. - WSS series wireless door contact
- Used in indoor/outdoor commercial and residential installations
- Compatible with RC-10U Chime Box and RG-10U Single Relay Receiver
- Can be installed on doors and windows
- Weatherproof structure (IP54) for indoors and outdoors where rains don't have a direct contact
- Over 8 million codes possible, eliminates interference from neighbors
- Powered by CR123 3V battery (sold separately)
- Input terminal for Optex battery-powered detectors
- Can be used as wireless transmitter for VX-20R, BX-80NR, AX-100TFR, AX-200TFR, CX-702R, and EX-35R detectors
- Suitable for commercial and residential installations
UPC: 788924040189 In the Box Optex TC-10U Door Contact/Wireless Transmitter 3 x Double Stick Tape 4 x Screw 2 x Rubber Washer Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex TC-10U Door Contact Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex TC-10U Specs | Detection Method | Built-in magnet | | Radio Frequency | 418 MHz | | Transmission Range | Maximum: 700.0' (213.3 m) line of sight | | Power Source | CR123 3 V Lithium battery (sold separately) | | Battery Life | Approximately 2 years (100 times/day at 70°F/20°C) | | Status Indicator | Red LED | | Operating Temperature | 15 to 120°F (-10 to 50°C) | | Dimensions (W x H x D) | 1.8 x 3.1 x 1.0" (4.5 x 7.8 x 2.5 cm) | | Weight | 2.5 oz (70.7 g) without battery | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.8 x 3.6 x 1.6" |
