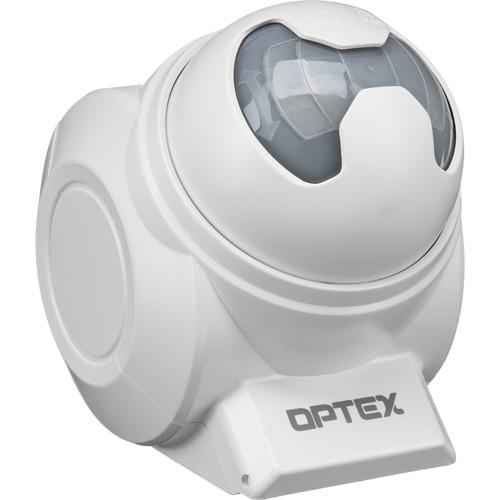

Product description The TD-20U Indoor/Outdoor Sensor Transmitter from Optex offers two selectable detection patterns, a 17' fan pattern or a 50' beam pattern. The sensor uses PIR to detect motion, and once motion is detected it sends a signal back to the RC-20U Chime Box Receiver using RF signals. The device is powered by a standard 9V battery (available separately) which can last for approximately 2 years when the sensor is triggered about 250 times a day. There is a red LED that indicates when the sensor has detected motion and when the battery is low. Up to nine TD-20U units can be added to one RC-20U Receiver, enabling you to set up a full perimeter around your property. When used with the 50' long-range detection pattern, the transmitter is suitable for applications such as driveways, entryways/walkways, warehouse delivery areas, constructions sites, art galleries, drive-up windows, delivery doors, and similar scenarios. When used with the 17' fan (wide) angle detection pattern, the transmitter can be used to monitor hard to see items, merchandise that is prone to shoplifting, inside display cases at jewelry stores, department store dressing rooms or fitting rooms, the unauthorized use of emergency exits, supply rooms or closets, and home or business entry points. With an IP54-rated housing, the sensor is suitable for use in outdoor areas for a wide range of applications. - Choose 50' long-range or 17' fan (wide) detection pattern
- Weatherproof housing (IP54-rated) for both indoor and outdoor use
- Uses passive infrared to detect motion and sends RF signals to receivers
- 2000' transmission range (line of sight)
- Can be installed on walls, ceilings, and desktops
- Over 8 million codes possible, eliminating interference from neighbors
- LED indicator for verifying detection and low battery status
- Operates on a 9V lithium or alkaline battery
UPC: 788924040226 In the Box Optex TD-20U Indoor/Outdoor Sensor Transmitter for Wireless 2000 System 2 x Mounting Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex TD-20U Indoor Outdoor Sensor Transmitter for Wireless 2000 System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex TD-20U Specs | Detection Method | Passive Infrared | | Pattern | 50.0' (15.2 m) long range
17.0' (5.1 m) fan pattern | | Angle Adjustment | 45° vertically and ±5° horizontally
±5° vertically and 45° horizontally | | Radio Frequency | 418 MHz | | Transmission Range | 2000' (609.6 m) line of sight | | Power Source | 9 V alkaline battery | | Battery Life | Approximately 2 years (250 times/day at 70°F/20°C) | | Status Indicator | Red LED | | Water Resistance | IP54 | | Installation | Outdoor/Indoor | | Operating Temperature | 15 to 120°F (-10 to 50°C) | | Dimensions (W x H x D) | 3.5 x 4.2 x 4.5" (8.9 x 10.6 x 11.4 cm) | | Weight | 6.3 oz (178.6 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 4.95 x 4.85 x 4.25" |
