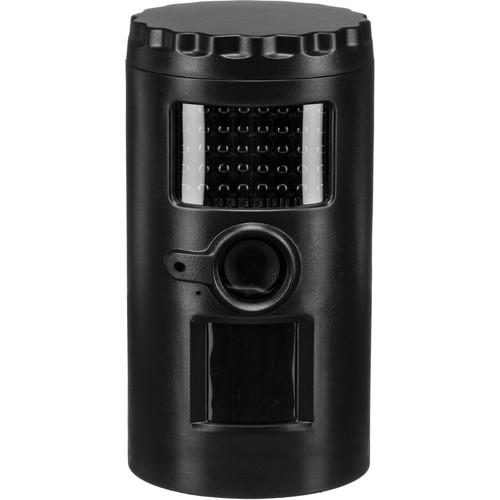

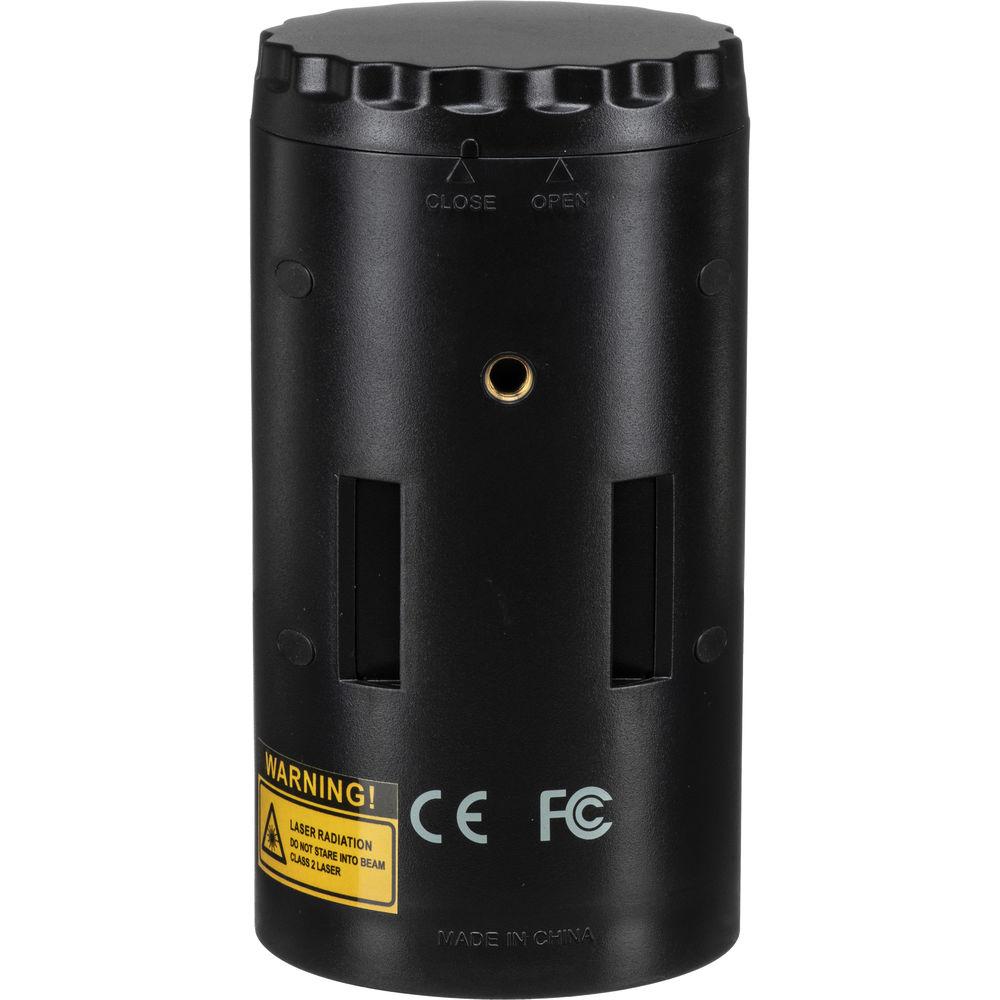

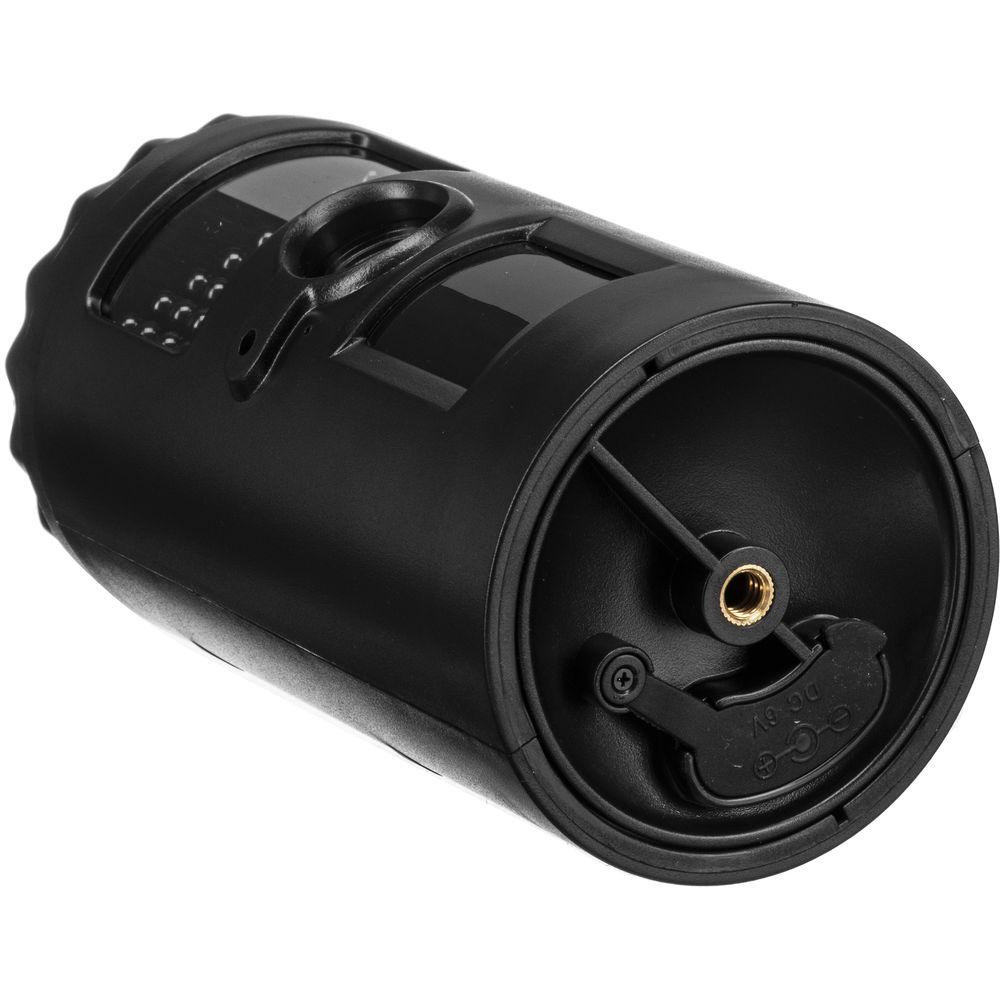

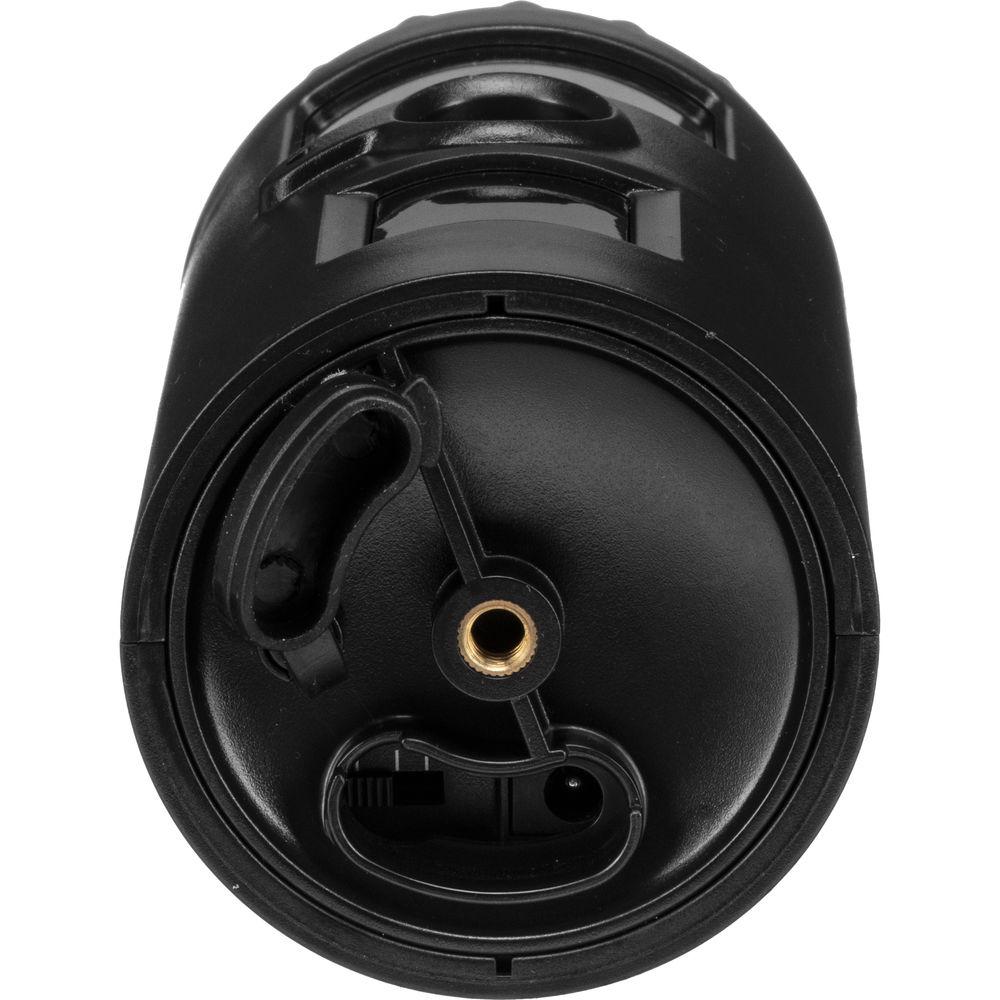

User Manual for Optex WATCHMAN Battery Powered Surveillance Camera Click to enlarge the picture
Contents of the user manual for the Optex WATCHMAN Battery Powered Surveillance Camera
- Product category: Wireless Cameras Optex
- Brand: Optex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optex Wireless Cameras
 |
User manual for the Optex WATCHMAN Battery Powered Surveillance Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optex product will considerably shorten its lifespan!
|
Product description Battery-powered and weatherproof, and highly compact, the Optex WATCHMAN can be quickly set up anywhere indoors or outdoors. And featuring 32 ft of LED-illuminated night vision, it can be used at any time of day, even in complete darkness. It captures video, photos, or time lapse photography upon motion detection, which can be set up using the 1.5" LCD on the bottom.
Capture video in up to 720p HD resolution at 20 fps, which plays back slightly faster than real time, as is common in surveillance footage. Capture 8MP photos in bursts of 1-9, or time lapse photography in 5 second intervals for up to 5 minutes (300 seconds). There's also a built-in mic that can be set up to capture sound when recording video, and an SD memory card slot supporting up to 32GB SD cards for storing everything. The WATCHMAN is powered by four size C batteries, not included, and can alternatively be powered by an optional 6 VDC power adapter. - Key Features
-
- Battery-powered, weatherproof, compact, and features 32 ft of night vision
- Quickly set up anywhere indoors or outdoors, even in complete darkness
- Capture 720p HD video, 8MP photos, or time lapse photography upon motion detection
- Built-in mic
- SD memory card slot
- 50° angle of view
- 1.5" menu LCD on the bottom
- Powered by four size C batteries or 6 VDC power adapter, both sold separately
- Capture area test laser beam
- Wall mount accessory included
UPC: 788924500560 In the Box Optex WATCHMAN Battery Powered Surveillance Camera Wall Mount Accessory with Screws USB Cable AV Cable Strap User Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Optex WATCHMAN Battery Powered Surveillance Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptex WATCHMAN Specs | Sensor | 8 MP max, 5 MP real | | Video Resolution | 1280 x 720p HD or 640 x 480 (VGA) | | Video Format | MJPEG | | Still Image Resolution | Up to 8 MP | | Still Image Capture | Bursts of 1-9, or up to 5 minute time lapses with 5 second intervals | | Angle of View | 50° | | Motion Detection | PIR Angle: 48° | | Night Vision | 32 ft (9.8 m)
40 no glow IR LEDs, 940 nm | | Audio | Built-in mic | | Storage | SD card slot (supports up to 32 GB SD cards) | | Outputs | 1 x USB
1 x A/V | | Output Standard | NTSC / PAL | | Display | Built-in 1.5" (3.8 cm) black and white LCD display | | White Balance | Auto | | Stamp | Date and time stamp on video and still images | | Ingress Protection | IP66 dust/water protection | | Power | 4 x size C batteries (not included)
1 x power input for 6 VDC power adapter (not included) | | Approvals | FCC, CE, RoHS | | Operating Temperature | 14 to 104°F (-10 to 40°C) | | Operating Humidity | 5 - 90% | | | | Package Weight | 1.265 lb | | Box Dimensions (LxWxH) | 7.05 x 6.75 x 4.7" |
