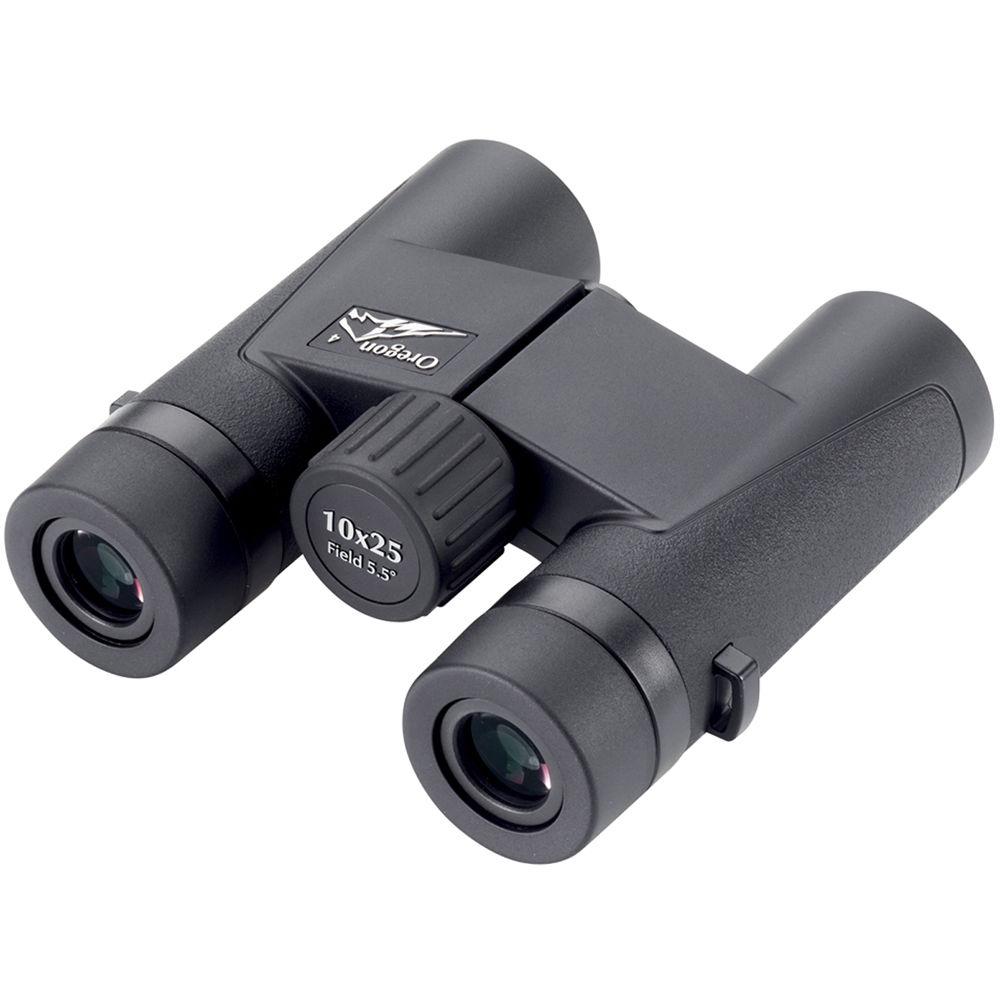

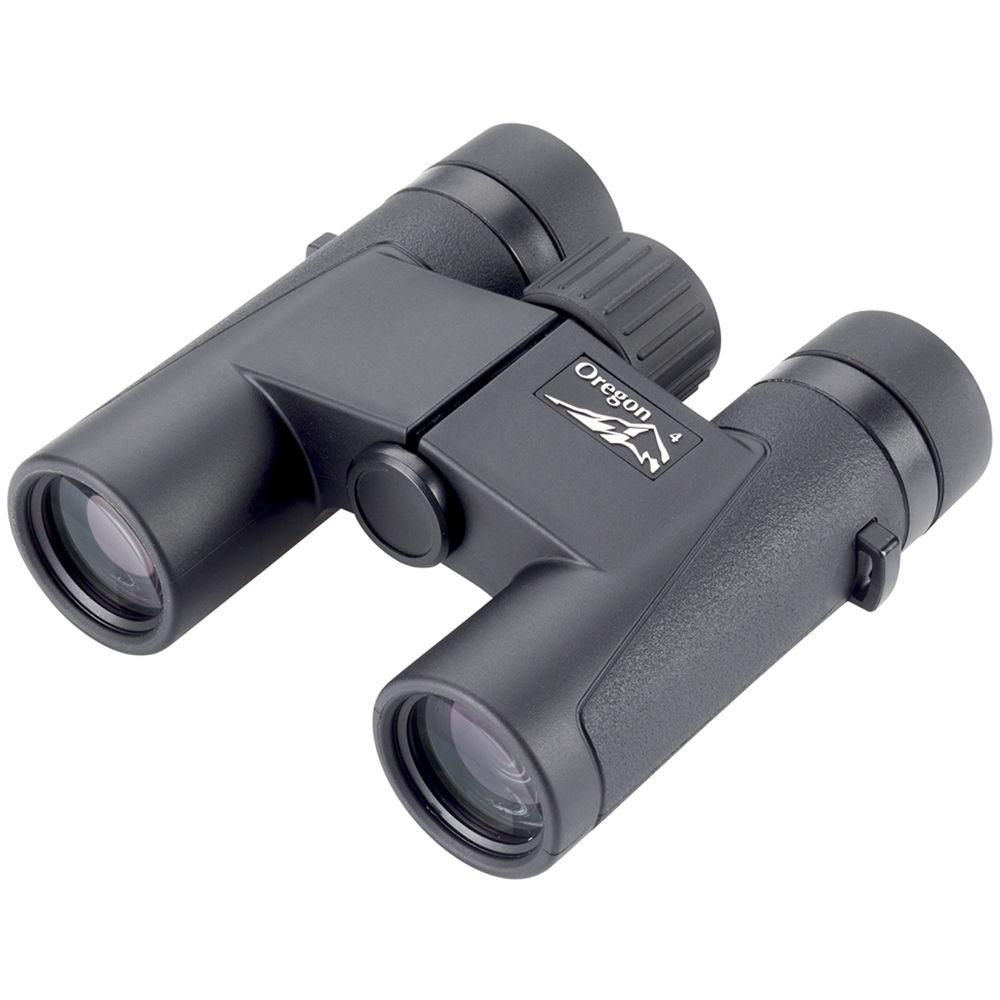

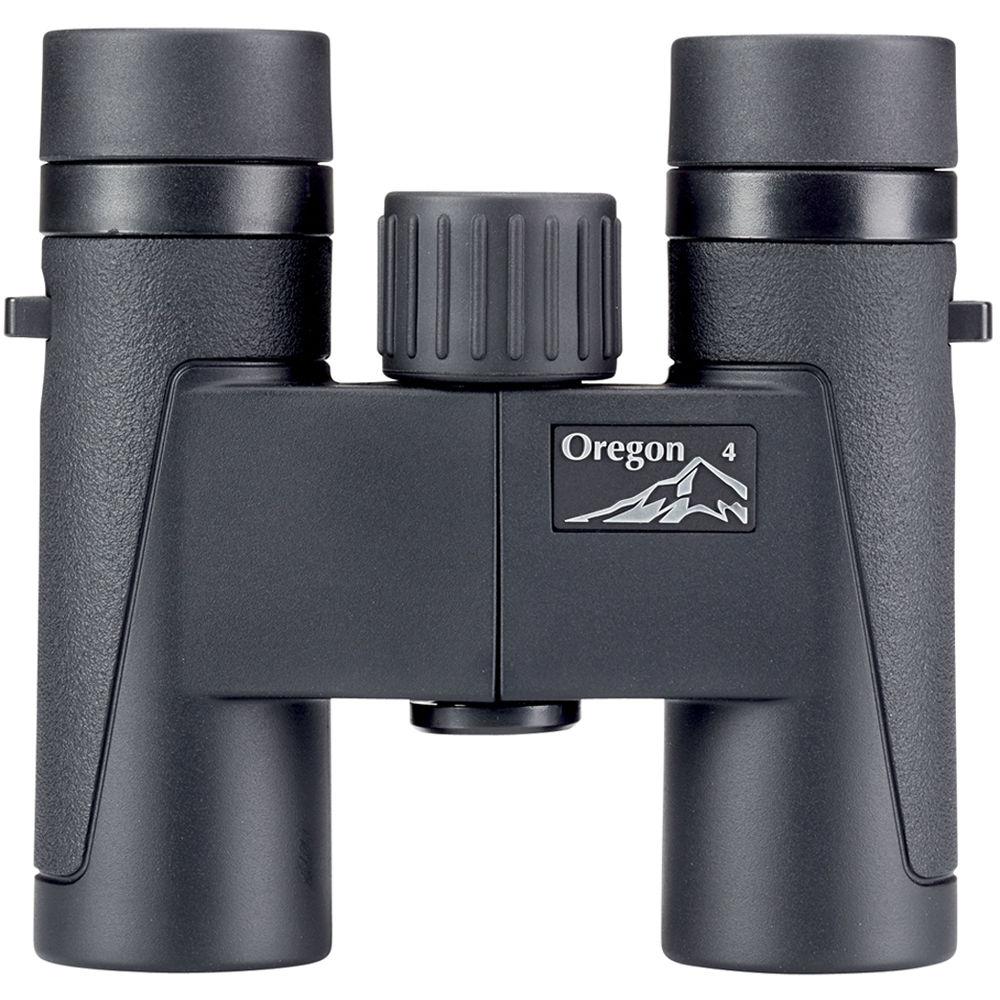

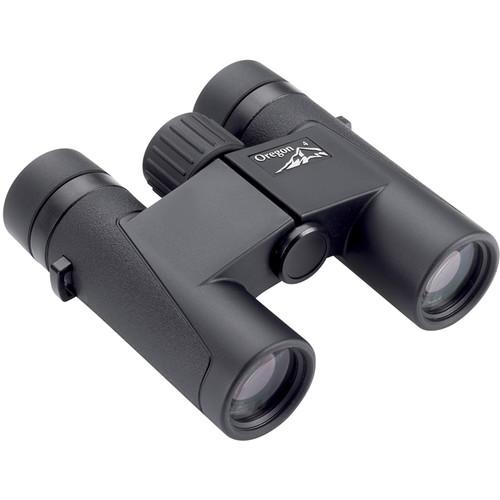

User Manual for Opticron 10x25 Oregon 4 LE WP Binocular Click to enlarge the picture
Contents of the user manual for the Opticron 10x25 Oregon 4 LE WP
- Product category: Binoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Binoculars
 |
User manual for the Opticron 10x25 Oregon 4 LE WP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Sports, theaters, concerts, galleries, and museums; travel or backyard birding — you'll find many uses for the 10x25 Oregon 4 LE WP Compact Binocular from Opticron. This highly portable optic offers a high standard of performance and functionality. The multi-coated optical system provides bright, sharp images with a generous field of view: 5.5° or 288' at 1000 yards. The rubber-armored housing is waterproof and nitrogen-filled to prevent internal fogging in cold weather. Three-stage twist-up rubber eyecups and a forgiving interpupillary distance accommodate users who wear eyeglasses. For viewing art and exhibits, this binocular focuses as close as 6.6 feet. The Oregon 4 measures just 4.2 x 4.5", so it fits easily in a pocket, bag, or glove box, and it weighs just 10.6 ounces. It comes with rubber lens covers, a rain guard for the eyepieces, and a strap. - Optical Performance
-
- 10x magnification
- 25mm objective lens diameter
- Roof prisms
- Multi-coated optics
- 55° apparent angle of view
- 288' field of view at 1000 yards
- Use and Handling
-
- Open-bridge, single-hinge design for one-handed operation
- Center focus wheel
- Interpupillary adjustment: 54-76mm
- Twist-type rubber eyecups accommodate eyeglasses
- 16mm eye relief
- 2.5mm exit pupil
- Construction Details
-
- Rubber-armored housing for comfort and grip
- Waterproof
- Nitrogen-filled to prevent fogging
- Rubber objective lens covers
- Rainguard for ocular lenses
- Strap and soft carry case included
In the Box Opticron 10x25 Oregon 4 LE WP Binocular Objective Lens Covers Eyepiece Rainguards Carrying Strap Soft Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 10x25 Oregon 4 LE WP Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30531 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 25 mm | | Angle of View | 5.5° (actual) | | Field of View | 288.7' @ 1000 yd / 96.2 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 2.5 mm | | Eye Relief | 16 mm | | Interpupillary Adjustment | 54 to 71 mm / 2.1 to 2.8" | | Dimensions | 4.5 x 4.2" / 11.4 x 10.7 cm | | Weight | 10.58 oz / 300 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
