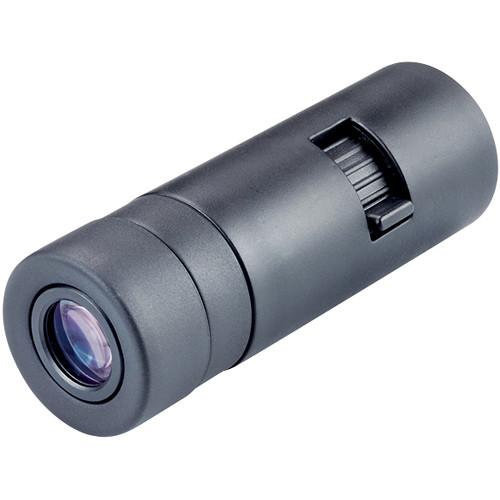

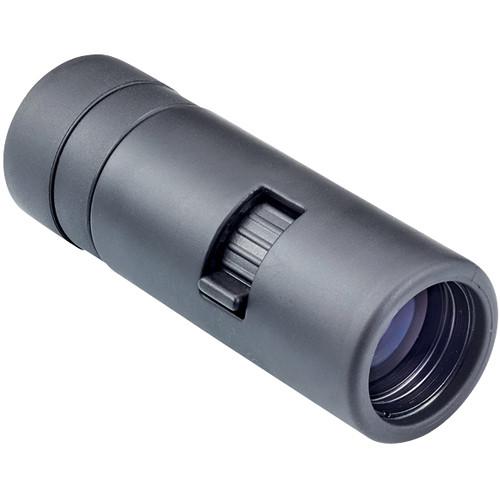

User Manual for Opticron 10x25 T3 Trailfinder Roof Prism Monocular Click to enlarge the picture
Contents of the user manual for the Opticron 10x25 T3 Trailfinder Roof Prism
- Product category: Monoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Monoculars
 |
User manual for the Opticron 10x25 T3 Trailfinder Roof Prism contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|
Product description A highly portable optic with premium features including coated lenses and nitrogen-filled construction, the 10x25 T3 Trailfinder Roof Prism Monocular from Opticron lets you enjoy detailed views of distant scenes, and slips barely noticed into your pocket or bag when not in use. In fact, the T3 Trailfinder also provides detailed views of nearby objects such as museum exhibits, thanks to its 4.9' minimum focusing distance. Featuring 10x magnification and a 25mm objective lens, the T3 Trailfinder measures 3.9 x 1.4" and weighs just under 5 ounces. Between its retractable eyecup and long 17mm eye relief, the monocular is comfortable to use with or without eyeglasses. Its easy-slide focus mechanism permits one-hand operation, and the 288' field of view offers a generous segment of the vista. Anti-reflection coated lenses maximize light transmission for a sharp, clear image, and the rubber-armored, waterproof housing is nitrogen-filled for a fogproof performance in cold weather. - Optical Performance
-
- Magnification: 10x
- Objective lens: 25mm diameter
- Coated lenses reduce glare and improve contrast
- Apparent angle of view: 55°
- 288' field of view at 1000 yards
- 4.9' minimum focus distance
- Use and Handling
-
- Retractable eyecup accommodates eyewear
- 11mm eye relief
- Easy-slide focusing mechanism for one-handed operation
- Exit pupil: 2.5mm
- Construction Details
-
- Nitrogen-filled for waterproof performance
- Rubber-armored waterproof housing
- Comes with strap, lens covers, case, and cleaning cloth
In the Box Opticron 10x25 T3 Trailfinder Roof Prism Monocular (Black) Strap Lens Caps Cleaning Cloth Soft Carrying Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 10x25 T3 Trailfinder Roof Prism Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron Trailfinder Specs | Magnification | 10x | | Objective Lens Diameter | 25mm | | Angle of View | 5.5° | | Field-of-View | 288' (96 m @1000 m) | | Minimum Focus Distance | 4.9' (1.5 m) | | Eye Relief | 17 mm | | Exit Pupil | 2.5 mm | | Waterproofing | Nitrogen gas filled waterproofing | | Dimensions | 3.9 x 1.4" (10.0 x 3.5 cm) | | Weight | 4.7 oz (133.2 g) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
