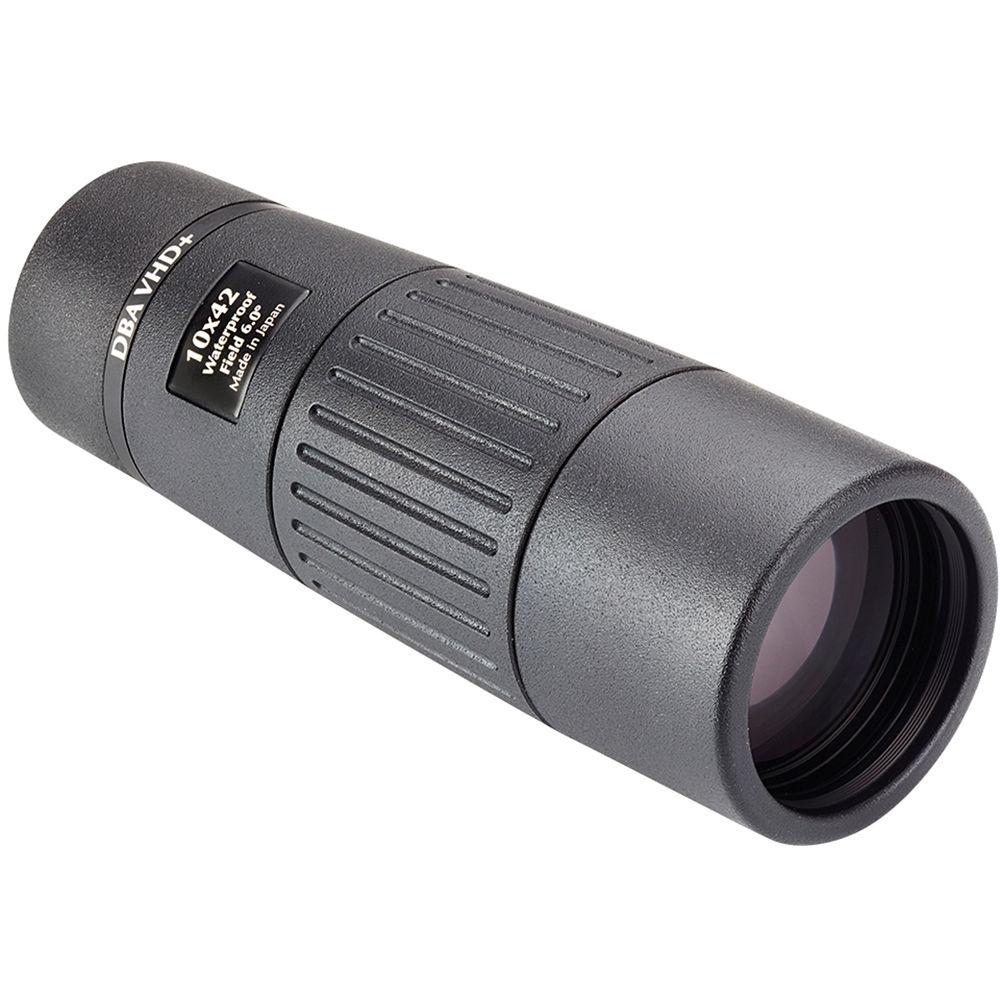

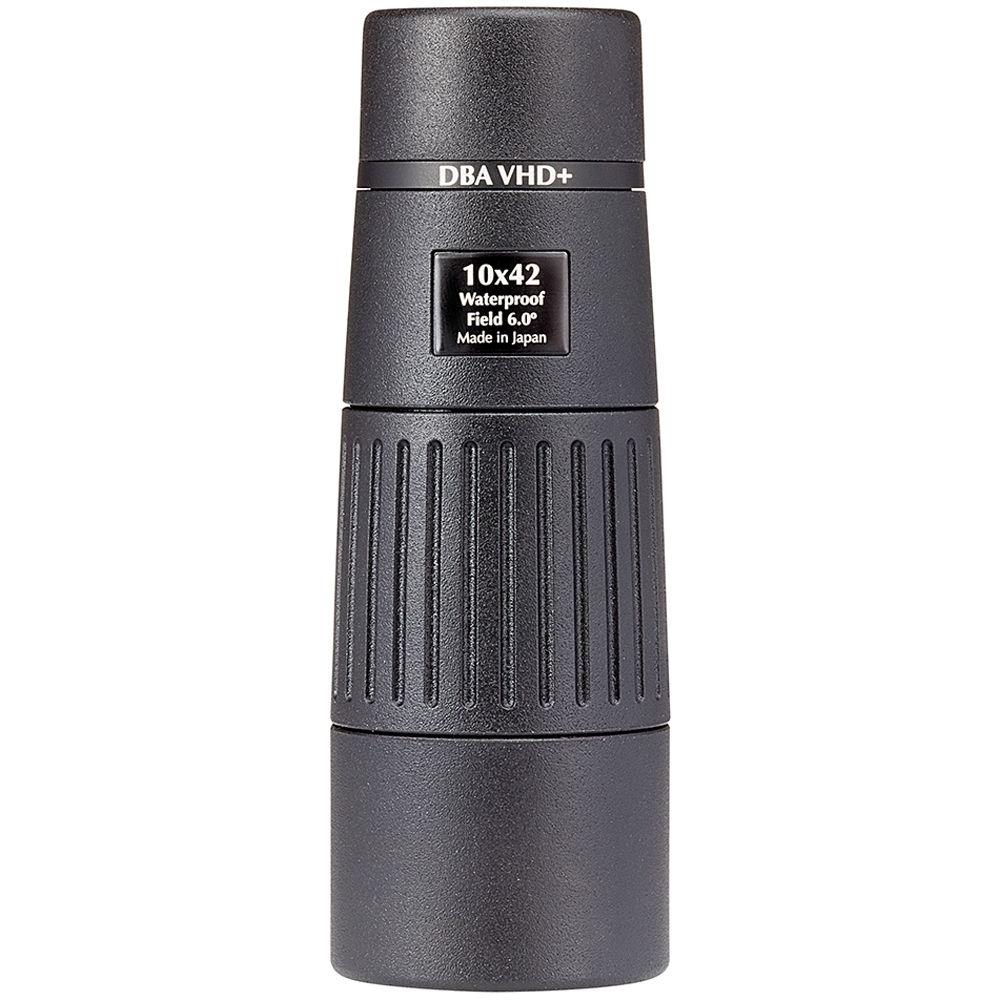

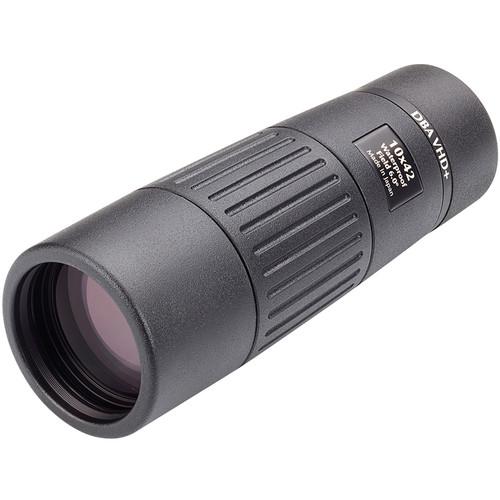

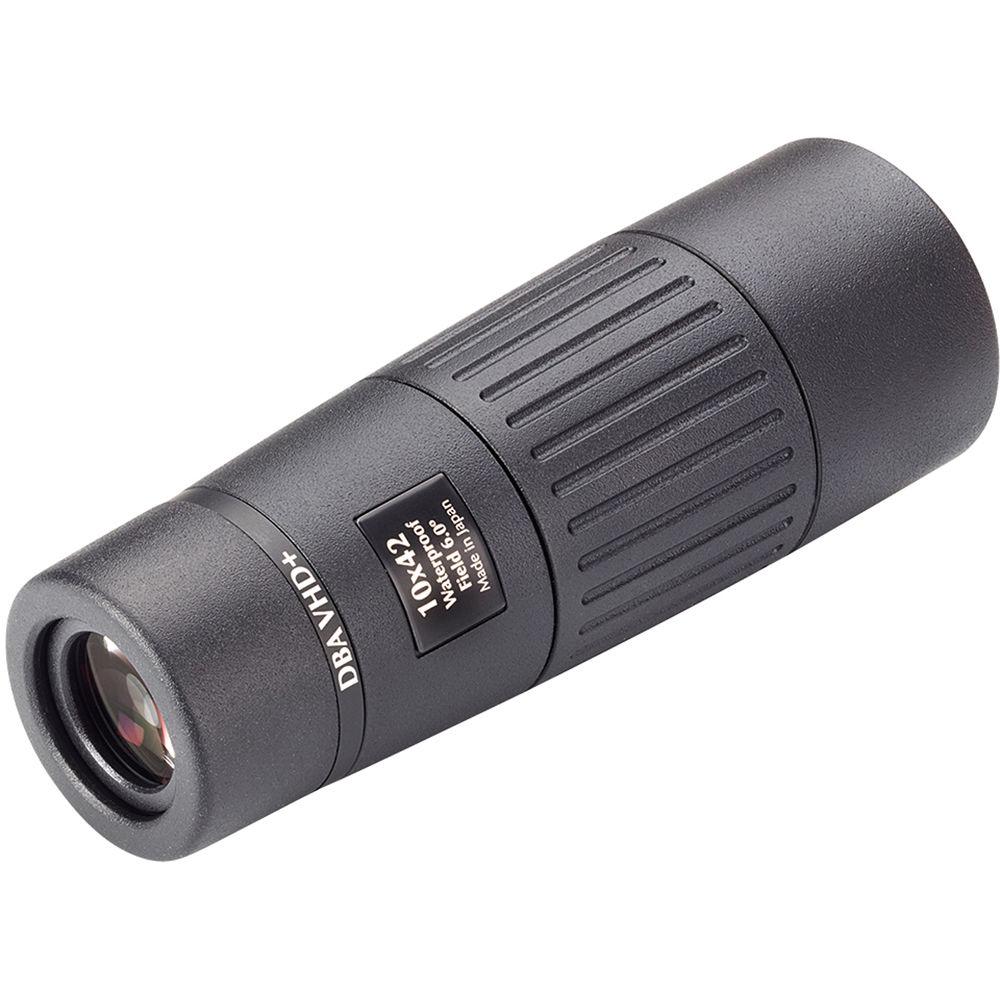

User Manual for Opticron 10x42 DBA VHD Monocular Click to enlarge the picture
Contents of the user manual for the Opticron 10x42 DBA VHD Monocular
- Product category: Monoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Monoculars
 |
User manual for the Opticron 10x42 DBA VHD Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|
Product description With a magnification and objective lens combination favored for its ability to make detailed observations of distant subjects, even in challenging light, the Opticron 10x42 DBA VHD+ Monocular is an ideal companion for those who spend their time in the field or at the range.The DBA is outfitted with anti-reflection fully multi-coated extra low-dispersion glass and phase-corrected dielectric-coated roof prisms to deliver bright and clear high-contrast images that are free from comas and fringing with accurate color fidelity. A wide 60° apparent angle of view produces an immersive observational experience while helping to mitigate the appearance of the distracting hand-shake that is common when holding high-power optics. For those who want to observe small insects, bugs, birds, flora, and fauna the DBA is engineered with a short 5-foot close focus distance.Complementing the optical performance are construction details that will help it withstand the rigors of the outdoors. The optical tube is nitrogen-filled and O-ring sealed to be waterproof and submersible to a depth of 5 feet, while also being resistant to internal fogging when moving through extreme changes in temperature or environmental conditions. The tube is wrapped in protective rubber armor that provides a slip-resistant grip in cold and wet weather. Weighing under 12 ounces and measuring less than 6 inches in length, the DBA VHD+ will easily fit in a pack or pocket without adding excessive bulk to make it an invaluable addition to your kit. - Optical Performance
-
- 10x magnification brings distant subjects in close for detailed observations
- Large 42mm objective lenses boosts light-gathering capability to ensure bright views, even at dawn and dusk
- Roof prism optical path ensures a slim and compact form factor
- Phase-correcting prism coatings eliminate internal interference to improve color and contrast
- Dielectric-coated prisms deliver greater than 99% light transmission across the entire visible spectrum resulting in increased brightness and clarity
- Extra low-dispersion (ED) glass lens elements reduce chromatic and spherical aberrations for increased contrast, and improved color rendition and sharpness without distortion across the entire field of view
- Proprietary S-H anti-reflection fully multi-coated optics maximize light transmission and improve contrast and color fidelity across the entire visible spectrum
- Short 5-foot close focus distance allows for detailed observations of small insects, bugs, flora, and fauna
- Wide 60° apparent angle of view presents an immersive and panoramic observational experience
- 315-foot field of view at 1000 yards
- Use and Handling
-
- Large slip-resistant focusing collar is easy to manipulate in cold and wet weather, and while wearing gloves
- 4-position click-stop rubber eyecup for comfortable use with or without eyewear
- Long 17mm eye relief makes viewing more comfortable with reduced eye strain, especially during long glassing sessions
- 4.2mm exit pupil will completely cover most pupils as they open and dilate in low light to avoid vignetting of the view
- Construction Details
-
- Textured rubber armoring provides a secure and slip-resistant grip
- Nitrogen-filled and O-ring sealed to be waterproof to a depth of 5 feet, and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Tethered objective lens cover prevents it from being lost when using monocular
- Lightweight 12-ounce design
- Made in Japan
In the Box Opticron 10x42 DBA VHD+ Monocular Neoprene Strap Soft Cordura Case Rubber Objective Lens Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 10x42 DBA VHD Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30692 Specs | Prism Type | Roof | | Magnification | 10x | | Objective Lens Diameter | 42mm | | Angle of View | 6.0°, actual | | Field of View | 315' @ 1000 yd / 105 m @ 1000 m | | Minimum Focus Distance | 4.9' / 1.5 m | | Exit Pupil | 4.2 mm | | Eye Relief | 17.0 mm | | Tripod Mount | None | | Dimensions | 5.7 x 2.0" / 14.5 x 5.1 cm | | Weight | 11.8 oz / 335.0 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.9 x 4.3 x 2.9" |
