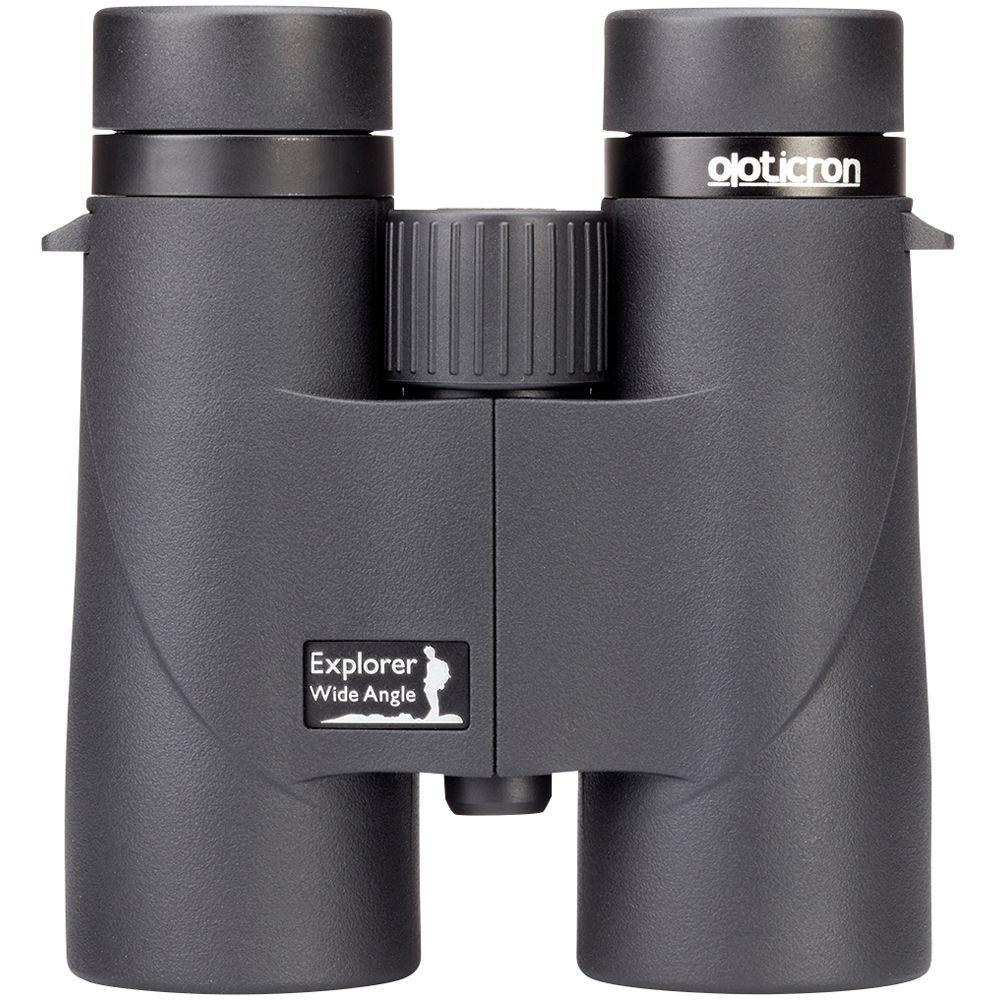

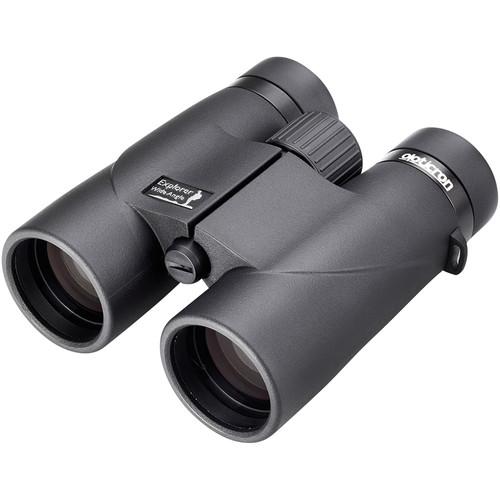

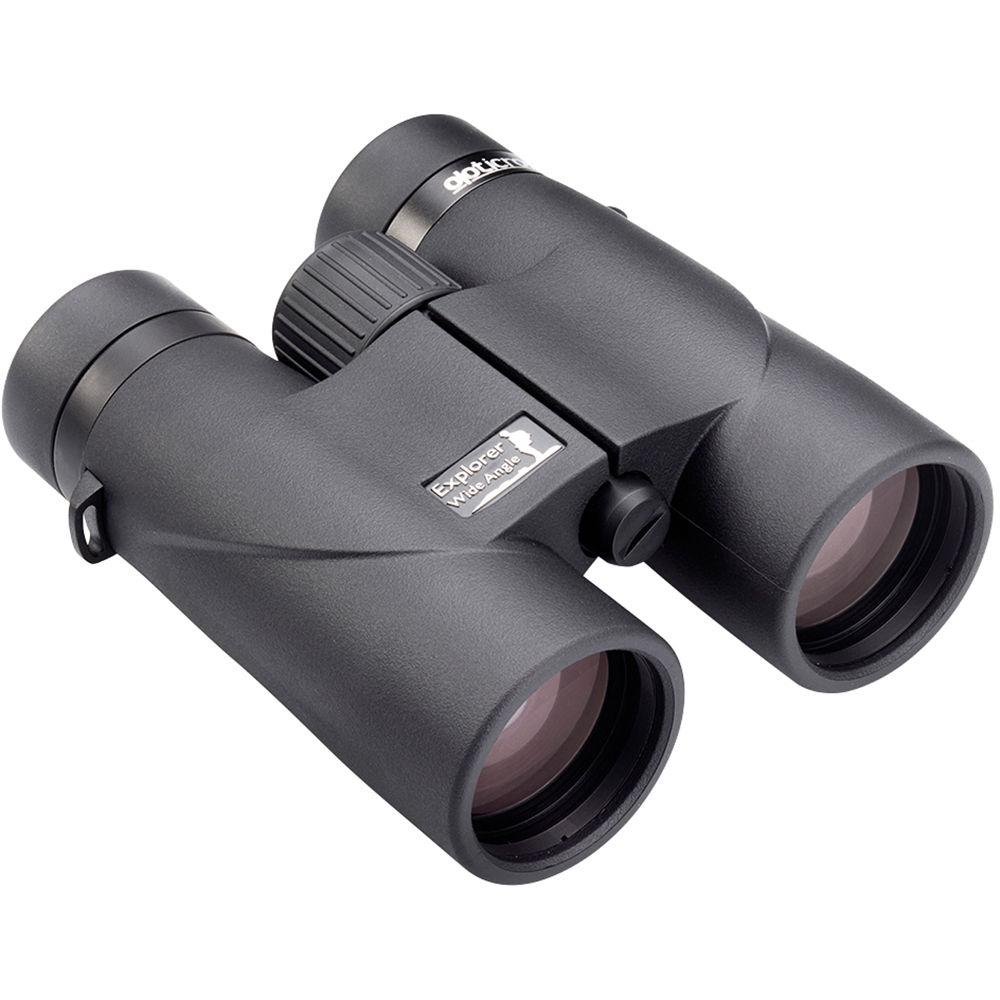

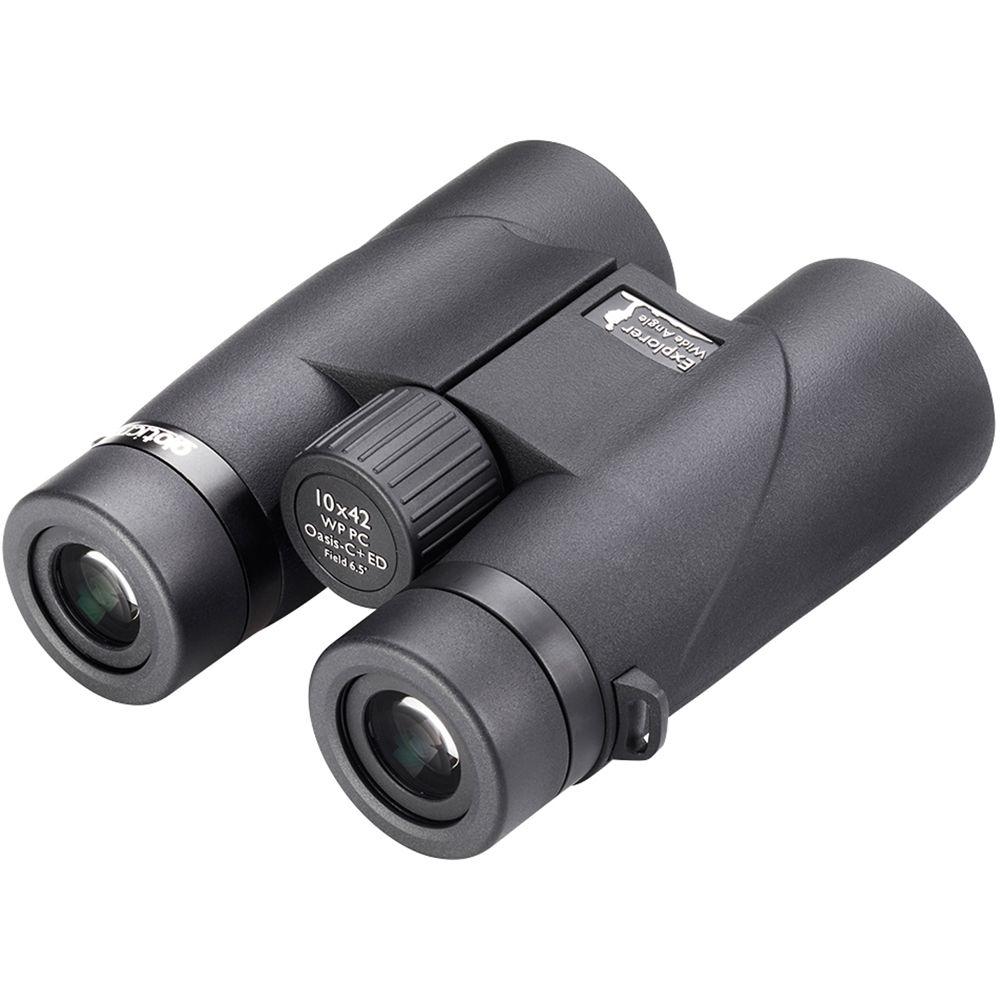

User Manual for Opticron 10x42 Explorer WA ED Oasis-C Binocular Click to enlarge the picture
Contents of the user manual for the Opticron 10x42 Explorer WA ED Oasis-C
- Product category: Binoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Binoculars
 |
User manual for the Opticron 10x42 Explorer WA ED Oasis-C contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More xdwqszuawcuwcytxyesw With its 42mm objective lenses gathering lots of light and premium components guiding the light to your eyes, Opticron's 10x42 Explorer WA ED Oasis-C+ Binocular offers a quality viewing experience in a versatile optic. Extra-low dispersion glass lenses, anti-reflection fully multi-coated optical elements, and phase-corrected BAK4 roof prisms with Oasis-C+ high-transmission coatings work together to virtually eliminate chromatic aberration, producing high-contrast images with true color fidelity.Complementing the optical performance is an expansive 339' field of view with a 65° apparent viewing angle that produces an immersive viewing experience. The long 15mm eye relief and twist-up eyecups make viewing for long periods comfortable with or without eyewear.Opticron employs a magnesium alloy chassis to reduce weight without sacrificing strength and overall durability. The body is wrapped with soft-touch rubber armoring to give protection from drops and impacts while helping to provide a non-slip grip—especially in cold and wet weather. Designed for durability, the housing is nitrogen-filled and O-ring sealed for waterproof and fogproof performance in all types of conditions. Included with the binocular are two tethered objective lens covers and a one-piece ocular rainguard that attaches to the neck strap so your caps and covers are always within easy reach. - Optical Performance
-
- 10x magnification
- 42mm objective lenses
- Extra-low dispersion lenses
- Fully multi-coated optical elements
- BAK4 roof prisms with Oasis-C+ high light transmission coatings
- Phase-corrected prisms increase image contrast and correct for chromatic aberration for true color rendition
- Wide 65° apparent angle of view
- 339' field of view at 1000 yd
- Use and Handling
-
- Closed-bridge configuration
- Three-stage twist-up rubber eyecups
- Long 15mm eye relief
- 4.2mm exit pupil
- Construction Details
-
- Lightweight and strong magnesium alloy body
- Nitrogen-filled for waterproof and fogproof performance
- Soft-touch rubber armoring protects while providing a slip-resistant grip
- Tripod mountable with optional adapter
- Tethered objective lens covers
- Weight: 23.3 oz
In the Box Opticron 10x42 Explorer WA ED Oasis-C+ Binocular Soft Case One-Piece Ocular Rainguard 2 x Tethered Objective Lens Covers Padded Strap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 10x42 Explorer WA ED Oasis-C Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30761 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.5° (actual) | | Field of View | 339.00' @ 1000 yd / 112.55 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 15 mm | | Interpupillary Adjustment | 55 to 73 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.5 x 5.0" / 14.0 x 12.7 cm | | Weight | 23.3 oz / 660.6 g |
