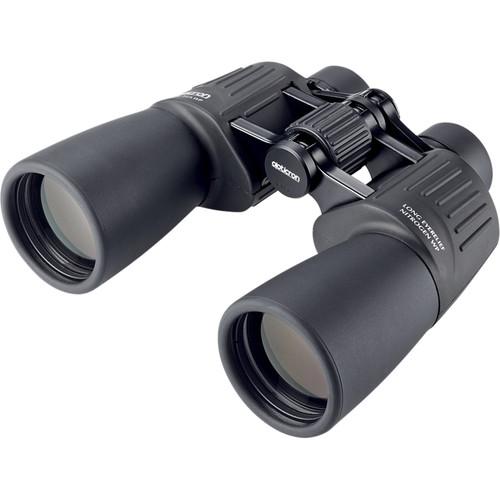

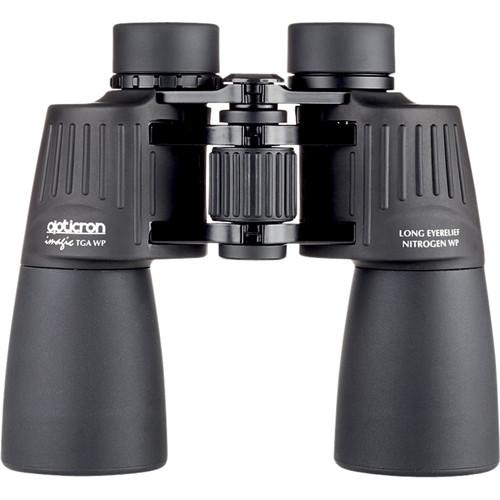

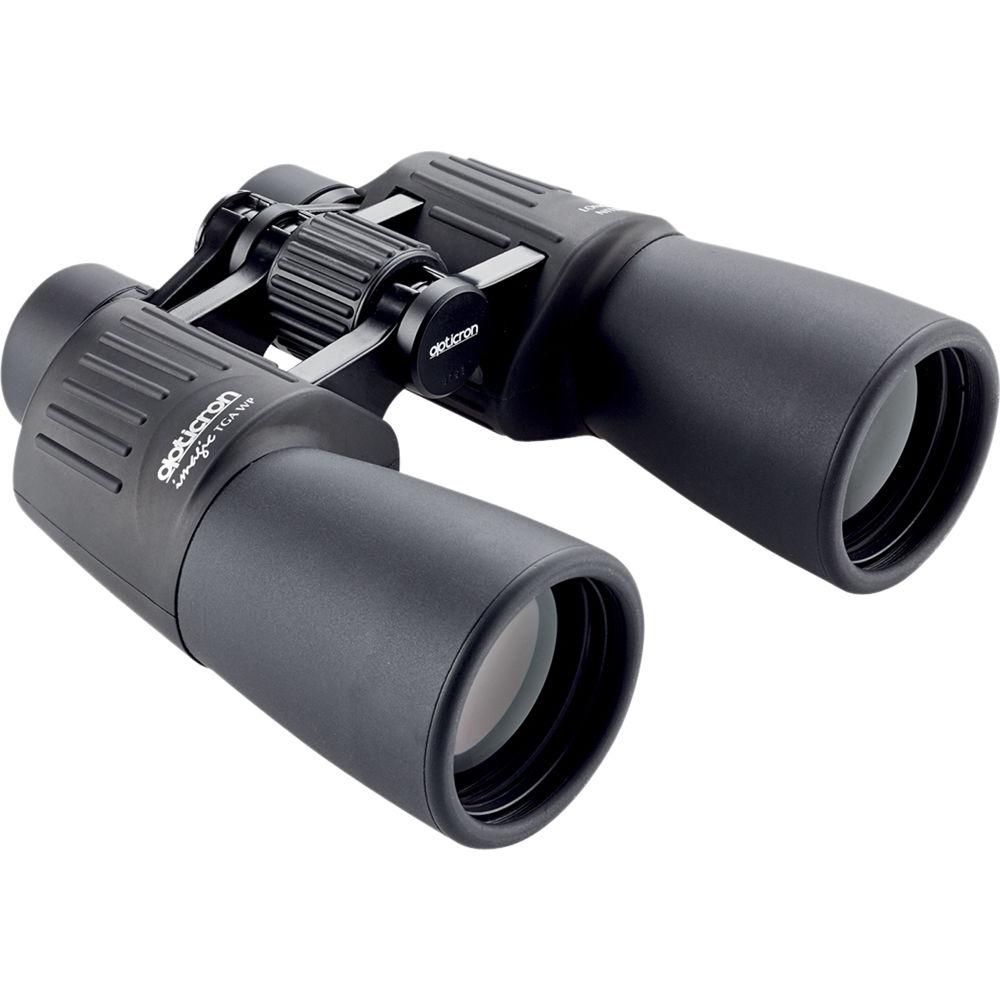

User Manual for Opticron 12x50 Imagic TGA WP Binocular Click to enlarge the picture
Contents of the user manual for the Opticron 12x50 Imagic TGA WP Binocular
- Product category: Binoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Binoculars
 |
User manual for the Opticron 12x50 Imagic TGA WP Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Equipped with BAK4 Porro prisms and high refractive index differential multi-coatings on the objective and ocular lenses, the 12x50 Imagic TGA WP Binocular from Opticron offers a crisp, clear view. The 12x magnification provides detail from a distance, while the large 50mm objective lenses gather enough light for a bright image even in low-light conditions (they're nice for star-gazing, too.) The 54° apparent viewing angle yields a respectable 237' field of view at 1000 yards, and the high eye relief of 18mm makes the full field accessible even to eyeglass wearers. Retractable eyecups further accommodate eyewear, and the user can compensate for differences between the eyes with the right-side diopter adjustment ring. This binocular is designed for use in demanding environments, with a rubber-armored, waterproof housing and nitrogen-filled optical tubes to prevent fogging in cold temperatures. The Imagic TGA WP is fitted with a tripod mount and comes with a soft case, rainguard for the eyepieces, lens caps, and a wide neck strap. - Optical Performance
-
- 12x magnification
- 50mm diameter objectives
- BAK4 Porro prisms
- High refractive index multi-coatings on objective and ocular lenses
- 4.5° angle of view, 54° apparent viewing angle
- 23' close focus distance
- Use and Handling
-
- Rotating retractable eyecups with extension lock
- Center focusing
- Click-stop right diopter adjustment
- 18mm eye relief
- Exit pupil: 4.2mm
- Construction Details
-
- Nitrogen-filled housing for waterproof and fog-proof performance
- Slip-resistant rubber-armored body
- Integral tripod adapter socket
- Weight: 30.3 oz
In the Box Opticron 12x50 Imagic TGA WP Binocular - Rainguard
- Wide Neck Strap
- Objective Lens Caps
- Soft Case
- Limited Lifetime Warranty
Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 12x50 Imagic TGA WP Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30556 Specs | Prism Type | Porro | | Magnification | 12 x | | Objective Lens Diameter | 50 mm | | Angle of View | 4.5° (actual)
54.2° (apparent) | | Field of View | 236.2' @ 1000 yd / 78.7 m @ 1000 m | | Minimum Focus Distance | 23' / 7 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 18 mm | | Interpupillary Adjustment | 57 to 73 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 7.5 x 6.8" / 190.5 x 172.7 mm | | Weight | 30.3 oz / 859 g |
