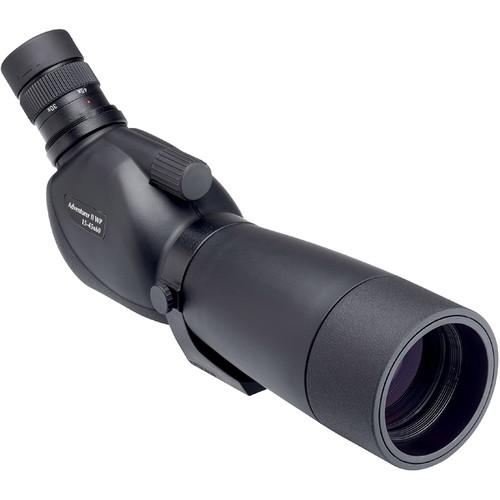

User Manual for Opticron 15-45x60 Adventurer II WP Spotting Scope Click to enlarge the picture
Contents of the user manual for the Opticron 15-45x60 Adventurer II WP Spotting
- Product category: Spotting Scopes Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Spotting Scopes
 |
User manual for the Opticron 15-45x60 Adventurer II WP Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|

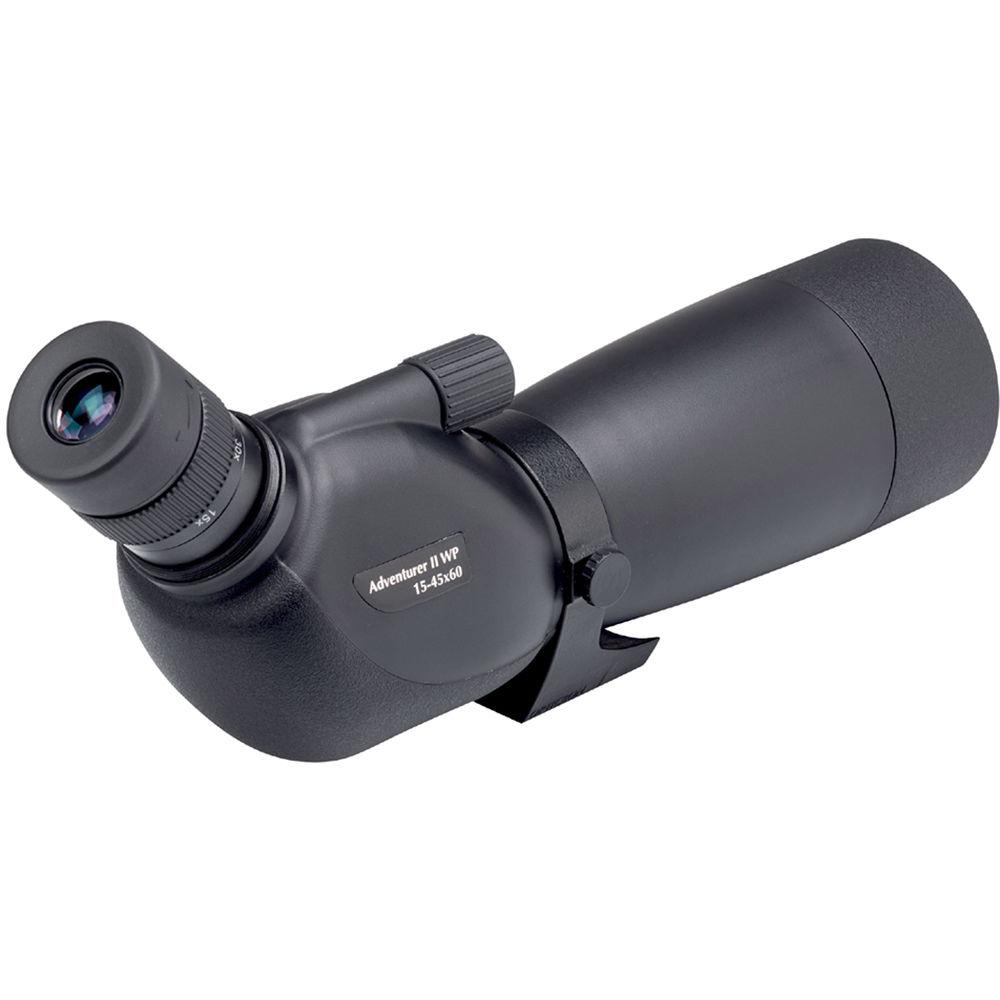

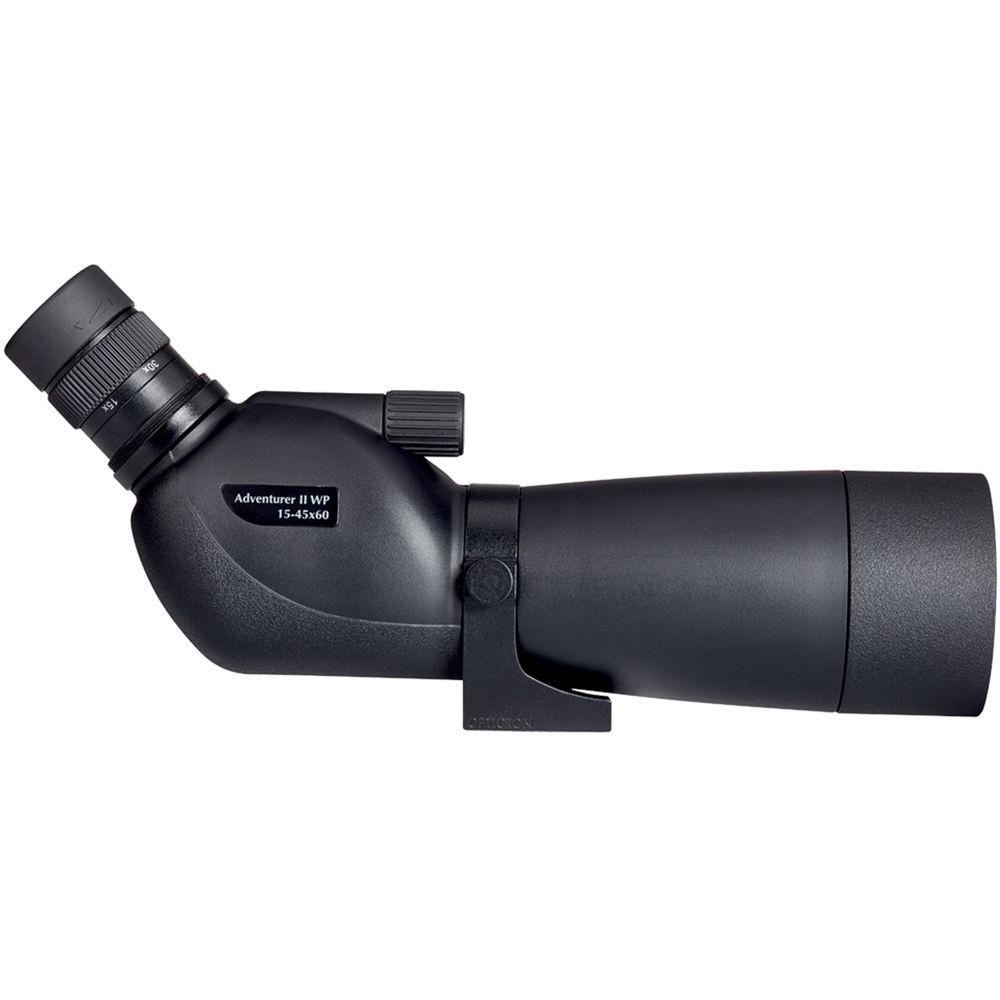

Product description A Guide to Birding with Spotting Scopes Read More With a broad zoom range and large objective lens, the Opticron 15-45x60 Adventurer II WP Spotting Scope is an ideal companion for the trail, range, blind, deck, or patio. Outfitted with a BAK4 Porro prism optical path and fully multi-coated optics, users are presented with bright and clear high-contrast views with accurate color rendition and a rich depth of field, even in low or challenging light conditions, for a truly immersive experience. Its eyepiece is set at a 45° angle to the optical tube to place the user's head in a comfortable viewing position whether they are standing, sitting, or lying prone, and a rotating tripod collar allows precise eyepiece placement for optimum comfort and convenience.Designed to withstand the rigors of the outdoors, the chassis is made of both an impact- and corrosion-resistant ABS plastic and aluminum alloy to produce a body that is strong and durable without being excessively heavy. It is wrapped in a protective slip-resistant rubber armor for sure handling during setup and breakdown. The optical tubes are O-ring sealed to be waterproof and nitrogen filled to be resistant to internal fogging when moving between extreme temperature changes and environmental conditions. For added safety and convenience, Opticron includes a soft carrying case. - Optical Performance
-
- 15-45x zoom magnification
- Large 60mm objective lens
- BAK4 Porro prism optical path
- Fully multi-coated optics maximize light transmission to improve brightness, color rendition, clarity, and contrast
- 123-63 foot field of view at 1000 yards
- Use and Handling
-
- Eyepiece set at 45° angle to optical tube to place in a comfortable viewing position whether the user is standing, sitting, or lying prone
- Twist-up rubber eyecup for comfortable use with or without eyewear
- ±90° rotating tripod collar allows precise eyepiece placement
- Integrated objective lens hood reduces glare to improve views and virtually eliminate lens flare
- 18mm (15x) to 15mm (45x) long eye relief
- 4mm (15x) to 1.3mm (45x) exit pupil
- Construction Details
-
- Lightweight and durable ABS plastic and aluminum-alloy chassis
- Protective textured rubber armoring
- O-ring sealed to be waterproof and nitrogen filled to be resistant to internal fogging when moving through extreme temperature changes or environmental conditions
- Includes soft carrying case
- Weight: 2 lb
In the Box Opticron 15-45x60 Adventurer II WP Spotting Scope (Angled Viewing) 15-45x Eyepiece Soft Carrying Case Objective Lens Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 15-45x60 Adventurer II WP Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron Adventurer II Specs | | | Magnification | 15 to 45x | | Objective Lens Diameter | 60 mm | | Field of View | 15x: 123.0' @ 1000 yd / 41.0 m @ 1000 m
45x: 63.0' @ 1000 yd / 21.0 m @ 1000 m | | Minimum Focus Distance | 19.4' / 5.9 m | | Exit Pupil Diameter | 15x: 4 mm
45x: 1.3 mm | | Eye Relief | 18.0 to 15.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Filter Thread | None | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 13.0" / L: 33.0 cm | | Weight | 2.3 lb / 1.0 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
