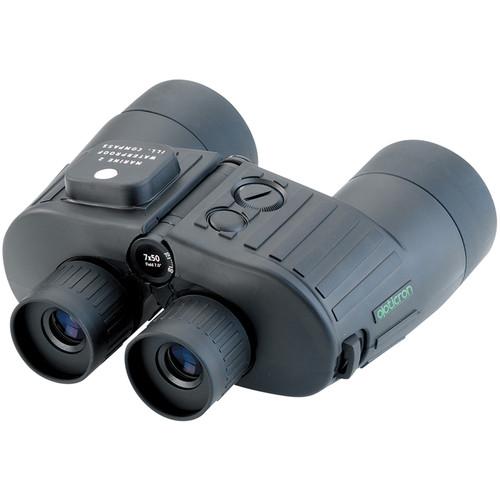

User Manual for Opticron 7x50 Marine-2 BIF.GA IC Binocular with Compass Click to enlarge the picture
Contents of the user manual for the Opticron 7x50 Marine-2 BIF.GA IC Binocular
- Product category: Binoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Binoculars
|
User manual for the Opticron 7x50 Marine-2 BIF.GA IC Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Pairing a refined optical system with enhanced durability and a built-in compass, the 7x50 Marine-2 BIF.GA/IC Binocular from Opticron features an enlarged porro prism design with anti-reflective multicoated optics for bright, clear viewing and maintained color fidelity in a variety of lighting conditions. Benefitting navigational observation, an illuminated 30mm Suunto compass projects both the observation direction and a distance scale into the left-hand eyepiece, which can easily be reviewed in lower lighting. A 20mm eye relief and large depth of field is suitable for an array of users, which further pairs with a nitrogen-filled housing and robust aluminum alloy body for protection when viewing in inclement conditions. Additionally, the 7x magnification and individually focusing eyepieces are well-suited to general viewing of subjects both near and far. - Optical Performance
-
- 7x magnification
- 50mm diameter objectives
- Porro prism optical design
- Anti-reflective multicoated optics increase clarity and contrast for more vivid viewing in a variety of lighting conditions
- 20mm eye relief and large depth of field is well-suited for glasses-wearers
- 7° angle of view, 49° apparent angle of view
- Handling and Construction Details
-
- Designed for use in the northern hemisphere, an illuminated 30mm Suunto compass is integrated into the design and projects both the observation direction and a distance scale within the left-hand eyepiece
- Individual eyepiece focusing design
- Fully nitrogen-filled housing for water and fogproof performance
- Specially mounted prism assemblies protect against bumps or accidental impacts
- Single die-cast aluminum alloy housing with thick rubber armoring
In the Box Opticron 7x50 Marine-2 BIF.GA/IC Binocular with Compass Soft Carrying Case Rain Guard 2 x Objective Lens Caps Wide Acrylic Neck Strap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 7x50 Marine-2 BIF.GA IC Binocular with Compass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30334 Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 50 mm | | Angle of View | 7° (Actual)
49° (Apparent) | | Field of View | 367.5' @ 1000 yd / 122.5 m @ 1000 m | | Exit Pupil Diameter | 7.1 mm | | Eye Relief | 20 mm | | Interpupillary Adjustment | 8.8 to 11.5 mm / 22.4 to 29.1" | | Focus Type | Individual | | Dimensions | 7.1 x 7.9" / 18.0 x 20.1 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 8.8 x 8.1 x 4.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
