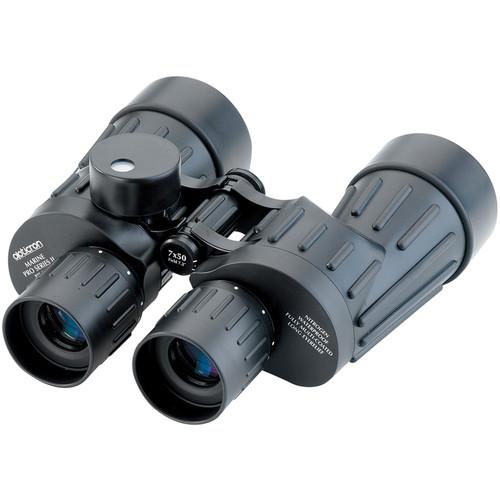

User Manual for Opticron 7x50 Marine Pro Series II BIF.GA C Binocular with Compass Click to enlarge the picture
Contents of the user manual for the Opticron 7x50 Marine Pro Series II
- Product category: Binoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Binoculars
|
User manual for the Opticron 7x50 Marine Pro Series II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Pairing a refined optical system with enhanced durability and a built-in compass, the 7x50 Marine Pro Series II BIF.GA/C Binocular from Opticron features an enlarged porro prism design with anti-reflective multicoated optics for bright, clear viewing and maintained color fidelity in a variety of lighting conditions. Benefitting navigational observation, an integrated 30mm Suunto compass projects both the observation direction and a distance scale into the left-hand eyepiece. A long 24mm eye relief and large depth of field is suitable for an array of users, which further pairs with a nitrogen-filled housing and robust aluminum alloy body for protection when viewing in inclement conditions. Additionally, the 7x magnification and individually focusing eyepieces are well-suited to general viewing of subjects both near and far.
Included with the 7x50 binocular is a multi-purpose semi-rigid carrying case, which is also waterproof and can be worn over the shoulder or mounted to the wall for easy access in a range of viewing situations. - Optical Performance
-
- 7x magnification
- 50mm diameter objectives
- Porro prism optical design
- Anti-reflective multicoated optics increase clarity and contrast for more vivid viewing in a variety of lighting conditions
- Long 24mm eye relief and large depth of field is well-suited for glasses-wearers
- 7.2° angle of view, 50.4° apparent angle of view
- Handling and Construction Details
-
- Designed for use in the northern hemisphere, a 30mm Suunto compass is integrated into the design and projects both the observation direction and a distance scale within the left-hand eyepiece
- Individual eyepiece focusing design
- Fully nitrogen-filled housing for water and fogproof performance
- Specially mounted prism assemblies protect against bumps or accidental impacts
- Single die-cast aluminum alloy housing with thick rubber armoring
- Included semi-rigid multi-purpose carrying case is also waterproof and can be carried over the shoulder or fixed to the wall for easy access
In the Box Opticron 7x50 Marine Pro Series II BIF.GA/C Binocular with Compass Semi-Rigid Waterproof Case Rain-Guard 2 x Objective Lens Caps Deluxe Neoprene Neck Strap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 wzswwwfsvsxtzedrxwuf A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 7x50 Marine Pro Series II BIF.GA C Binocular with Compass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30129 Specs | Prism Type | Porro | | Magnification | 7 x | | Objective Lens Diameter | 50 mm | | Angle of View | 7.2° (Actual)
50.4° (Apparent) | | Field of View | 378.0' @ 1000 yd / 126.0 m @ 1000 m | | Exit Pupil Diameter | 7.1 mm | | Eye Relief | 24 mm | | Interpupillary Adjustment | 9 to 11.5 mm / 22.8 to 29.1" | | Focus Type | Individual | | Dimensions | 7.7 x 8.1" / 19.6 x 20.6 cm | | Weight | 2.79 lb / 1.265 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 11.0 x 10.4 x 3.9" |
