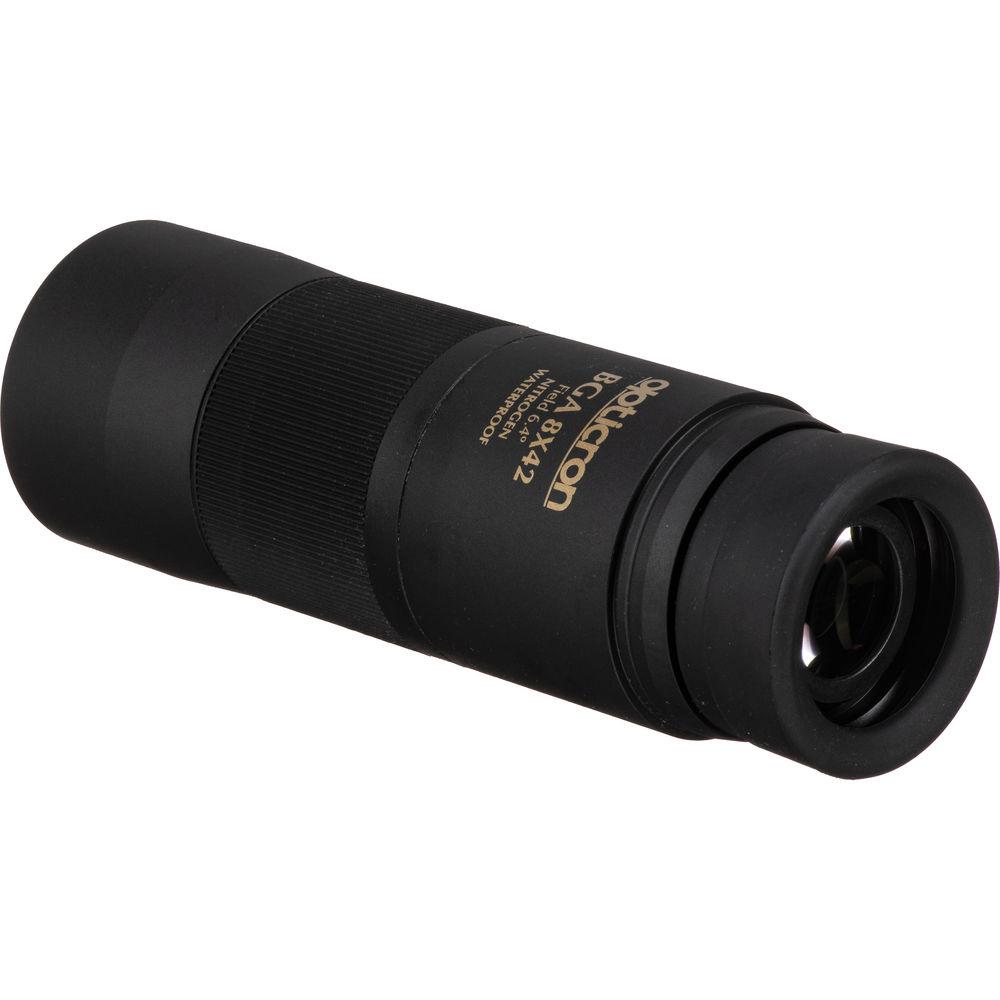

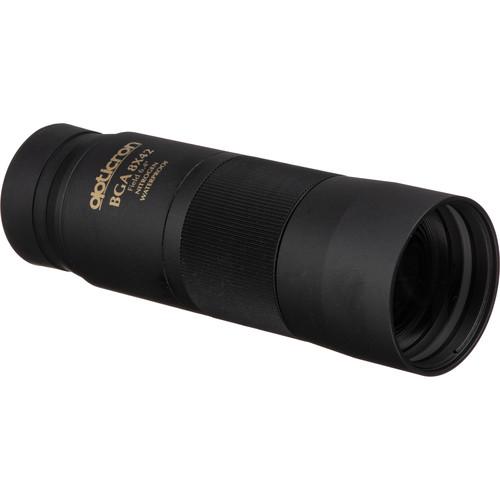

User Manual for Opticron 8 x 42 BGA Monocular Click to enlarge the picture
Contents of the user manual for the Opticron 8 x 42 BGA Monocular
- Product category: Monoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Monoculars
 |
User manual for the Opticron 8 x 42 BGA Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|
Product description The 8 x 42 BGA Monocular from Opticron combines a roof prism optical path, fully multi-coated optics, an internal focus system, and wide band focusing to produce a sharp, compact, easy-to-use, and durable monocular. To withstand the rigors of outdoor use, its nitrogen-filled housing is fogproof and submersible to 9.8', allowing it to be used in all weather and conditions. A long eye relief eyepiece and twist-up eyecup provide a full field of view with or without eyewear, and the short 6.6' minimum focus distance lets users make detailed observations of insects, flora, and fauna. This pocket-sized monocular measures just over 5" long. - Optical Performance
-
- Magnification: 8x
- Objective lens: 42mm diameter
- Multi-coating reduces glare and improves contrast
- Apparent viewing angle: 50°
- 6.6' minimum focus distance
- Use and Handling
-
- Twist-type eyecup
- Easy-grip focusing collar
- Long eye relief eyepiece
- Lanyard included
- Construction Details
-
- Nitrogen filled for waterproof performance to a depth of 9.8'
- Length: 5.4"
- Weight: 10.1 oz

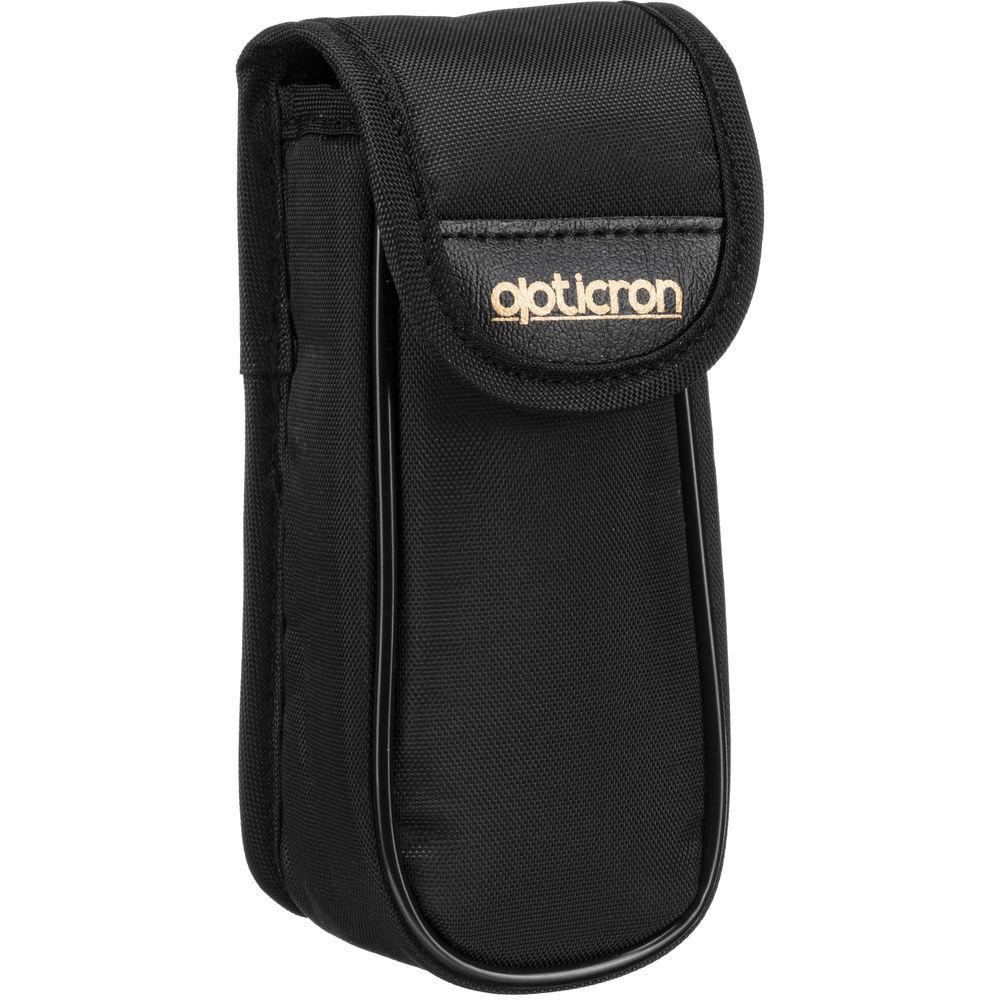

In the Box Opticron 8 x 42 BGA Monocular Eyepiece Cap Soft Carrying Case Lanyard Cleaning Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 8 x 42 BGA Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30440 Specs | Magnification | 8x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.3° | | Field-of-View (@ 1000 Yds) | 330' (110 m @ 1000 m) | | Minimum Focus Distance | 6.6' (2 m) | | Eye Relief | 19 mm | | Waterproofing | Nitrogen waterproofing to a depth of 9.8' (3 m) | | Dimensions | 5.4 x 1.7" / 136 x 43 mm | | Weight | 10.1 oz (285 g) | | | | Package Weight | 0.955 lb | | Box Dimensions (LxWxH) | 6.8 x 3.85 x 2.8" |
