Opticron 8x25 Oregon 4 LE WP

Search your instruction manual in PDF to download

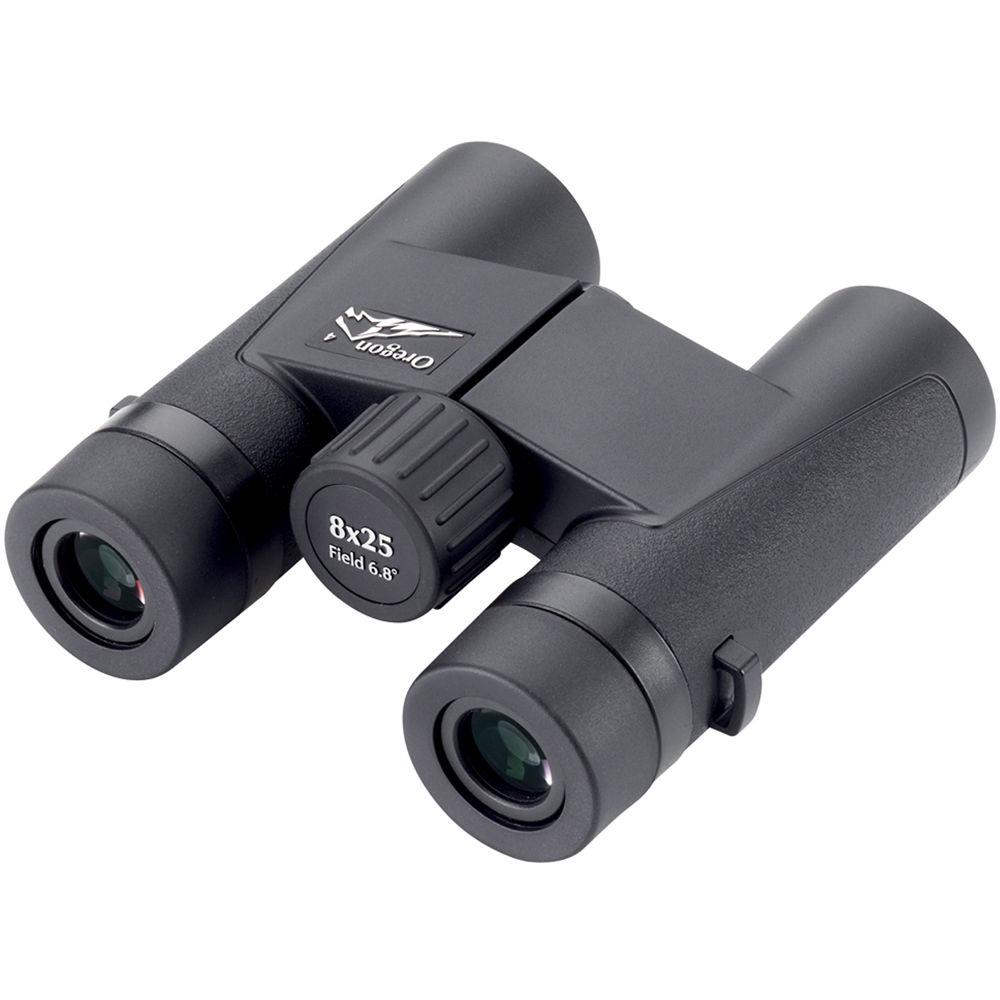

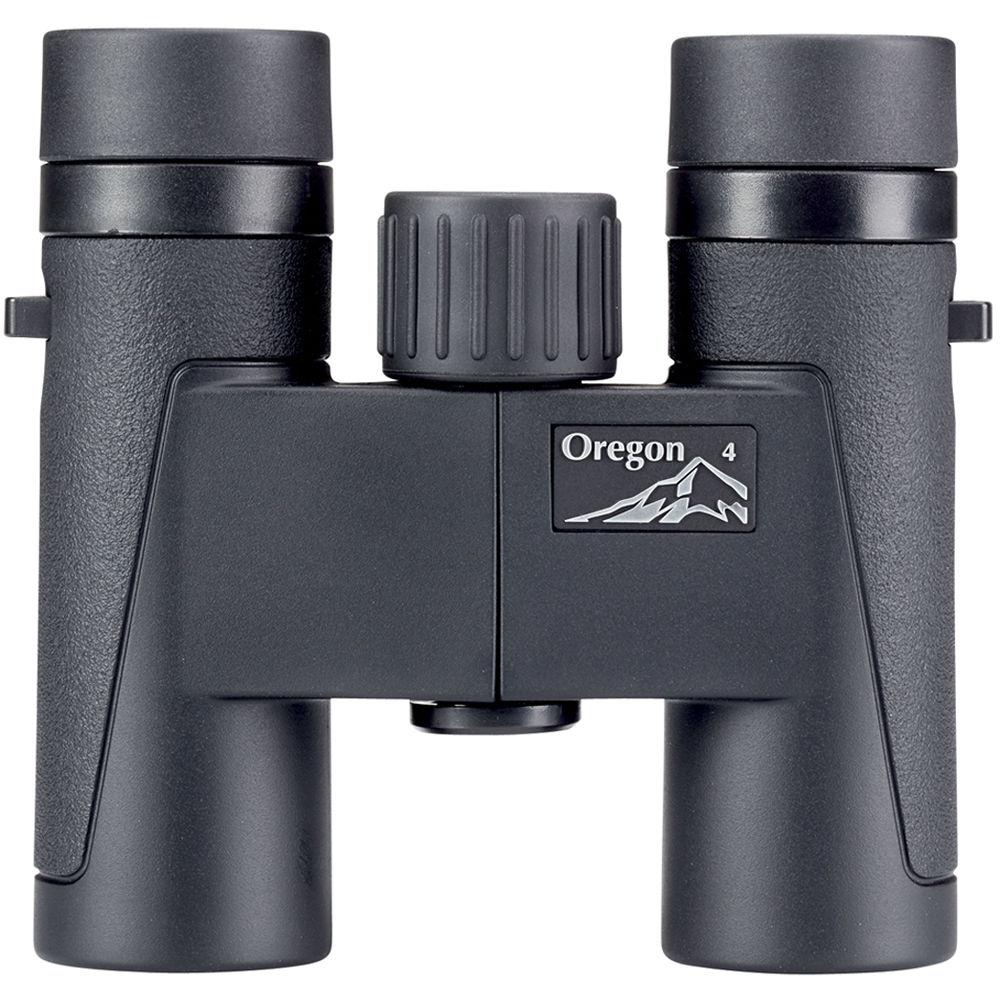

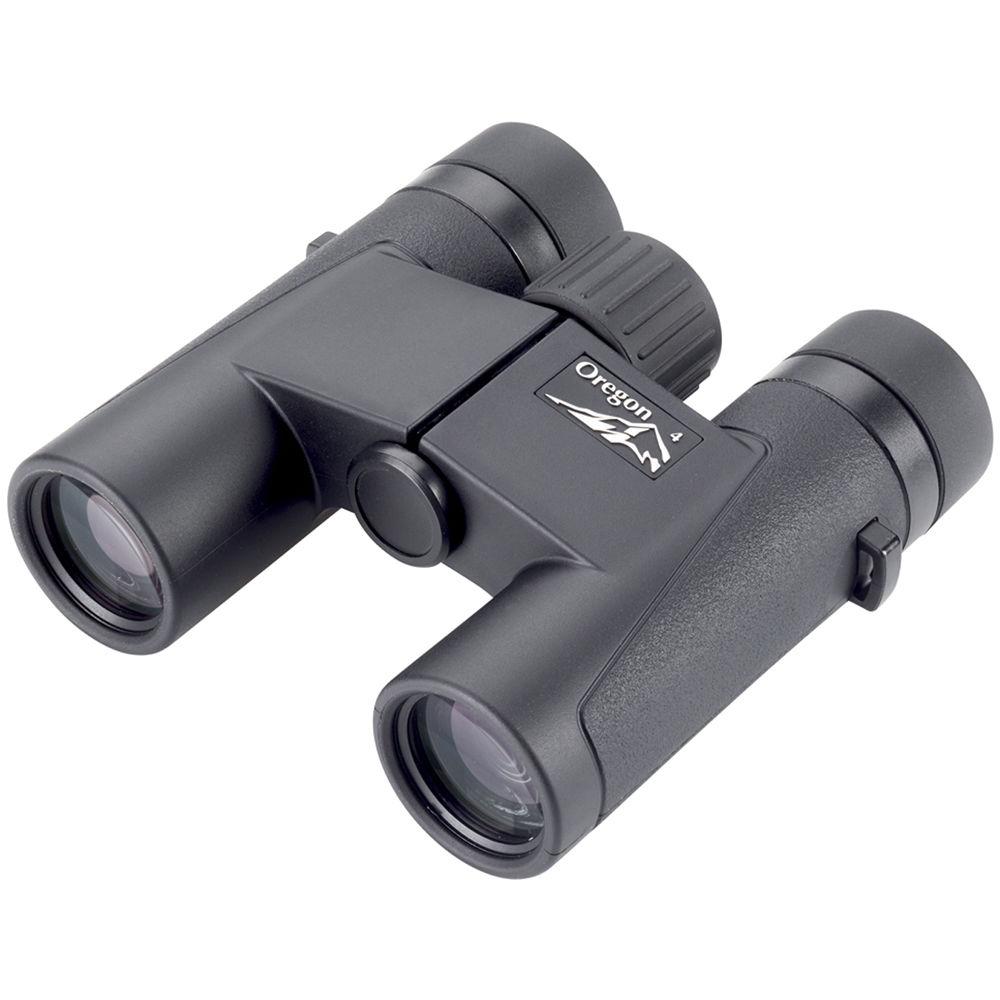

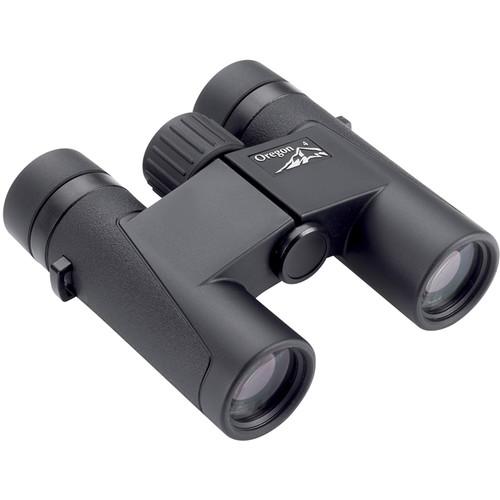

User Manual for Opticron 8x25 Oregon 4 LE WP Binocular

Click to enlarge the picture
Opticron 8x25 Oregon 4 LE WP Binocular Contents of the user manual for the Opticron 8x25 Oregon 4 LE WP
  • Product category: Binoculars Opticron
  • Brand: Opticron
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Opticron Binoculars

Opticron 8x25 Oregon 4 LE WP Binocular Opticron 8x25 Oregon 4 LE WP Binocular Opticron 8x25 Oregon 4 LE WP Binocular
User manual for the Opticron 8x25 Oregon 4 LE WP contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Opticron product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!



Product description

The B&H Binocular Buying Guide Read More Designed for casual users but built to high standards, the 8x25 Oregon 4 LE WP Binocular from Opticron is suited to travel, backyard wildlife viewing, sporting events, festivals, and general use. Slim and compact, it features fully multi-coated lenses and BAK4 roof prisms, which combine to optimize light transmission for a crisp image. The 8x magnification provides plenty of detail at distance, but avoids the shaky image experienced with higher-powered optics. Complementing the optical performance is a broad 357' field of view, enhancing vistas and making it easier to track your target. Thanks to the long 16mm eye relief, you can enjoy the full field of view even wearing glasses. Three-stop twist-type rubber eyecups further accommodate eyewear and enhance your glassing comfort. The single-hinge closed bridge permits one-hand operation, and the large center focus wheel is tactile and easy to operate. Designed for durability in the field, the Oregon 4 LE's rubber-armored housing is nitrogen-filled and O-ring sealed for waterproof and fog-proof performance in all conditions. Included with the binocular are two tethered objective lens covers, a rainguard for the ocular lenses, a strap, and a soft case.
    Optical Performance
    • 8x magnification
    • 25mm objective lenses
    • Fully multi-coated optics
    • BAK4 roof prisms
    • 357' field of view at 1000 yards
    Use and Handling
    • Wide, knurled center focus wheel
    • 16mm eye relief
    • Twist-type retractable eyecups
    • 6.6' close focus distance
    • Exit pupil: 3.1mm
    Construction Details
    • Nitrogen-filled for waterproof and fog-proof performance
    • Rubber armored finish
    • Weight: 10.2 oz
In the Box Opticron 8x25 Oregon 4 LE WP Binocular
  • Strap
  • Soft Case
  • Rainguard
  • 2 x Objective Lens Covers
  • Limited Lifetime Warranty
  • Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents




    Upload User Manual

    Have you got an user manual for the Opticron 8x25 Oregon 4 LE WP Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Opticron 30530 Specs

    Prism Type Roof
    Magnification 8 x
    Objective Lens Diameter 25 mm
    Angle of View 6.8° (actual)
    54.4° (apparent)
    Field of View 357.0' @ 1000 yd / 119.0 m @ 1000 m
    Minimum Focus Distance 6.6' / 2 m
    Exit Pupil Diameter 3.1 mm
    Eye Relief 16 mm
    Interpupillary Adjustment 54 to 71 mm / 2.1 to 2.8"
    Focus Type Center
    Tripod Mount None
    Dimensions 4.5 x 4.2" / 11.4 x 10.7 cm
    Weight 10.23 oz / 290 g

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4 of 5

    This product has already been rated by 62 owners. Add your rating and experience with the product.
