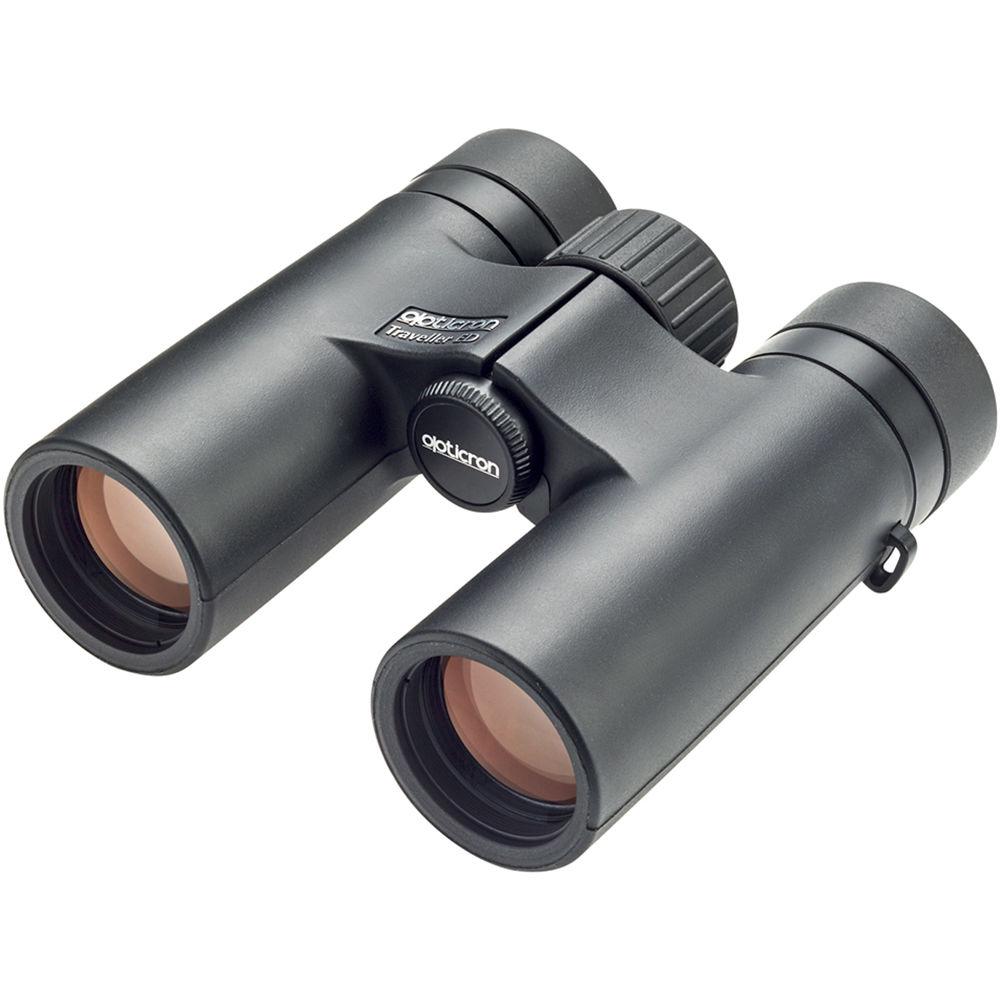

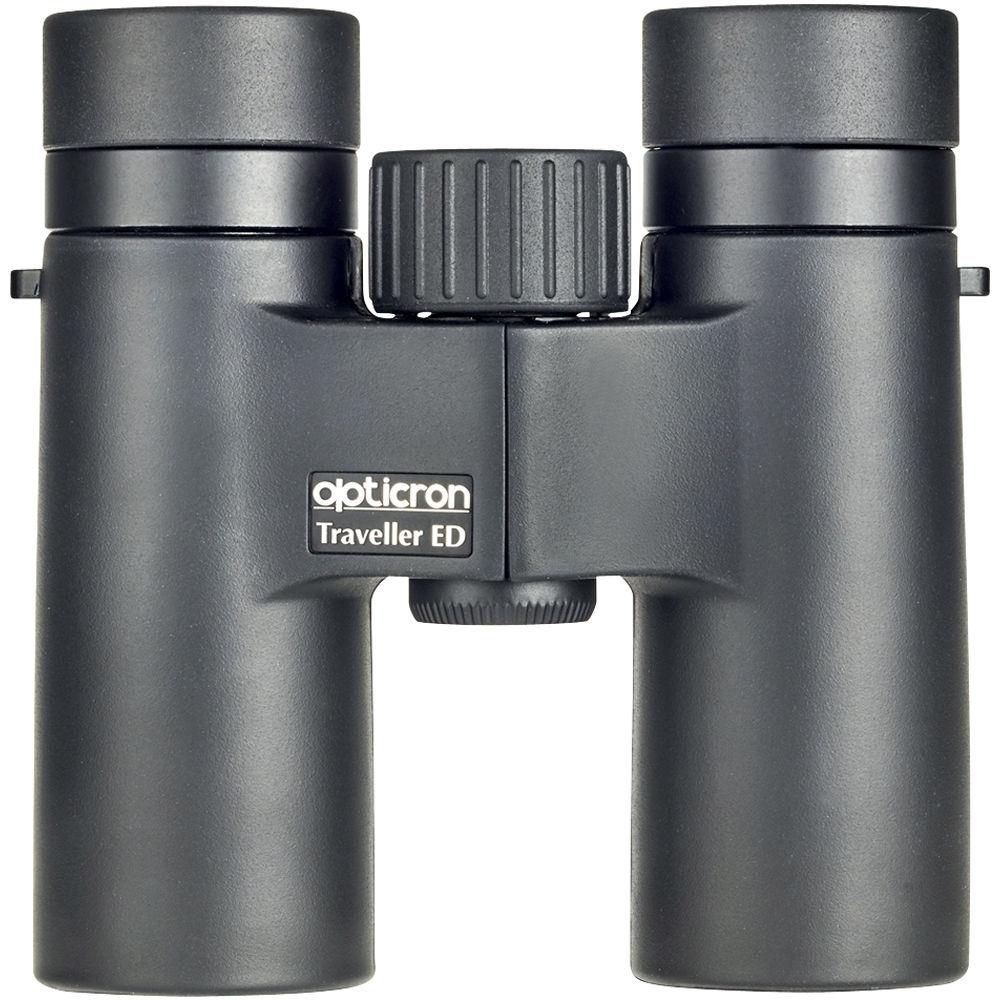

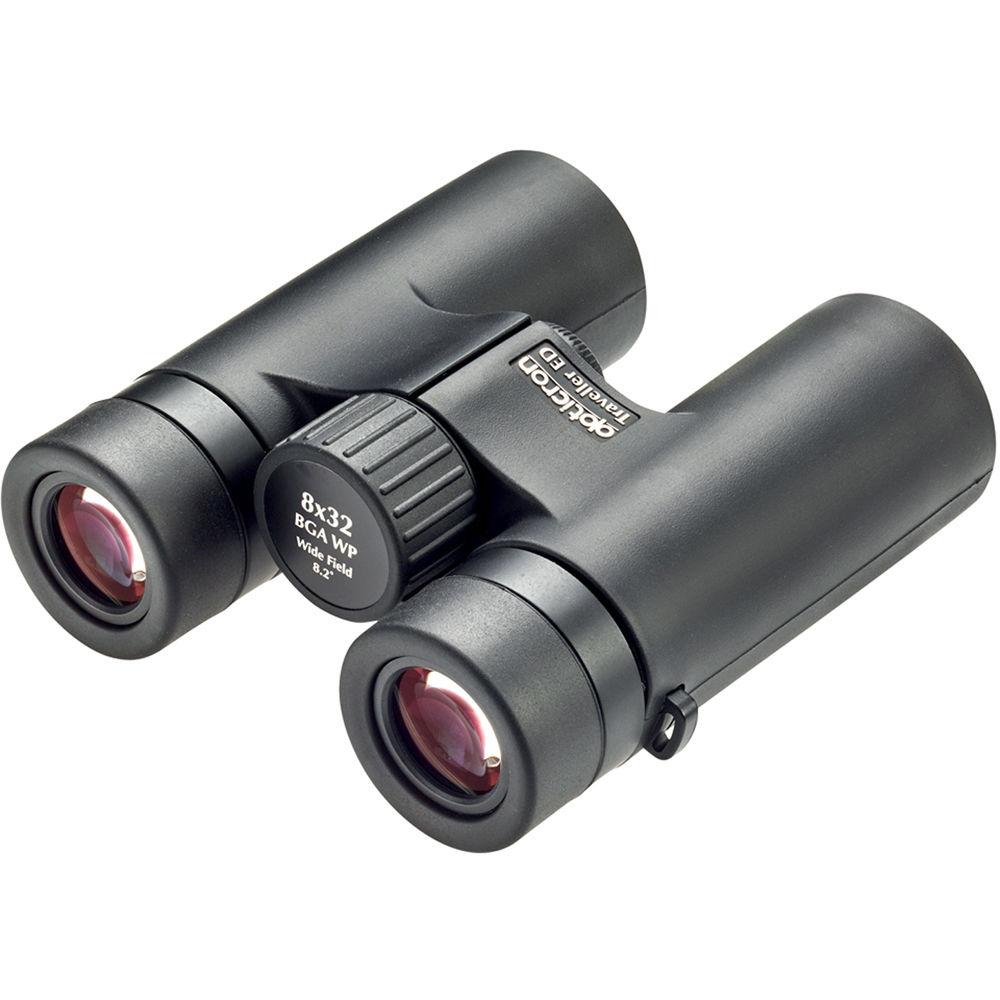

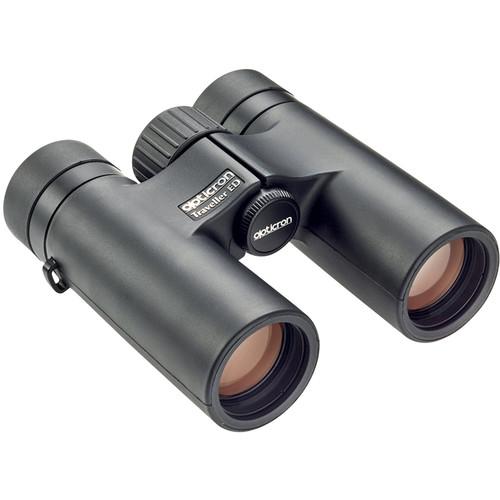

User Manual for Opticron 8x32 Traveller BGA ED Binocular Click to enlarge the picture
Contents of the user manual for the Opticron 8x32 Traveller BGA ED Binocular
- Product category: Binoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Binoculars
 |
User manual for the Opticron 8x32 Traveller BGA ED Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More xzsdztsy Built with premium components and designed to be highly portable, Opticron's 10x32 Traveller BGA ED Binocular features extra low-dispersion glass, fully multi-coated optics, and Opticron's proprietary Oasis phase-corrected prism coatings to enhance image brightness, resolution, and color rendition. The Traveller offers a 429' field of view at 1000 yards and a compact form factor, measuring just 4.7 x 4.5" and weighing 16 ounces. Its durable polycarbonate housing is covered with slip-resistant rubber armoring, and its optical tubes are nitrogen-filled and O-ring sealed to make them fogproof and waterproof to 10 feet. Tethered objective lens caps ensure they won't get lost when the binocular is being used, and are easy to find when it's time to put them back on. - Optical Performance
-
- 8x magnification
- 32mm objective lenses
- BAK4 roof prism optical path
- Extra low-dispersion, fully multi-coated optics
- Proprietary Oasis phase-corrected prism coatings enhance image brightness, resolution, and color rendition
- 429' field of view at 1000 yd
- 65° apparent field of view
- Close 5.9' minimum focus distance
- Use and Handling
-
- Closed-bridge configuration
- Large center focusing wheel
- 4-stage twist-up eyecups
- Long 19mm eye relief
- 4mm exit pupil
- Construction Details
-
- Lightweight and durable polycarbonate housing
- Slip-resistant rubber armoring
- Nitrogen-filled for waterproof and fogproof performance
- Submersible to 10' (3m)
- Tethered objective lens covers
- Compact 4.7 x 4.5" form-factor
- Weighs just 16 oz
In the Box Opticron 8x32 Traveller BGA ED Binocular Neoprene Case Ocular Rainguard Padded Neoprene Neck Strap 2 x Tethered Objective Lens Cover Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 8x32 Traveller BGA ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30648 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 32 mm | | Angle of View | 8.2° (actual)
65.4° (apparent) | | Field of View | 430.4' @ 1000 yd / 143.5 m @ 1000 m | | Minimum Focus Distance | 5.9' / 1.8 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 19 mm | | Interpupillary Adjustment | 51 to 73 mm / 2 to 2.9" | | Tripod Mount | Yes | | Dimensions | 4.7 x 4.5" / 11.9 x 11.4 cm | | Weight | 15.91 oz / 451 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 6.8 x 6.2 x 2.9" |
