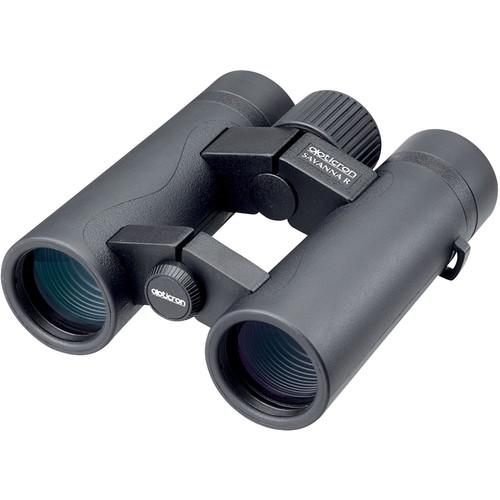

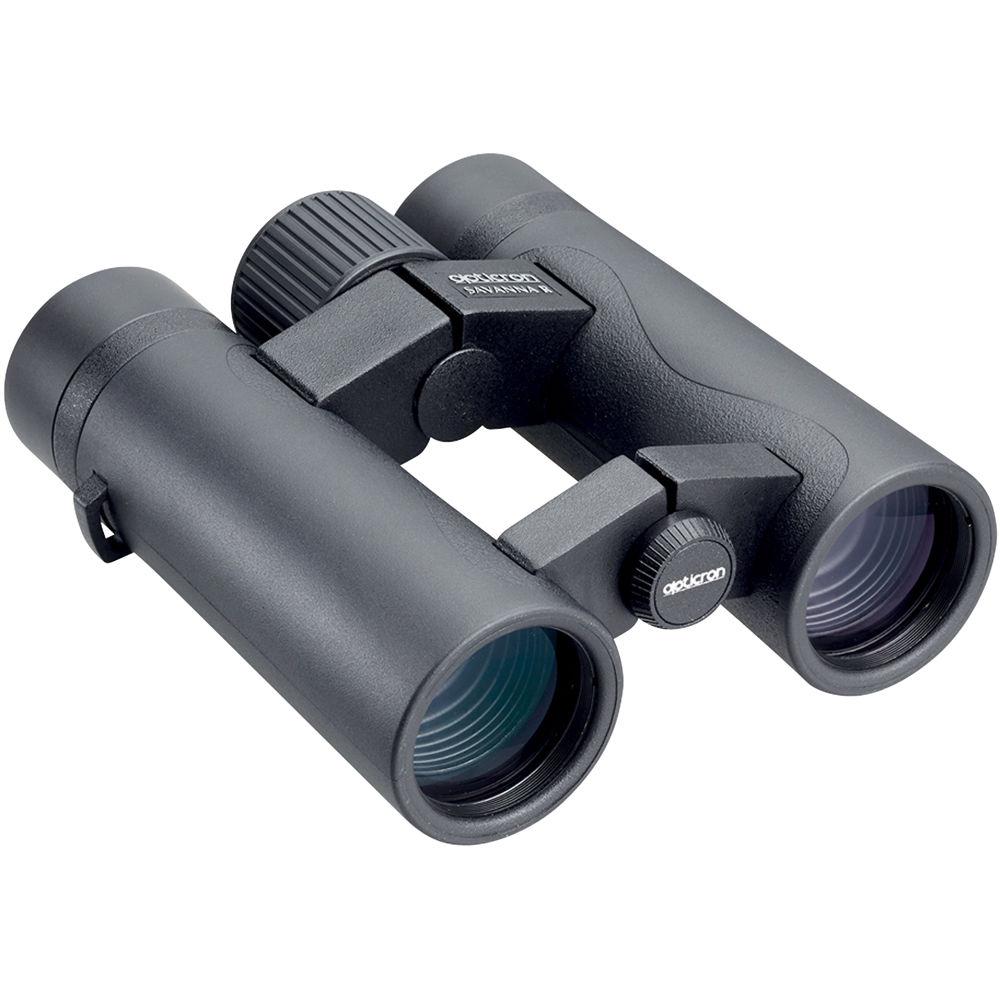

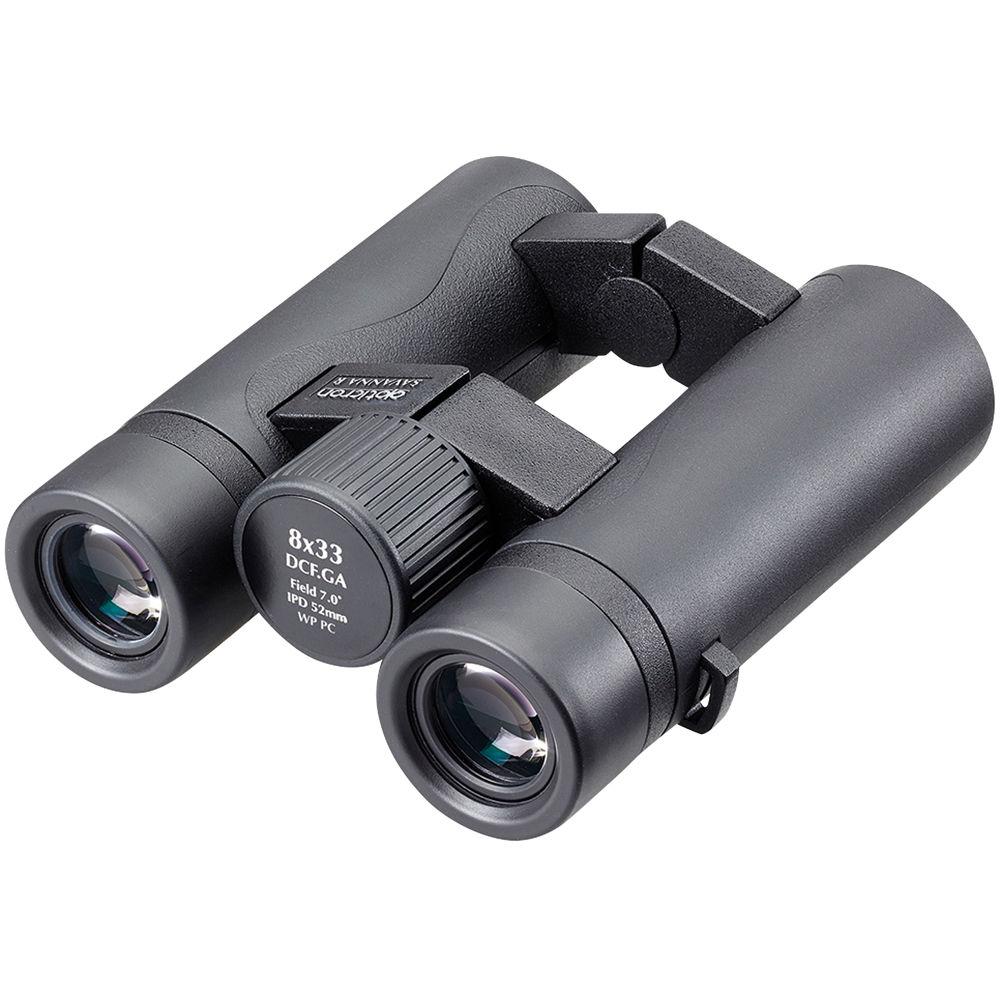

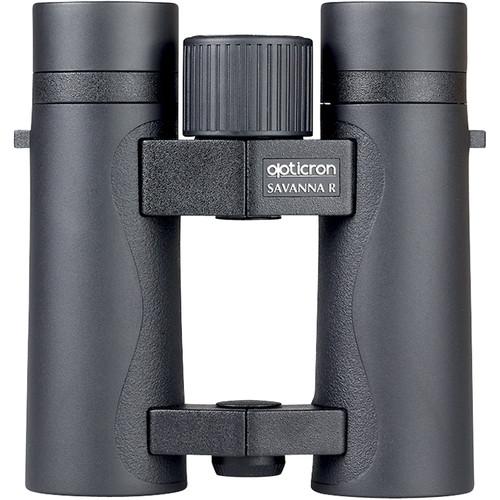

User Manual for Opticron 8x33 Savanna R PC Binocular Click to enlarge the picture
Contents of the user manual for the Opticron 8x33 Savanna R PC Binocular
- Product category: Binoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Binoculars
 |
User manual for the Opticron 8x33 Savanna R PC Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More wcxwxwvqzey Designed for fast and easy use on the go, the Opticron 8x33 Savanna R PC Binocular features a slim and lightweight form factor without sacrificing performance. It is outfitted with a moderate 8x magnification for a generous field of view and 33mm objectives which gather more light than smaller compact models without the bulk of large ones. The combination of power and aperture, translates to a respectable 4.1mm exit pupil to enable the exiting light to cover most pupils as they open and dilate in low-light conditions. Opticron further employs phase-corrected BAK4 roof prisms and fully multi-coated optics that, when combined with the other optical factors, present the user with rich high-contrast views and accurate color representation.Through the use of both compact roof prisms and an open-bridge/dual-hinge body style, the optical tubes are made to be slimmer versus conventional Porro prism designs, with more surface area for user's hands to grip — ensuring comfortable and secure handling in all weather and conditions. The optical tubes and bridge also allow the interpupillary distance to be much closer so people with narrower faces can more easily use them. To withstand the rigors of the outdoors, the optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging. Opticron includes a tethered one-piece rainguard and stay-on/flip-down objective lens caps that are easy to put on and take off without the risk of losing them.With a slim form-factor, light weight, and a design made for comfort, the Savanna R PC binocular is sure to become the go-to optic for most general-purpose use in the field, on the range, at the stadium, or sightseeing around town. - Optical Performance
-
- Moderate 8x magnification brings subjects close without sacrificing exit pupil, that is common with high-power/small objective optics
- 33mm objective lenses gather more light than compact models, helping to boost low-light ability
- Compact roof prisms help to keep the form factor slim to be easier to pack and carry while being comfortable to hold
- BAK4 prisms deliver a round exit pupil, and a crisp and clear image with limited edge distortion
- Phase-correction prism coatings enhance color fidelity, contrast, and resolution
- Anti-reflection fully multi-coated optics maximize light transmission to help produce accurate color fidelity, and further improve contrast and brightness
- 366-foot field of view at 1000 yards
- Use and Handling
-
- Open-bridge/dual-hinge configuration
- Large textured and slip-resistant center focusing wheel is easy to manipulate, even when wearing gloves
- Broad 52-76mm interpupillary distance adjustment range allows easy use by many users, even those with narrow faces, such as children and young adults
- Right-eye dioptric correction allows precise focusing to individual eye prescriptions, with a convenient thumb lever adjustment
- 3-stage twist-up click-stop eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter for hands-free use to reduce arm fatigue and/or vibrations
- Exceptionally long 20mm eye relief makes long-duration glassing sessions comfortable without eye strain
- 4.1mm exit pupil will cover most pupils as they dilate in low light for brighter and clearer views
- Construction Details
-
- Bridge/hinge design reduces weight and provides more surface area to improve grip without sacrificing strength and stability
- Lightweight and durable polycarbonate and aluminum alloy body
- Black protective rubber armor is textured for a positive slip-resistant grip
- Nitrogen-filled and O-ring sealed to be waterproof, and resistant to internal fogging when moving through extreme temperature changes
- Tethered 1-piece rainguard and objective lens covers prevent their loss while staying close at hand
- Light 15-ounce weight is easy to carry around the neck without causing fatigue
In the Box Opticron 8x33 Savanna R PC Binocular Lens Cloth Neck Strap Soft Carrying Case 1-Piece Ocular Rainguard 2 x Tethered Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 wcxwxwvqzey A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 8x33 Savanna R PC Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30738 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 33 mm | | Angle of View | 7.0° (Actual) | | Field of View | 366.0' @ 1000 yd / 121.5 m @ 1000 m | | Minimum Focus Distance | 11.5' / 3.5 m | | Exit Pupil Diameter | 4.1 mm | | Eye Relief | 20.0 mm | | Interpupillary Adjustment | 52 to 76 mm / 2 to 3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.1 x 4.7" / 12.9 x 12.0 cm | | Weight | 15.10 oz / 428.0 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 7.5 x 6.3 x 3.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
