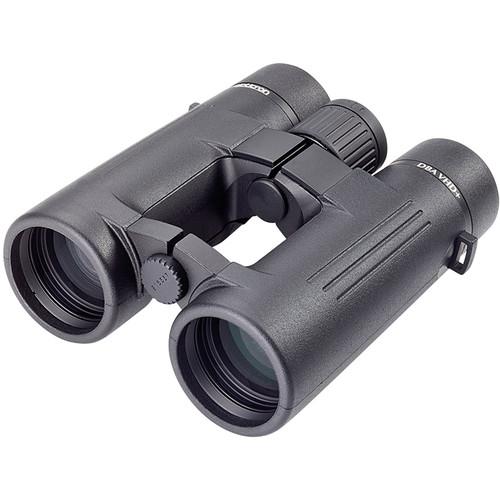

User Manual for Opticron 8x42 DBA VHD Binocular Click to enlarge the picture
Contents of the user manual for the Opticron 8x42 DBA VHD Binocular
- Product category: Binoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Binoculars
 |
User manual for the Opticron 8x42 DBA VHD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|

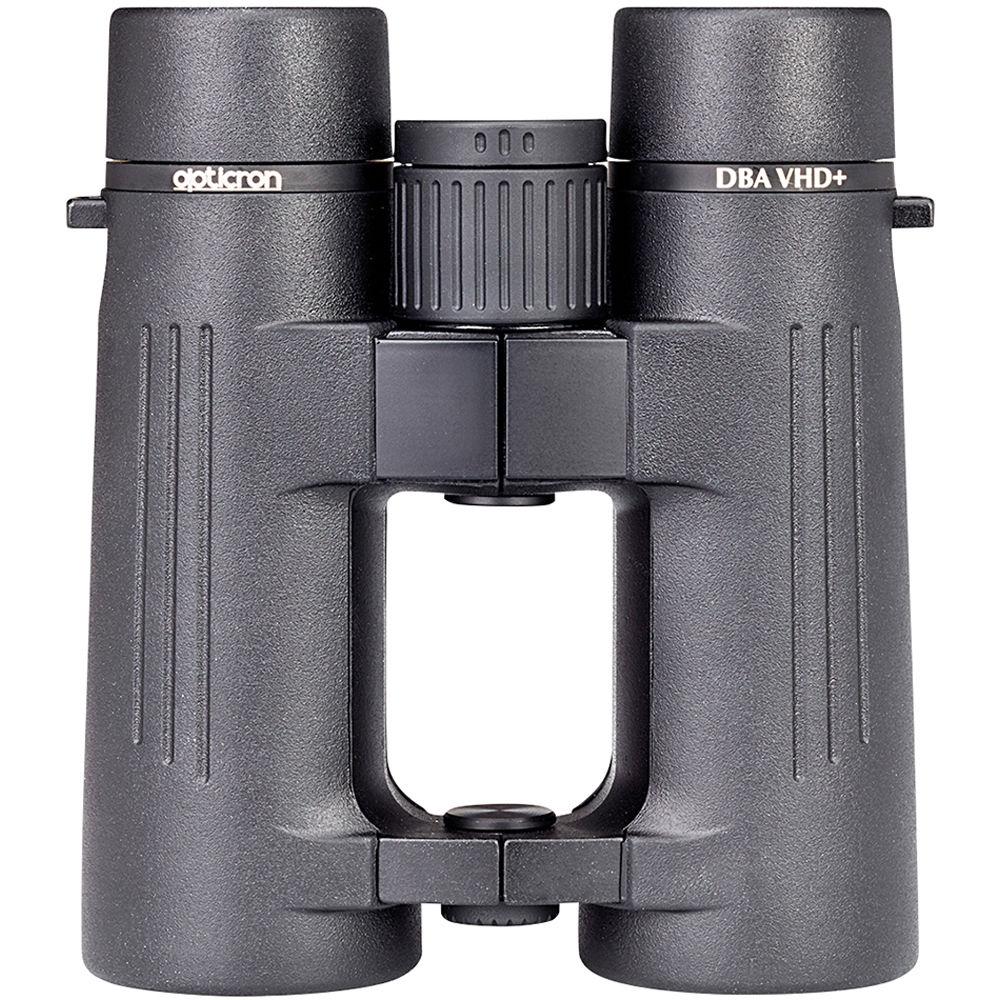

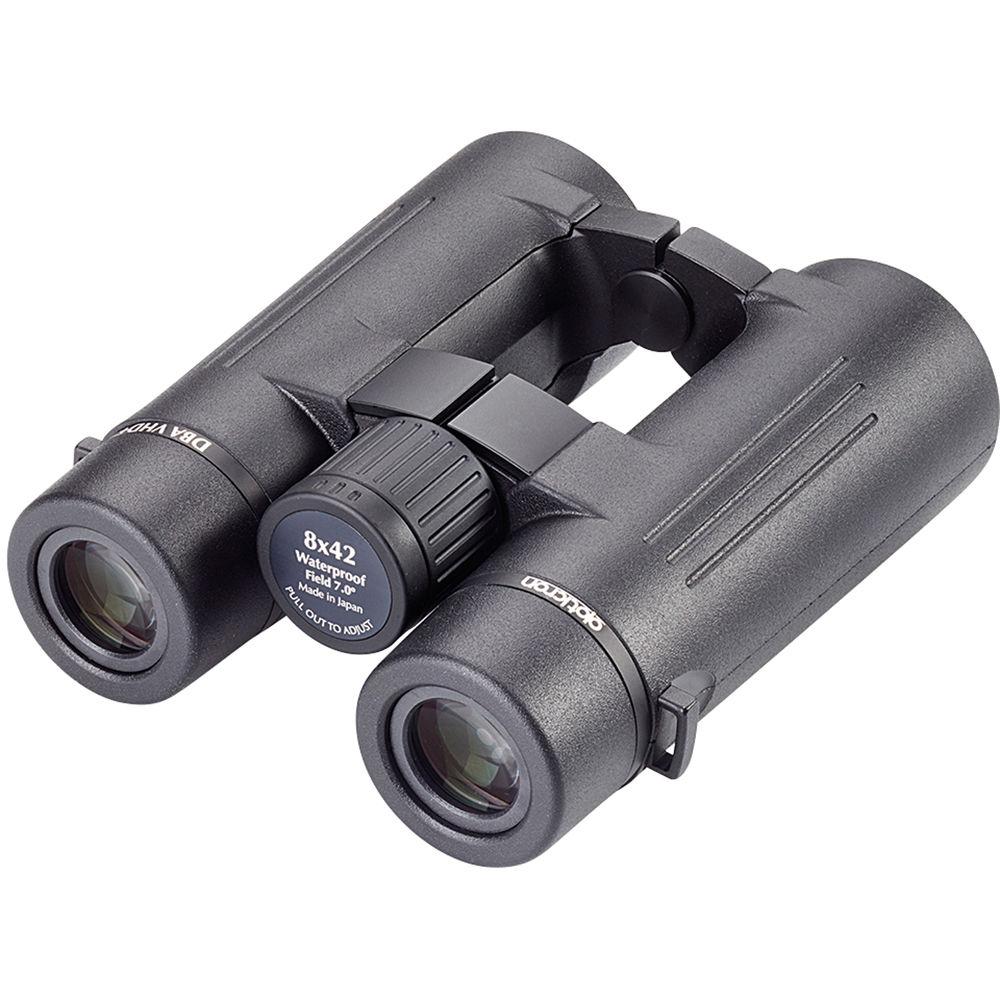

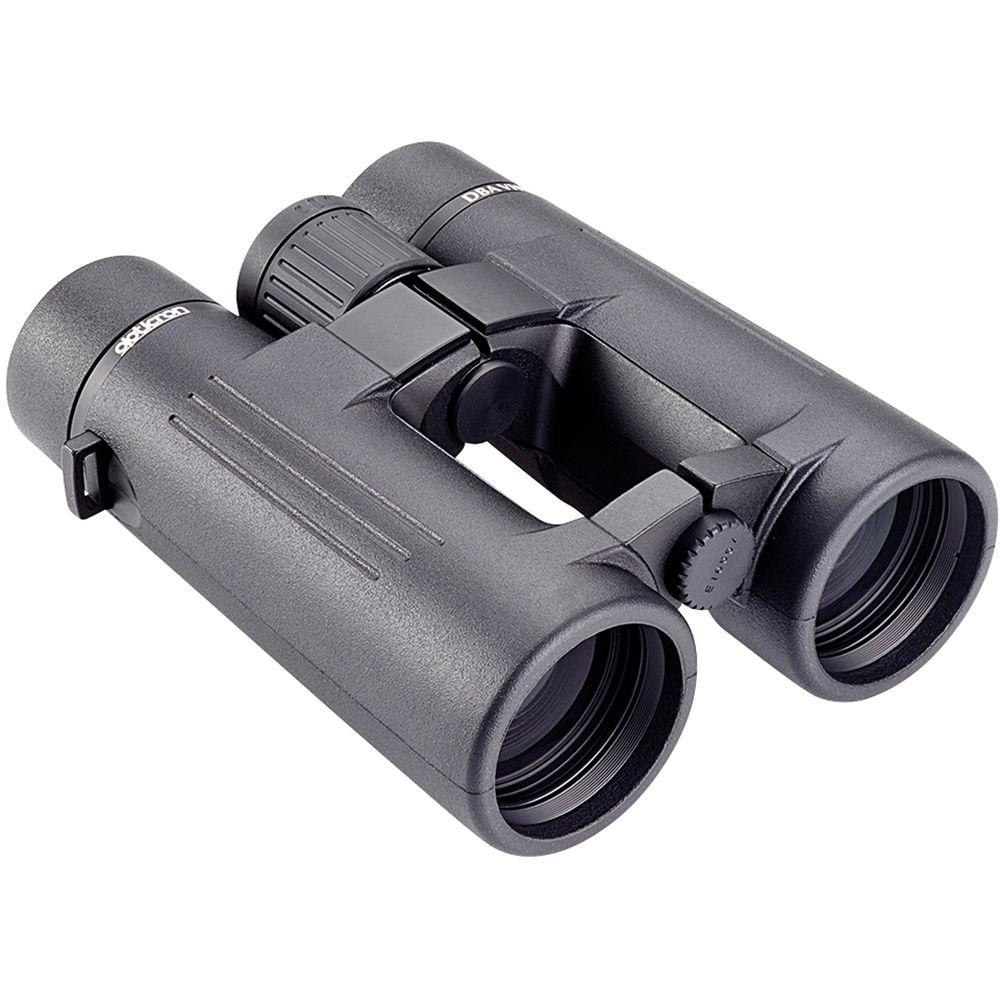

Product description The B&H Binocular Buying Guide Read More Opticron's black 8x42 DBA VHD+ Binocular balances optical performance with rugged construction details to create a versatile binocular that is as at home in the stadium as it is in the woods or on the boat. It features the proprietary VHD+ optical system that combines extra-low dispersion (ED) glass, phase-corrected prisms with Oasis prism coating, anti-reflection fully multi-coated optics, and a field-flattener lens system to produce bright, high-contrast images with neutral color fidelity and virtually zero distortion across the entire field of view. Employing the iconic combination of 8x magnification and 42mm objectives keeps the bulk down so it is comfortable to carry in a pack or around the neck while offering an immersive field of view and competent low-light performance.The binocular is designed with an open-bridge dual-hinge configuration that helps to reduce weight without sacrificing strength, while offering a more secure grip by allowing your fingers to wrap around the optical tubes. To withstand the elements, the housing is nitrogen-filled and O-ring sealed for waterproof and fogproof performance in even the most extreme weather. Black rubber armoring provides protection from drops and impacts, as well as adding to its slip-resistant grip. For long-duration glassing sessions, the DBA VHD+ has a concealed tripod adapter mount to attach it to a stable support system. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- Compact roof prism design
- Proprietary S-H type anti-reflection fully multi-coated optics maximizes light transmission
- Oasis coated phase-corrected prism for enhanced contrast and neutral color fidelity
- Field-flattener lens system reduces spherical aberrations for edge-to-edge distortion-free views
- 366' field of view at 1000 yd
- Use and Handling
-
- Over-sized center focus wheel with central diopter adjuster
- 500°-turn smooth action focusing
- Twist-up click-stop rubber eyecups for use with or without eyeglasses
- Long 22mm eye relief
- Comfortable 5.3mm exit pupil
- Tripod mountable with optional adapter
- Construction Details
-
- Nitrogen-filled for waterproof and fogproof performance
- Open-bridge dual-hinge configuration reduces weight and provides more surface area for your hand
- Black rubberized armor offers impact resistance and a non-slip grip
- Weight: 24.6 ounces
In the Box Opticron 8x42 DBA VHD+ Binocular Neck Strap Carrying Case Ocular Rainguard 2 x Objective Lens Covers Limited 30-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 8x42 DBA VHD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30693 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.0° (Actual) | | Field of View | 366.00' @ 1000 yd / 121.51 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 22.0 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.7 x 5.0" / 14.5 x 12.6 cm | | Weight | 24.55 oz / 696 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
