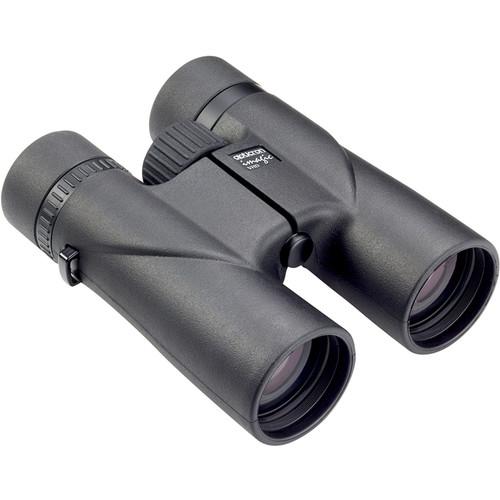

User Manual for Opticron 8x42 Imagic BGA VHD Binocular Click to enlarge the picture
Contents of the user manual for the Opticron 8x42 Imagic BGA VHD Binocular
- Product category: Binoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Binoculars
 |
User manual for the Opticron 8x42 Imagic BGA VHD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|

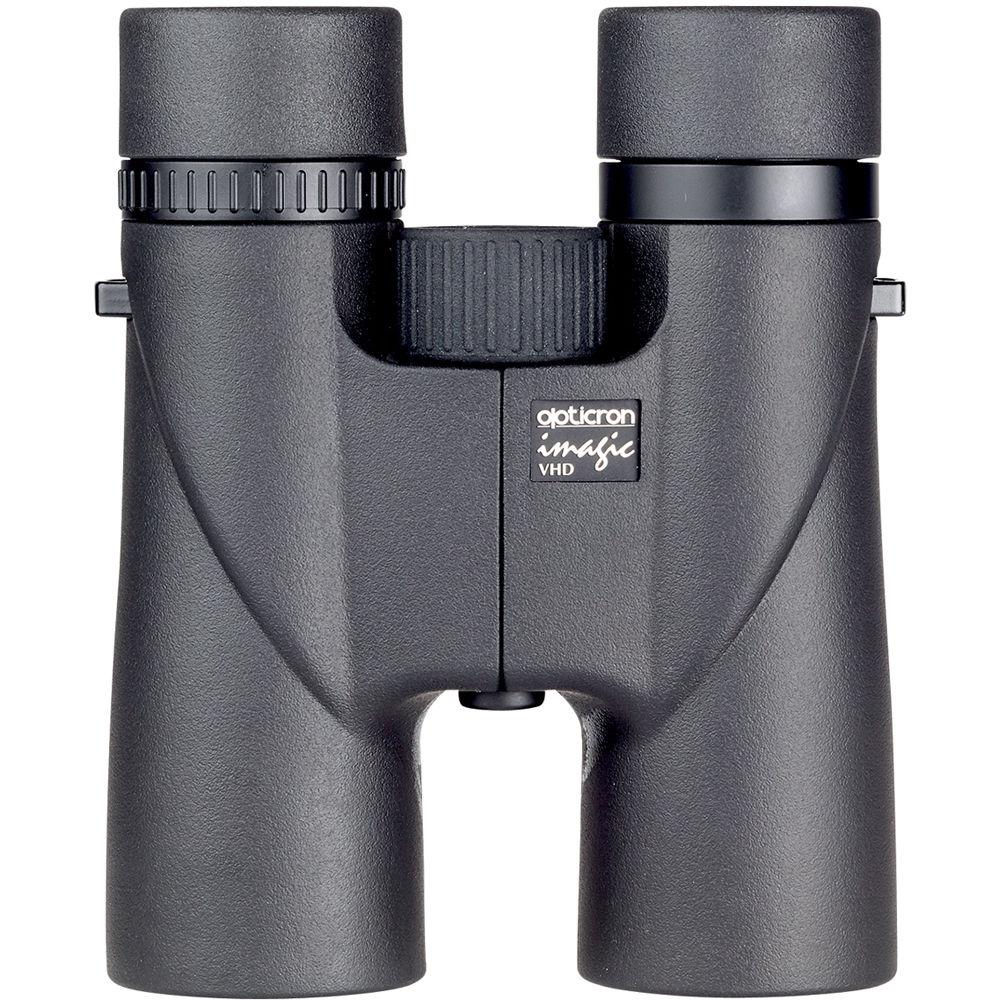

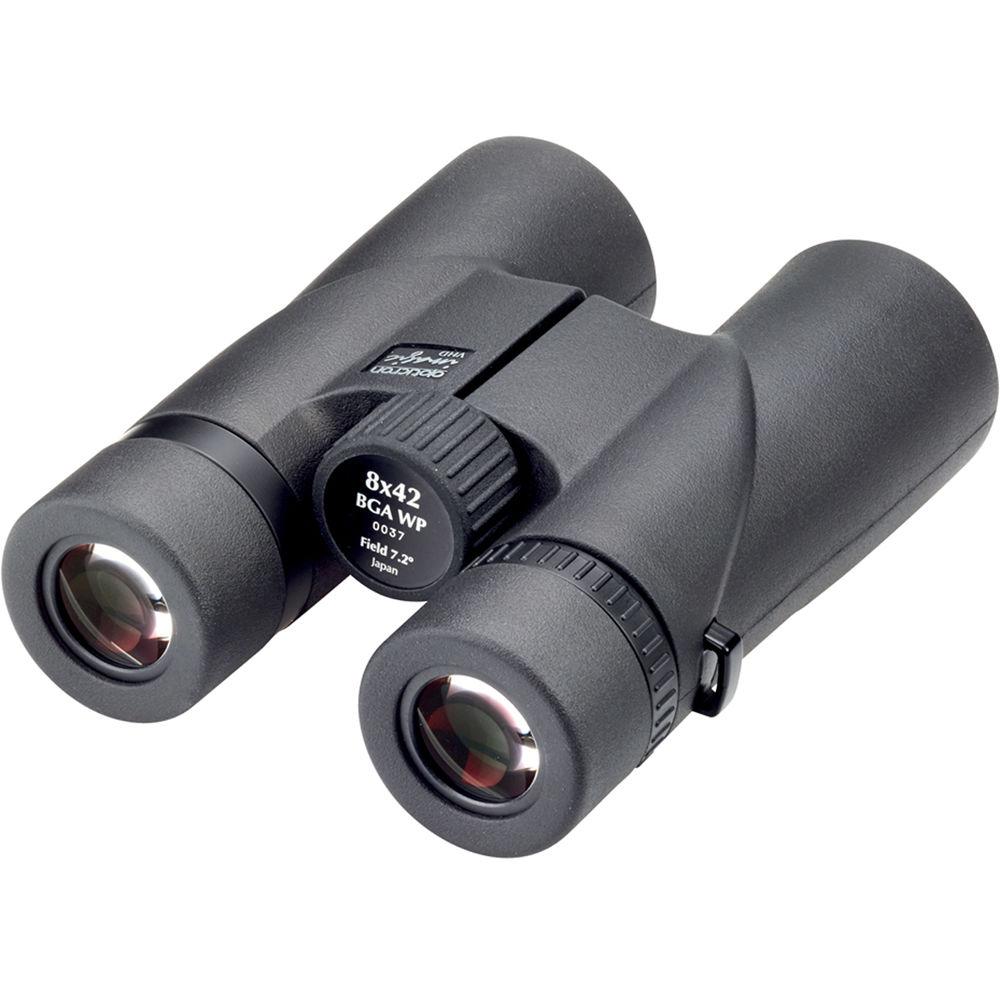

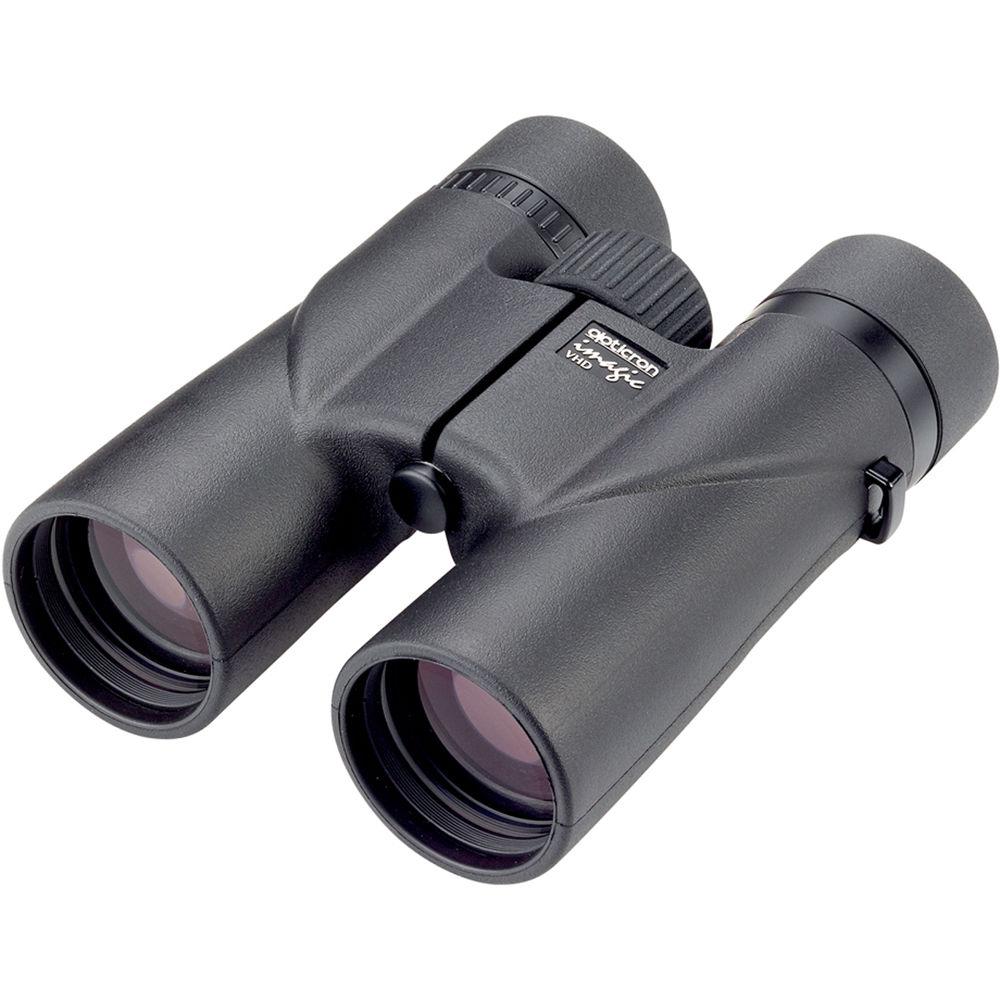

Product description The B&H Binocular Buying Guide Read More xzsdztsy Optimized for glassing in woodlands or in the low light of dawn or dusk, the 8x42 Imagic BGA VHD Binocular from Opticron delivers sharp, clear imagery thanks to its light transmission and color rendition capabilities. This binocular combines a multi-coated VHD optical system with phase-corrected PGK prisms. The 8x magnification provides detail at distance and a stable, shake-free image, while the light-gathering ability of the large 42mm objective lenses makes them ideal for low-light use. The 58° apparent angle of view makes it easy to find and track subjects and to see a wide slice of a scenic vista, while the 22mm eye relief makes that whole field of view available even if you're wearing glasses. The Imagic BGA VHD is built for the rigors of the field with a rubber armoring around its waterproof chassis. Its ocular tubes are nitrogen-filled to prevent internal fogging and submersible down to 10'. Each eyepiece features a three-stage retractable eyecup for adjusting to each user's comfort level, with or without eyewear. A Cordura case, a neoprene neck strap, a rainguard for the ocular lenses, and objective lens caps are included. - Optical Performance
-
- 8x magnification
- 42mm diameter objectives
- Roof prism optical design
- PGK prisms with phase-corrective coating reduces interference to bring the light paths into phase
- Oasis prism coating applied to the reflective surface of each roof prism maximizes light transmission
- VHD multicoated optics reduces light loss at the objective lenses and maximizes color contrast
- 7.2° angle of view, 58° apparent viewing angle
- 6.6' close focus distance
- Use and Handling
-
- Closed bridge configuration
- Three-stage twist up rubber eyecups
- Long 22mm eye relief
- 5.3mm exit pupil
- Construction Details
-
- Nitrogen-filled for water and fogproof performance
- Soft-touch rubber armoring protects while providing a slip-resistant grip
- Tripod mountable with optional adapter
- Tethered objective lens covers
- Weight: 24.2 oz
In the Box Opticron 8x42 Imagic BGA VHD Binocular - Rainguard
- Objective Lens Caps
- Neoprene Bungee Strap
- Cordura Case
- Limited Lifetime Warranty
Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 8x42 Imagic BGA VHD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30679 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.2° (actual)
57.6° (apparent) | | Field of View | 378.0' @ 1000 yd / 126.0 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 5.3 mm | | Eye Relief | 22 mm | | Interpupillary Adjustment | 58 to 74 mm / 2.3 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 6.0 x 4.9" / 152.4 x 124.5 mm | | Weight | 24.2 oz / 686 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
