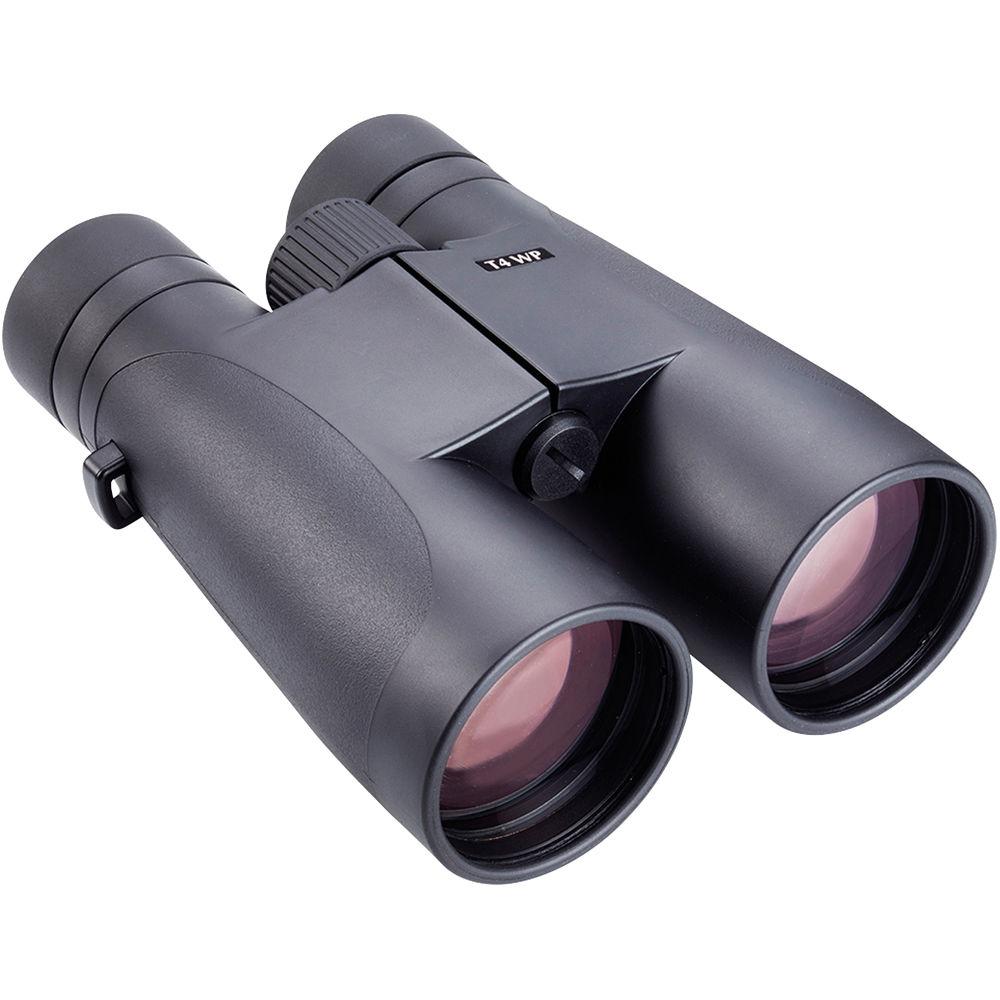

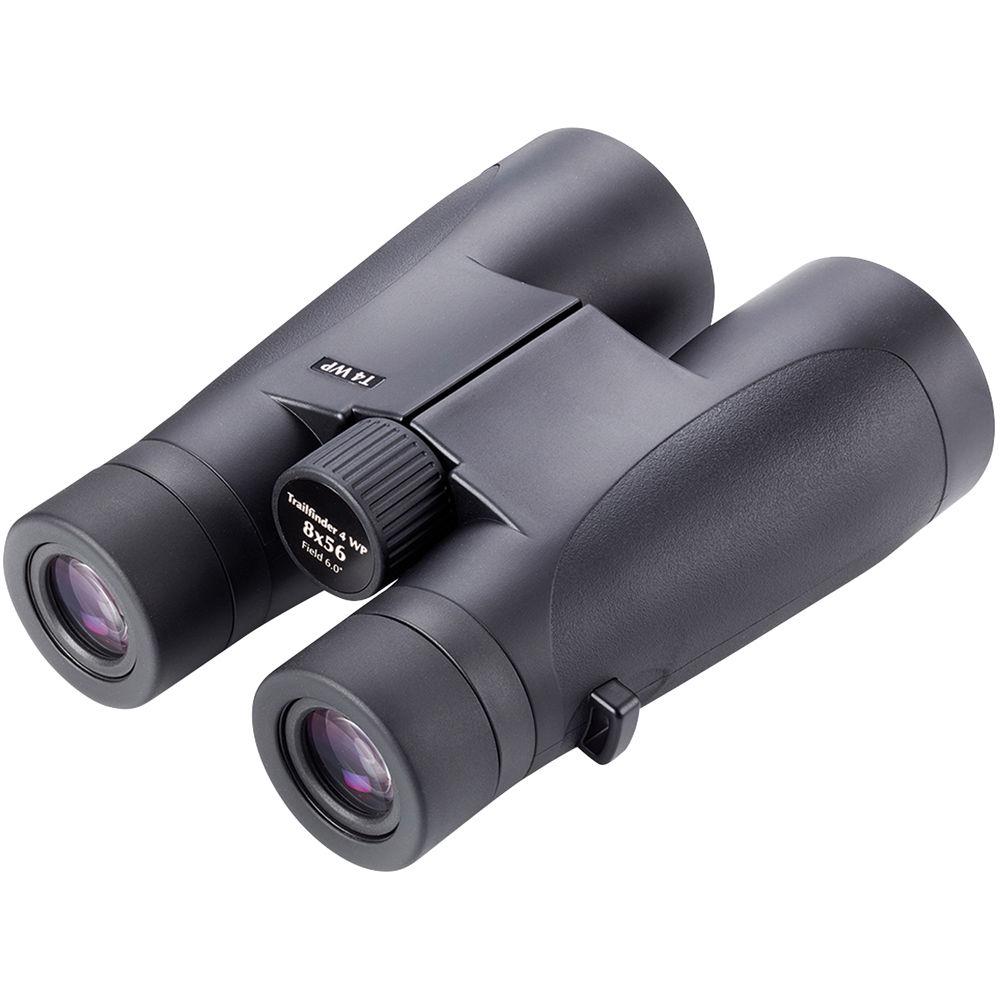

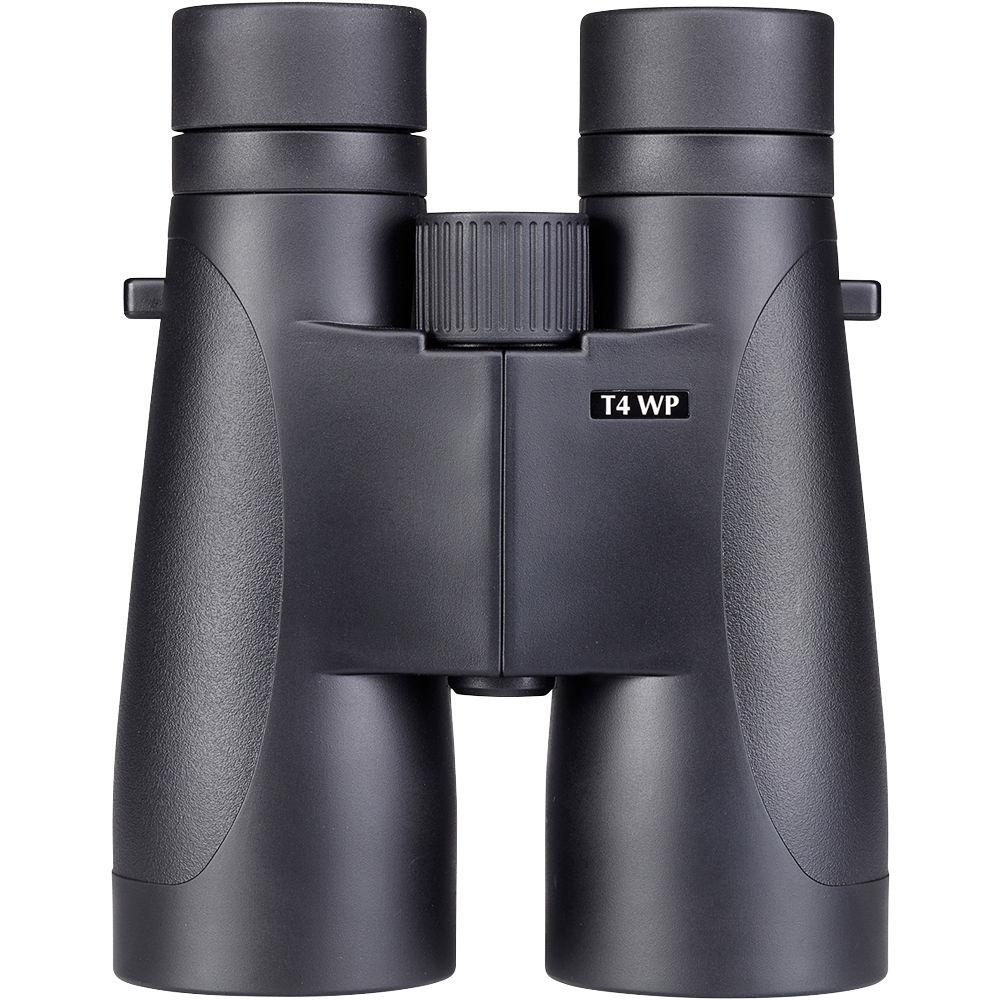

User Manual for Opticron 8x56 T4 Trailfinder Binocular Click to enlarge the picture
Contents of the user manual for the Opticron 8x56 T4 Trailfinder Binocular
- Product category: Binoculars Opticron
- Brand: Opticron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opticron Binoculars
 |
User manual for the Opticron 8x56 T4 Trailfinder Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opticron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opticron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opticron product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Opticron built their black 8x56 T4 Trailfinder Binocular with a magnification and objective lens size combination that makes it a great optic for extreme low-light use such as during the predawn and dusk hours, or when viewing into dense brush and bushes; with performance enhancing features to improve views in all light.These features begin with phase-corrected BAK4 roof prisms and broadband fully multi-coated optics that work together to deliver bright and clear high-contrast images with accurate color rendition through the entire visible spectrum. An exceptionally long eye relief and ultra-wide exit pupil, when combined with the optical performance, present the user with an immersive observational experience without vignetting, even as the light fades.The chassis is made of a lightweight and durable aluminum alloy, and is nitrogen-filled to be waterproof and resistant to internal fogging. A protective black rubber armor provides a slip-resistant grip, with textured palm pads added for improved grip security in cold and wet weather. A large center focus wheel and convenient thumb-operated diopter adjustment ring on the right eyepiece enable precision focusing — even while wearing gloves. The T4's large objectives increase the weight, particularly on the objective end, so for convenience the binocular is tripod mountable with an optional adapter for hands-free use to limit vibrations or eliminate arm fatigue. Designed for active users who are always on the go, Opticron includes an ocular rainguard and tethered objective lens caps, minimizing the chances of loss. - Optical Performance
-
- Moderate 8x magnification brings subjects close without sacrificing exit pupil, which is common with high-power optics
- Large, oversized 56mm objective lenses gather generous amounts of light to boost low-light performance
- Compact roof prisms help to keep the form factor slim for easier packing and hand-held comfort
- BAK4 prisms deliver a round exit pupil, and a crisp and clear image with limited edge distortion
- Phase-correction prism coatings enhance color fidelity, contrast, and resolution
- Broadband anti-reflection fully multi-coated optics maximize light transmission to help produce accurate color fidelity across the entire visual spectrum, and further improve contrast and brightness
- 315-foot field of view at 1000 yards
- Use and Handling
-
- Closed-bridge configuration provides a strong base for the internal focusing mechanism
- Large textured slip-resistant center focusing knob is easy to manipulate, even when wearing gloves
- Right-eye dioptric correction allows precise focusing to individual eye prescriptions with a convenient thumb lever adjustment
- 60-77mm interpupillary distance adjustment range allows easy use by many users — even those with wider faces
- Twist-up click-stop eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter for hands-free use to reduce arm fatigue and/or vibrations
- Exceptionally long 23mm eye relief makes long-duration glassing sessions comfortable without eye strain
- Ultra-wide 7mm exit pupil will completely cover most pupils as they dilate in low light for brighter and clearer views without vignetting
- Construction Details
-
- Lightweight and sturdy aluminum alloy chassis
- Nitrogen-filled and O-ring sealed to be waterproof, and resistant to internal fogging when moving through extreme temperature changes
- Protective black rubber armor provides a slip-resistant grip
- Textured palm pads improve grip security and stability — especially in wet weather
- Tethered one-piece rainguard and objective lens covers
- Weight: 40 ounces
In the Box Opticron 8x56 T4 Trailfinder Binocular (Black) Lens Cloth Neck Strap Soft Carrying Case One-Piece Ocular Rainguard 2 x Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 bwcacxuswwzavzbzaeavtqyvubvbfbfbtbss A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Opticron 8x56 T4 Trailfinder Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpticron 30702 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 56 mm | | Angle of View | 6.0° (Actual) | | Field of View | 315.0' @ 1000 yd / 104.6 m @ 1000 m | | Minimum Focus Distance | 13.1' / 4 m | | Exit Pupil Diameter | 7 mm | | Eye Relief | 23.0 mm | | Interpupillary Adjustment | 60 to 77 mm / 2.4 to 3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.1 x 5.7" / 18.0 x 14.6 cm | | Weight | 39.9 oz / 1130.0 g |
