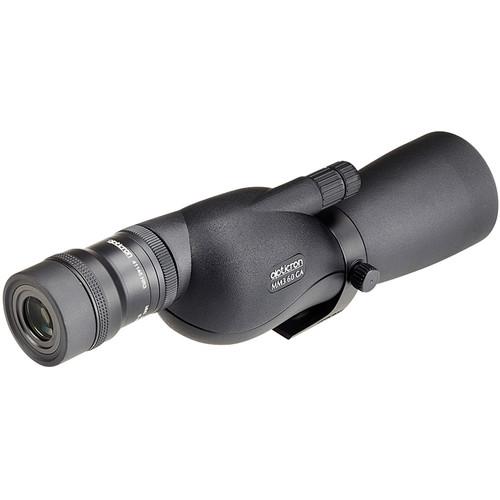

Opticron MM3 60 GA 16-48x Spotting

User Manual for Opticron MM3 60 GA 16-48x Spotting Scope

• Product category: Spotting Scopes Opticron
• Brand: Opticron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Opticron Spotting Scopes

Product description

• MM3 GA 60mm Travelscope (Straight Viewing, Eyepiece Required) Designed with the principals of "smaller, lighter, brighter, and sharper" in mind, the straight-through viewing Opticron MM3 GA 60mm Travelscope is built with fully multi-coated optics and measures under 10" in length. The coatings ensure accurate color rendition with improved clarity and contrast, while the larger 60mm objective lens boosts its light-gathering performance in challenging conditions such as at dawn and dusk or when trying to see into wooded areas under dense canopies. The short form factor lets you hand hold it at lower powers for convenient glassing-on-the-go without a support system.This iteration of the MM3 GA is offered here without an eyepiece for those users who already own Opticron eyepieces and are looking to upgrade their scope. It is compatible with Opticron's full range of HDF and SDL eyepieces to give you a wide variety of viewing angles and magnification to choose from. The 2-speed focusing system features an 8:1 reducer mechanism to allow for fast coarse and precision fine focusing, while the straight-through viewing configuration makes finding and tracking subjects faster and easier versus angled designs. For optimum eyepiece orientation, the tripod collar rotates up to 90° in both directions. A 1/4"-20 mount makes it compatible with many tripods, quick release plates, and other popular support systems like window mounts.
  Optical Performance
  • • Eyepiece required for proper use; compatible with all Opticron HDF and SDL eyepieces
    • 60mm objective boosts light-gathering ability for enhanced low-light use without adding excessive bulk or weight
    • Anti-reflection fully multi-coated optics maximize light transmission to improve color rendition, contrast, and clarity
  Use and Handling
  • • Eyepiece set in-line with the scope body to make it faster to acquire subjects and easier to track moving targets
    • Slip-resistant focusing knob is easy to manipulate in cold and wet weather or while wearing gloves
    • 8:1 dual-speed focusing mechanism allows for fast coarse and precision fine focusing
    • Rotating tripod collar allows for precise eyepiece placement to optimize comfort and access to eyepiece
    • 1/4"-20 mount makes the scope compatible with a wide variety of photo/video/field tripods and quick release plates
  Construction Details
  • • Compact design, under 10", makes it easy to pack and carry during extended walks, hikes, or backpack camping trips
    • Lightweight and durable polycarbonate chassis
    • Chassis material is temperature resistant to limit the expansion and contraction common with metal, which can cause the optical components to move out of alignment over time
    • O-ring sealed to be waterproof and dustproof for use in inclement weather
    • Slip-resistant rubber armoring protects against bumps and impacts
• HR3 Zoom Eyepiece for IS R Spotting Scopes Designed for Opticron's 60mm and 70mm IS R spotting scopes, the HR3 Zoom Eyepiece delivers 16-48x on the 60mm model and 18-54x on the 70mm version. To limit eye strain long-duration observation sessions, it maintains a long and comfortable eye relief through the zoom range, starting at 20mm at low magnification and moving to 16mm at high power. It features anti-reflection fully multi-coated optics to complement those used on the spotting scopes, and a twist-up rubber eyecup allows for comfortable use with or without eyewear.

• Objective Lens Cap

• Limited Lifetime Warranty

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MM3 GA 60mm Travelscope (Straight Viewing, Eyepiece Required)

  Viewing Angle	Straight

  Objective Lens Diameter	60 mm
  Minimum Focus Distance	11.5' / 3.5 m

  Water Resistance	Waterproof

  Tripod Mounting Thread	1/4"-20
  Dimensions	L: 9.9" / L: 25.2 cm
  Weight	25.3 oz / 718.0 g

• HR3 Zoom Eyepiece for IS R Spotting Scopes

  Magnification	16 - 48x with 60mm scope 18 - 54x with 70mm scope
  Eye Relief	20.0 - 16.0 mm
  Length	3.1" / 7.8 cm
  Weight	7.8 oz / 222.0 g
