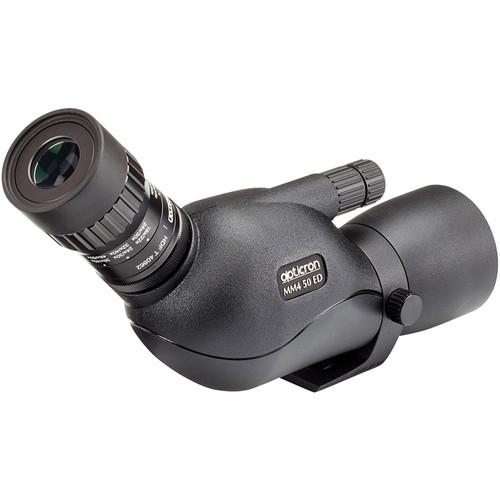

User Manual for Opticron MM4 50 GA ED 45 12-36x Travelscope

• Product category: Spotting Scopes Opticron
• Brand: Opticron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Opticron Spotting Scopes

Product description

• MM4 50 GA ED/45 50mm Travelscope (Angled Viewing, Eyepiece Required) Designed on the principals of "Smaller, Lighter, Brighter, Sharper," the Opticron MM4 50 GA ED/45 50mm Travelscope is built with extra-low dispersion (ED) glass and fully multi-coated optics and measures just 8.1" long. The glass and coatings ensure accurate color rendition with improved clarity and contrast, while the 50mm objective lens draws in copious amounts of light to boost its performance in challenging conditions such as dawn and dusk or when trying to see into wooded areas under dense canopies. The short form factor is easy to carry in a pack and fast to set up.This iteration of the MM4 50 GA ED/45 is offered here without an eyepiece for those users who already own Opticron eyepieces and are looking to upgrade their scope and is compatible with HR, HDF, and SDL eyepieces. The 2-speed focusing system features an 8:1 reducer gear to allow for fast coarse and precision fine focusing, and the 45° angled viewing configuration places the user's head in a comfortable viewing position when standing, sitting, or lying prone. For optimum eyepiece orientation, the tripod collar rotates up to 90° in both directions, and a 1/4"-20 mount makes it compatible with many tripods, quick release plates, and other popular support systems like window mounts.
  Optical Performance
  • • Eyepiece required and available separately; compatible with HR, HDF, and SDL eyepieces
    • 50mm objective lens
    • Extra-low dispersion (ED) glass limits chromatic aberrations to produce clearer and sharper views with little or no color fringing
    • Anti-reflection fully multi-coated optics improve light transmission, color rendition, clarity, and contrast
  Use and Handling
  • • Eyepiece set at a 45° angle to place the head in a comfortable position whether standing, sitting, or lying prone
    • Dual focus system with an 8:1 reduction allows for fast coarse and precision fine focusing
    • ±90° rotating tripod collar enables precise eyepiece placement for optimum comfort and accessibility
    • 1/4"-20 tripod mount easily fits on most quick release plates or photo/video/field tripods
  Construction Details
  • • O-ring sealed to be waterproof and nitrogen filled to be resistant to internal fogging when moving through extreme temperature and environmental changes
    • Rubber armor protects housing from impacts while providing a slip-resistant grip
    • Tethered objective lens cover
    • Designed and made in Japan
    • Compact form factor: 8.1" long, 22-ounce weight
• 40862M HDF T Zoom Eyepiece for MM-Series Spotting Scopes Opticron's 40862M HDF T Zoom Eyepiece produces a wide zoom range when used in their MM-series travelscopes to give users a field of view that approaches wide angle at low power with the ability to make detailed observations of distant subjects when at full zoom. In the 50mm-aperture MM3 and 4 models it produces a 12-36x magnification, and 15-45x in the 60mm version. To limit eye strain during long-duration observation sessions, it maintains a long and comfortable eye relief through the zoom range, starting at 22mm at low magnification and moving to 17mm at high power. It features anti-reflection fully multi-coated optics to complement those used on the spotting scopes, and a twist-up rubber eyecup allows for comfortable use with or without eyewear.

• Objective Lens Cap

• Bayonet Mount Cover

• Limited Lifetime Warranty

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MM4 50 GA ED/45 50mm Travelscope (Angled Viewing, Eyepiece Required)

  Viewing Angle	Angled

  Objective Lens Diameter	50 mm
  Minimum Focus Distance	8.2' / 2.5 m

  Fogproof	Yes, Nitrogen Filled
  Water Resistance	Waterproof

  Tripod Mounting Thread	1/4"-20
  Dimensions	L: 8.1" / L: 20.5 cm
  Weight	21.8 oz / 619.0 g

• 40862M HDF T Zoom Eyepiece for MM-Series Spotting Scopes

  Magnification	12-36x, 50mm MM3/4 GA ED Travelscopes 15-45x, 60mm MM4 GA ED Travelscopes
  Apparent Angle of View	40 - 50°
  Eye Relief	22.0 - 17.0 mm
  Weatherproofing	None
  Length	3.0" / 7.6 cm
  Weight	7.3 oz / 206.0 g

  Box Dimensions (LxWxH)	3.8 x 2.2 x 2.2"
