User Manual for Opto Engineering C-Mount 0.1-0.9x f 5.5-3 Variable Macro Lens for up to 2 3" Detector Click to enlarge the picture
Contents of the user manual for the Opto Engineering C-Mount 0.1-0.9x f 5.5-3
- Product category: Industrial Lenses Opto Engineering
- Brand: Opto Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opto Engineering Industrial Lenses
|
User manual for the Opto Engineering C-Mount 0.1-0.9x f 5.5-3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opto Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opto Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opto Engineering product will considerably shorten its lifespan!
|

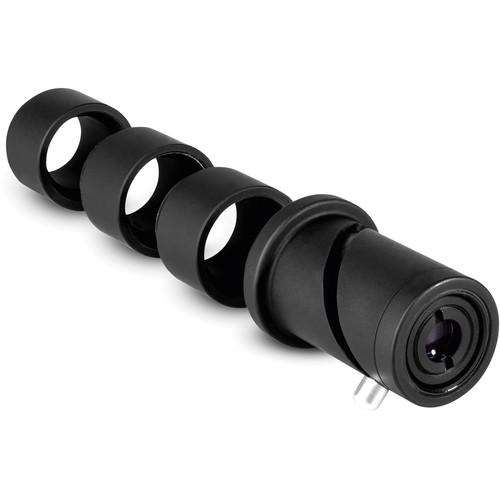

Product description The C-Mount 0.1-0.9x f/5.5-3.0 Variable Macro Lens from Opto Engineering is a multi-configuration macro lens suitable for inspection of object sizes ranging from a few millimeters to some centimeters. Magnification and focus can be tuned by adjusting a lockable rotating knob. The lens magnification range can be selected by means of a set of extension tubes. This makes the lens ideal for prototyping purposes and machine vision applications requiring flexibility. Since the working f-number increases with the magnification, the optimum combination of field depth, image resolution, and brightness is maintained in any lens configuration. Moreover, the optical distortion approaches zero at any magnification, making this lens suitable for measurement applications. - Compatibility
- Up to 2/3" C-Mount detectors
LTRN series LED illuminators with 28mm inner diameter (straight and oblique type)
LTLADC series continuous LED 75° low-angle direct ring lights
LTBFC series continuous flat side-emitting LED backlights
LTBRDC series continuous LED bar lights - Less than 0.07% distortion at any magnification makes this lens suitable for use in measurement applications
- Changing the magnification also changes the lens working f-number in such a way that resolution and distortion remain properly combined
In the Box Opto Engineering C-Mount 0.1-0.9x f/5.5-3 Variable Macro Lens for up to 2/3" Detector 3 x 18.5mm Spacer Table of Contents
|
Upload User Manual
Have you got an user manual for the Opto Engineering C-Mount 0.1-0.9x f 5.5-3 Variable Macro Lens for up to 2 3" Detector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpto Engineering MC3-03X Specs | Detector Type | Up to 2/3" | | Magnification Range | No Spacers: 0.1 to 0.9x
One Spacer : 0.7 to 1.6x
Two Spacers: 1.4 to 2.3x
Three Spacers: 2.1 to 3.0x | | Wavelength Range | 450 to 650 nm | | Aperture | f/5.5 to f/3.0
Working: f/6 to f/21 | | Distortion | <0.07% | | Mount | C | | Compliances | RoHS, REACH | | Dimensions (Ø x L) | Without Spacers: 1.1 x 1.9" (28.0 x 50.5 mm)
Each Spacer Length: 0.7" (18.5 mm) | | Weight | Lens: 2.1 oz (60 g)
Spacer: 0.7 oz (19 g) |
