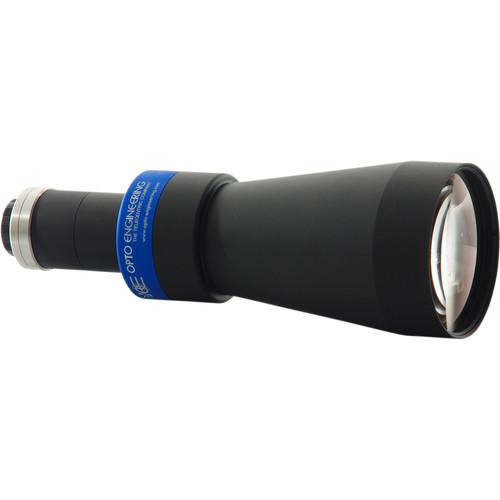

User Manual for Opto Engineering C-Mount 0.157x Bi-Telecentric Lens for 1 3" to 2 3" Matrix Detectors Click to enlarge the picture
Contents of the user manual for the Opto Engineering C-Mount 0.157x Bi-Telecentric Lens
- Product category: Industrial Lenses Opto Engineering
- Brand: Opto Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opto Engineering Industrial Lenses
|
User manual for the Opto Engineering C-Mount 0.157x Bi-Telecentric Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opto Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opto Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opto Engineering product will considerably shorten its lifespan!
|
Product description This TC Series C-Mount 0.157x Bi-Telecentric Lens from Opto Engineering is designed for use with matrix detectors from 1/3" up to 2/3", and can function as a key component in any measurement system powered by machine vision. This lens can take advantage of high-resolution detectors such as 5MP - 2/3", acquiring images with high fidelity and precision.
Opto Engineering's bi-telecentric design allows these optics to achieve pure telecentricity; no magnification change occurs when moving away or towards the subject, making this lens ideal for measurement applications of mechanical parts ranging from extruded aluminum profiles to tiny clock gears. - Compatibility
- LTCLHP Series High-Performance Telecentric Illuminators
LTRN Series LED Ring Illuminators
CMBS056 - 45° Beam Splitter with Mount
CMMR056 - 45° First Surface Mirror
WI056 - Protective Window
CMHO056 - Clamping Mechanics
PT036-056 - Calibration Pattern
Optical Filters - Lens Filters and Mounting Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Opto Engineering C-Mount 0.157x Bi-Telecentric Lens for 1 3" to 2 3" Matrix Detectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpto Engineering TC23056 Specs | Magnification | 0.157x | | Image Circle | Ø 0.43" (11.0 mm) | | Field of View | With 1/3" Detector (4.8 x 3.6 mm): 30.6 x 22.9 mm
With 1/2.5" Detector (5.70 x 4.28 mm): 36.3 x 27.2 mm
With 1/2" Detector (6.4 x 4.8 mm): 40.7 x 30.6 mm
With 1/1.8" Detector (7.13 x 5.37 mm): 45.4 x 34.2 mm
With 2/3" - 5 MP Detector (8.45 x 7.07 mm): 53.8 x 45.0 mm | | Working Distance | 6.2" (157.8 mm) | | Working f/Stop | 8 | | Telecentricity | Typical (Max.): < 0.05 (0.08) [degrees] | | Distortion | Typical (Max.): < 0.03 (0.08) [%] | | Depth of Field | 27 mm | | CTF@ 50 lp/mm | > 45% | | Mount | C | | Dimensions (L x D) | 8.9 x 3.1" (225 x 80 mm) | | Weight | 34.5 oz (977 g) |
