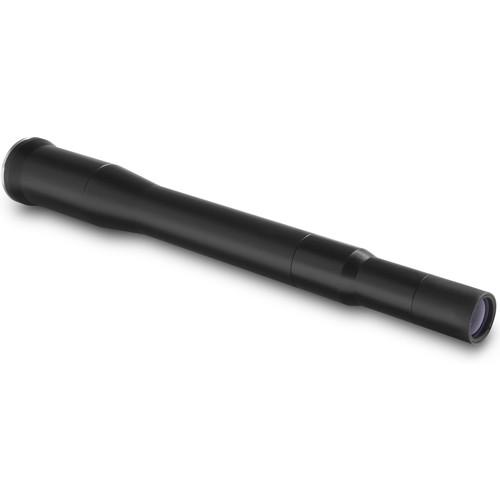

User Manual for Opto Engineering F-Mount 3.000x Telecentric Lens for 35mm Detectors Click to enlarge the picture
Contents of the user manual for the Opto Engineering F-Mount 3.000x Telecentric Lens
- Product category: Industrial Lenses Opto Engineering
- Brand: Opto Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opto Engineering Industrial Lenses
|
User manual for the Opto Engineering F-Mount 3.000x Telecentric Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opto Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opto Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opto Engineering product will considerably shorten its lifespan!
|
Product description The F-Mount 3.000x Telecentric Lens from Opto Engineering is designed to fit 35mm format detectors with very high resolution, such as 11, 16, or 29MP. This combination is the typical choice for extremely accurate measurement of large items such as engine parts, glass or metal sheets, PCBs, and electronic components, LCDs, etc. The lens is also suitable for 4k and 8k linescan cameras and can be successfully used to determine the diameter of cylindrical objects such as shafts, turned metal parts, machine tools, etc. - Compatibility
- LTCLHP Series High-Performance Telecentric Illuminators
LTBC Series Continuos LED Backlights
CMHO Series Clamping Mechanics
LTLAIC Series Continuous LED Low Angle Diffused Ringlights
LTLADC Series Continuous LED Low Angle Direct Ringlights
LTRNDC Series Continuous LED Direct Ringlights
LTBFC Series Continuous Flat Side-Emitting LED Backlights
LTBRDC Series Continuous LED Bar Lights
LTCXC Series Continuous LED Coaxial Lights Table of Contents
|
Upload User Manual
Have you got an user manual for the Opto Engineering F-Mount 3.000x Telecentric Lens for 35mm Detectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpto Engineering TC16M012 Specs | Magnification | 3.000x | | Image Circle | 1.7" (43.3 mm) | | Field of View | With 2k x 10 µm Detector 20.48: 6.83 mm
With 4k x 7 µm Detector 28.67: 9.56 mm
With 8k x 5 µm Detector: 13.7 mm
With 36 x 24 mm Detector: 12 x 8 mm
With APS-C 28.35 mm diagnoal (w x h: 23.6 x 15.7 mm): 7.87 x 5.23 mm | | Working Distance | 2.3" (57.8 mm) | | Working f/Stop | 18 | | Telecentricity | Typical (Max.): < 0.03° (0.05°) | | Distortion | Typical (Max.): < 0.03% (0.05%) | | Depth of Field | 0.2 mm | | CTF@ 50 lp/mm | > 30% | | Mount | F | | Dimensions (L x D) | 14.9 x 2.5" (378.7 x 64 mm) | | Weight | 32 oz (900 g) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
