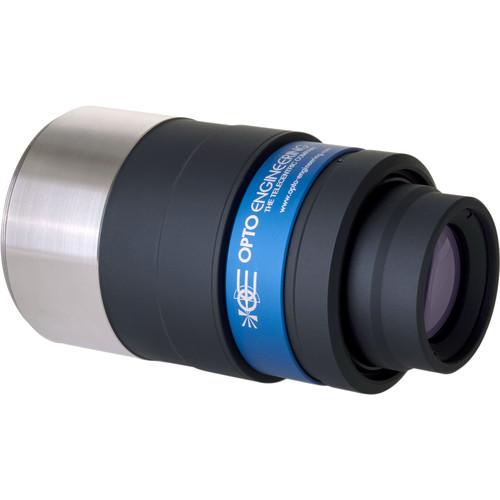

Product description The MC12K Series F-Mount 0.25x Macro Lens from Opto Engineering is specifically optimized to work with high-resolution 12k and 16k pixel line scan cameras, with sensor sizes up to 62.4mm. Its macro design enables uniform optical performance at short working distances. The MC12K series lens is suitable for industrial applications where maximum image resolution is required, such as solar cells and printed sheets inspection, web inspection, or high-speed product sorting. - Compatibility
-
- CMHO series clamping mechanics for MC12K 008-025 lenses
- LTBC series continuous LED backlights, 174x174 illumination area
- Features
-
- Macro design and low distortion
- Perform measurement tasks with a high degree of accuracy and reliability
- Large image circle ensures wide compatibility with line scan sensors up to 62.4mm
- Can distinguish fine tonal gradations
- Suitable for demanding applications where color consistency is required
- Precise manual focusing mechanism to achieve the best possible image sharpness
- Fixed aperture and dedicated clamping mechanics ensure robustness and ease of use
Table of Contents
|
Upload User Manual
Have you got an user manual for the Opto Engineering MC12K Series F-Mount 0.25x Macro Lens for Line Scan Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpto Engineering MC12K025X-F Specs | Magnification | Near: 0.266x
Nominal: 0.25x
Far: 0.234x | | Field of View | 16k Detector
16k x 3.5 µm 57.34: Near: 8.57" (217.6 mm); Nominal: 9.03" (229.4 mm); Far: 9.76" (247.9 mm)
35 mm detector 36 x 24 mm: Near: 5.33 x 3.55" (135.3 x 90.2 mm); Nominal: 5.67 x 3.78" (144 x 96 mm); Far: 6.07 x 4.05" (154.2 x 102.8 mm) | | Working Distance | Near: 15.5" (393.6 mm)
Nominal: 16.36" (415.5 mm)
Far: 15.5" (393.6 mm) | | F-Number (f) | f/6
Working: f/8 | | Distortion | Typical: <0.05% Maximum: 0.1% | | Depth | Field Depth: 0.13" (3.2 mm)
Note: At the borders of the field depth the image can stiil be used for measurement; but to get a very sharp image only half of the nominal field depth should be taken into account. | | CTF@ 50 lp/mm | >50% | | Numerical Aperture | Image Side: 0.063
Object Side: 0.016 | | Mount Type | F-Mount | | Dimensions | 3.9 x 3.0" (99.3 x 76.0 mm) | | Weight | 24.6 oz (696 g) |
