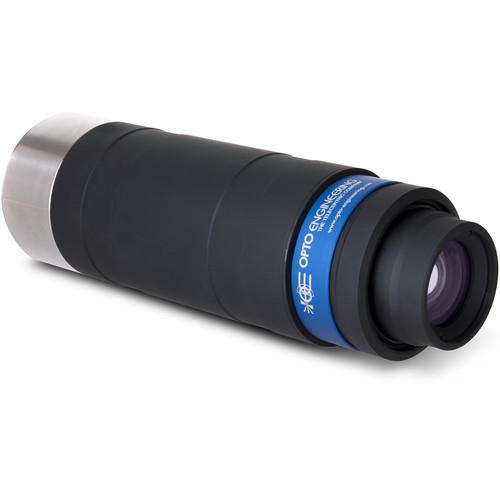

User Manual for Opto Engineering MC12K Series F-Mount 1.5x Macro Lens for Line Scan Cameras Click to enlarge the picture
Contents of the user manual for the Opto Engineering MC12K Series F-Mount 1.5x
- Product category: Industrial Lenses Opto Engineering
- Brand: Opto Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Opto Engineering Industrial Lenses
|
User manual for the Opto Engineering MC12K Series F-Mount 1.5x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Opto Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Opto Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Opto Engineering product will considerably shorten its lifespan!
|
Product description The MC12K Series F-Mount 1.5x Macro Lens from Opto Engineering is specifically optimized to work with high-resolution 12k and 16k pixel line scan cameras, with sensor sizes up to 62.4mm. Its macro design enables uniform optical performance at short working distances. The MC12K series lens is suitable for industrial applications where maximum image resolution is required, such as solar cells and printed sheets inspection, web inspection, or high-speed product sorting. - Compatibility
-
- LTBC series continuous LED backlights, 54x54 illumination area
- LTLAIC series continuous LED 60° low angle diffused ringlights, inner diameter 43mm
- LTLADC series continuous LED 75° low angle direct ringlights, inner diameter 94mm
- LTRNDC series continuous LED direct ringlights, inner diameter 35mm, 45°
- LTBFC series continuous flat side-emitting, one side edge to edge type LED backlights, 58x31 illumination area
- LTBRDC continuous LED bar lights, 80x26.3 illumination area
- LTCXC series continuous LED coaxial lights, 48x48 active area
- Features
-
- Macro design and low distortion
- Perform measurement tasks with a high degree of accuracy and reliability
- Large image circle ensures wide compatibility with line scan sensors up to 62.4mm
- Can distinguish fine tonal gradations
- Suitable for demanding applications where color consistency is required
- Precise manual focusing mechanism to achieve the best possible image sharpness
- Fixed aperture and dedicated clamping mechanics ensure robustness and ease of use
Table of Contents
|
Upload User Manual
Have you got an user manual for the Opto Engineering MC12K Series F-Mount 1.5x Macro Lens for Line Scan Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOpto Engineering MC12K150X-F Specs | Magnification | Near: 1.517x
Nominal: 1.5x
Far: 1.484x | | Field of View | 16k Detector
16k x 3.5 µm 57.34: Near: 1.5" (38.2 mm); Nominal: 1.5" (38.2 mm); Far: 1.54" (39 mm)
35 mm detector 36 x 24 mm: Near: 0.93 x 0.62" (23.7 x 15.8 mm); Nominal: 0.94 x 0.63" (24 x 16 mm); Far: 0.97 x 0.64" (24.3 x 16.2 mm) | | Working Distance | Near: 4.3" (109.3 mm)
Nominal: 4.33" (110 mm)
Far: 4.36" (110.7 mm) | | F-Number (f) | f/6
Working: f/15 | | Distortion | Typical: <0.01% Maximum: 0.02% | | Depth | Field Depth: 0.2 mm
Note: At the borders of the field depth the image can stiil be used for measurement; but to get a very sharp image only half of the nominal field depth should be taken into account. | | CTF@ 50 lp/mm | >40% | | Numerical Aperture | Image Side: 0.033
Object Side: 0.05 | | Mount Type | F-Mount | | Dimensions | 8 x 3" (202.8 x 76.0 mm) | | Weight | 43.4 oz (1,230 g) |
