User Manual for Optoma Technology EH200ST 3000-Lumen Full HD 3D Short-Throw Multimedia DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology EH200ST 3000-Lumen Full HD
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology EH200ST 3000-Lumen Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

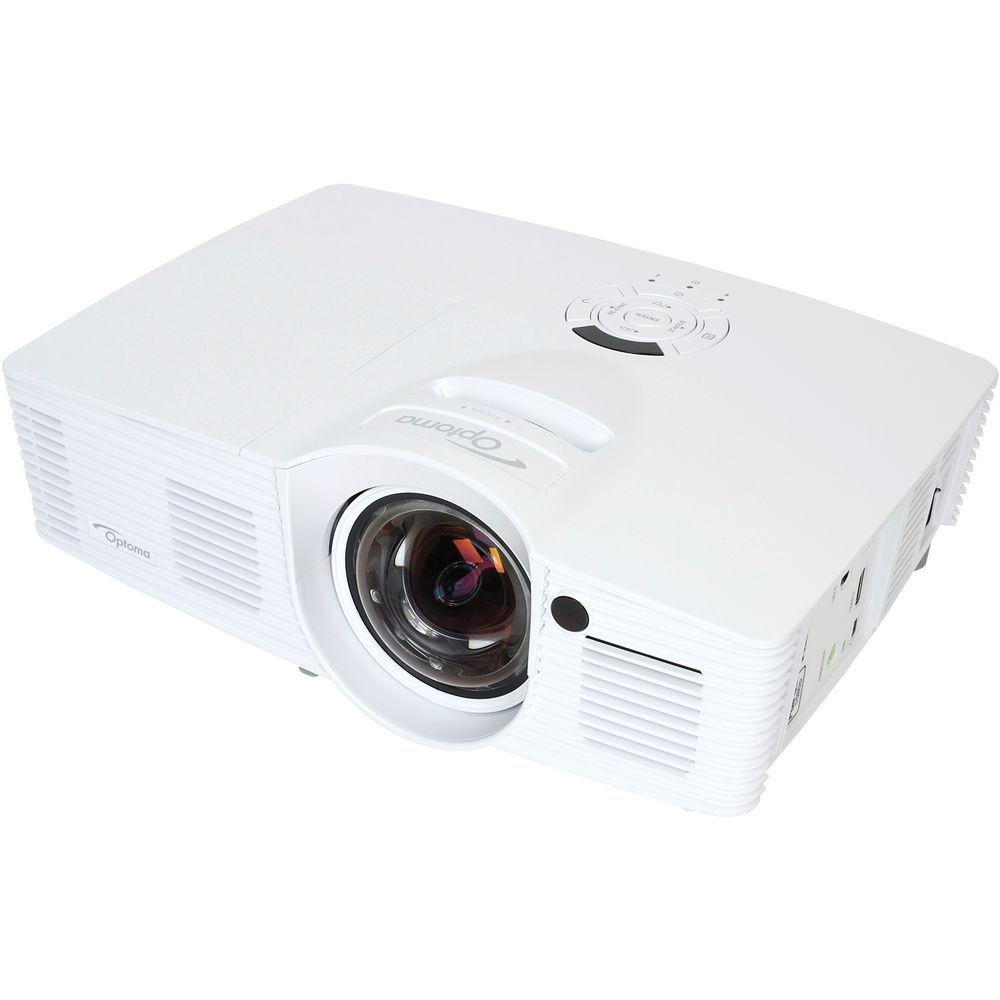

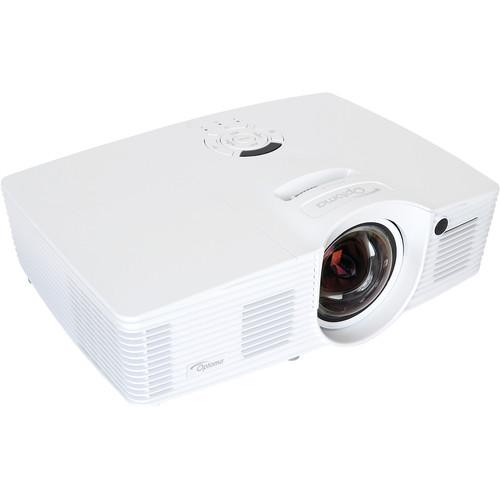

Product description The Optoma EH200ST 3000-Lumen Full HD 3D Short-Throw Multimedia DLP Projector is suitable for use in environments such as home theaters, schools, conference rooms, places of worship, and more. It delivers 3000 lumens of brightness with a low 26 dB noise level. The EH200ST features a sharp 20,000:1 contrast ratio, full 3D compatibility via HDMI 1.4a, and a Full HD 1920 x 1080 native resolution. It supports resolutions up to WUXGA 1920 x 1200. This projector is powered by a DLP chip system, and the lamp features a long life of up to 6,500 hours. You can use the EH200ST to project up to a 303.2" diagonal screen size, and it features a short 0.5:1 throw ratio.

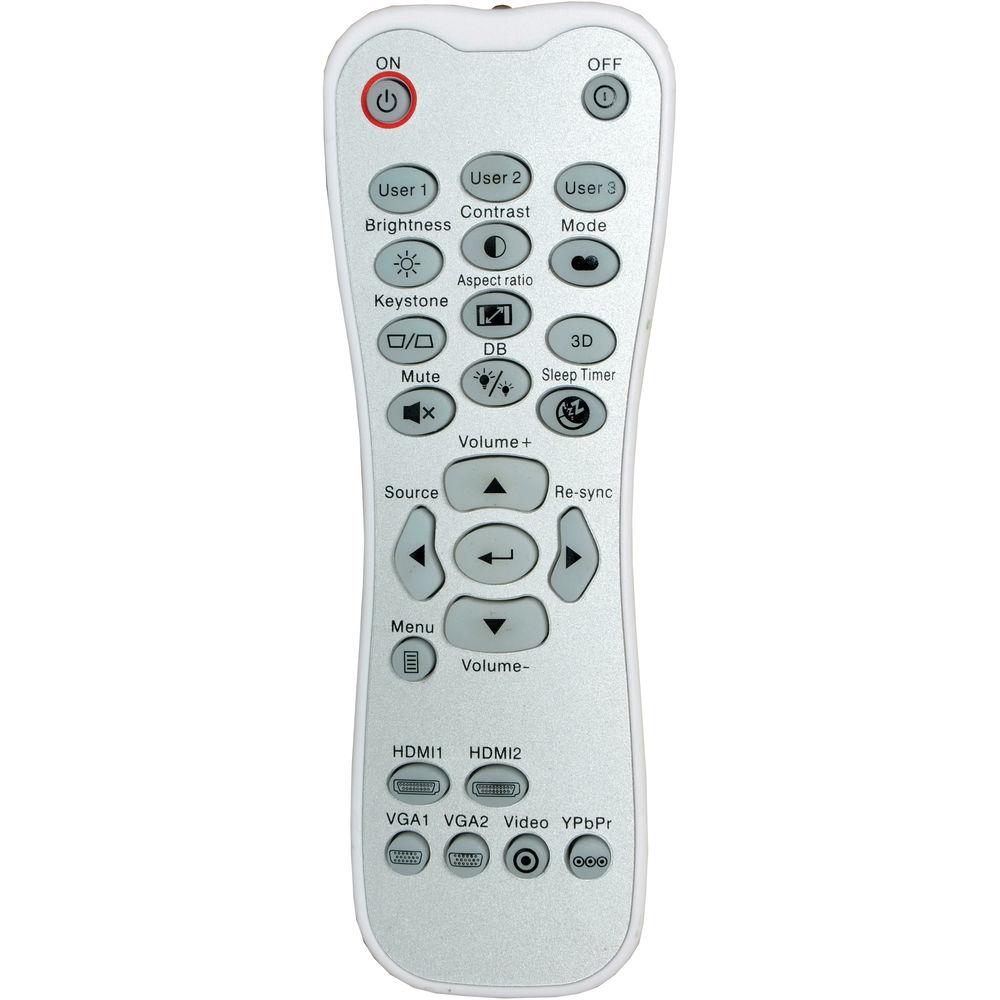

At 6 lb, the EH200ST is light enough for travel and includes a carrying case. This projector is well equipped for high-resolution source component connections with two HDMI inputs; it also supports MHL connectivity via HDMI input 1. As an added convenience, an HDMI cable is included. Other features include a 0.5W standby power consumption level, optional ceiling mount compatibility, rear screen projection, and the inclusion of an IR backlit remote control. A 10W speaker is also built into the projector for audio playback - Full 3D compatibility supports all HDMI 1.4a mandatory 3D formats including frame pack, side-by-side, and top-bottom, so you will be able to captivate your audience with immersive 3D presentations and movies (3D glasses are needed and are sold separately) 1
Please Note: 3D content can be viewed with either RF or DLP Link active shutter glasses when projector is used with a compatible 3D player (RF 3D glasses require the use of an RF 3D emitter and a projector with a 3D VESA Sync port) close - 3D compatibility also up converts image frame rate from 60 to 120 Hz or from 24 to 144 Hz (approx. 60 or 72 frames per eye)
- MHL-enabled HDMI port allows you to connect a compatible smartphone or tablet for content sharing, screen mirroring, and device charging
- Integrated VESA 3D sync port and 12V trigger output
- Integrated energy saving features reduce cost of operation and extend lamp life up to 8,000 hours
- Compatible with NTSC, PAL, and SECAM video signals
- User controls include a complete on-screen menu that supports adjustments in 27 languages
- Integrated Kensington Lock Port and keypad lock
- Loop-through audio options include VAO audio out and HDMI VAO audio out supported (VAO in normal mode and fixed during standby)
UPC: 796435071226 In the Box Optoma Technology EH200ST 3000-Lumen Full HD 3D Short-Throw Multimedia DLP Projector Carrying Case Lens Cap HDMI Cable AC Power Cord Remote Control Remote Control Batteries Limited 1-Year Warranty Limited 90-Day Lamp Warranty User Manual PDF 8.8mbrbcwtfufbxcebfwtzxburraebq Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology EH200ST 3000-Lumen Full HD 3D Short-Throw Multimedia DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology EH200ST Specs | | | Display System | 1-Chip 0.65" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | VGA - 640 x 480
SVGA - 800 x 600
XGA - 1024 x 768
WXGA - 1280 x 800
SXGA - 1280 x 1024
WXGA+ - 1440 x 900
SXGA+ - 1400 x 1050
UXGA - 1600 x 1200
Full HD 1080p - 1920 x 1080
WUXGA - 1920 x 1200 | | Max Brightness | 3000 Lumens | | Uniformity | >80% | | Offset | 116% ± 0% | | Aspect Ratio | Native: 16:9
Supported: 4:3 | | Contrast Ratio | 20000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing
Side by Side
Top Bottom | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Vertical: 24 to 85 Hz or 120 Hz
Horizontal: 15.375 to 91.146 kHz | | | | Focus | Manual | | Lens | f/2.8 (f = 7.42 mm) | | Throw Distance | 1.64 - 11' / 0.5 - 3.353 m | | Throw Ratio | 0.5:1 | | Projection Size | 45.3 - 303.2" / 115.06 - 770.13 cm | | | | Keystone Correction | Vertical: ± 40° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VESA 3D Sync Video (Output)
1 x Mini-USB Type-B Female
1 x 12 V Trigger Control (Output)
1 x 1/8" (3.5 mm) Mini Audio (Output) | | | | Lamp Power | 190 W | | Expected Lamp Life | Full Brightness: 6500 Hours
Low Brightness: 5000 Hours | | Fan Noise | Low Brightness: 26 dB | | Security | Cable Lock Slot
Security Bar | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 262 W
Low Brightness: 193 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 12.4 x 4.0 x 8.8" / 315.0 x 102.0 x 224.0 mm | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 8.55 lb | | Box Dimensions (LxWxH) | 15.7 x 11.2 x 6.2" |
