User Manual for Optoma Technology EH319USTi 1080p 3500-Lumen Ultra-Short Throw Interactive Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology EH319USTi 1080p 3500-Lumen Ultra-Short
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology EH319USTi 1080p 3500-Lumen Ultra-Short contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

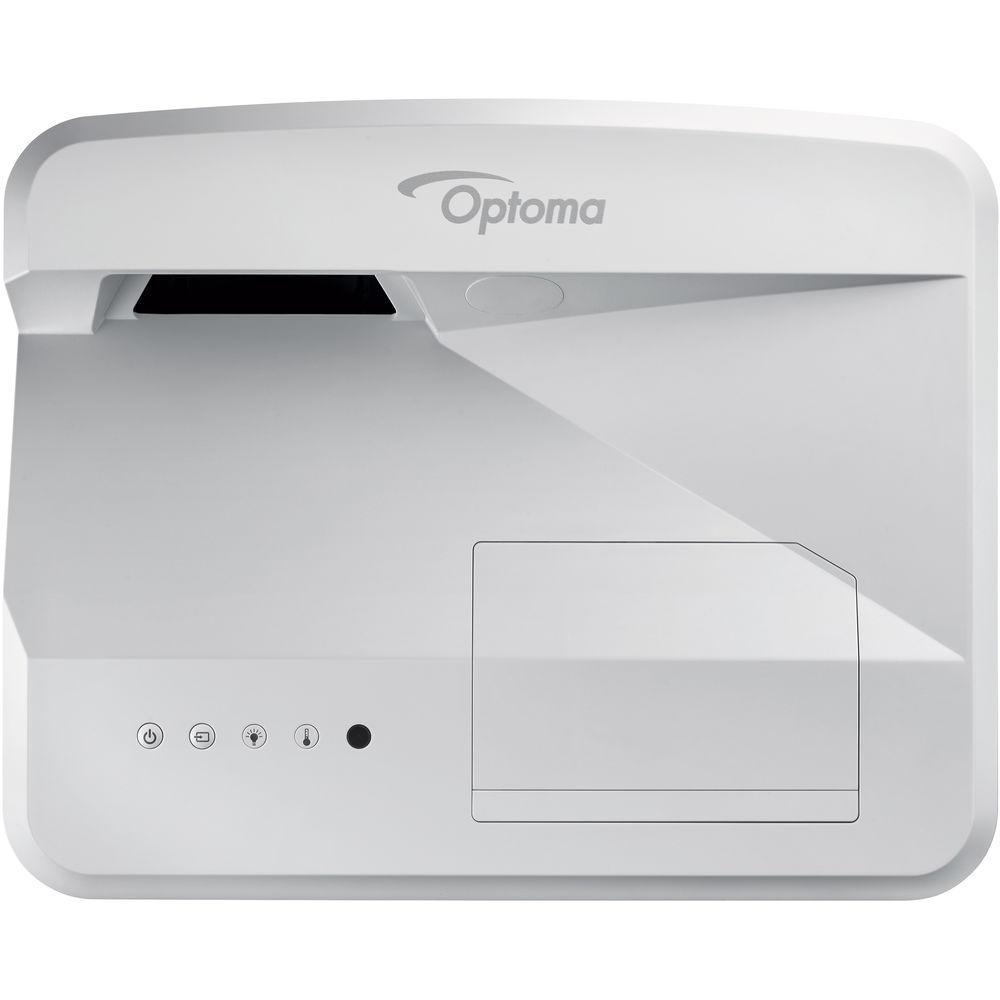

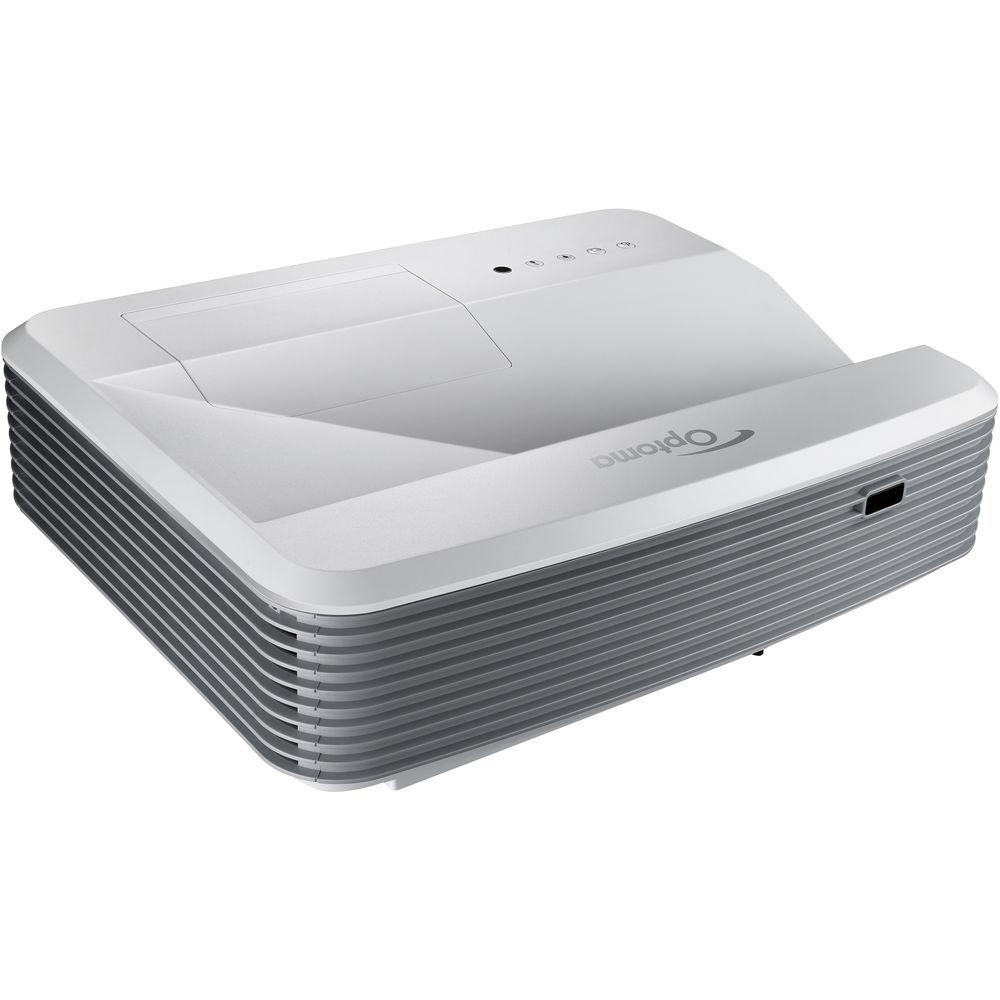

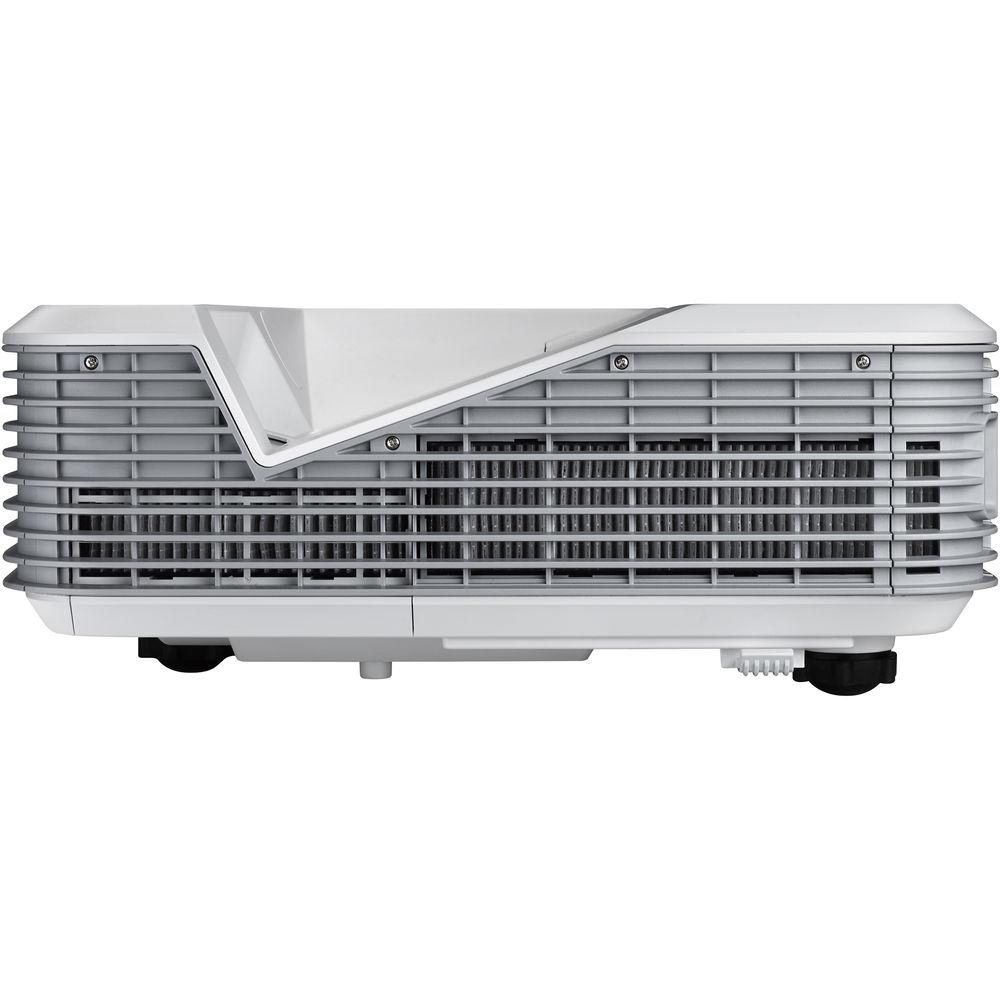

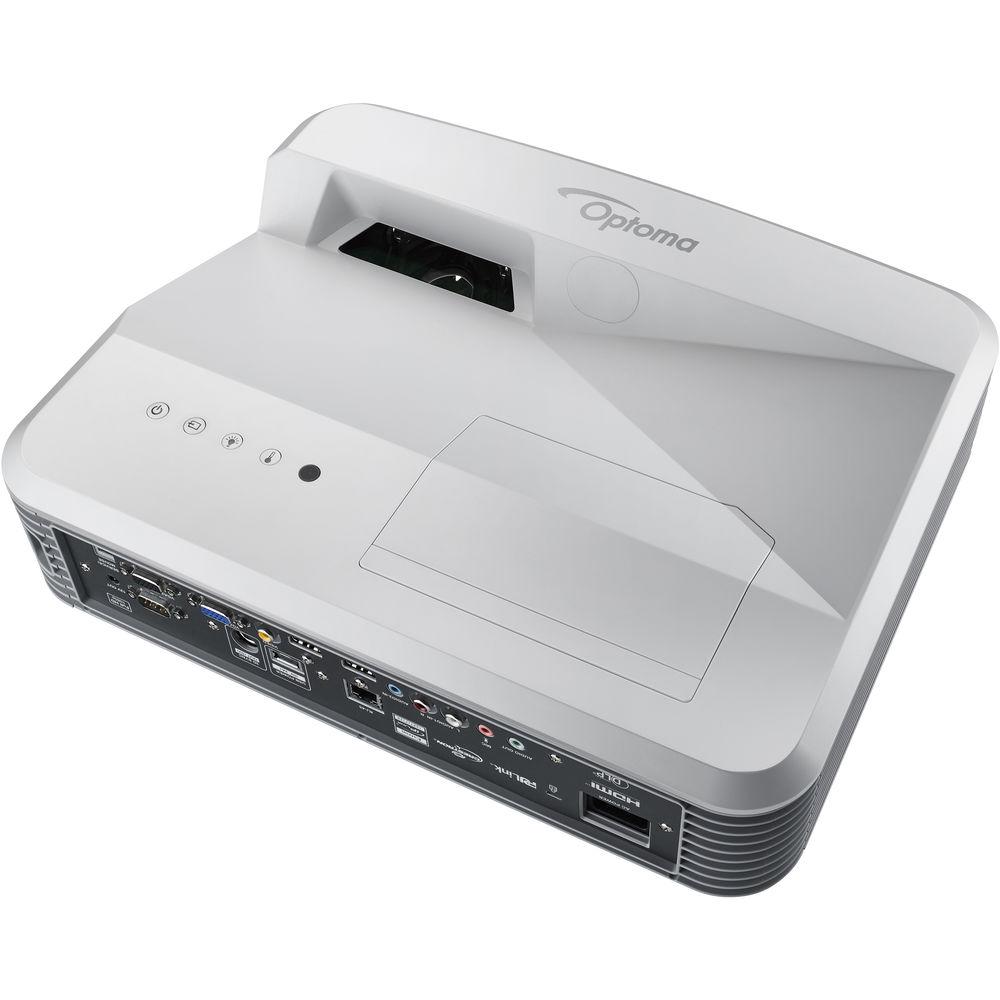

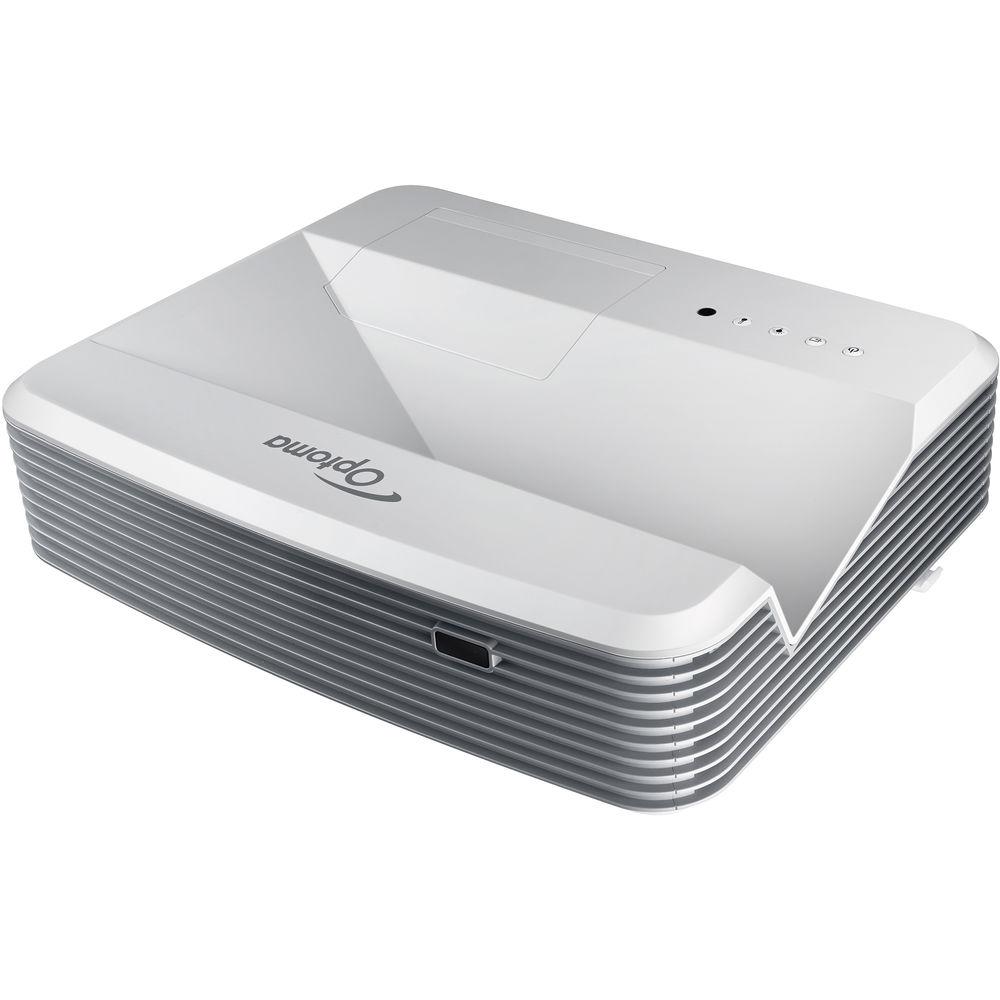

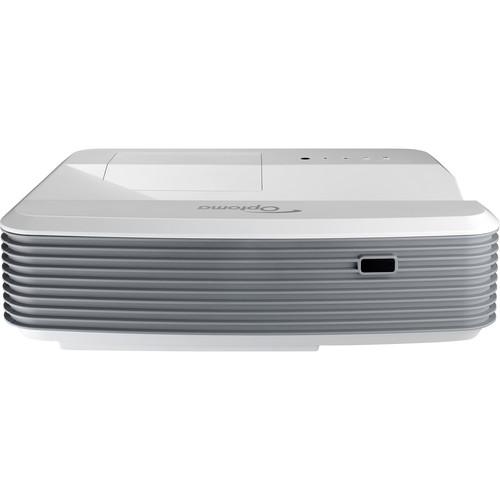

Product description The EH319USTi 1080p 3500-Lumen Ultra-Short Throw Interactive Projector from Optoma is suitable for businesses, schools, and colleges. It uses TouchBeam finger-touch interactive technology that enables several people to work simultaneously on the screen without using a pen. The throw ratio of 0.25:1 allows it to project a 100" image from 22" away. Having the projector installed so close to the screen avoids presenter's shadows being cast across the screen. It comes equipped with two HDMI inputs, a powered USB port, a powerful 16W built-in speaker, and a compact chassis. - TouchBeam Interactive Technology
- Optoma's TouchBeam finger-touch interactive technology allows you to open documents or browse the web without touching your computer. Thanks to TouchBeam, it is easy to draw, annotate, zoom, and rotate images on the projected screen. Designed for businesses, schools, and colleges, multiple touch points allow for a more natural and intuitive way of interacting with digital content.
- Full HD 1080p
- The 1080p resolution gives you sharp, detailed images from HD content without downscaling or compression. This makes the projector suitable for watching Blu-ray movies, HD broadcasting, and playing video games.
- High Contrast
- You can add more depth to your image with a high contrast projector. With brighter whites and ultra-rich blacks, text appears crisp and clear. For vibrant, natural looking images, Optoma projectors incorporate BrilliantColor multicolor processing technology.
- Full 3D
- Optoma projectors can display true 3D content from almost any 3D source, including 3D Blu-ray players, 3D broadcasting, and gaming consoles. Support for 144 Hz rapid refresh rate provides ultra-smooth flicker-free images.
- Quick Resume Function
- The Quick Resume feature allows the projector to be instantly powered on again, if it is accidentally switched off.
- Auto Power Off Function
- There may be instances when the projector is left running when not in use. To help save energy, the "Auto Power Off" feature automatically turns the projector off after a set period of time if it is not being used.
- Eco AV Mute
- Stay in control of your presentation with Eco AV mute. Direct your audience's attention away from the screen when it is no longer needed by blanking the image. This reduces the power consumption by up to 70%, further prolonging the life of your lamp.
- Networking and Control
- You can remotely control and monitor the projector using a wide range of options. An extensive set of RS232 commands makes it easy and simple to manage by using any control system. Dynamic discovery protocol is incorporated, allowing for easy installation with AMX control systems. Using the compatible RoomView software (not included) you can power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer.
- Remote Mouse Control

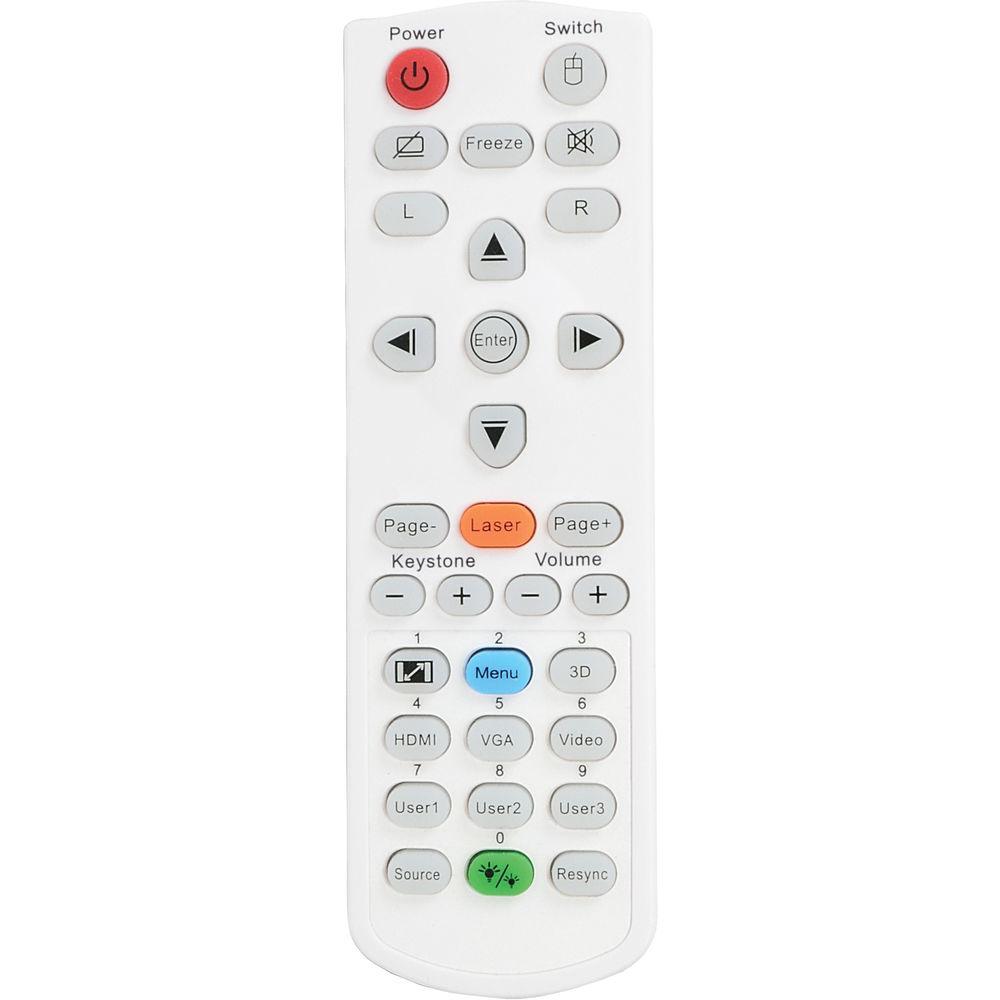

- The projector supports a USB mouse. You can keep your audience's attention focused on the right things using the simple remote with the USB mouse control.
- USB Power
- You can use the USB to power an HDMI dongle, such as a Google Chromecast (not included) or the Optoma WHD200 wireless HDMI device (not included).
In the Box Optoma Technology EH319USTi 1080p 3500-Lumen Ultra-Short Throw Interactive Projector TouchBeam Interactive Module VGA Cable USB Cable Remote Control with Batteries AC Power Cord 2 x Passive Pen Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Manual PDF 9mbetxzrvrddrxbqfvfc More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology EH319USTi 1080p 3500-Lumen Ultra-Short Throw Interactive Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology EH319USTi Specs | | | Display System | 0.65" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | UXGA
SXGA
WXGA
XGA
SVGA
VGA | | Max Brightness | 3500 Lumens | | Offset | 118% | | Aspect Ratio | Native: 16:9
Supported: 4:3 | | Contrast Ratio | 18000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Side by Side (up to 720p)
Frame Packing (up to 1080p)
Frame Packing (up to 720p)
Top Bottom (up to 1080p)
Top Bottom (up to 720p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15.3 to 91.1 kHz

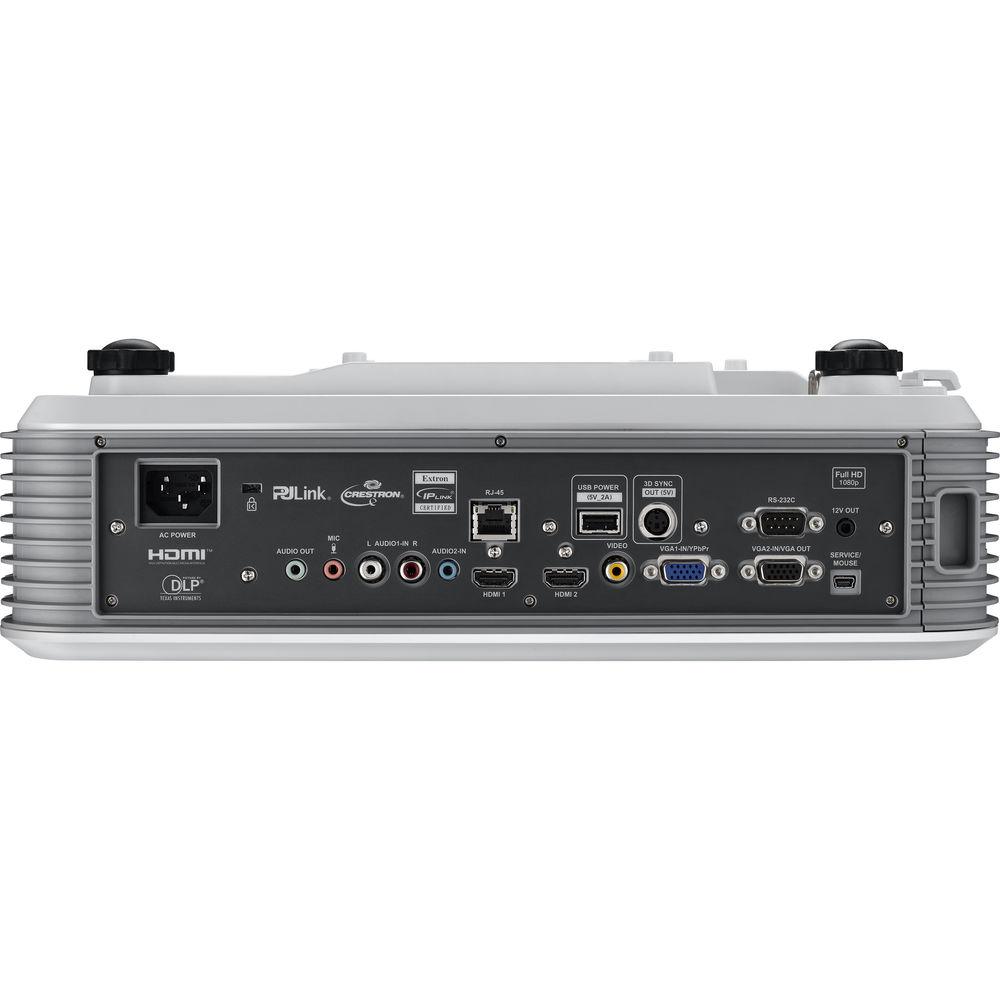

Vertical: 28 to 85 Hz Vertical scan rate of 120 Hz for 3D. | | | | Lens | f/2.4 (f = 3.72 mm) | | Throw Distance | 1.312 - 1.969' / 0.4 - 0.6 m | | Throw Ratio | 0.25:1 | | Projection Size | 80 - 100" / 203.20 - 254.00 cm At 16:9 aspect ratio. | | | | Keystone Correction | Vertical: ± 20° | | Built-In Speaker | Yes | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI Audio/Video
2 x VGA (DE-15) Video
1 x Composite (RCA) Video
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control
1 x USB Control
1 x 12 V Trigger Power
1 x USB Type-A Female | | | | Lamp Power | 260 W | | Expected Lamp Life | Medium Brightness: 3000 Hours | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 310 W
Low Brightness: 260 W
Standby Mode (Lamp Off): 0.5 W | | Max Operating Altitude | 9842' / 3000 m | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 15.2 x 12.2 x 4.7" / 38.5 x 31.0 x 12.0 cm | | Weight | 10.7 lb / 4.9 kg |
