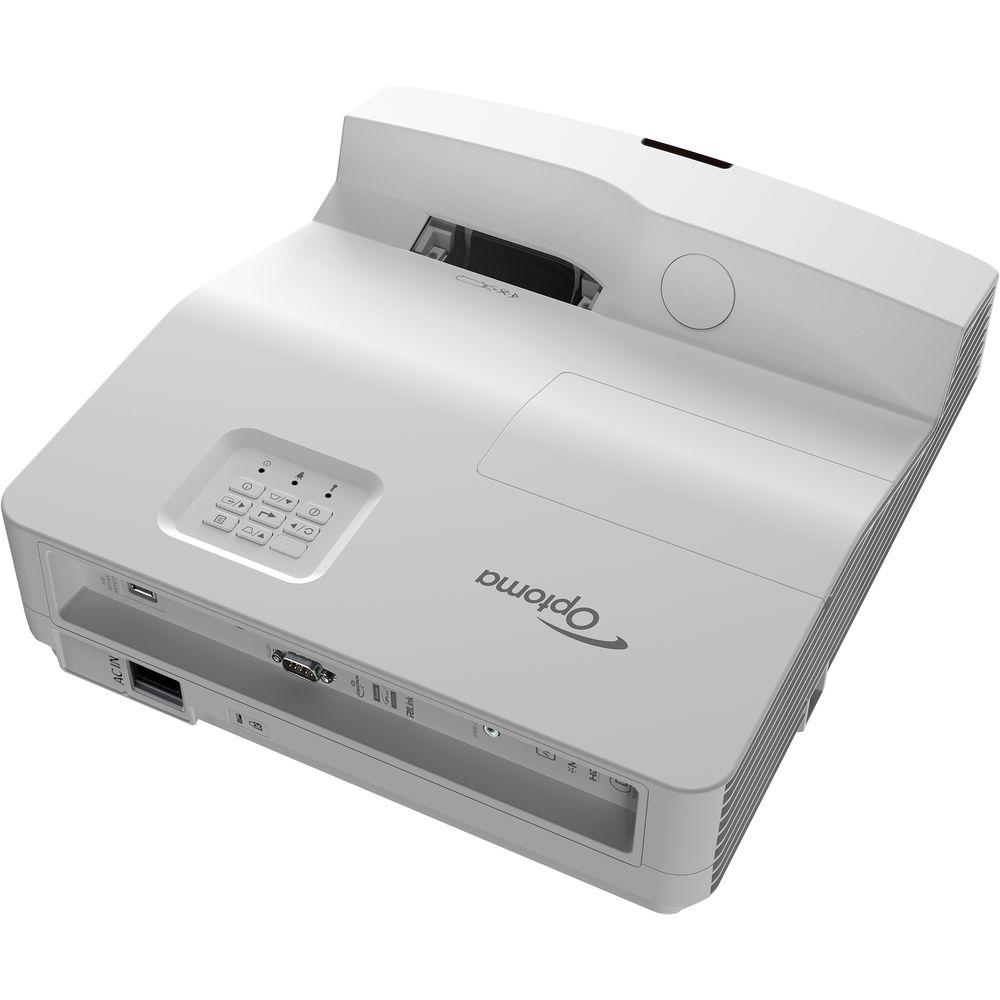

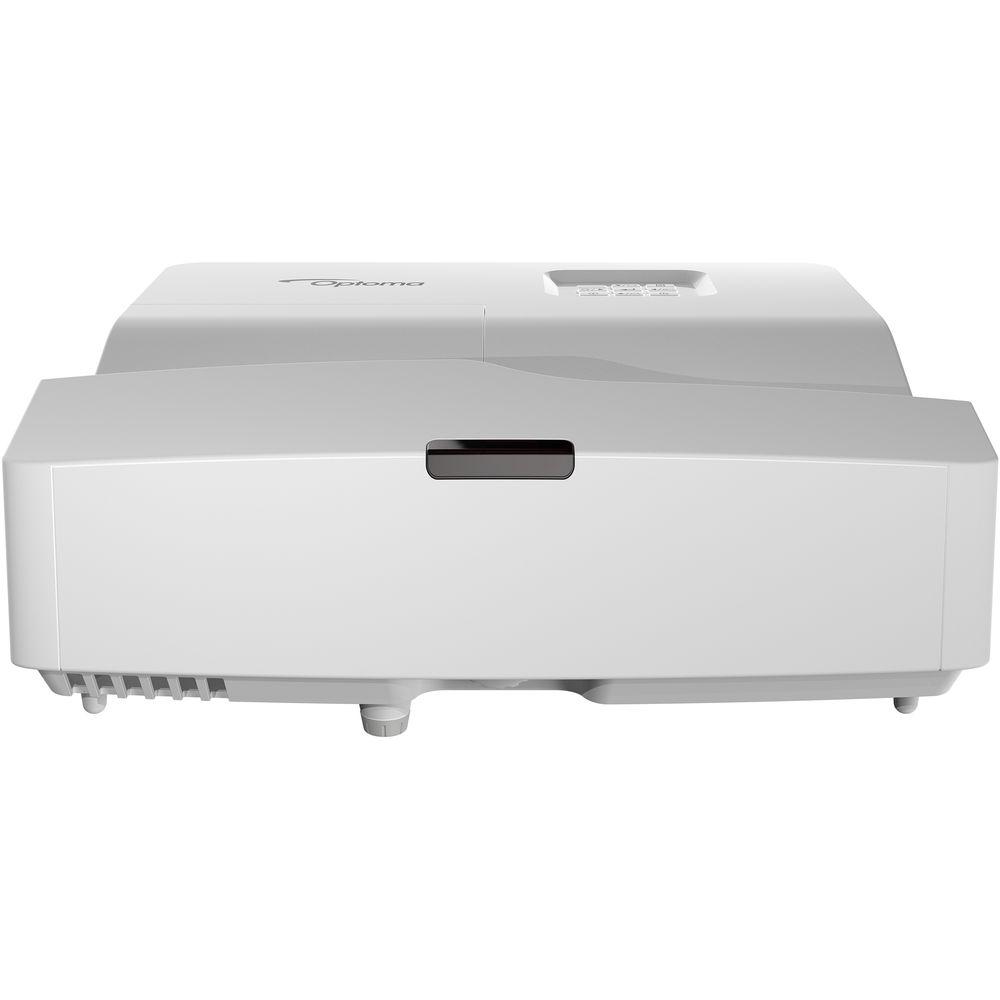

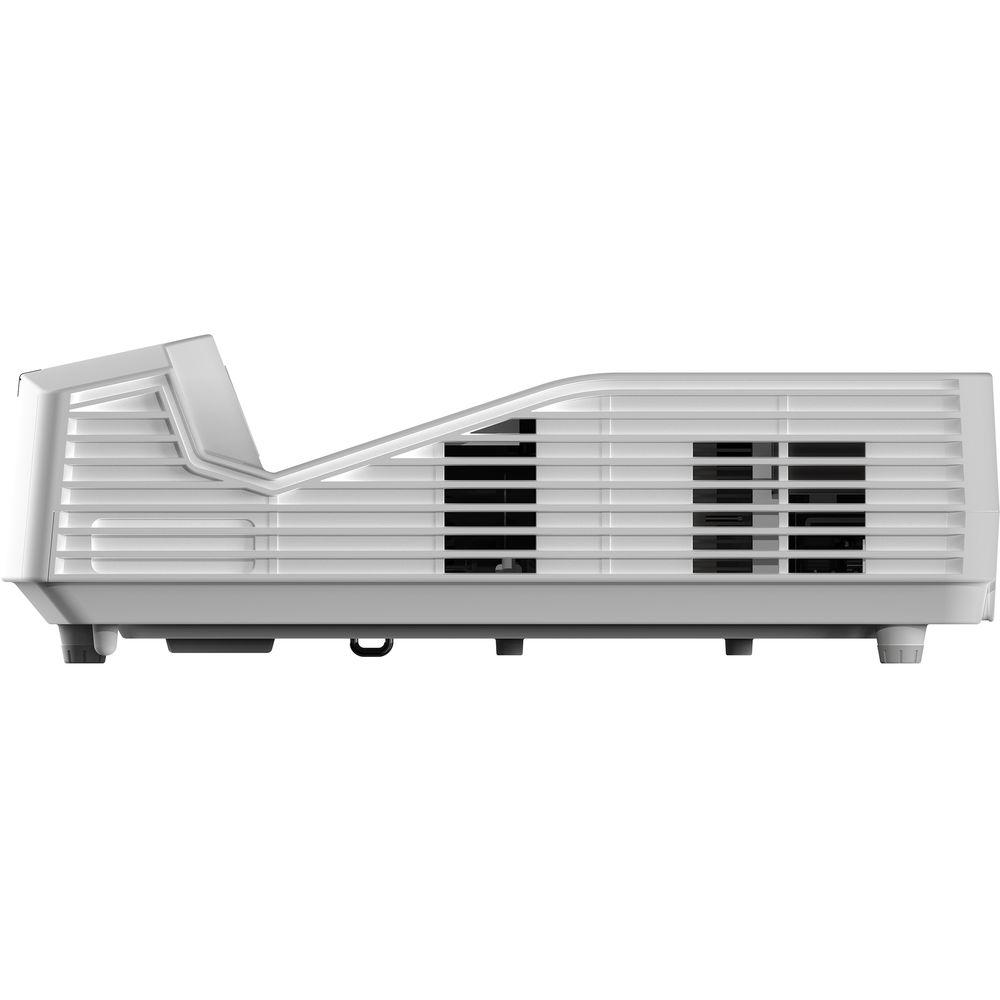

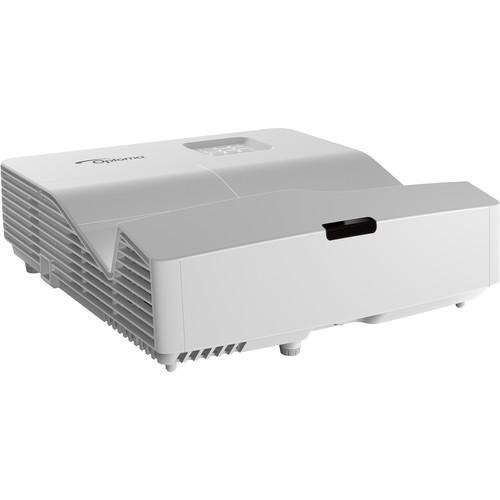

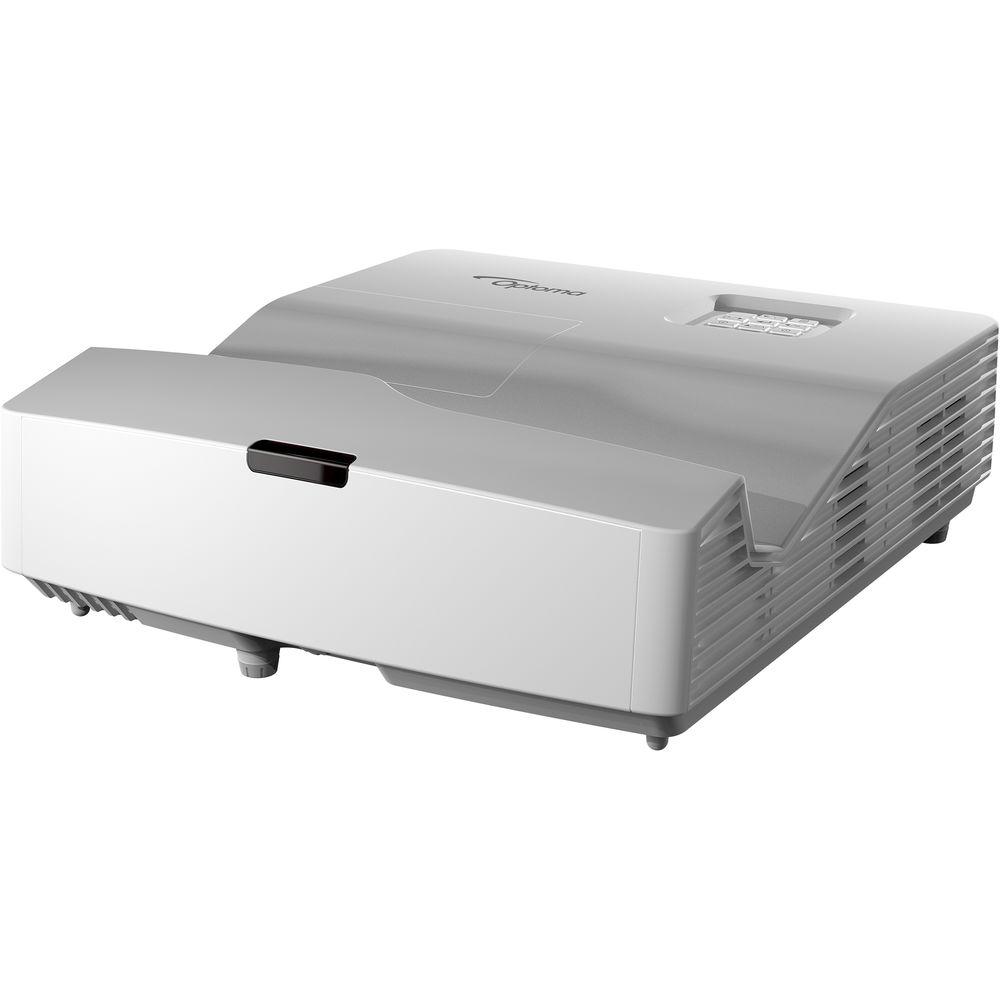

User Manual for Optoma Technology EH330UST 3600-Lumen Full HD Ultra-Short Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology EH330UST 3600-Lumen Full HD
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology EH330UST 3600-Lumen Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description Enjoy bright, clear images at short throw distances with the Optoma EH330UST 3600-Lumen Full HD Ultra-Short Throw DLP Projector. Its 3600 lumens of brightness will overcome ambient light in many settings, while its 20,000:1 dynamic contrast ratio and Full HD 1920 x 1080 native resolution will help ensure that detail is clear. It has an ultra-short 0.25:1 throw ratio, which will allow you to place the projector just 6 to 9" from the screen to prevent the casting of shadows by people walking in front of it; despite this close placement, 80 to 100" images can be produced.
The EH330UST has a VGA and two HDMI inputs to support a variety of devices; a VGA output allows you to daisy-chain the image to another projector or display, while the analog audio input and output will do the same for your audio. A USB Wi-Fi adapter is included to enable wireless presentation from your compatible device. The EH330UST has a built-in 16-Watt speaker to eliminate the need for a separate speaker system. It is controllable via Ethernet, RS-232, or the included IR remote control. A remote control is included as an additional convenience. -
- 3600 lumens of brightness and a 20,000:1 dynamic contrast ratio help provide sharp, detailed images
- Computer-free USB image viewer and office document reader
- Wireless presentations and images with the included HDCast Pro Wi-Fi adapter
- USB display screen mirroring with compatible iOS and Android devices
- LAN display via Ethernet with Windows and Mac OS X computers
- Auto keystone and four-corner correction helps simplify installation
UPC: 796435442521 In the Box Optoma Technology EH330UST 3600-Lumen Full HD Ultra-Short Throw DLP Projector Wireless USB Adapter for Select Optoma Projectors Remote Control Wi-Fi Adapter AC Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology EH330UST 3600-Lumen Full HD Ultra-Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology EH330UST Specs | | | Display System | 0.65" DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3600 Lumens | | Uniformity | 80% | | Offset | 119% ± 3% | | Aspect Ratio | Native: 16:9
Supported: 16:10
Supported: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | DLP Link 3D | Yes | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15.375 to 91.146 kHz

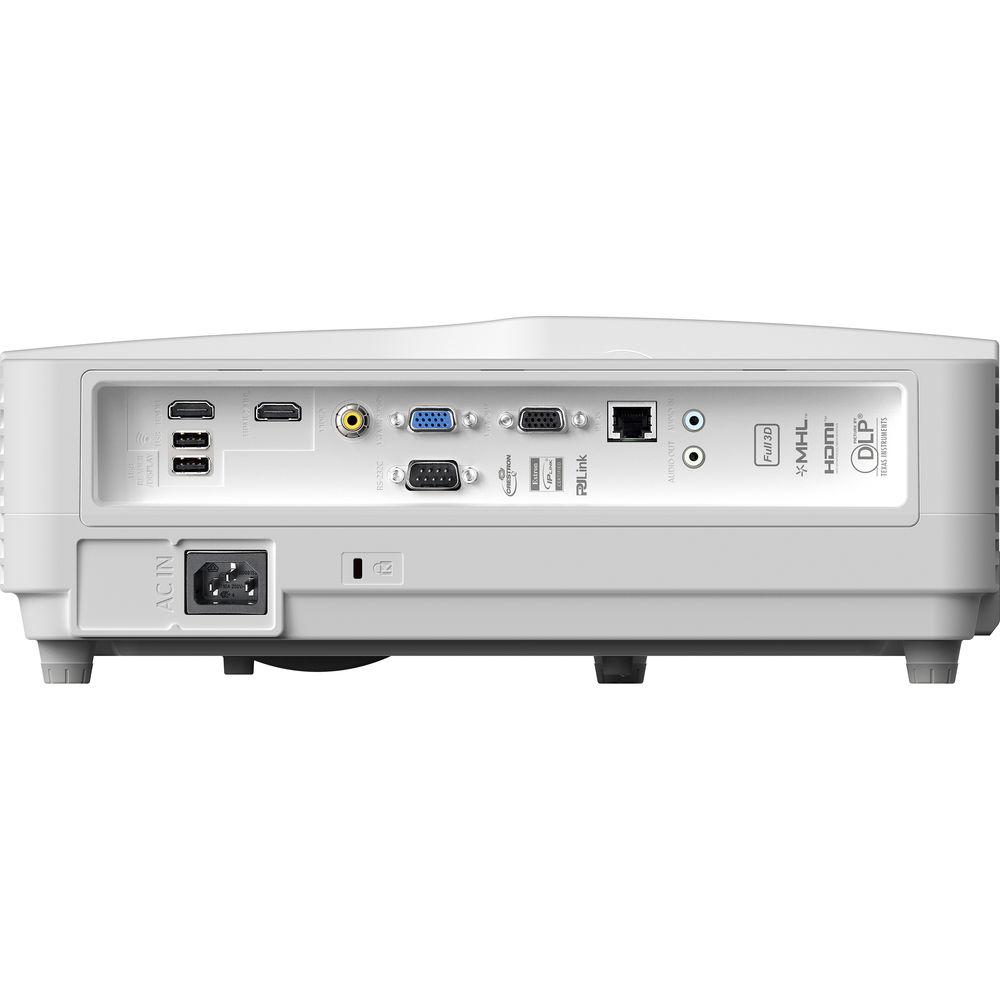

Vertical: 24 to 85 Hz or 120 Hz | | | | Focus | Manual | | Optical Zoom | None | | Throw Distance | 6 - 9" / 15.24 - 22.86 cm | | Throw Ratio | 0.25:1 | | Projection Size | 80 - 100" / 203.20 - 254.00 cm | | | | Built-In Speaker | Yes | | Speaker Power | 16W | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x RS-232 (DE-9) Control
1 x Ethernet (RJ45) LAN
1 x USB 2.0 (USB Type-A) LAN
1 x USB 2.0 (USB Type-A) Audio, Remote, Video | | | | Wireless LAN / Wi-Fi | Yes, with Included Adapter | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Security | Cable Lock Slot | | Supported Document File Types | PDF | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 285 W
Low Brightness: 205 W | | Dimensions (W x H x D) | 13.5 x 4.8 x 15.0" / 34.3 x 12.2 x 38.1 cm | | Weight | 8.7 lb / 3.95 kg | | | | Package Weight | 12.98 lb | | Box Dimensions (LxWxH) | 19.7 x 18.2 x 4.9" |
