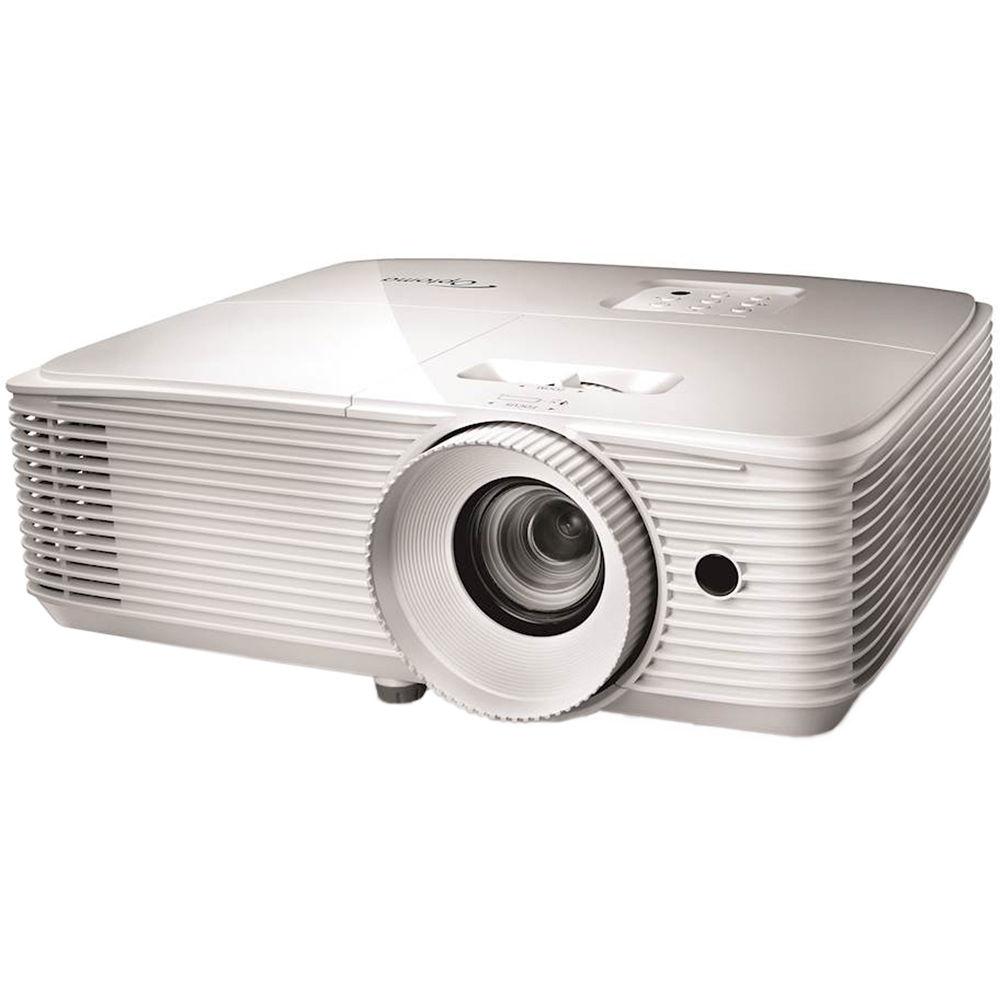

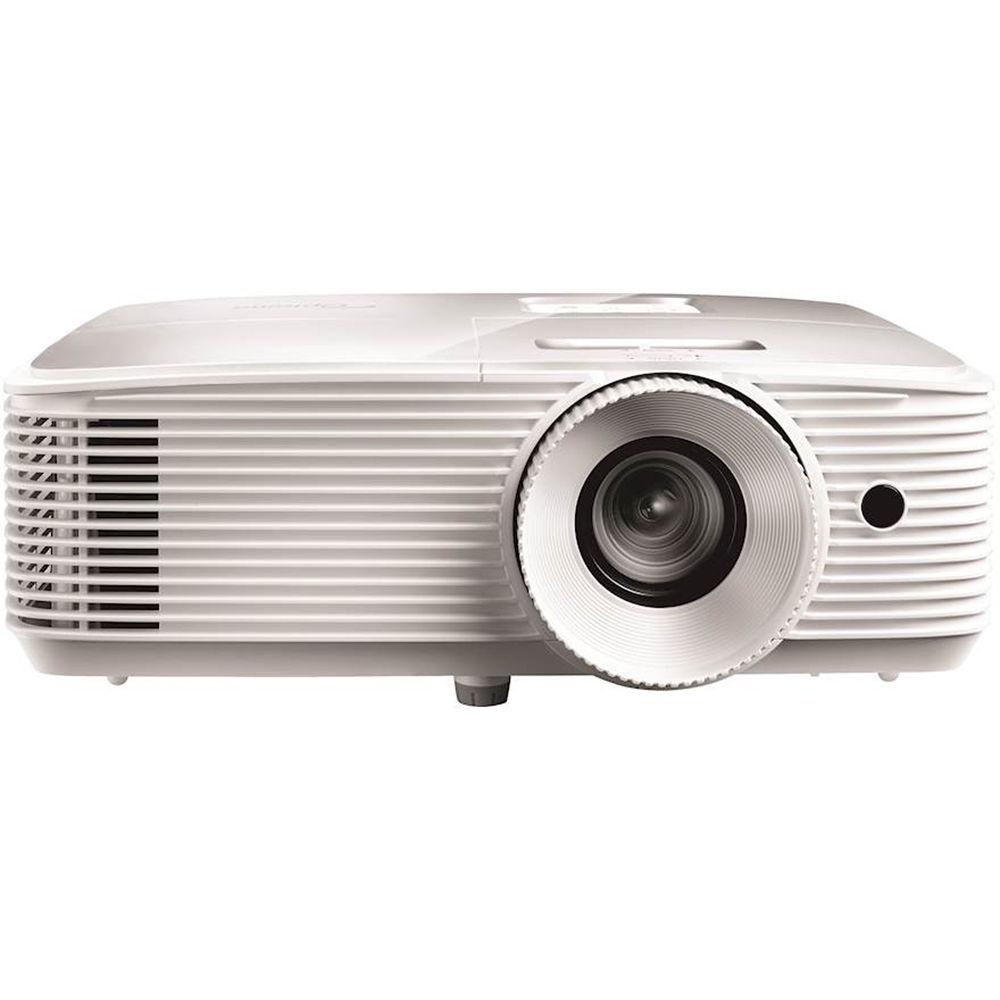

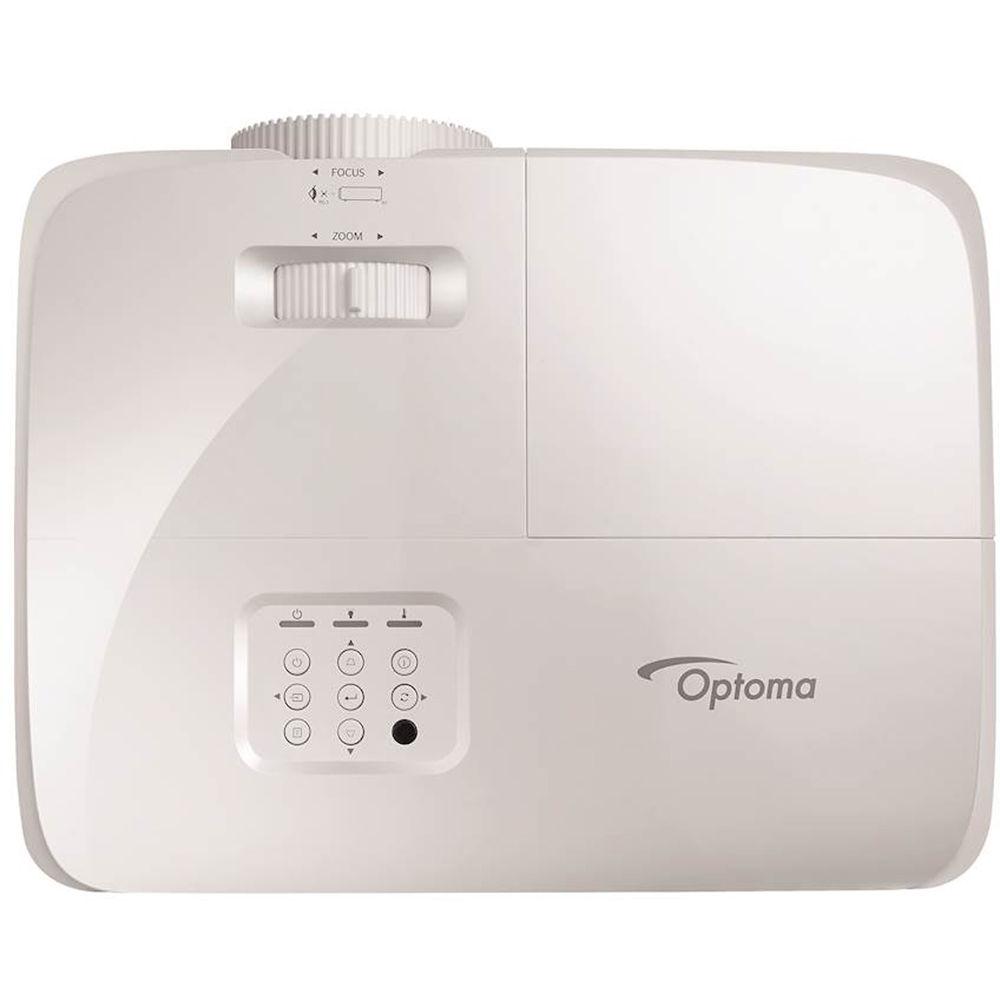

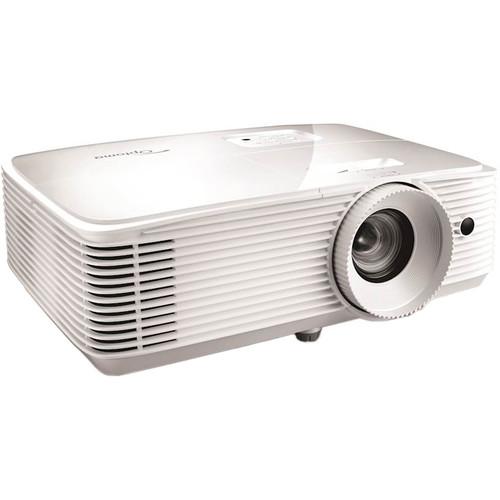

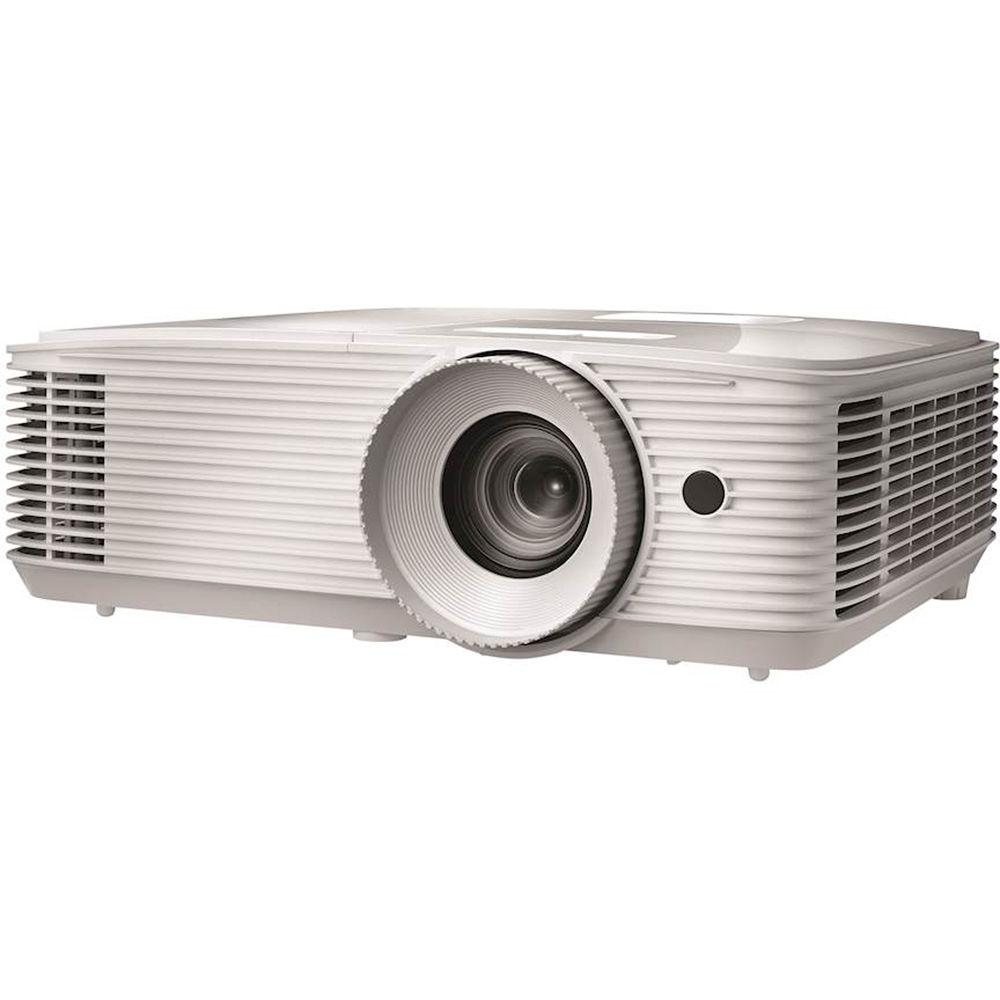

User Manual for Optoma Technology EH334 3600-Lumen Full HD DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology EH334 3600-Lumen Full HD
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology EH334 3600-Lumen Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|

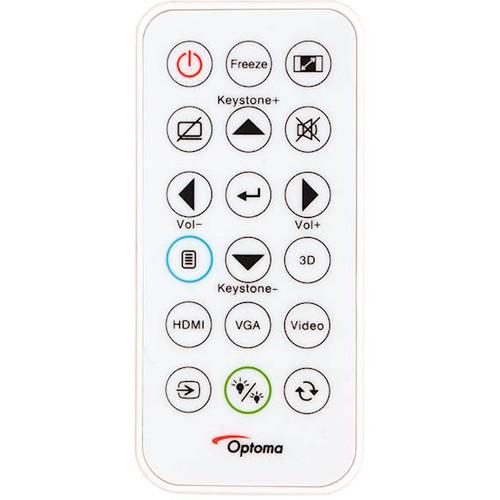

Product description Enjoy bright images and high dynamic contrast with the Optoma EH334 3600-Lumen Full HD DLP Projector. Its native 1920 x 1080 resolution displays data and images clearly at various viewing distances, while its 1.47 to 1.62:1 throw ratio allows you to place the projector relatively far from the screen without losing focus. The EH334 features HDMI, VGA, and RCA composite video inputs for connecting different types of devices. The projector includes an IR remote control with a built-in laser pointer for added convenience. - 1080p projection with 3600 lumens of brightness and a 20,000:1 dynamic contrast ratio

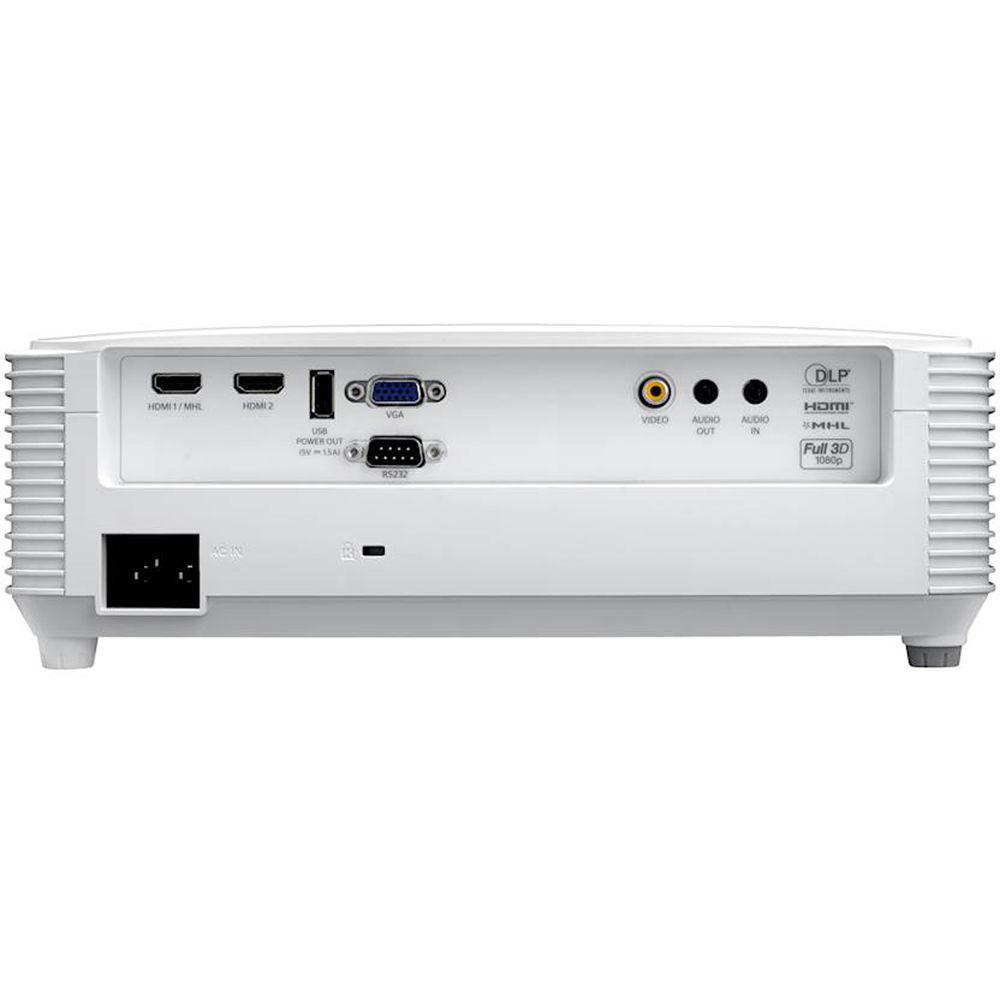

- HDMI, VGA, composite video, and 1/8" audio inputs with an 1/8" audio output
- Integrated 10W speaker enhances presentations and multimedia with sound
- Designed for minimal maintenance with up to a 15,000-hour lamp life
- Optional HDCast Pro enables wireless mirroring and streaming
- Maximum of ±1% keystone distortion
UPC: 796435441661 In the Box Optoma Technology EH334 3600-Lumen Full HD DLP Projector Remote Control with Batteries Carrying Case AC Power Cord Limited 1-Year Warranty on Projector Limited 90-Day Warranty on Lamp More info from Optoma Technology xzqzzstbuttczav Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology EH334 3600-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOptoma Technology EH334 Specs | | | Display System | 0.48" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3600 Lumens | | Uniformity | 70% | | Offset | 116% ± 5% | | Aspect Ratio | Native: 16:9
Supported: 16:10
Supported: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Side by Side (up to 1080i)
Frame Packing (up to 1080p)
Top Bottom (up to 1080p) | | Color Wheel | 6-Segment (R/G/B/W/Y/C) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 25 to 85 Hz or 120 Hz
Vertical: 15 to 91 kHz | | | | Focus | Manual | | Lens | f/2.41 - 2.53 (f = 21.85 - 24 mm) | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.2 - 35.29' / 0.975 - 10.756 m | | Throw Ratio | 1.47 - 1.62:1 | | Projection Size | 28 - 301" / 71.12 - 764.54 cm | | | | Keystone Correction | Vertical: ± 40° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 3500 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Full Brightness: 32 dB
Low Brightness: 27 dB | | Security | Cable Lock Slot
Password Protection
Security Bar | | Supported Languages | Arabic
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Persian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 330 W
Low Brightness: 230 W | | Max Operating Altitude | 10000' / 3048 m | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 10 - 85% | | Dimensions (W x H x D) | 12.4 x 4.3 x 9.2" / 315.0 x 109.2 x 233.7 mm | | Weight | 6.75 lb / 3.06 kg | | | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 15.6 x 13.3 x 6.8" |
