User Manual for Optoma Technology EH415ST 3500-Lumen Full HD Short-Throw DLP Projector Click to enlarge the picture
Contents of the user manual for the Optoma Technology EH415ST 3500-Lumen Full HD
- Product category: Multimedia Projectors Optoma Technology
- Brand: Optoma Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Optoma Technology Multimedia Projectors
 |
User manual for the Optoma Technology EH415ST 3500-Lumen Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Optoma Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Optoma Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Optoma Technology product will considerably shorten its lifespan!
|
Product description Reduce the chance of shadows crossing your presentation with the Optoma EH415ST 3500-Lumen Full HD Short-Throw DLP Projector. Its short 0.5:1 throw ratio will allow you to place it within 3' of the screen and still produce a 60" image. Its 3500 lumens of brightness combined with its 15,000:1 dynamic contrast ratio will help images appear bright and clear in many settings, while its 1920 x 1080 native resolution will help ensure that no detail is lost in large projections.

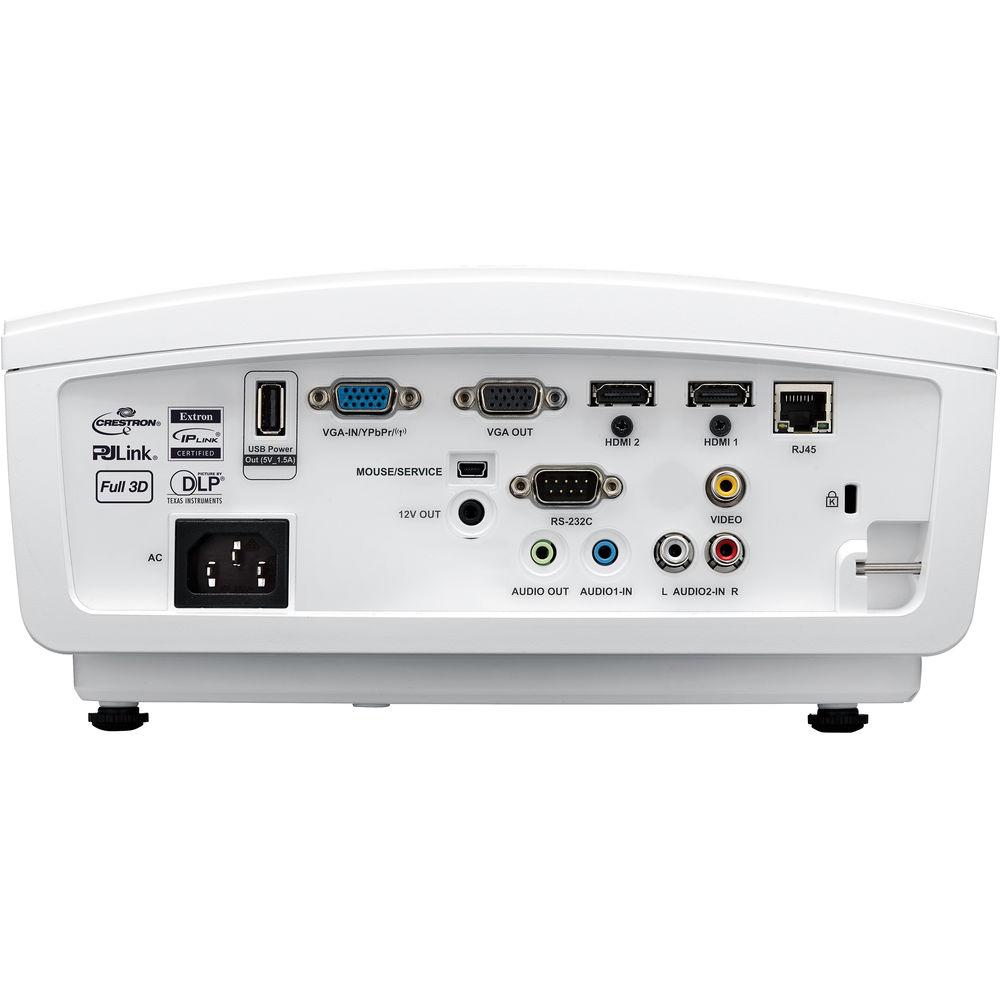

The EH415ST has VGA, composite video, and two HDMI inputs to support a variety of devices. Its VGA output will let you daisy-chain the image to another projector or display while the analog audio input and output will do the same for your audio. The projector will connect wirelessly with the separately sold WHD200 system. It is controllable via Ethernet and RS-232 using AMX or Crestron RoomView software. The projector includes an IR remote control which features a built-in laser pointer. - Short-Throw Projection
- With a short-throw lens, this projector can produce large screen sizes from a short distance.
- 15,000:1 Dynamic Contrast Ratio
- With brighter whites and darker blacks, images come alive and text appears more crisp and clear, making it suitable for business and education applications.
- 3D
- This projector can display 3D content from almost any compatible source, including 3D Blu-ray players, 3D broadcasting, and 3D game consoles. Support for 144 Hz refresh rate provides smooth, flicker-free images.
- Integrated Speaker
- The built-in speaker provides audio support and simplifies setup by eliminating the need for external speakers
- Eco+
- Eco+ technology brings together high contrast, improved lamp life, and energy saving features that are designed to be easy to use while reducing power consumption.
- Energy Saving
- Using the various lamp modes, you can reduce power consumption by up to 70%. Each mode also has a positive effect on the lamp life while lowering the total cost of ownership and reducing maintenance.
- Auto Power Off
- There may be instances when the projector is left running when not in use. To help save energy, the Auto Power Off feature automatically turns off the projector after a set period of time if it is not being used.
- Up to 7000-Hour Lamp Life
- Reduce the number of required lamp changes with a lamp life of up to 7000 hours using the education cycle.
- Eco AV Mute
- Stay in control of your presentation with Eco AV Mute. Direct your audience's attention away from the screen by blanking the image when it's no longer needed. This also reduces the power consumption by up to 70%, further prolonging the life of your lamp.
- Quick Resume
- Quick Resume allows the projector to be instantly powered on again if it is accidentally switched off.

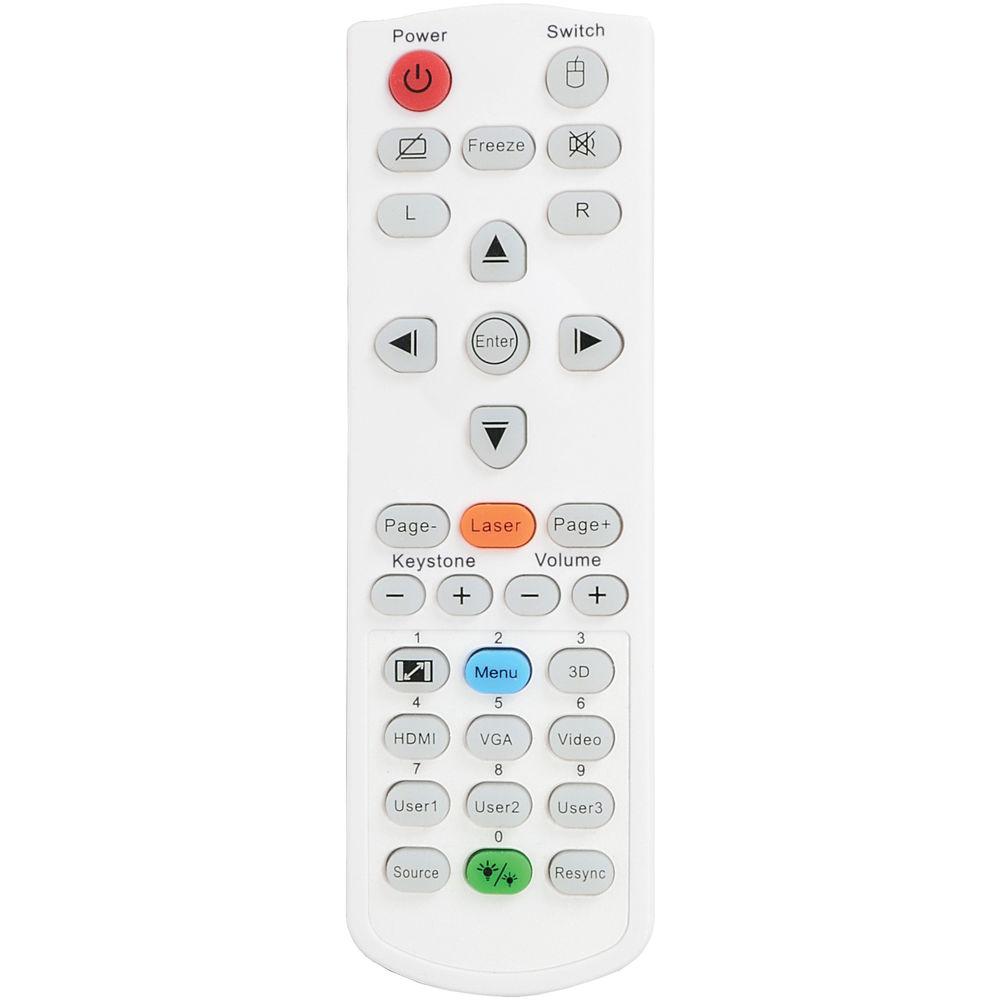

- Remote Mouse
- Keep your audience's attention focused on what you want using the included remote with USB mouse control.
- Remote Networking and Control
- There is a range of options for remotely controlling and monitoring the projector:
- RS-232 – This projector includes a set of RS-232 commands designed to make it easy to manage using virtually any control system.
- AMX Compatibility – Dynamic discovery protocol is incorporated into the projector, allowing for easy installation with AMX control systems.
- LAN Control – Using the compatible RoomView software, you can power on/off, monitor, manage, and control up to 250 projectors at the same time from virtually any computer. You can also schedule the projectors to power on/off, control and alter the projector settings using the web browser, send emergency texts for urgent or important announcements, and automatically receive email updates for lamp maintenance.
- BrilliantColor Technology
- BrilliantColor multi-color processing technology is designed to produce vibrant, natural-looking images.
- USB Power
- Use the USB power output to power an HDMI wireless adapter, such as Google Chromecast, or charge your compatible 3D glasses.
- Wireless Presenting with Optional Adapter
- Present your work wirelessly with the separately sold Wireless VGA Dongle. It will allow you to connect and display media wirelessly from a computer or mobile device.
UPC: 796435419523 In the Box Optoma Technology EH415ST 3500-Lumen Full HD Short-Throw DLP Projector Remote Control with Batteries VGA Cable Carrying Case Lens Cap AC Power Cord Limited 3-Year Warranty on Projector Limited 1-Year Warranty on Lamp Guides & Manuals wadwrabzczfwefxzvcbddefffusbb More info from Optoma Technology Table of Contents
|
Upload User Manual
Have you got an user manual for the Optoma Technology EH415ST 3500-Lumen Full HD Short-Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Optoma Technology EH415ST 3500-Lumen Full HD Short-Throw DLP Projector can be downloaded in PDF format at the link stated below.
Technical parametersOptoma Technology EH415ST Specs | | | Display System | 1-Chip 0.65" DC3 DMD DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3500 Lumens | | Uniformity | >80% | | Offset | 115% ± 5% | | Aspect Ratio | Native: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 15,000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing
Side by Side
Top Bottom | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15.375 to 91.146 kHz
Vertical: 24 to 85 Hz or 120 Hz | | | | Focus | Manual | | Lens | f/2.87 (f = 7.28 mm) | | Lens Shift | Vertical: ± 4.5% | | Throw Distance | 2.7 - 5.5' / 0.823 - 1.676 m | | Throw Ratio | 0.5:1 | | Projection Size | 59.6 - 152.6" / 151.38 - 387.60 cm | | | | Keystone Correction | Vertical: ± 20° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes | | Speaker Power | 10W | | Closed Captioning | Yes | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x Composite (RCA) Video (Input)
1 x RCA Stereo (L/R) Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x 12 V Trigger Control (Output)
1 x VESA 3D Sync Control (Input)
1 x Ethernet (RJ45) LAN (Input)
1 x RS-232C (Unspecified Connector) Control (Input)
1 x Mini-USB Type-B Female | | | | Expected Lamp Life | Low Brightness: 7000 Hours
Medium Brightness: 4000 Hours
Full Brightness: 3000 Hours | | Fan Noise | Low Brightness: 35 dB | | Security | Cable Lock Slot
Keypad Lock
Security Bar | | Supported Languages | Arabic
Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 310 W
Low Brightness: 230 W
Standby Mode (Lamp Off): <0.5 W | | Temperature | Operating
41 to 104°F (5 to 40°C)
Humidity: 0 - 85% | | Dimensions (W x H x D) | 11.3 x 4.9 x 10.4" / 286.0 x 124.0 x 265.0 mm | | Weight | 7.5 lb / 3.4 kg | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 15.4 x 14.7 x 8.3" |
